Hybrid engines — advantages, disadvantages: Question bank

Every symbol you need — built here, not borrowed

Rather than send you back to the parent note, here is every symbol defined in situ, each anchored to the pictures below.

Definition

$\overset{m}{˙}_{o x}$ = oxidiser mass flow (kg/s), set directly by a valve — your throttle knob.
$\overset{m}{˙}_{f u e l}$ = fuel mass flow (kg/s), not commanded; it is produced as the solid wall vaporises.
$\overset{r}{˙}$ = regression rate — how fast the burning wall recedes into the fuel (m/s, really mm/s in practice). Look at the red arrow in Figure 1: it points into the fuel.
$A_{p or t}$ = cross-sectional area of the central hole the oxidiser flows down (m²). See Figure 2 — it grows as the burn proceeds.
$G_{o x} = \frac{m ˙ _{o x}}{A _{p or t}}$ = oxidiser mass flux (kg s⁻¹ m⁻²) — how crowded the oxidiser is in the port.
$ρ_{f}$ = density of the solid fuel (kg/m³) — how much mass sits in each cubic metre of grain (e.g. HTPB rubber ≈ 920 kg/m³).
$A_{b}$ = burning surface area (m²) — the total wall area actively vaporising (Figure 1, the inner tube surface).
$a$ = the regression coefficient, an empirical constant fixing the overall speed of wall recession — it bundles the fuel's chemistry, heat of vaporisation, and flame temperature. Its units are not simple: because $\overset{r}{˙} = a G_{o x}^{n}$ must give $\overset{r}{˙}$ in $m/s$ while $G_{o x}$ is in $kg s^{- 1} m^{- 2}$ , the coefficient carries units $m/s / (kg s^{- 1} m^{- 2})^{n}$ — i.e. they depend on $n$ , which is exactly why $a$ is only ever quoted alongside its $n$ (typical $a \approx 1 0^{- 4}$ in SI for HTPB/O₂ with $n \approx 0.6$ ).
$n$ = the flux exponent, a dimensionless number (typically $0.5$ – $0.8$ ) telling you how sensitively regression responds to oxidiser crowding; it emerges from diffusion-limited mixing in the boundary layer (Figure 3).
$O/F = \frac{m ˙ _{o x}}{m ˙ _{f u e l}}$ = oxidiser-to-fuel ratio — the mixture recipe.
$I_{s p}$ = specific impulse, the engine's "fuel economy" (see Specific Impulse (Isp)).
$c^{*}$ = characteristic velocity — a number measuring how efficiently the combustion chamber turns propellant into hot, high-pressure gas (m/s); " $c^{*}$ efficiency" is the fraction of the ideal $c^{*}$ you actually achieve. Poor mixing lowers it.

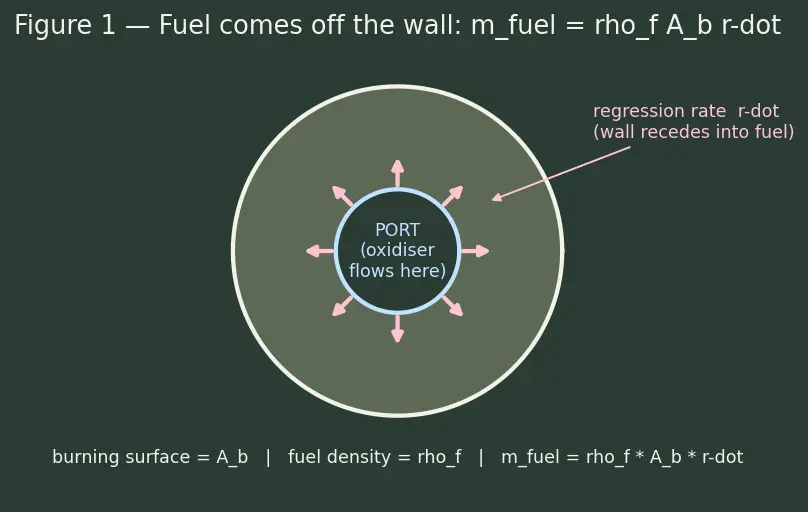

Figure 1 — Fuel comes off the wall. The red arrows point into the fuel: each second the wall recedes by $\overset{r}{˙}$ , and $\overset{m}{˙}_{f u e l} = ρ_{f} A_{b} \overset{r}{˙}$ .

Figure — Hybrid engines — advantages, disadvantages

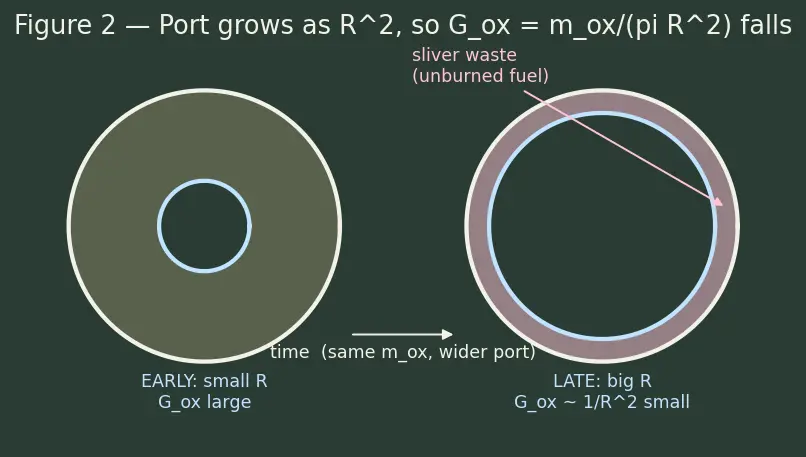

Figure 2 — The port grows as $R^{2}$ . Same $\overset{m}{˙}_{o x}$ , wider hole, so $G_{o x} = \overset{m}{˙}_{o x} / (π R^{2})$ falls; the pink crescent at the end is sliver waste.

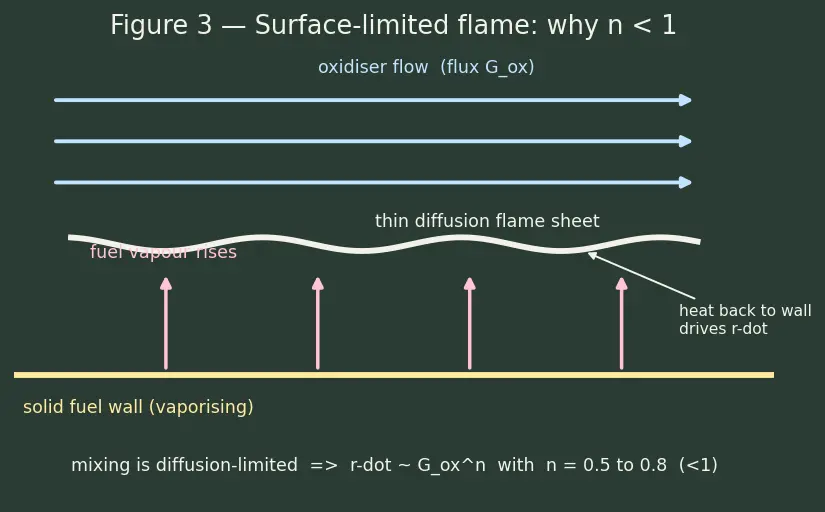

Figure 3 — The surface-limited diffusion flame. Oxidiser flows over vaporising fuel; the flame sits in a thin sheet, and diffusion-limited mixing is why $n < 1$ .

Formula

The universal thrust equation — used again below, so its symbols are pinned here: $F = \overset{m}{˙} v_{e} + (p_{e} - p_{a}) A_{e}$

WHY this form (intuitive derivation): picture the engine each second hurling a chunk of gas of mass $\overset{m}{˙}$ out the back at speed $v_{e}$ . By Newton's 2nd/3rd law, throwing momentum $\overset{m}{˙} v_{e}$ backward pushes the rocket forward with an equal force — that is the first term, the momentum thrust (see Thrust Equation and Momentum Theorem). But the gas at the nozzle exit may still be squeezing at pressure $p_{e}$ while the outside pushes back at $p_{a}$ ; over the exit area $A_{e}$ this leftover pressure imbalance adds (or subtracts) a force $(p_{e} - p_{a}) A_{e}$ — the pressure thrust. When the nozzle is perfectly expanded, $p_{e} = p_{a}$ and only the momentum term survives.
$\overset{m}{˙} = \overset{m}{˙}_{o x} + \overset{m}{˙}_{f u e l}$ = total mass ejected per second.
$v_{e}$ = exhaust speed at the nozzle exit (m/s, ~km/s scale).
$p_{e}$ = gas pressure right at the nozzle exit plane; $p_{a}$ = ambient (outside) pressure; $A_{e}$ = nozzle exit area.

Prerequisite links: Regression Rate and Boundary Layer Combustion, Thrust Equation and Momentum Theorem, Solid Rocket Motors, Liquid Propellant Engines, Green Propellants.

True or false — justify

A hybrid can be shut off mid-flight, then re-lit.

True. Closing the oxidiser valve starves the diffusion flame so

\overset{m}{˙}_{f u e l} \to 0

; re-opening it restores flow over the still-solid grain, so restart is a genuine capability — unlike a solid motor.

A stored hybrid grain will explode if it cracks and sparks.

False. The grain (e.g. HTPB rubber) carries no oxidiser inside it, so a crack + spark has nothing to sustain a runaway reaction — the phase separation is the safety mechanism.

A hybrid always burns at exactly its optimal O/F ratio.

False. As the port widens,

G_{o x}

falls, so

\overset{r}{˙}

and

\overset{m}{˙}_{f u e l}

drop while valved

\overset{m}{˙}_{o x}

stays fixed — the O/F ratio drifts (usually oxidiser-rich) away from optimum during the burn.

Increasing oxidiser flow always increases fuel production.

True (to first order). Higher

\overset{m}{˙}_{o x}

raises

G_{o x}

, and since

\overset{r}{˙} = a G_{o x}^{n}

with

n > 0

, the wall regresses faster, so

\overset{m}{˙}_{f u e l} = ρ_{f} A_{b} \overset{r}{˙}

rises too — this coupling is exactly what a solid motor lacks.

A hybrid can match the specific impulse of the best liquid engines.

False. Fuel must vaporise off a wall and mix by slow diffusion in the boundary layer, and the O/F drifts, so hybrids sit between solids and best liquids — never at the top.

The solid part of a hybrid is what limits its throttling.

False. The rate-limiting reactant is the flowing oxidiser; the solid just waits to be vaporised. The throttle knob is the fluid valve, not the solid.

A hybrid's thrust responds instantly and proportionally to the oxidiser valve.

Roughly true for oxidiser, but not exactly proportional. Fuel flow follows

\overset{m}{˙}_{o x}^{n}

with

n < 1

, so total thrust changes less steeply than the oxidiser command — halving oxidiser does not halve thrust.

Because both propellants are separated, a hybrid needs the same plumbing as a liquid engine.

False. Only the oxidiser is a fluid, so you need one tank, one feed line, one valve — the fuel is a passive grain, cutting the plumbing roughly in half.

Spot the error

"Thrust in a hybrid is set by how fast the solid fuel is fed in, like coal into a furnace."

Wrong — the fuel isn't fed; it's vaporised in place off the wall at rate

\overset{r}{˙}

. Thrust is ultimately paced by the oxidiser flux you command, since

\overset{r}{˙} = a G_{o x}^{n}

"Since the flame is at the boundary layer, more surface area does nothing."

Wrong — look at Figure 3: the flame sheet hugs the whole wall, and

\overset{m}{˙}_{f u e l} = ρ_{f} A_{b} \overset{r}{˙}

is directly proportional to burning area

A_{b}

. That's exactly why high-thrust hybrids need complex multi-port grains to raise

A_{b}

"The O/F shift happens because the operator keeps changing the oxidiser valve."

Wrong — the shift happens even at a constant valve setting, because the port geometry itself grows (Figure 2), dropping

G_{o x}

1/ R^{2}

and hence

\overset{m}{˙}_{f u e l}

over time.

"A hybrid is green because its exhaust is water."

Misleading — "green" refers to using benign oxidisers like N₂O or LOX (see Green Propellants) instead of toxic ones; exhaust composition depends on the fuel and is not automatically water.

"Regression rate

\overset{r}{˙}

is the speed of the exhaust gases leaving the nozzle."

Wrong —

\overset{r}{˙}

is the speed at which the solid wall recedes as it vaporises (mm/s scale, the red arrow in Figure 1), a completely different quantity from exhaust speed

v_{e}

(km/s scale).

"Because the grain is inert, a hybrid can never accidentally ignite."

Overstated — the grain is safe in isolation, but once oxidiser is flowing the boundary layer is a live flame; the safety claim is about storage and handling, not operation.

"Sliver waste means the nozzle gets clogged with leftover fuel."

Wrong — sliver waste is the thin crescent of fuel left near the case when the port has grown large (pink in Figure 2); it lowers efficiency by carrying dead mass, not by clogging the nozzle.

Why questions

Why can a hybrid throttle but a solid motor cannot?

In a hybrid the reactants are separated and the oxidiser is valved, so you can vary

\overset{m}{˙}_{o x}

; in a solid the oxidiser is pre-mixed into the grain, giving no independent control knob.

Why is the regression rate relatively low in a hybrid?

Burning is surface-limited — a thin diffusion flame at the boundary layer (Figure 3), not a premixed reaction everywhere — so fuel leaves the wall slowly, capping thrust for a given port area (see Regression Rate and Boundary Layer Combustion).

Why does

G_{o x}

fall during a fixed-oxidiser burn?

G_{o x} = \overset{m}{˙}_{o x} / A_{p or t}

and

A_{p or t} = π R^{2}

; as the wall recedes

R

grows, so with

\overset{m}{˙}_{o x}

fixed the flux drops as

1/ R^{2}

(Figure 2).

Why does the O/F ratio usually drift oxidiser-rich?

Falling

G_{o x}

lowers

\overset{r}{˙}

and thus

\overset{m}{˙}_{f u e l}

, while valved

\overset{m}{˙}_{o x}

holds steady — so the ratio

\overset{m}{˙}_{o x} / \overset{m}{˙}_{f u e l}

climbs.

Why does the exponent

n

come out less than 1?

Because vaporisation is diffusion-limited: fuel vapour and oxidiser must mix across the boundary layer before burning, and that mixing does not keep full pace with rising flux — so doubling

G_{o x}

less-than-doubles the heat reaching the wall, giving

\overset{r}{˙} \propto G_{o x}^{n}

with

n < 1

(Figure 3).

Why does the momentum-theorem thrust

F = \overset{m}{˙} v_{e} + (p_{e} - p_{a}) A_{e}

still apply to hybrids?

The thrust equation is universal — it only cares about mass ejected per second and its speed; the hybrid's peculiarity is merely how

\overset{m}{˙}

is generated, not the momentum bookkeeping.

Why does incomplete combustion lower a hybrid's

c^{*}

efficiency, and hence

I_{s p}

c^{*}

measures how well the chamber turns propellant into hot high-pressure gas; imperfect diffusion mixing leaves some reactants unburned, so the achieved

c^{*}

falls short of ideal — and since

I_{s p} = c^{*} C_{F} / g_{0}

, that directly drags

I_{s p}

down.

Edge cases

What happens to thrust the instant the oxidiser valve closes fully (

\overset{m}{˙}_{o x} \to 0

G_{o x} \to 0

\overset{m}{˙}_{f u e l} \to 0

and total

\overset{m}{˙} \to 0

; thrust collapses to essentially zero — the engine self-extinguishes.

What is

\overset{r}{˙}

when there is no oxidiser flow at all?

With

G_{o x} = 0

, the regression law

\overset{r}{˙} = a G_{o x}^{n}

gives

\overset{r}{˙} = 0

(for

n > 0

) — the wall stops receding because nothing is driving vaporisation.

As the port grows toward the case wall (end of burn), what limits performance?

A_{p or t}

becomes large,

G_{o x}

tiny, and only a thin sliver of fuel remains near the case (Figure 2); regression stalls and efficiency drops, marking practical burnout.

If you kept raising oxidiser flow without limit, does thrust rise forever?

No — eventually the mixture goes oxidiser-rich past optimal O/F, combustion temperature and

I_{s p}

fall, and flooding cools the boundary layer, so gains flatten and can reverse.

At the exponent limit

n \to 1

, how would fuel flow respond to oxidiser?

\overset{r}{˙} \propto G_{o x}^{1}

would make

\overset{m}{˙}_{f u e l}

scale linearly with

\overset{m}{˙}_{o x}

, so O/F stays nearly constant — but real hybrids have

n \approx 0.5

–

0.8

, which is why the O/F drifts.

At the opposite limit

n \to 0

, what would happen?

\overset{r}{˙} = a G_{o x}^{0} = a

would be constant, ignoring oxidiser flux entirely — fuel production would no longer track the valve at all, so O/F would drift very strongly oxidiser-rich as you throttle. Real

n

sits well above 0, keeping some coupling.

What pressure-transient effect appears at burnout?

As fuel runs out,

\overset{m}{˙}_{f u e l}

drops sharply, chamber pressure and

p_{e}

fall, and the

(p_{e} - p_{a}) A_{e}

term in the thrust equation changes sign region-to-region — thrust can tail off unevenly rather than cutting cleanly, a known hybrid burnout quirk.

For a single-port grain scaled up to high thrust, why does the design break down?

One port offers limited burning area

A_{b}

; to raise

\overset{m}{˙}_{f u e l}

you must enlarge

A_{b}

, forcing complex multi-port geometries — a signature scaling disadvantage.

Recall One-line summary to lock it in

Every trap here dissolves if you remember: the flowing oxidiser holds the throttle, the solid fuel only vaporises at its surface, and the port grows as it burns. Say those three, and you can justify any answer above.
