Hybrid engines — advantages, disadvantages: Worked examples

This page is the drill ground for Hybrid engines. The parent note built the physics; here we push it through every kind of input the topic can throw at you — normal numbers, halving/doubling, the moment the valve hits zero, the strange limits as the port grows huge, a real-world word problem, and one exam-style twist.

Before any symbol appears, here is the whole toolbox in plain words, so nothing is used before it is earned.

Recall the parent chain: Thrust Equation and Momentum Theorem gives $F$ , Regression Rate and Boundary Layer Combustion gives $\overset{r}{˙}$ , and Specific Impulse (Isp) measures efficiency. We contrast against Solid Rocket Motors (can't stop) and Liquid Propellant Engines (best $I_{s p}$ ).

The scenario matrix

Every hybrid problem is one of these cells. The worked examples below are tagged with the cell they cover.

Cell	What varies	The "gotcha" it tests
A · Baseline	normal $\overset{m}{˙}_{o x}, \overset{m}{˙}_{f u e l}$	just apply $F = \overset{m}{˙} v_{e}$
B · Valve down	oxidiser flow scaled by factor $k < 1$	fuel follows via $k^{n}$ , not linearly
C · Valve up	oxidiser flow scaled $k > 1$	same law, thrust rises sub-proportionally
D · Zero input	$\overset{m}{˙}_{o x} \to 0$	degenerate: thrust → 0, engine stops
E · Limit / long burn	$A_{p or t} \to$ large	$G_{o x} \to 0$ , O/F drifts, $\overset{r}{˙}$ fades
F · Pressure term ON	$p_{e} \neq = p_{a}$	can't drop the bracket
G · Real-world word problem	pick oxidiser flow for a target O/F	invert the regression law
H · Exam twist	compare vs solid / vs liquid	conceptual + numeric $I_{s p}$

$I_{s p}$ (specific impulse) $= v_{e} / g_{0}$ with $g_{0} = 9.81 m/s^{2}$ — "seconds of thrust per unit weight of propellant." We use it in cells G and H.

Cell A — Baseline thrust

Cells B & C — Throttling (valve down, then valve up)

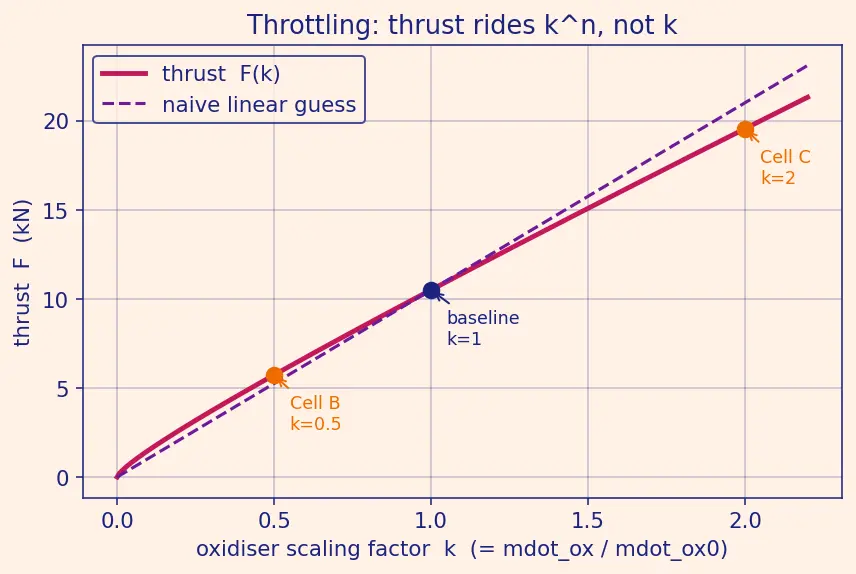

Figure — Hybrid engines — advantages, disadvantages

The figure shows the master curve: thrust vs oxidiser-scaling factor $k$ . Notice it is not a straight line through the origin — because fuel follows $k^{n}$ , the curve bends.

Worked example Cell B — halving. From the baseline (A) with

$n = 0.6$ , port area momentarily fixed, the pilot halves $\overset{m}{˙}_{o x}$ to $k = 0.5$ . New thrust?

Forecast: will thrust halve exactly? (No — fuel drops less steeply.)

Step 1 — new oxidiser flow. $\overset{m}{˙}_{o x}^{'} = 0.5 \times 3.0 = 1.5$ kg/s. Why this step? This is the commanded input — the only thing the pilot touches directly.

Step 2 — new fuel flow via regression law. At fixed port, $G_{o x} \propto \overset{m}{˙}_{o x}$ , and $\overset{m}{˙}_{f u e l} \propto \overset{r}{˙} \propto G_{o x}^{n} \propto \overset{m}{˙}_{o x}^{n}$ . So it scales by $k^{n} = 0. 5^{0.6} = 0.660$ . $\overset{m}{˙}_{f u e l}^{'} = 1.2 \times 0.660 = 0.792 kg/s .$ Why this step? The parent's key insight — fuel is coupled to oxidiser flux, the coupling a solid motor lacks.

Step 3 — new thrust. $\overset{m}{˙}^{'} = 1.5 + 0.792 = 2.292$ kg/s, so $F = 2.292 \times 2500 = 5730 N .$

Verify: ratio $F^{'} / F_{0} = 5730/10500 = 0.546$ — thrust dropped to ~55%, not 50%. The fuel term's gentle $0.660$ factor is exactly why. ✓

Cell D — Zero input (the degenerate case)

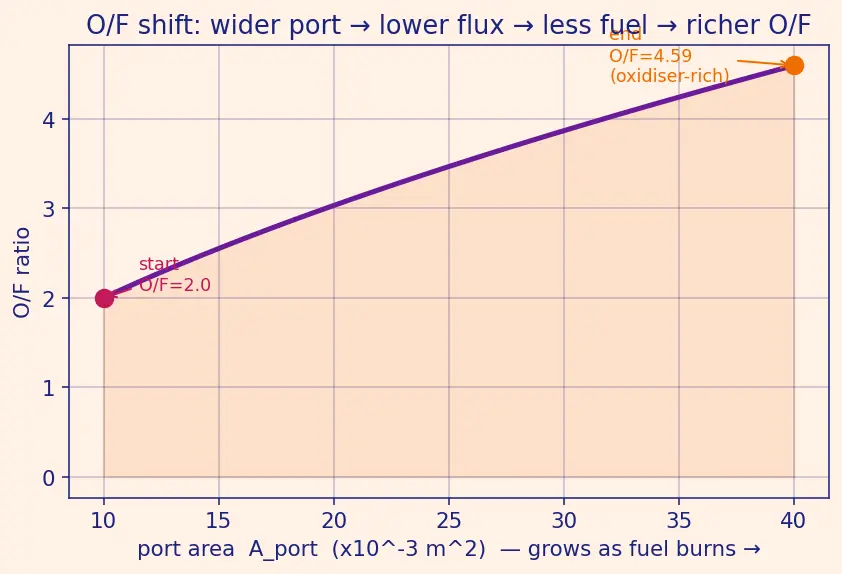

Cell E — Long-burn limit (O/F shift as the port opens)

Worked example A grain starts with port area

$A_{p or t} = 0.010 m^{2}$ and ends (fully burned) at $A_{p or t} = 0.040 m^{2}$ . Oxidiser held constant at $\overset{m}{˙}_{o x} = 2.0$ kg/s, $n = 0.6$ . Initial $\overset{m}{˙}_{f u e l} = 1.0$ kg/s. Find the O/F ratio at start and at end.

Forecast: does O/F stay put, go richer in oxidiser, or richer in fuel?

Step 1 — start O/F. $O/F_{i} = \overset{m}{˙}_{o x} / \overset{m}{˙}_{f u e l} = 2.0/1.0 = 2.0$ . Why this step? Direct definition at the initial instant.

Step 2 — how fuel flow changes. Port grew by factor $0.040/0.010 = 4$ . Since $G_{o x} = \overset{m}{˙}_{o x} / A_{p or t}$ at fixed $\overset{m}{˙}_{o x}$ , flux falls by $1/4$ . Fuel scales as $G_{o x}^{n}$ , so $\overset{m}{˙}_{f u e l, f} = 1.0 \times (\frac{1}{4})^{0.6} = 1.0 \times 0.4353 = 0.4353 kg/s .$ Why this step? Wider port ⇒ same oxidiser spread over more area ⇒ lower flux ⇒ slower wall recession ⇒ less fuel. This is the O/F shift mechanism.

Step 3 — end O/F. $O/F_{f} = 2.0/0.4353 = 4.595$ .

Verify: O/F climbed $2.0 \to 4.60$ — the burn got oxidiser-rich, exactly the parent's "drifts richer in oxidiser." In the limit $A_{p or t} \to \infty$ , $\overset{m}{˙}_{f u e l} \to 0$ and O/F $\to \infty$ — the flame starves of fuel. ✓ This drift off the optimal O/F is why hybrid average $I_{s p}$ trails a liquid's.

Cell F — Pressure term ON (can't drop the bracket)

Worked example A hybrid fires at high altitude:

$\overset{m}{˙} = 4.2$ kg/s, $v_{e} = 2500$ m/s, exit pressure $p_{e} = 40000$ Pa, ambient $p_{a} = 20000$ Pa, exit area $A_{e} = 0.30 m^{2}$ . Find $F$ and compare to the perfectly-expanded value.

Forecast: is the pressure term a help or a hurt here? (Note $p_{e} > p_{a}$ .)

Step 1 — momentum term. $\overset{m}{˙} v_{e} = 4.2 \times 2500 = 10500$ N. Why this step? Same core thrust as Cell A.

Step 2 — pressure term. $(p_{e} - p_{a}) A_{e} = (40000 - 20000) \times 0.30 = 20000 \times 0.30 = 6000$ N. Why this step? The nozzle is under-expanded ( $p_{e} > p_{a}$ ): exit gas still pushes harder than the atmosphere resists, adding thrust. We cannot drop this bracket — "perfectly expanded" was never stated.

Step 3 — total. $F = 10500 + 6000 = 16500$ N.

Verify: pressure term is positive ( $p_{e} > p_{a}$ ) so total exceeds the momentum-only $10500$ N by $6000$ N. Units: $Pa \cdot m^{2} = (N/m^{2}) m^{2} = N$ . ✓ If instead $p_{e} < p_{a}$ (over-expanded), the bracket would subtract.

Cell G — Real-world word problem (design the flow)

Worked example Engineers want a hybrid to run at the

optimal $O/F = 6.0$ . The grain gives $\overset{m}{˙}_{f u e l} = ρ_{f} A_{b} a G_{o x}^{0.6}$ with $ρ_{f} = 920 kg/m^{3}$ , $A_{b} = 0.50 m^{2}$ , $a = 3.0 \times 1 0^{- 5}$ (SI units), and port area $A_{p or t} = 0.020 m^{2}$ . If they set $\overset{m}{˙}_{o x} = 4.0$ kg/s, what $\overset{m}{˙}_{f u e l}$ results, and what actual O/F do they get? Is it on target?

Forecast: will the achieved O/F land near 6, or off?

Step 1 — oxidiser flux. $G_{o x} = \overset{m}{˙}_{o x} / A_{p or t} = 4.0/0.020 = 200 kg s^{- 1} m^{- 2}$ . Why this step? The regression law needs flux, not raw flow.

Step 2 — regression-driven fuel. $\overset{m}{˙}_{f u e l} = 920 \times 0.50 \times 3.0 \times 1 0^{- 5} \times 20 0^{0.6} .$ Compute $20 0^{0.6} = 24.02$ . So $\overset{m}{˙}_{f u e l} = 920 \times 0.50 \times 3.0 \times 1 0^{- 5} \times 24.02 = 0.3315 kg/s .$ Why this step? Fuel is whatever the wall gives at this flux — we don't get to command it directly.

Step 3 — achieved O/F. $O/F = 4.0/0.3315 = 12.07$ .

Verify: target was 6.0 but we got 12.1 — far too oxidiser-rich. Fix: to lower O/F we must raise $\overset{m}{˙}_{f u e l}$ , which means raising $G_{o x}$ (bigger $\overset{m}{˙}_{o x}$ or smaller port) — but raising $\overset{m}{˙}_{o x}$ raises the numerator too. The clean fix is a larger $A_{b}$ (more burning surface, e.g. multi-port grain). ✓ This is precisely why "scaling needs complex multi-port grains" is a listed disadvantage.

Cell H — Exam twist (hybrid vs liquid, with $I_{s p}$ )

Worked example Two engines each burn total

$\overset{m}{˙} = 4.0$ kg/s. The hybrid exhausts at $v_{e} = 2400$ m/s; a comparable liquid (Liquid Propellant Engines) reaches $v_{e} = 3100$ m/s. (a) Find each thrust and $I_{s p}$ . (b) By what % does the liquid's $I_{s p}$ beat the hybrid's? (c) Name the physical reason.

Forecast: how big a gap does imperfect diffusion mixing cost?

Step 1 — thrusts. $F_{h y b} = 4.0 \times 2400 = 9600$ N; $F_{l i q} = 4.0 \times 3100 = 12400$ N. Why this step? Same $\overset{m}{˙}$ , so thrust ratio is just the $v_{e}$ ratio.

Step 2 — specific impulse. $I_{s p} = v_{e} / g_{0}$ , $g_{0} = 9.81$ . $I_{s p, h y b} = 2400/9.81 = 244.6 s, I_{s p, l i q} = 3100/9.81 = 316.0 s .$ Why this step? $I_{s p}$ is the phase-independent efficiency yardstick — it strips out flow rate and reports "seconds per unit weight."

Step 3 — percentage gap. $(316.0 - 244.6) /244.6 = 0.292 = 29.2%$ .

Verify: the liquid leads by ~29%. Physical reason: a liquid atomises two sprays for near-complete tunable combustion; a hybrid must vaporise fuel off a solid wall and rely on slow diffusion mixing, plus its O/F drifts (Cell E). Hence hybrids sit between solids and liquids — never topping the best liquid. ✓

Recall Matrix self-check

Which cell is "thrust does NOT halve when you halve oxidiser"? ::: Cell B — fuel scales by $k^{n}$ with $n < 1$ , so thrust fell to ~55%. Which cell makes the engine stop entirely, and via what quantity? ::: Cell D — $G_{o x} \to 0$ ⇒ $\overset{r}{˙} \to 0$ ⇒ $\overset{m}{˙}_{f u e l} \to 0$ ⇒ $F = 0$ . As the port widens over a long burn, which way does O/F drift? ::: Oxidiser-rich (O/F rises), because $G_{o x}$ and thus $\overset{m}{˙}_{f u e l}$ fall (Cell E). In Cell F, why keep the pressure bracket? ::: The nozzle was under-expanded ( $p_{e} > p_{a}$ ), so the term adds real thrust and can't be dropped.
