Foundations — Electric propulsion — thrust, power, Isp trade-off

This page assumes you have seen nothing. Before you can read the parent topic, you must own every letter it writes. We build them one at a time, each on top of the last.

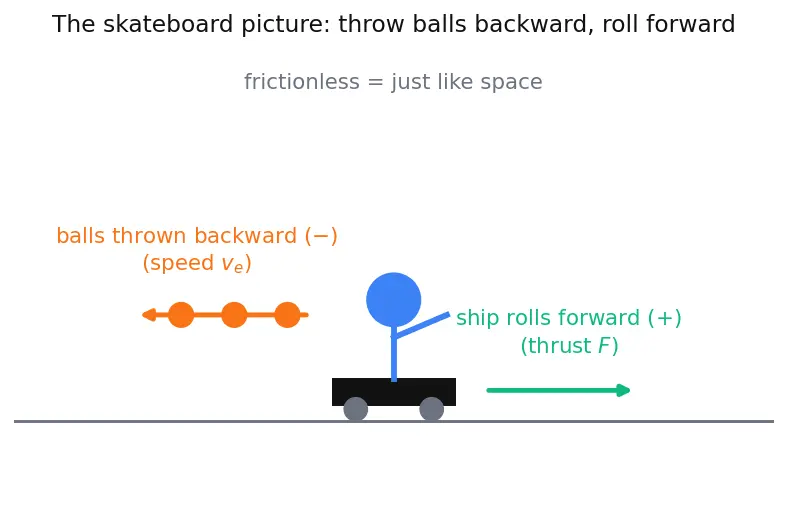

1. The skateboard picture (the whole subject in one image)

Everything below lives inside one mental picture: a person on a frictionless skateboard throwing balls.

2. Building the symbols, one at a time

2.1 Mass — $m$

Why the topic needs it: the propellant (the balls) is mass. Every equation counts how much mass leaves the ship.

2.2 Time and the tiny slice — $t$, $dt$

Picture $dt$ as one frame of a slow-motion video. We will ask "how much happened in one frame?" and that is how every rate below is born.

2.3 Speed and velocity — $v$

Velocity adds a direction to speed. Using our convention, a forward velocity is $+v$ and a backward one is $-v$. The balls fly backward, so their velocity carries a minus sign; the ship moves forward, so its velocity is positive. In this topic those opposite directions are the whole point.

2.4 Exhaust speed — $v_e$

Why the topic needs it: $v_e$ is the single most important number in electric propulsion. Chemical rockets are stuck near $v_e\approx 4500\text{m/s}$; electric ones reach $v_e\approx 30,000\text{m/s}$. The whole subject is "what do you get for a bigger $v_e$?"

2.5 Mass flow rate — $\dot{m}$

Picture it as how many balls per second you throw. Throw one 0.5 kg ball every second → $\dot{m}=0.5\text{kg/s}$.

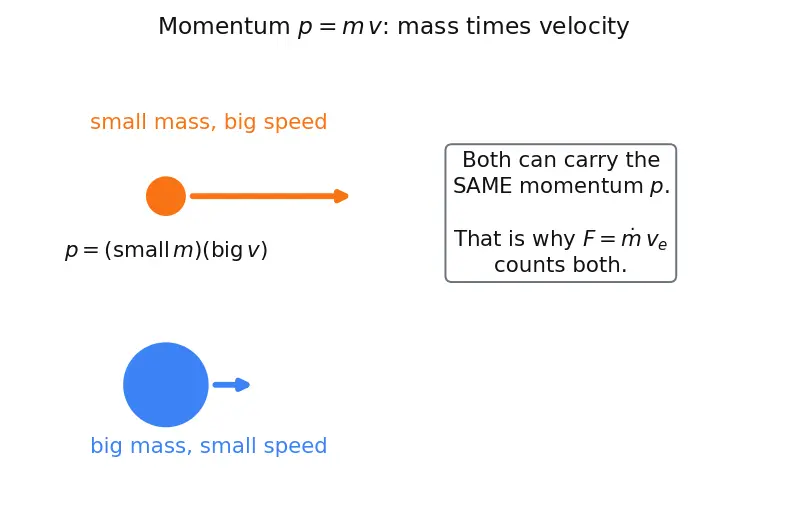

2.6 Momentum — $p$

Why the topic needs it: the deepest law in the subject is that momentum is conserved — the backward momentum of the balls $(-)$ must be exactly cancelled by the forward momentum the ship gains $(+)$. That is exactly Newton's Third Law in number form.

2.7 Force and thrust — $F$

The key idea, built from the pictures above:

Why "per second"? A force is a continuous push. Throwing one ball gives a single shove; throwing balls every second gives a steady push — and steady push per second is exactly force.

2.8 Kinetic energy and power — $E$, $P$

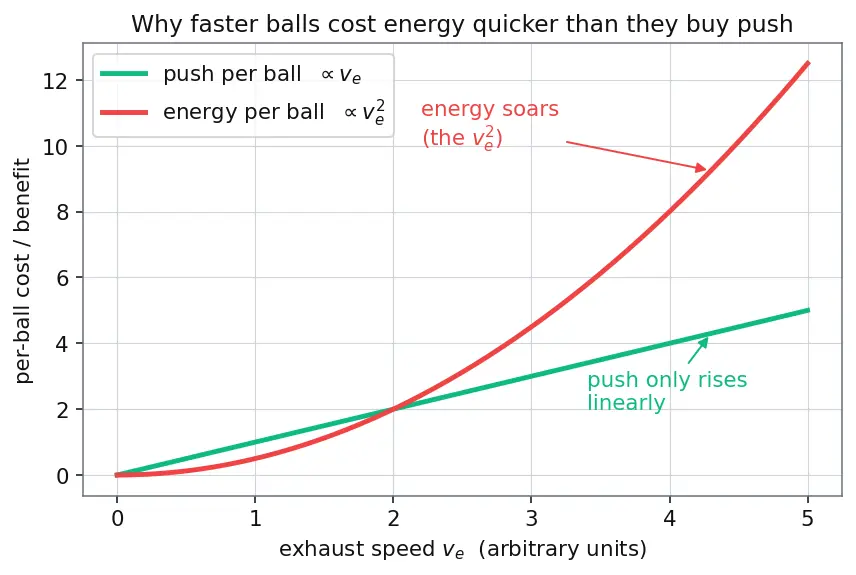

2.9 The jet power $P_{jet}$ and the seesaw between $F$, $v_e$, and $P$

First, name the specific power we care about.

Now build its formula, one honest step at a time.

Step A — energy of the mass thrown in one second. In one second we throw a mass $\dot{m}$ (that is what $\dot{m}$ means). Each kilogram of it moves at speed $v_e$, so by $E=\frac{1}{2}m{v}^2$ its kinetic energy is $\frac{1}{2}\dot{m}{v}_e^2$.

Step B — turn energy-per-second into power. That energy leaves every second, so by $P=dE/dt$ (energy per second) the jet power is simply that same number: $P_{jet}=\frac{dE}{dt}=\frac{1}{2}\dot{m}{v}_e^2.$ Why this is allowed: we multiplied the per-mass energy $\frac{1}{2}{v}_e^2$ by the mass flow $\dot{m}$ (mass per second), and "energy per mass × mass per second = energy per second = power." Nothing was assumed.

Step C — replace $\dot{m}{v}_e$ with $F$. Look back at §2.7: thrust is $F=\dot{m}{v}_e$. So inside the formula we can group one $v_e$ with $\dot{m}$: $P_{jet}=\frac{1}{2}\dot{m}{v}_e^2=\frac{1}{2}\underset{=F}{\underbrace{(\dot{m}{v}_e)}}{v}_e=\frac{1}{2}F{v}_e.$ Where the $\frac{1}{2}$ comes from: it is the same $\frac{1}{2}$ that sits in $E=\frac{1}{2}m{v}^2$ — energy, not momentum, carries that factor. Thrust (from momentum) has no $\frac{1}{2}$; power (from energy) does. The substitution just carries that original $\frac{1}{2}$ through untouched.

2.10 Efficiency — $\eta$

Why the topic needs it: real thrusters waste power, and the wasted part becomes heat the spacecraft must dump via Thermal Control (radiators).

2.11 Standard gravity and specific impulse — $g_0$, $I_{sp}$

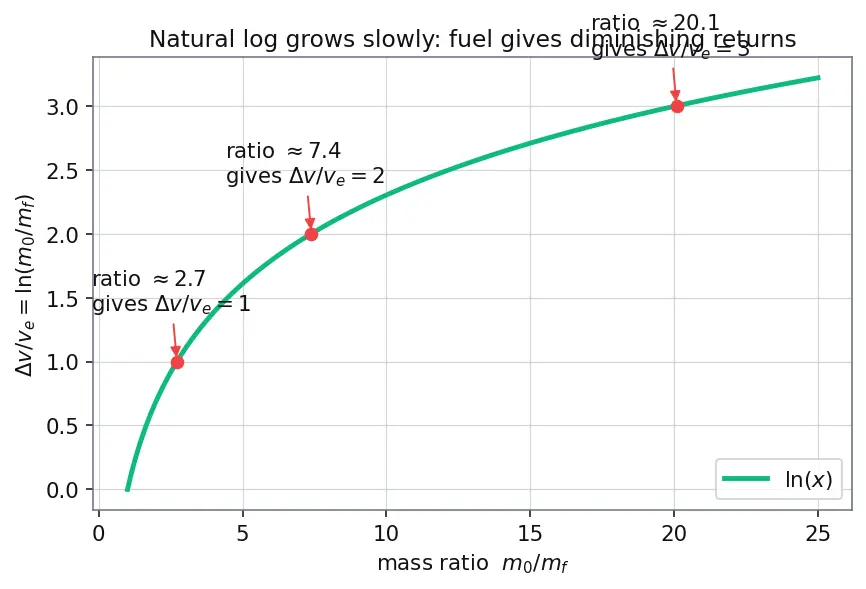

2.12 The economy law — $\Delta v=v_e\ln (m_0/m_f)$

3. Prerequisite map

Equipment checklist

Connections

• 3.3.40 Electric propulsion — thrust, power, Isp trade-off (Hinglish) — the parent topic this page prepares you for.
• Newton's Third Law — momentum thrown back = ship pushed forward.
• Specific Impulse — the fuel-economy score $I_{sp}=v_e/g_0$.
• Tsiolkovsky Rocket Equation — where $\Delta v$, $m_0$, $m_f$, $\ln$ come from.
• Chemical vs Electric Propulsion — why $v_e$ is capped for chemical rockets.
• Ion and Hall Thrusters — hardware that reaches high $v_e$.
• Spacecraft Power Systems — sets the available power $P$.
• Thermal Control (radiators) — dumps the $(1-\eta )P$ wasted heat.
