Intuition What this page is
The parent note gave you three equations and three examples. This page is the stress test : we throw every kind of input at those equations — normal numbers, zeros, extremes, word problems, and an exam trick — so that after reading you never meet a case you haven't already seen worked.
The three tools we lean on (each earned in the parent):
F = m ˙ v e — thrust is momentum thrown backward per second.
P j e t = 2 1 m ˙ v e 2 = 2 1 F v e — the kinetic energy per second in the beam.
v e = g 0 I s p and F = v e 2 η P in = g 0 I s p 2 η P in — the trade-off, tied to the economy score .
Before working anything, let's list every kind of case this topic can throw at you. Each row is a "cell"; every worked example below is tagged with the cell(s) it covers.
#
Cell (case class)
What makes it tricky
Covered by
A
Ordinary forward calc
Given P in , η , I s p → find F , m ˙
Ex 1
B
Inverse calc
Given the thrust you want → find required power / I s p
Ex 2
C
Fixed power, vary I s p
The seesaw: does thrust move the way you predict?
Ex 3
D
Degenerate: I s p → ∞
Photon-rocket limit — thrust → 0
Ex 4
E
Degenerate: v e → 0 / m ˙ huge
Chemical-like limit — huge thrust, awful economy
Ex 4
F
Efficiency & waste heat
Split P in into beam vs heat; ties to Thermal Control (radiators)
Ex 5
G
Real-world word problem
Mission: how long to reach a target Δ v ? Uses Tsiolkovsky Rocket Equation
Ex 6
H
Exam twist / trap
Units trap: forgetting g 0 , or "input vs jet power"
Ex 7
I
Comparison across regimes
EP vs chemical at same Δ v — propellant saved
Ex 8
J
Boundary: P in → 0 or η → 0
Zero power / zero efficiency — physical impossibility
Ex 9
We now clear every cell.
Worked example Example 1 — Full state of a Hall thruster (Cell A)
A Hall thruster runs at P in = 4.5 kW , efficiency η = 0.55 , and I s p = 1800 s . Find the exhaust speed v e , thrust F , mass flow m ˙ , and jet power P j e t .
Forecast: I s p here (1800 s) is lower than the 3000 s ion engine in the parent, so expect more thrust but a larger mass flow. Guess: a couple hundred mN.
Step 1 — economy score to real speed. v e = g 0 I s p = 9.81 × 1800 = 1.766 × 1 0 4 m/s .
Why this step? Every equation below wants a speed in m/s, not a score in seconds. I s p is just v e rescaled by g 0 = 9.81 m/s 2 .
Step 2 — thrust from the trade-off. F = v e 2 η P in = 1.766 × 1 0 4 2 ( 0.55 ) ( 4500 ) = 0.280 N = 280 mN .
Why this step? The trade-off equation gives thrust directly from wall power and speed; no need to know m ˙ yet.
Step 3 — mass flow. m ˙ = v e F = 1.766 × 1 0 4 0.280 = 1.585 × 1 0 − 5 kg/s = 15.9 mg/s .
Why this step? F = m ˙ v e rearranged — thrust is momentum per second, so mass per second is thrust divided by speed.
Step 4 — jet power. P j e t = η P in = 0.55 × 4500 = 2475 W .
Why this step? Efficiency η = P j e t / P in by definition, so the beam carries η of the wall power.
Verify: Cross-check P j e t = 2 1 F v e = 2 1 ( 0.280 ) ( 1.766 × 1 0 4 ) = 2472 W ✓ (matches 2475 W within rounding). Forecast held: lower I s p → 280 mN vs 102 mN in the parent. ✓
Worked example Example 2 — "I need this much thrust" (Cell B)
A mission needs F = 150 mN at I s p = 2500 s with η = 0.6 . What input power must the solar array deliver?
Forecast: Higher I s p than Ex 1 but similar thrust — thrust needs power and speed, so expect a few kW.
Step 1 — speed. v e = 9.81 × 2500 = 2.4525 × 1 0 4 m/s .
Why this step? We need v e to invert the trade-off equation.
Step 2 — invert for power. From F = v e 2 η P in solve P in = 2 η F v e .
Why this step? We are given thrust and want power, so make P in the subject.
Step 3 — plug in. P in = 2 ( 0.6 ) ( 0.150 ) ( 2.4525 × 1 0 4 ) = 3066 W ≈ 3.07 kW .
Why this step? Direct substitution of the numbers.
Verify: Run it forward: F = 2.4525 × 1 0 4 2 ( 0.6 ) ( 3066 ) = 0.150 N ✓. Units: 1 N ⋅ ( m/s ) = W (since N⋅m/s = W ) ✓.

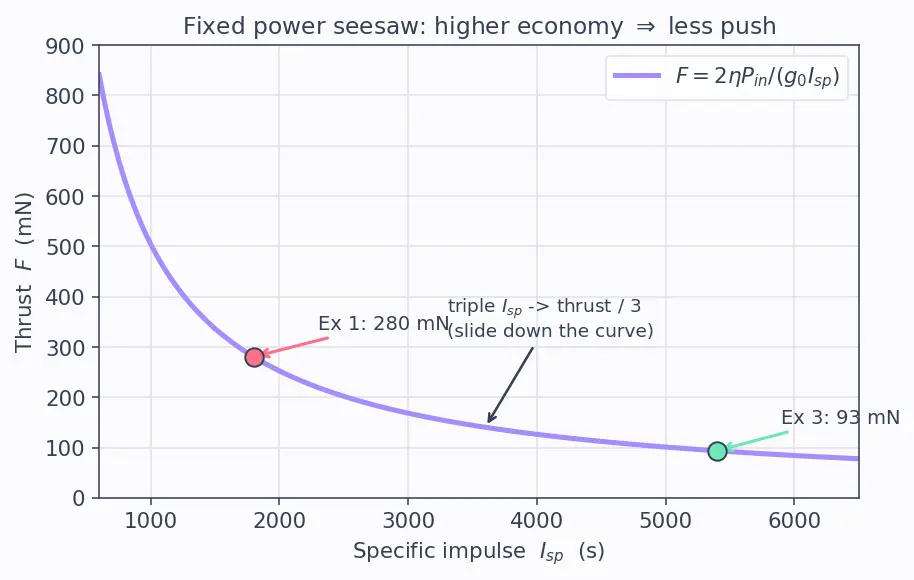

The figure below plots thrust F (mN, vertical axis) against specific impulse I s p (seconds, horizontal axis) at fixed power P in = 4.5 kW and η = 0.55 . The lavender curve is F = 2 η P in / ( g 0 I s p ) — a falling hyperbola. How to read it: pick any I s p on the bottom axis, go up to the curve, read the thrust on the left axis. The coral dot marks Ex 1 (1800 s, 280 mN); the mint dot marks Ex 3 (5400 s, 93 mN). Sliding right (more economy) always drops you down (less thrust).
Worked example Example 3 — Triple the economy, what happens to thrust? (Cell C)
Hold P in = 4.5 kW , η = 0.55 fixed (same hardware as Ex 1). Change I s p from 1800 s to 5400 s (tripled). Predict, then compute, the new thrust.
Forecast: At fixed power F ∝ 1/ I s p . Triple I s p → thrust should fall to one third of 280 mN ≈ 93 mN. Look at the curve in the figure — we slide from the coral dot right and down to the mint dot on the same hyperbola.
Step 1 — new speed. v e = 9.81 × 5400 = 5.297 × 1 0 4 m/s .
Why this step? New economy score → new speed; power and η untouched.
Step 2 — new thrust. F = 5.297 × 1 0 4 2 ( 0.55 ) ( 4500 ) = 0.0934 N = 93.4 mN .
Why this step? Same trade-off equation; only v e moved.
Verify: Ratio 280 93.4 = 0.334 ≈ 3 1 ✓ — exactly the inverse of the ×3 in I s p . The mass flow, meanwhile, drops even harder: m ˙ = F / v e falls because F shrank and v e grew. This is the seesaw pinned at fixed power, visualized as the coral point sliding down the lavender curve to the mint point.

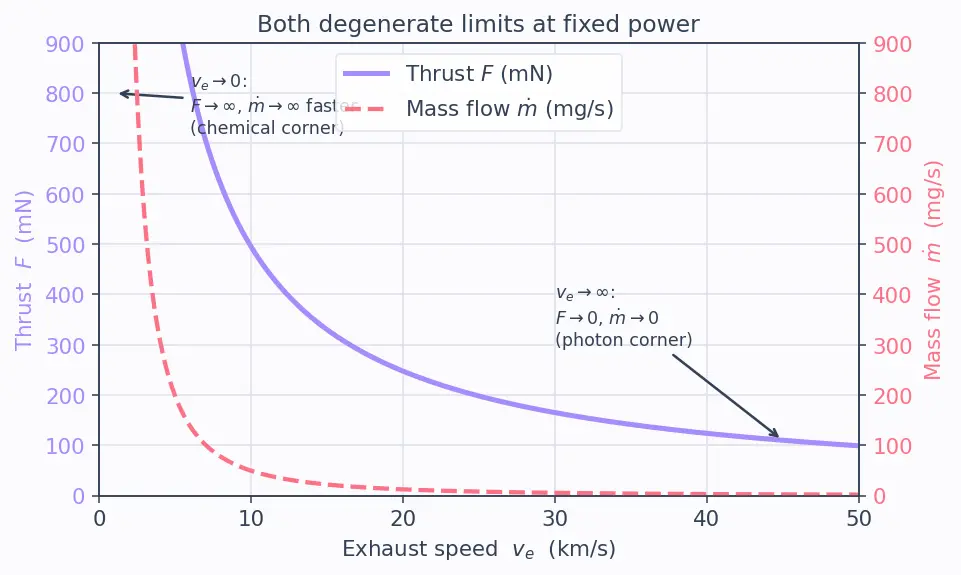

The figure below plots two curves against exhaust speed v e (km/s, horizontal axis) at fixed P in = 4.5 kW , η = 0.55 . The lavender solid curve (left axis) is thrust F in mN ; the coral dashed curve (right axis) is mass flow m ˙ in mg/s . How to read it: at the far left (v e → 0 ) both curves shoot up — the chemical corner. At the far right (v e → ∞ ) both sink toward zero — the photon corner. The dashed coral curve falls faster than the solid lavender one, showing m ˙ collapses harder than F as you speed up the exhaust.
Worked example Example 4 — The two ends of the seesaw (Cells D & E)
Same fixed P in = 4.5 kW , η = 0.55 . Examine the limits I s p → ∞ (photon-like) and v e → 0 (chemical-like). What do F and m ˙ do?
Forecast: Push exhaust infinitely fast and thrust should vanish (you throw almost no mass). Push exhaust very slowly and you need a torrent of mass — huge m ˙ , huge F but terrible economy.
Step 1 — limit v e → ∞ (I s p → ∞ ). In F = v e 2 η P in , as v e → ∞ , F → 0 .
Why this step? Fixed power spread over infinitely fast particles means almost no mass leaves per second, so momentum-per-second → 0. This is the maximum-economy, zero-push corner (the right edge of the figure).
Step 2 — check m ˙ there. m ˙ = F / v e → 0/∞ = 0 : essentially no propellant used. That's why high I s p = fuel lasts "forever" — the price is no thrust.
Step 3 — limit v e → 0 . F = v e 2 η P in → ∞ and m ˙ = v e 2 2 η P in → ∞ even faster.
Why this step? Slow, heavy exhaust converts fixed power into big momentum flux — but you dump propellant at a ruinous rate. This is the maximum-thrust, worst-economy corner (the left edge of the figure, the chemical end of the spectrum).
Step 4 — a concrete number between the extremes. At a moderate v e = 1000 m/s (I s p ≈ 102 s ): F = 1000 2 ( 0.55 ) ( 4500 ) = 4.95 N — about 17× the Ex 1 thrust — but m ˙ = F / v e = 4.95/1000 = 4.95 × 1 0 − 3 kg/s = 4.95 g/s , roughly 310× the Ex 1 mass flow . Great push, disastrous mileage.
Verify: The figure plots F vs v e : a rectangular hyperbola pinned to both axes — F → ∞ as v e → 0 (left) and F → 0 as v e → ∞ (right). Both asymptotes confirmed, and the dashed m ˙ curve sinks faster on the right, matching m ˙ ∝ 1/ v e 2 vs F ∝ 1/ v e . ✓
v e = 0 you get infinite thrust for free."
Why it feels right: the formula literally gives F → ∞ as v e → 0 , so it looks like a bottomless supply of push.
The fix: you also need m ˙ = 2 η P in / v e 2 → ∞ — infinite propellant thrown per second . No real tank supplies that, so the limit is a mathematical corner, not a free lunch. Every real thruster sits at a sensible middle where both F and m ˙ are finite; the design job is choosing where on the curve to sit.
Worked example Example 5 — Waste heat budget (Cell F)
The Ex 1 Hall thruster (P in = 4.5 kW , η = 0.55 ). How much power ends up as heat the radiators must reject? If radiators shed 200 W/m 2 , how much radiator area is needed just for this thruster's waste?
Forecast: η = 0.55 means 45% is lost → about 2 kW of heat → several square metres.
Step 1 — beam vs waste. P j e t = η P in = 0.55 × 4500 = 2475 W ; waste = P in − P j e t = ( 1 − η ) P in = 0.45 × 4500 = 2025 W .
Why this step? Energy conservation: what doesn't leave in the beam stays as heat.
Step 2 — radiator area. A = 200 2025 = 10.1 m 2 .
Why this step? Area × flux = power rejected, so area = power ÷ flux.
Verify: P j e t + P w a s t e = 2475 + 2025 = 4500 W = P in ✓ (nothing lost or created). Units: W ÷ ( W/m 2 ) = m 2 ✓.
Worked example Example 6 — How long to raise the orbit? (Cell G)
A 1200 kg spacecraft carries 300 kg of xenon propellant. Its thruster gives F = 280 mN (the Ex 1 value) with m ˙ = 15.9 mg/s . The mission needs a velocity budget Δ v = 4.0 km/s (recall from the top of the page: Δ v is the change in the ship's velocity the maneuver must produce). (a) Does it have enough propellant? (b) Roughly how long does the burn take?
Forecast: Tiny thrust → this will take months , not minutes. Xenon is precious, so check the rocket equation first.
Step 1 — propellant needed via the rocket equation. With v e = 1.766 × 1 0 4 m/s (Ex 1), Tsiolkovsky gives m f m 0 = e Δ v / v e = e 4000/17660 = e 0.2265 = 1.2542 , where m 0 is the initial (loaded) mass and m f the final (burned-out) mass.
Why this step? The rocket equation tells us the mass ratio for a target Δ v — the fundamental fuel-economy check.
Step 2 — final vs initial mass. Here m 0 = 1200 kg (ship + all propellant), so m f = 1200/1.2542 = 956.8 kg . Propellant burned = m 0 − m f = 1200 − 956.8 = 243.2 kg .
Why this step? m 0 − m f is the propellant the maneuver actually consumes.
Step 3 — enough? Needed 243.2 kg < 300 kg carried. Yes , with ~57 kg margin. ✓
Step 4 — burn duration. Time = m ˙ propellant = 1.585 × 1 0 − 5 243.2 = 1.534 × 1 0 7 s .
Why this step? Mass burned divided by mass-burn rate = seconds of firing.
Step 5 — convert. 1.534 × 1 0 7 s ÷ ( 86400 s/day ) = 177.6 days ≈ 5.9 months .
Why this step? Seconds are unreadable; days show the deep-space cruise character of EP.
Verify: Sanity: impulse = F × t = 0.280 × 1.534 × 1 0 7 = 4.30 × 1 0 6 N⋅s ; and Δ v ≈ impulse/ m ˉ with mean mass m ˉ ≈ ( 1200 + 956.8 ) /2 = 1078 kg gives 4.30 × 1 0 6 /1078 ≈ 3.99 × 1 0 3 m/s ≈ 4.0 km/s ✓. The ~6-month burn is exactly why EP is for cruising, not launch .
Worked example Example 7 — Spot the units trap (Cell H)
Exam statement: "A thruster has I s p = 2000 s , η = 0.7 , P in = 3 kW . A student writes F = I s p 2 η P in = 2000 2 ( 0.7 ) ( 3000 ) = 2.1 N . Find the error and the correct F ."
Forecast: The student divided by I s p (seconds) instead of v e (m/s). Since v e = g 0 I s p is ~9.81× bigger, the true thrust is ~9.81× smaller — around 0.2 N, not 2.1 N.
Step 1 — name the error. The trade-off equation is F = v e 2 η P in , not I s p 2 η P in . I s p is in seconds; you must first convert to a speed.
Why this step? Dimensional check: s W = s J/s = J/s 2 — not newtons. The student's answer is dimensionally wrong.
Step 2 — convert. v e = g 0 I s p = 9.81 × 2000 = 1.962 × 1 0 4 m/s .
Why this step? Restore the missing g 0 .
Step 3 — correct thrust. F = 1.962 × 1 0 4 2 ( 0.7 ) ( 3000 ) = 0.2141 N ≈ 214 mN .
Why this step? Now the units work: m/s W = m/s J/s = J/m = N ✓.
Verify: Ratio of wrong to right = 2.1/0.2141 = 9.81 = g 0 ✓ — exactly the factor the student dropped.
Mnemonic Guard against the trap
"Seconds can't push — convert first." Always turn I s p (s) into v e = g 0 I s p (m/s) before it touches a force equation.
Worked example Example 8 — EP vs chemical, propellant saved (Cell I)
Two stages must both deliver Δ v = 6.0 km/s to a 1000 kg dry spacecraft (so the final mass m f = 1000 kg in each case). Stage A is chemical (I s p = 350 s ); Stage B is electric (I s p = 3000 s ). Compare the propellant each needs.
Forecast: EP's ~8.6× higher I s p should slash propellant dramatically — chemical might need tonnes, EP a couple hundred kg.
Step 1 — exhaust speeds. Chemical: v e = 9.81 × 350 = 3434 m/s . Electric: v e = 9.81 × 3000 = 2.943 × 1 0 4 m/s .
Why this step? The rocket equation uses v e , so convert both economy scores.
Step 2 — mass ratios. Chemical: m f m 0 = e 6000/3434 = e 1.7472 = 5.739 . Electric: m f m 0 = e 6000/29430 = e 0.2039 = 1.2262 .
Why this step? m 0 / m f = e Δ v / v e — the core of Tsiolkovsky .
Step 3 — initial masses and propellant burned. With m f = 1000 kg : chemical m 0 = 5.739 × 1000 = 5739 kg , so propellant = m 0 − m f = 5739 − 1000 = 4739 kg . Electric m 0 = 1.2262 × 1000 = 1226.2 kg , so propellant = 1226.2 − 1000 = 226.2 kg .
Why this step? Propellant = m 0 − m f for each — this is the number the mission actually pays.
Step 4 — the payoff. Ratio = 226.2 4739 = 21.0 : the chemical stage burns ~21× more propellant for the same job.
Why this step? This single number is the reason EP exists — high $I_{sp}$ saves enormous mass.
Verify: Forward-check EP: Δ v = v e ln ( m 0 / m f ) = 29430 × ln ( 1.2262 ) = 29430 × 0.2039 = 6001 m/s ≈ 6.0 km/s ✓. The trade-off's cost — recall Ex 6 — is that EP takes months, while chemical burns in minutes.
Worked example Example 9 — What happens at
P in → 0 and η → 0 ? (Cell J)
Keep I s p = 1800 s (v e = 1.766 × 1 0 4 m/s ). Push the input power P in toward zero; separately push efficiency η toward zero. What thrust do you get, and what does it mean physically?
Forecast: Both are the "engine off" corner — no power in, or none of it reaching the beam, means no thrust at all . The formula should give exactly zero, and physically the ship just coasts.
Step 1 — limit P in → 0 . In F = v e 2 η P in , with η , v e fixed and finite, F → v e 2 η ⋅ 0 = 0 .
Why this step? Thrust is powered momentum flux. With zero electrical input there is no energy to accelerate propellant, so nothing is thrown — F = 0 . This is the physical statement "an unpowered EP thruster produces no thrust," a natural floor of the matrix.
Step 2 — limit η → 0 . In F = v e 2 η P in , with P in , v e fixed, F → v e 2 ⋅ 0 ⋅ P in = 0 , while the heat = ( 1 − η ) P in → P in .
Why this step? η = 0 means none of the input power reaches the beam — all of it becomes waste heat (Ex 5's leftover taken to its extreme). A perfectly inefficient thruster is just an electric heater: zero thrust, full power dumped as heat. Physically impossible as a rocket, but it bounds the efficiency axis.
Step 3 — sanity on a small-but-nonzero value. At P in = 1 W , η = 0.55 : F = 1.766 × 1 0 4 2 ( 0.55 ) ( 1 ) = 6.23 × 1 0 − 5 N = 62 μ N — vanishingly small, confirming thrust smoothly approaches 0 as power drops.
Why this step? Shows the limit isn't a jump — thrust glides continuously to zero, so there's no hidden surprise near the boundary.
Verify: Both limits give F = 0 : substituting P in = 0 or η = 0 into F = 2 η P in / v e yields exactly 0 ✓. Heat check at η → 0 : ( 1 − 0 ) P in = P in — all input becomes heat ✓. Physically: you cannot get thrust from zero power or zero efficiency , closing the bottom-left corner of the matrix.
Recall Which example cleared which cell?
A (forward) ::: Example 1
B (inverse) ::: Example 2
C (fixed power, vary I s p ) ::: Example 3
D (I s p → ∞ ) & E (v e → 0 ) ::: Example 4
F (waste heat) ::: Example 5
G (mission word problem) ::: Example 6
H (exam units trap) ::: Example 7
I (EP vs chemical comparison) ::: Example 8
J (P in → 0 or η → 0 boundary) ::: Example 9
Recall One-line lessons
Fixed power thrust law ::: F = 2 η P in / v e , so F ∝ 1/ I s p (Ex 3).
The v e → 0 corner ::: F → ∞ but m ˙ → ∞ faster — no free lunch (Ex 4).
The units trap ::: divide by v e = g 0 I s p , never by I s p (Ex 7).
Why EP saves mass ::: high I s p shrinks the mass ratio e Δ v / v e (Ex 8).
The zero-power / zero-efficiency corner ::: F → 0 ; no push without power reaching the beam (Ex 9).
