Why xenon? It's heavy (big momentum per ion), easy to ionize (low ionization energy, 12.13 eV), chemically inert, and storable as a dense gas. Heavy mass matters because thrust =m˙ve, and a heavy ion carries more momentum per unit charge.
HOW (electron bombardment / DC discharge type):
A hollow cathode emits electrons. These electrons are made to spiral (magnets confine them) so they travel a long path and collide with Xe atoms:
Xe+e−→Xe++2e−
Why this step? One incoming electron knocks off one bound electron → now you have the ion plus an extra free electron, which goes on to ionize more atoms (a chain that sustains the plasma).
Derivation from first principles. An ion of charge q and mass m starts essentially at rest and is accelerated through potential difference V. Work–energy theorem:
Work by field=ΔKEqV=21mve2
Solve for exhaust speed:
ve=m2qV
Why this step? All the electrical energy qV handed to the ion becomes kinetic energy (no burning, no heat losses in the ideal case) — that's why ion engines can reach speeds a chemical rocket never could.
Charge-balance condition: electrons out per second = ions out per second
Ne=Nion⇒Ineutralizer=Ibeam.Why: current in = current out keeps the ship at constant potential. The electrons carry almost no momentum (tiny mass), so they add ≈0 thrust — the ions do all the pushing.
Dekho, ion engine ka basic idea bahut simple hai: chemical rocket fuel ko jala kar garam gas bahar phenkta hai, lekin ion engine kuch jalata hi nahi. Ye xenon jaise heavy atom ko leta hai, uske ek electron ko nikaal kar use positive ion (Xe⁺) bana deta hai. Kyun? Kyunki electric field sirf charged cheezon ko dhakka de sakta hai — neutral atom pe koi force nahi lagta. Isko kehte hain ionization: Xe + e⁻ → Xe⁺ + 2e⁻.

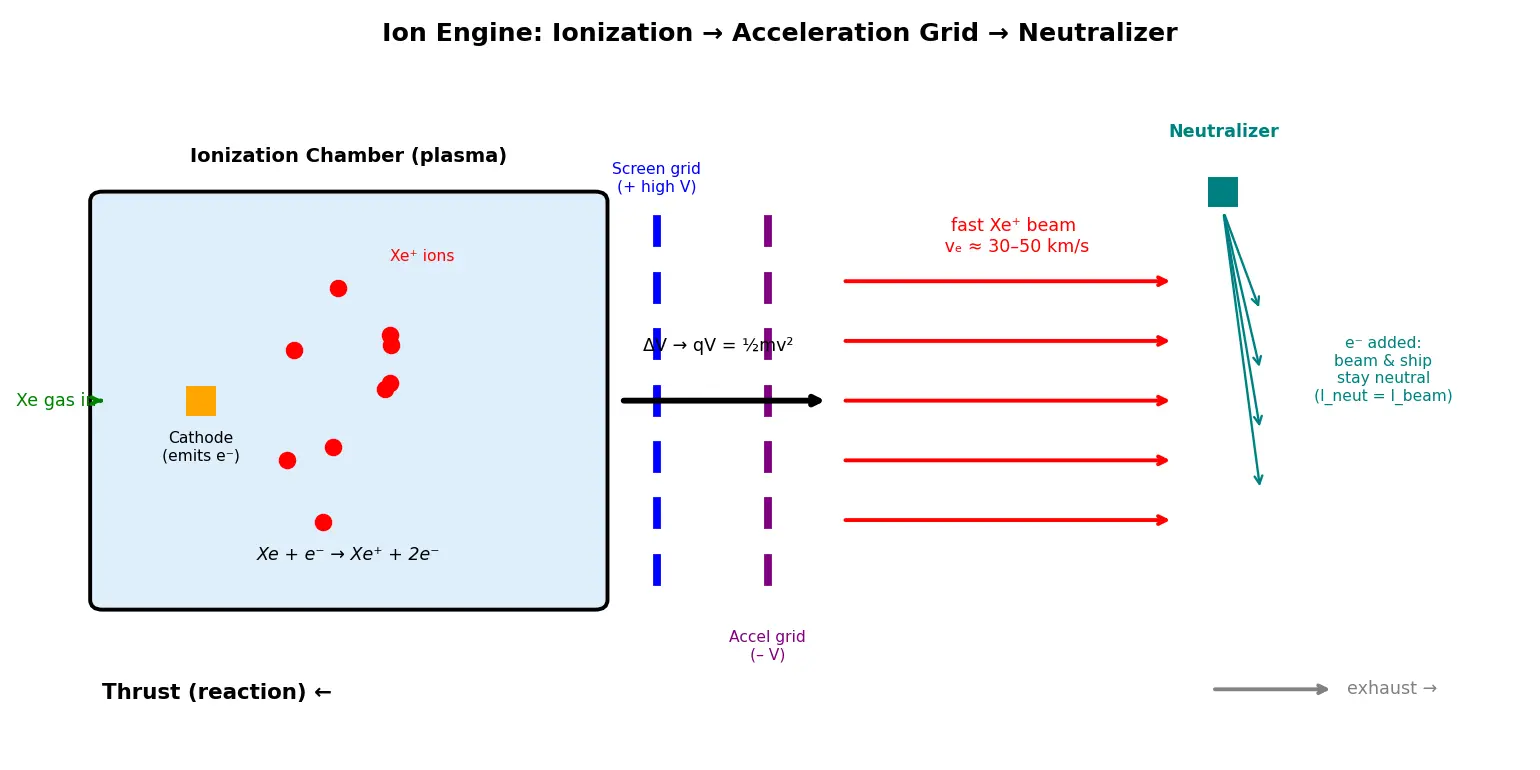

Fir aata hai acceleration grid. Do plates hoti hain — ek positive (screen grid), ek strongly negative (accel grid). Ion is voltage difference V se "neeche gir" ke bahut tez nikal jaata hai. Energy conservation lagao: saari electrical energy qV kinetic energy ban jaati hai, yaani qV=21mve2, isse ve=2qV/m. Yahi wajah hai ki exhaust speed 30–50 km/s tak pahunch jaata hai — chemical rocket ke ~4.5 km/s se bahut zyada. Matlab fuel economy (specific impulse) kamaal ki hoti hai, lekin thrust bahut chhota — sirf ~0.1 N, ek sikke ke weight jitna!
Ab last stage: neutralizer. Har second billions positive ion bahar ja rahe hain, to spacecraft dheere-dheere negative hota jaayega. Agar ye ho gaya, to negative ship apne hi ions ko wapas kheench legi aur thrust khatam. Isliye ek alag cathode bahar electrons chhodta hai — utne hi jitne ions nikalte hain (Ineut=Ibeam). Yaad rakho: ye electrons thrust ko cancel nahi karte, kyunki thrust momentum (mv) se aata hai, aur bhaari xenon ion hi saara momentum le jaata hai; halke electron ka momentum lagbhag zero.
Isliye ion engine deep-space missions ke liye perfect hai — thoda sa push, par mahino chalega, to total Δv bahut bada ho jaata hai. Mantra yaad rakho: I-A-N (Ionize, Accelerate, Neutralize).
