Ion engine — ionization, acceleration grid, neutralizer: Visual walkthrough

We only assume you can add, multiply, and take a square root. Everything else is drawn.

Step 1 — What is "voltage" and why do we care?

WHY this step: before we can talk about how fast an ion leaves, we must agree on what is doing the pushing. The push is the voltage $V$ between the two grids — nothing else.

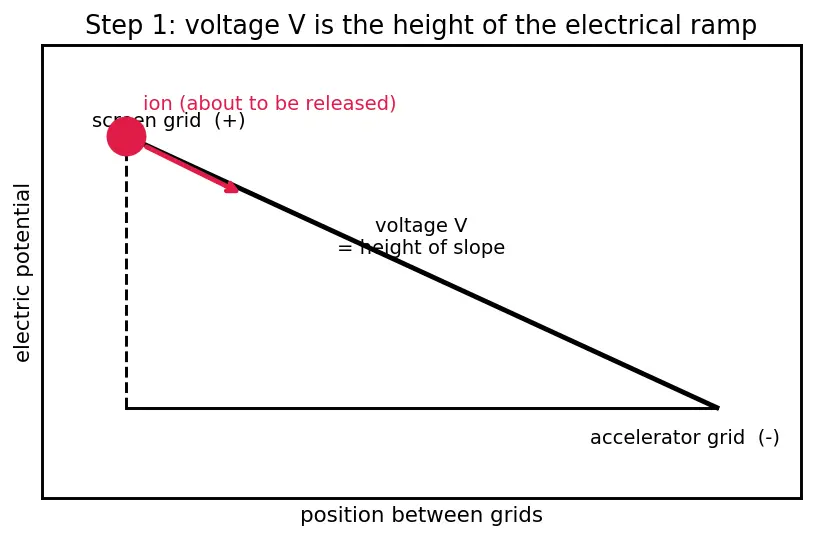

PICTURE: the ball at the top of the ramp is our future ion, sitting at the high-potential plate, about to be released.

Figure — Ion engine — ionization, acceleration grid, neutralizer

Step 2 — Only charged things feel the slope

WHY this step: the whole formula begins with the letter $q$ . If $q = 0$ , there is no force, no acceleration, no exhaust speed. Everything downstream depends on the atom first becoming an ion — see Plasma Physics — Ionization Energy for how much energy that costs.

PICTURE: left, a grey neutral atom sitting motionless on the ramp (no arrow). Right, the same atom after losing an electron — now red, now feeling a force arrow.

Step 3 — The field hands the ion energy: the quantity $q V$

WHY multiply, not add? Because energy scales with both factors independently: double the charge and you get double the grip → double the energy; double the height of the ramp and again double the energy. Two independent doublings multiply. This is the Work-Energy Theorem in its simplest costume.

PICTURE: the ion partway down the ramp, with a growing "energy tank" filling up as it descends. The tank's fullness $= q V$ .

Step 4 — Where does that energy go? Into motion: $\frac{1}{2} m v_{e}^{2}$

WHY this step: we now have the same energy written two ways — as given ( $q V$ ) and as stored in motion ( $\frac{1}{2} m v_{e}^{2}$ ). Setting two descriptions of one quantity equal is the move that cracks the whole problem open.

PICTURE: the energy tank from Step 3 now emptying into a speedometer — the taller the tank, the faster the needle. This is "voltage → speed."

Step 5 — Snap the two together: the energy balance

WHY an equation and not an inequality? In the ideal case, no energy escapes as heat or light, so it is exact equality. In a real engine a little is lost to grid heating and imperfect beams, so real $v_{e}$ is slightly less — that is the only correction, and it is small.

PICTURE: a balance scale. Left pan holds a block labelled $q V$ ; right pan holds a block labelled $\frac{1}{2} m v_{e}^{2}$ . The beam is perfectly level.

Step 6 — Solve for the speed (undo the algebra)

Step 6a — clear the $\frac{1}{2}$ . Multiply both sides by $2$ : $2 q V = m v_{e}^{2} .$ Why: to remove a factor of one-half you double everything — the balance stays level because you did the same to both pans.

Step 6b — clear the $m$ . Divide both sides by $m$ : $\frac{2 q V}{m} = v_{e}^{2} .$ Why: whatever multiplies $v_{e}^{2}$ must be divided away to isolate it.

Step 6c — undo the square. The variable is trapped as $v_{e}^{2}$ . The operation that undoes squaring is the square root — it answers the question "what number, times itself, gives this?" Apply it to both sides: $v_{e} = \pm \frac{2 q V}{m} .$

WHY the square root is forced: it is the direct fingerprint of the $v_{e}^{2}$ in kinetic energy. Energy depends on speed squared, so recovering speed from energy must un-square — there is no way to avoid the root. This connects straight to Specific Impulse and Exhaust Velocity.

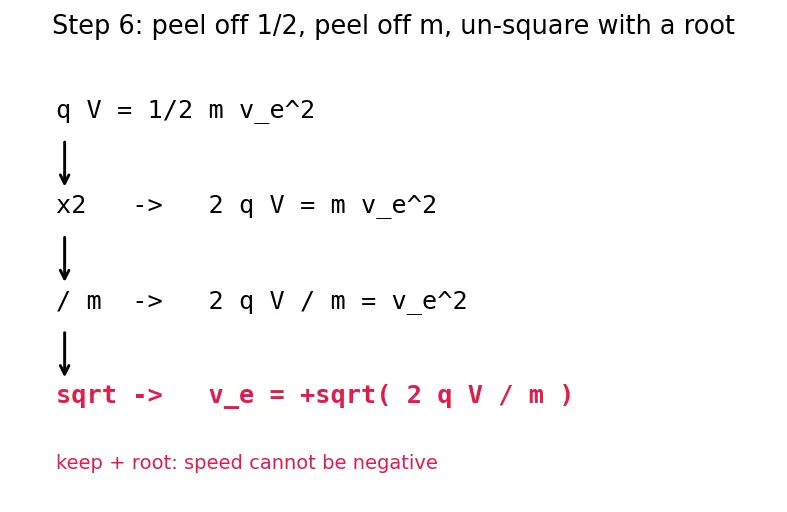

PICTURE: three steps stacked — $\times 2$ , $\div m$ , — each one shown transforming the equation, with the trapped $v_{e}$ finally set free.

Step 7 — Plug in real xenon numbers

PICTURE: a bar comparing 4.5 km/s (chemical) against 42 km/s (this ion) — the red bar towers over the black one.

Step 8 — The edge cases (never leave a scenario undrawn)

$V \to 0$ (no voltage): $v_{e} = 0 = 0$ . No ramp, no push — the ion just sits in the plasma. Correct: with the grids off, the engine produces no thrust.
$q = 0$ (neutral atom): $v_{e} = 0 = 0$ again. A neutral atom feels no field, so it never accelerates — exactly why ionization (Step 2) is mandatory.
$q V < 0$ (wrong-sign drop or negative charge): the argument $2 q V / m$ goes negative and the square root has no real answer. Physically this is honest: a positive ion facing an uphill voltage ( $V < 0$ ), or a negative charge in this same field, is pushed backward into the engine, not out. There is no forward exhaust speed to report — the formula correctly refuses to give one. This is why the grids are wired so that $q V > 0$ for the ions we want to expel.
$m$ very large (a huge, heavy ion): $v_{e} \to$ small. Heavy things are sluggish for a fixed energy budget; you trade speed for momentum-per-ion.
$m \to 0$ (imagine a "massless" charge): the algebra gives $v_{e} \to \infty$ . But this is unphysical, and for two reasons. First, no truly massless charged particle exists — even the electron has a small but real mass. Second — and more fundamentally — as $v_{e}$ approaches the speed of light $c$ , the everyday formulas $W = q V$ and $\frac{1}{2} m v_{e}^{2}$ stop being accurate; Einstein's relativity takes over and caps the speed at $c$ . So the " $\infty$ " is a warning sign that we have left the formula's valid region, not a real prediction. In practice this is why the neutralizer's electrons — nearly 240,000× lighter than xenon — fly out fast yet carry almost no momentum and add ~0 thrust; the heavy ions do all the pushing.
Doubling $V$ : since $v_{e} \propto V$ , doubling $V$ multiplies speed by only $2 \approx 1.41$ , not 2. The square root tames the payoff — a key reason raising voltage mostly buys efficiency, not raw thrust (thrust is capped by the Child-Langmuir Space Charge Law).

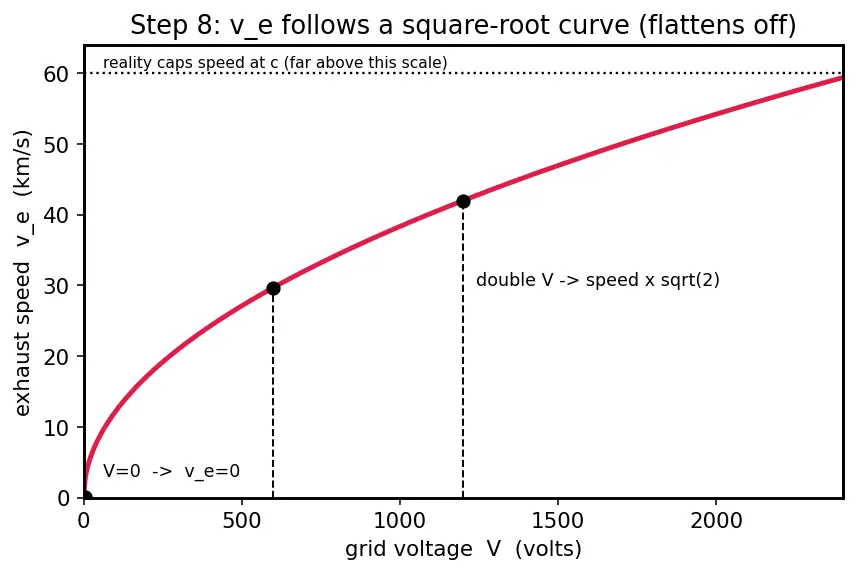

PICTURE: one plot of $v_{e}$ versus $V$ — a red square-root curve, steep near zero then flattening, with the $V = 0$ origin marked, the " $\times 2$ when $V$ doubles" marked, and a faint horizontal line reminding that reality caps speed at $c$ .

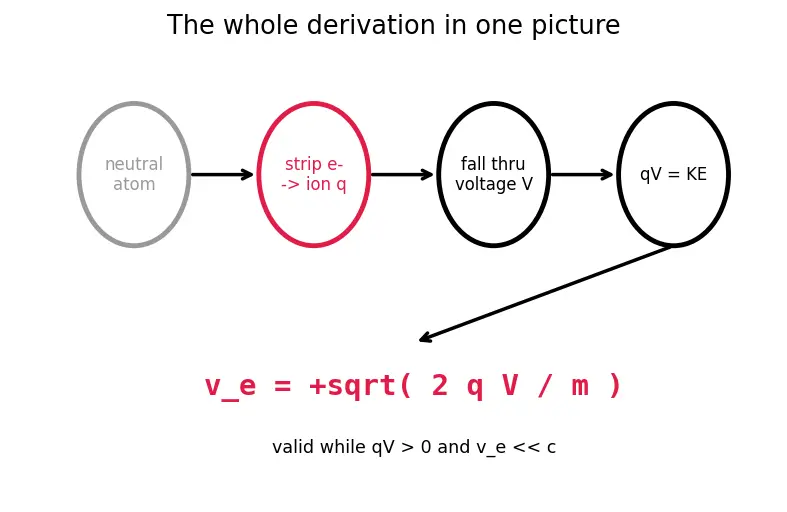

The one-picture summary

Every stage compressed: neutral atom → strip electron → fall through voltage $V$ → energy $q V$ becomes motion $\frac{1}{2} m v_{e}^{2}$ → take the positive root to get $v_{e} = 2 q V / m$ (valid while $q V > 0$ and $v_{e} ≪ c$ ).

Recall Feynman retelling of the whole walkthrough

Picture a marble at the top of a smooth slide. If the marble is "plain" (neutral), the slide can't grab it — it just sits there. So first we make the marble "grippable" by knocking an electron off it; now it's a charged ion. The height of the slide is the voltage $V$ , and the field pours a fixed amount of energy, $q \times V$ , into the marble as it slides down. Because the slide is frictionless (no burning, no heat), all of that energy turns into speed — and the energy of speed is $\frac{1}{2} m v_{e}^{2}$ . Set "energy poured in" equal to "energy of motion," peel off the $\frac{1}{2}$ , peel off the mass $m$ , and un-square with a square root. Because speed can't be negative, we keep the plus sign. Out pops $v_{e} = 2 q V / m$ : faster for more voltage or charge, slower for a heavier marble. Turn the voltage off and the speed is zero; leave the marble neutral and the speed is zero; wire the voltage the wrong way and the formula honestly gives no real answer, because the marble would roll back inside. And a feather-light electron? It flies out at huge speed but carries almost no momentum — which is exactly why we can sprinkle electrons into the exhaust to keep the ship neutral without cancelling the ions' push. Just remember: these tidy formulas are the everyday-speed versions; push toward the speed of light and Einstein rewrites them. The whole page is really one idea drawn twice — energy in equals energy of motion out — and everything else is just algebra unwrapping that single balance.

Recall Quick self-test

Why does $v_{e}$ contain a square root and not just $V / m$ ? ::: Because kinetic energy depends on speed squared ( $\frac{1}{2} m v_{e}^{2}$ ); recovering speed from energy must un-square, forcing the root. If you double the grid voltage $V$ , by what factor does $v_{e}$ rise? ::: By $2 \approx 1.41$ , since $v_{e} \propto V$ . What is $v_{e}$ if the atom is never ionized ( $q = 0$ )? ::: Zero — a neutral atom feels no field and never accelerates. Why do we keep only the positive square root? ::: Because $v_{e}$ is a speed (a magnitude), which cannot be negative. A xenon ion falls through 1200 V; roughly what exhaust speed results? ::: About 42 km/s. When does $v_{e} = 2 q V / m$ stop being trustworthy? ::: When $v_{e}$ approaches the speed of light $c$ — then the non-relativistic $W = q V$ and $\frac{1}{2} m v_{e}^{2}$ break down.
