Intuition The one core ideaAn ion engine gives a spacecraft a push by throwing tiny bits of matter (charged xenon atoms) out the back very fast — and it uses an electric voltage , not a chemical fire, to do the throwing. Everything else on the parent page is just the bookkeeping of how much mass you throw, how fast, and how to keep the ship electrically balanced while you do it.
This page is the toolbox. Before you can read the parent note comfortably, you need to know what every letter and squiggle means , what picture it stands for, and why the topic can't do without it . We build them in an order where each one leans on the one before.
Definition Electric charge — the symbolq Plain words: charge is a property some tiny particles have that makes them push or pull on each other. There are two flavours: positive (+ negative (− The picture: think of two little balls. Two "+ + − Why the topic needs it: an ion engine works only on charged things. A plain xenon atom is neutral (its + − create charge (make an ion) before we can push it.
Figure s01 — Two amber "+" balls with cyan arrows fleeing each other (top: like charges repel), and a "+" amber ball and "−" cyan ball with white arrows pulled together (bottom: opposite charges attract). Notice the arrows always point along the line joining the two charges.
The letter q coulomb (C). One electron carries a charge of magnitude
q e = 1.602 × 1 0 − 19 C .
Intuition Why such a tiny number?One coulomb is a huge pile of charge. A single electron is a speck of it. So the charge of one particle is a very small decimal. Don't be scared of 1 0 − 19
Definition Sign convention — plus, minus, and which way things moveThe sign of q direction of the force from a voltage, not just its size.
A positive charge (like Xe + from high voltage toward low voltage — it "rolls downhill."
A negative charge (like an electron e − opposite pull: it moves from low voltage toward high voltage — "uphill."
The picture: on the same ramp, the amber "+" ball rolls down while a cyan "−" ball would be tugged up the slope.
Why the topic needs it: the accelerator grid is negative precisely so it pulls the positive ions forward while pushing electrons back — same voltage, opposite effect, because of sign.
Definition Atom, electron, ion
Atom: a complete neutral particle of an element — here, xenon (Xe electrons (e − Electron (e − the tiny negative particle. Very light.Ion: an atom that has lost (or gained) an electron, so it is no longer neutral. Lose one electron → you get a positive ion , written Xe + The picture: a full atom = balanced scales. Knock one electron off → the scales tip positive → that's Xe +
Figure s02 — Left: a neutral xenon atom (amber core "Xe") ringed by six cyan "−" electrons, perfectly balanced. A white "e− hits" arrow strikes it. Right: the result — an amber "Xe+" core with only five electrons left, and two cyan electrons flying off (the bullet plus the knocked-loose one). Watch the electron count drop from six to five as one charge tips it positive.
The "+ Xe + + q e q + 1.602 × 1 0 − 19
m Plain words: mass is "how much stuff" a particle contains — how heavy and hard-to-shove it is. Unit: kilogram (kg).
The picture: a bowling ball vs a ping-pong ball. Same push, the heavy one barely moves.
Why the topic needs it: thrust (the push on the ship) comes from momentum , and momentum = mass × speed. A heavy ion carries more momentum per throw, so it pushes the ship harder. That's the whole reason engineers pick heavy xenon.
Key masses on the parent page:
Xenon ion: m Xe = 2.18 × 1 0 − 25
Electron: about 9.11 × 1 0 − 31 240,000 times lighter than the xenon ion.
Intuition Why the mass ratio mattersBecause the ion is ~240,000× heavier, it carries essentially all the momentum. The electrons the neutralizer sprays out are so light they add almost no push. This single fact answers the "won't electrons cancel the thrust?" worry.
Definition Potential differenceV Plain words: voltage is the "electrical height drop" between two places. A charge "falls downhill" from high voltage to low voltage, gaining speed as it goes — just like a ball rolling down a hill gains speed.
The picture: a ramp. High end = high potential, low end = low potential. A positive charge released at the top slides to the bottom, faster and faster.
Why the topic needs it: the two grids create exactly such a downhill of size V V Its unit — the volt (V): one volt means "one joule of energy handed to every one coulomb of charge that makes the drop." In symbols, 1 V = 1 J / C energy-per-charge , which is exactly why the energy a charge gains is charge × voltage.

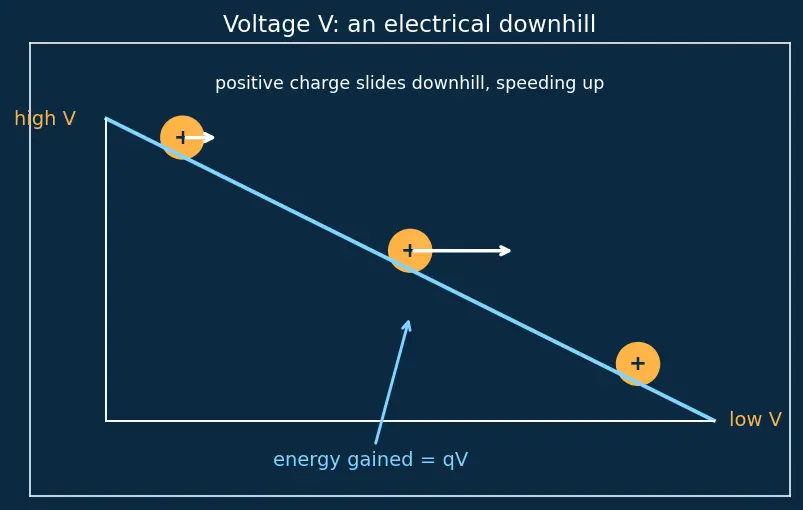

Figure s03 — A cyan ramp sloping from "high V" (amber, top-left) down to "low V" (amber, bottom-right). Three amber "+" balls sit further down the slope each with a longer white velocity arrow, showing the positive charge speeding up as it descends. The cyan label reads "energy gained = qV". A negative charge would instead be tugged up this same ramp.
Definition Electron-volt (eV)Plain words: a tiny unit of energy. It is defined as exactly the energy one electron gains falling through one volt.
The picture: one electron sliding down a 1-volt ramp — the energy it picks up is "1 eV."
Why the topic needs it: the energy to rip an electron off xenon (its ionization energy ) is naturally small, so scientists measure it in eV instead of tiny joules. For xenon it is E i = 12.13
Definition Kinetic energyPlain words: the energy a thing has because it is moving . Faster or heavier → more of it.
The picture: a rolling ball. Stop it in your hand and you feel its energy as a thump.
Why the topic needs it: all the electrical energy q V given turns into motion energy. Setting those equal is how we solve for the exhaust speed.
Definition The Work–Energy Theorem in one sentenceThe statement: the total work done on an object (force applied along the distance it moves) equals the change in its kinetic energy. Push something and the "push × distance" you spend shows up entirely as extra motion energy. This is the whole content of Work-Energy Theorem .
2 1 v 2 F m
The mass speeds up at a constant rate, so if it ends at speed v average speed over the trip was 2 v v t d = 2 v t that halving is where the 2 1
The force gives it speed at rate F = m ( v / t ) F = m v / t Work = F × d = ( t m v ) × ( 2 v t ) = 2 1 m v 2 . t v v 2 2 1 energy of motion built up is 2 1 m v 2
v e Plain words: how fast the ions leave the engine, out the back. Subscript e The picture: the stream of ions shooting rightward out the nozzle; v e Why the topic needs it: this is the payoff number. Ion engines reach v e ≈ 30 – 50 v e Specific Impulse and Exhaust Velocity .
Rearranging q V = 2 1 m v e 2 v e = m 2 q V . q V m
Definition "Per second" — the dot and the letterI
m ˙ mass leaving per second (kg/s). The dot is shorthand for "rate of."N number of ions leaving per second (count/s).I beam current : the amount of charge leaving per second (amperes, A). Since each ion carries charge q N I = N q The picture: stand at the nozzle with a stopwatch and count what streams past in one second — that's what a "dot" or a "current" measures.
Why the topic needs it: thrust is a rate — momentum thrown out per second . So we must count how many ions, and how much mass, leave each second.
I = N q positive charge. The xenon ions are positive, so the beam current I = N q out the back with the ions . If instead you counted the neutralizer's electrons (negative q same physical motion outward would count as current pointing the other way — sign flips because their charge is negative. On this page every q I = N q I
F Plain words: a push or pull. Thrust is the forward push the escaping ions give the ship. Unit: newton (N).
The picture: the recoil you feel throwing a ball — the ball goes one way, you're shoved the other.
Why the topic needs it: thrust is what actually moves the spacecraft. For an ion engine it's tiny (~0.1 N, the weight of a coin) but relentless, which is why it feeds the Tsiolkovsky Rocket Equation for months to build enormous Δ v
ionization energy Ei in eV
kinetic energy half m v squared
Read it top-down: charge + electron + ionization energy let you build an ion ; voltage does work on it, becoming kinetic energy , giving exhaust speed ; combine speed with mass and the rate of throwing, and you get thrust , which moves the ship. This is exactly the three-stage story of the parent page — Ionize, Accelerate, then keep it balanced.
Test yourself — cover the right side and answer before revealing.
What does the symbol q Electric charge; q e = 1.602 × 1 0 − 19
Which way does a positive charge move in a voltage drop, and which way does an electron move? Positive charge moves high→low voltage (downhill); an electron moves low→high (uphill), opposite.
What is an ion, and how do you write a singly-ionized xenon atom? A charged atom (missing/added electron); written Xe +
What does the symbol m Mass; heavier ions carry more momentum per throw, so more thrust.
What does voltage V It's an electrical "downhill" a positive charge slides down; 1 V = 1 J / C
Define one electron-volt (eV). The energy one electron gains falling through one volt = 1.602 × 1 0 − 19
State the Work–Energy Theorem in one sentence. The total work done on an object equals the change in its kinetic energy.
Write the kinetic energy formula and say where the ½ comes from. K E = 2 1 m v 2
What is v e q , V , m Exhaust speed;
v e = 2 q V / m .
What does the dot in m ˙ "Rate per second" — mass leaving per second.
How are current I N q I I = N q
What is F Thrust (forward push); tiny (~0.1 N) but runs for months, so total Δ v
