Electric charge — properties, quantization, conservation

1. What is electric charge?

WHY two types and not one? Because experiments show two distinct behaviours: rub glass with silk → call it positive; rub plastic with fur → call it negative. Like charges repel, unlike charges attract. One label could never produce repulsion and attraction.

2. The three core properties

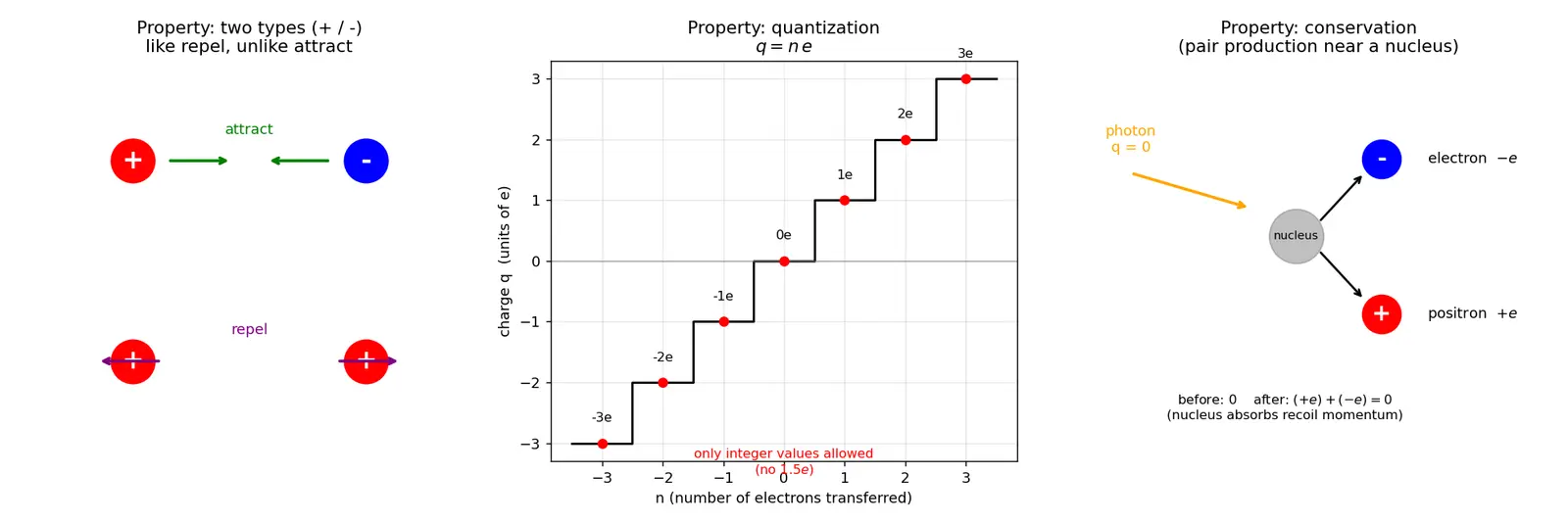

Figure — Electric charge — properties, quantization, conservation

3. Deriving "how many electrons" — from first principles

We are NOT given a formula; we build it.

Setup: Charge means "missing or extra electrons." Each electron carries magnitude $e$ . If $n$ electrons were transferred, the total magnitude must be $n$ copies of $e$ : $|q| = \underbrace{e+e+\cdots+e}_{n\text{ times}} = n e \;\;\Longrightarrow\;\; \boxed{n = \frac{|q|}{e}}$

4. Conservation worked example

5. Common mistakes (Steel-manned)

Recall Feynman: explain to a 12-year-old

Imagine LEGO bricks that come in two colours — red (+) and blue (−). Red and blue bricks stick together; two reds push apart, two blues push apart. Every object has some reds and blues. "Charging" something just means moving a few blue bricks from one toy to another. You can only move whole bricks, never half a brick (that's quantization). And if you count all the bricks in a sealed box before and after, the number of reds-minus-blues never changes (that's conservation) — you just rearranged them.

Active-recall flashcards

What are the three core properties of electric charge?

Additivity (scalar, signed), Conservation, Quantization.

Why is charge a scalar, not a vector?

It has magnitude and sign but no direction; you add charges algebraically.

State charge quantization mathematically.

q = ne

, with

n

an integer and

e=1.6\times10^{-19}

What is the value of the elementary charge

e

1.602\times10^{-19}

How many electrons make up

1

coulomb?

About

6.24\times10^{18}

(

1/e

State conservation of charge for an isolated system.

Total charge stays constant;

\sum q_{before}=\sum q_{after}

How is a body made positively charged at the microscopic level?

By removing electrons (not adding protons).

In pair production, why must a nucleus or other particle be present?

To absorb recoil momentum so energy AND momentum are conserved; a lone photon in vacuum cannot do both.

Two identical spheres

+8e

and

-2e

touch — final charge each?

+3e

each (total

+6e

shared equally).

Can a free particle have charge

2.4\times10^{-19}

C? Why?

No;

n=1.5

is not an integer, violating quantization.

Why don't quarks'

e/3

charges break quantization of free charge?

Quarks are confined; no free particle has charge less than

e

n = |q|/e represents what?

Number of excess/deficit electrons producing charge

q

Connections

Coulomb's Law — how two charges exert force (uses charge as the source).
Electric Field — charge as the source of $\vec E$ .
Conductors and Insulators — how easily electrons move to enable charging.
Methods of Charging — friction, conduction, induction.
Gauss's Law — enclosed charge determines flux (uses additivity).
Conservation Laws in Physics — charge alongside energy and momentum.
Atomic Structure — protons & electrons as carriers of $\pm e$ .

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, electric charge ek aisi property hai jo matter ke andar hoti hai — bilkul mass ki tarah, par fark ye hai ki charge do flavours mein aata hai: positive aur negative. Same charge ek dusre ko push karte hain (repel), aur opposite charge attract karte hain. Yahi do-flavour wali baat charge ko mass se alag banati hai, kyunki mass sirf attract karta hai.

Asli mein "charging" ka matlab hai sirf electrons ka transfer. Atom normally neutral hota hai (protons = electrons). Jab tum kisi cheez ko rub karte ho, kuch electrons idhar-se-udhar move ho jaate hain. Electron chala gaya → object positive, electron aa gaya → object negative. Proton kabhi move nahi karta kyunki wo nucleus mein tightly bound hota hai — isliye "positive banana" ka matlab electron hatana hai, proton add karna nahi.

Teen main properties yaad rakho — "A Cute Quantum": Additive (charges ko sign ke saath add karo, ye scalar hai), Conserved (isolated system ka total charge kabhi change nahi hota, sirf rearrange hota hai), aur Quantized (har charge $q = n e$ hota hai, jahan $n$ integer hai aur $e = 1.6\times10^{-19}$ C). Quantization ka matlab — charge brick-by-brick aata hai, half brick possible nahi. Ek important baat: pair production mein photon se electron-positron banta hai aur charge to balance ho jaata hai (0 → +e aur −e), par ye empty space mein nahi ho sakta — paas mein nucleus chahiye taaki momentum bhi conserve ho.

Ye chapter foundation hai — aage Coulomb's law, electric field, Gauss law sab isi charge concept pe khade hain. Isliye properties ko ratne se nahi, samajh ke yaad karo: kyun scalar, kyun conserve hota hai, kyun integer multiple. Phir numericals (jaise "kitne electrons in $1\mu C$ ?") khud-ba-khud easy lagenge.
