Understand capacitance and the farad

WHAT is capacitance?

WHY does this ratio stay constant? For a fixed pair of conductors (fixed size, shape, spacing, material), doubling the charge doubles the voltage. The ratio $Q/V$ depends only on the geometry and the insulator (dielectric) between the plates — not on how much you charged it. That constant ratio is what we name "capacitance."

HOW do we derive $C = Q/V$ from first principles?

Take the simplest capacitor: two flat parallel plates, area $A$ , separation $d$ , holding charges $+Q$ and $-Q$ .

Step 1 — Field from the charge. Each plate carries surface charge density $\sigma = Q/A$ . From Gauss's law, the uniform field between two oppositely charged plates is $E = \frac{\sigma}{\varepsilon} = \frac{Q}{\varepsilon A}$ Why this step? Gauss's law relates enclosed charge to field; for an infinite sheet the field is uniform and set by charge per area.

Step 2 — Voltage from the field. Voltage is field times the distance the charge is pushed: $V = E\,d = \frac{Q\,d}{\varepsilon A}$ Why this step? Potential difference is $\int E\,dl$ ; with uniform $E$ this is just $E \times d$ .

Step 3 — Take the ratio. Now form $Q/V$ : $C = \frac{Q}{V} = \frac{Q}{\dfrac{Qd}{\varepsilon A}} = \frac{\varepsilon A}{d}$ Why this step? The $Q$ cancels — proving capacitance is pure geometry + material, exactly as claimed.

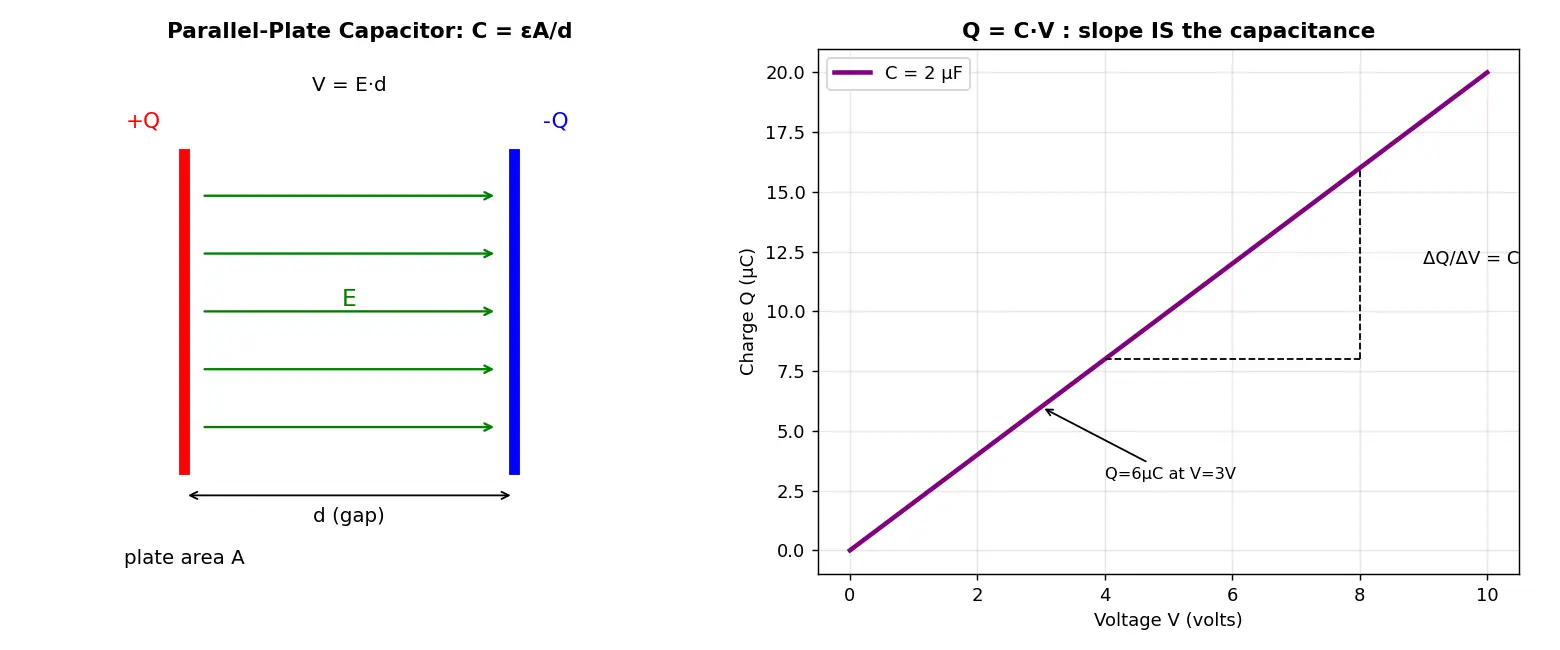

Figure — Understand capacitance and the farad

HOW much energy is stored?

Charging up isn't free — each extra bit of charge must be pushed against the voltage already there.

Derivation. To add charge $dq$ when voltage is $v = q/C$ , the work is $dW = v\,dq = \frac{q}{C}\,dq$ . Integrate from $0$ to $Q$ : $W = \int_0^Q \frac{q}{C}\,dq = \frac{1}{C}\cdot\frac{Q^2}{2} = \frac{Q^2}{2C}$ Using $Q = CV$ : $\boxed{E = \tfrac{1}{2}CV^2 = \tfrac{1}{2}QV = \frac{Q^2}{2C}}$

Worked Examples

Common Mistakes (Steel-manned)

Active Recall

Recall Feynman: explain to a 12-year-old

Imagine a water tank. Voltage is how high you push the water; charge is how much water is inside. A big tank holds lots of water even when the water level is low — that "how much water per unit height" is its capacitance. A farad is a ridiculously huge tank: to fill a 1-farad tank to just 1 volt you need 1 coulomb (a mountain of electrons!). To store more, either make the tank wider (bigger plates) or make its walls closer together so water piles up easier.

Flashcards

What is the definition of capacitance?

The charge stored per unit voltage,

C = Q/V

What is the unit of capacitance and its base definition?

The farad (F);

1\ \text{F} = 1\ \text{coulomb per volt}

Why is capacitance independent of the charge placed on it?

Because voltage is proportional to charge, so their ratio

Q/V

depends only on geometry and dielectric.

Formula for a parallel-plate capacitor?

C = \varepsilon_0 \varepsilon_r A / d

Two physical ways to increase capacitance?

Increase plate area

A

or decrease gap

d

(also higher

\varepsilon_r

Energy stored in a capacitor?

E = \tfrac12 CV^2 = \tfrac12 QV = Q^2/(2C)

Why the factor ½ in the energy formula?

Charge is pushed against the average voltage

V/2

as it builds from 0 to

V

Charge on a 2 µF cap at 3 V?

Q = CV = 6\ \mu\text{C}

Why is 1 farad considered a huge unit?

It stores 1 coulomb per volt; typical caps are pF–mF.

Value of

\varepsilon_0

8.85 \times 10^{-12}\ \text{F/m}

Connections

Electric Charge and the Coulomb — $Q$ in $C=Q/V$ is measured in coulombs.
Voltage and Potential Difference — $V$ is the "pressure" filling the bucket.
Gauss's Law and Electric Fields — used to derive the parallel-plate field.
Dielectrics and Permittivity — $\varepsilon_r$ boosts capacitance.
Capacitors in Series and Parallel — combining buckets.
Energy Storage in Circuits — $\tfrac12CV^2$ powers flashes, filters, backups.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Capacitance ka matlab simple hai: ek capacitor charge ko store karne wali "balti" (bucket) hoti hai. Capacitance batata hai ki har ek volt par kitna charge store hota hai — yani $C = Q/V$ . Iska unit hai farad, aur $1\ \text{F} = 1$ coulomb per volt. Yaad rakho, farad ek bahut hi bada unit hai, isliye real life mein capacitors pico, nano ya micro farad mein aate hain.

Ab derivation ka funda: agar do parallel plates lo (area $A$ , gap $d$ ), to Gauss's law se field $E = Q/(\varepsilon A)$ nikalta hai, aur voltage $V = E d$ . Jab $Q/V$ ka ratio lete ho, to $Q$ cancel ho jaata hai aur bachta hai $C = \varepsilon A / d$ . Iska matlab — capacitance sirf geometry (plate ka size, gap) aur beech ke insulator par depend karta hai, na ki kitna charge daala uspar. Isiliye bada area ya chhota gap capacitance badhata hai.

Energy ke liye $E = \tfrac12 CV^2$ . Yeh ½ kyun? Kyunki charging ke time voltage zero se badhta hua $V$ tak jaata hai, to charge ko average $V/2$ ke against push karna padta hai. Yeh capacitor camera flash, power supply filters aur backup circuits mein energy dene ke kaam aata hai.

Common galti: log sochte hain zyada voltage matlab zyada capacitance — galat! Voltage badhne se charge aur energy badhti hai, par $C$ wahi rehta hai kyunki woh bucket ka size hai, na ki paani ki matra.
