Understand capacitance and the farad: Visual walkthrough

Step 1 — What is even in the box? Two plates, two charges

WHAT. Picture two flat metal sheets facing each other, like two slices of bread held apart. We push extra electrons onto the bottom sheet (giving it charge $- Q$ ) and pull the same number off the top sheet (leaving it $+ Q$ ). Nothing else — no battery, no wires — just two charged plates a distance apart.

WHY. This is the simplest possible capacitor. If we can derive the rule for flat plates, every other shape is just a variation. Starting simple lets each symbol earn its place.

PICTURE. Look at the figure. The two plates are the pastel bars. The gap between them is labelled $d$ (the separation), and each plate has area $A$ (how wide-and-tall the face is). The little $+$ and $-$ signs are the charges $\pm Q$ .

Figure — Understand capacitance and the farad

Step 2 — Spread the charge into a "density"

WHAT. Instead of tracking $Q$ as one lump, we spread it evenly across the plate's face and ask: how much charge sits on each square metre? That number is the surface charge density, written $σ$ (Greek letter "sigma"):

$charge per square metre σ = \frac{Q total charge}{area it’s spread over A}$

WHY. The electric field that comes next does not care how big the plate is — it only cares how crowded the charge is. A small plate packed tight and a huge plate packed just as tight make the same field. So we must convert "total charge $Q$ " into "crowdedness $σ$ " first.

PICTURE. In the figure the charge on the plate is drawn as evenly spaced dots. Squeeze the same dots onto half the area and the dots double up — that's $σ$ doubling while $Q$ stays the same. The formula $σ = Q / A$ is just "dots per tile".

Step 3 — Why we reach for Gauss's law here

WHAT. We want the electric field $E$ in the gap. The tool that turns "charge crowdedness" directly into "field strength" is Gauss's law.

WHY THIS TOOL AND NOT ANOTHER? We could add up the pull of every single electron (Coulomb's law, one arrow at a time) — but that is a nightmare of vectors. Gauss's law answers a cleaner question: "given how much charge is enclosed, how strong is the field pushing out through a surface around it?" For flat sheets that answer is astonishingly simple, so this is the right tool.

PICTURE. Imagine a tiny imaginary "pillbox" straddling one plate (the dashed shape in the figure). Field lines poke straight out of the charged face. Gauss's law says: the total field poking through the box is set by the charge trapped inside it. Because the plate is flat and the field lines are parallel, the result is a uniform field.

Step 4 — What the field looks like in the gap

WHAT. The field $E$ is the same strength everywhere between the plates — same length arrows, all pointing from the $+$ plate straight across to the $-$ plate. This "same everywhere" is the word uniform.

WHY IT MATTERS. Uniformity is the gift that makes the next step trivial. If the field varied from place to place we'd need calculus to find the voltage. Because it's constant, voltage becomes a simple multiplication.

PICTURE. In the figure every arrow between the plates is identical in length and direction — a neat parallel comb. Near the edges the field bulges a little ("fringing"), but for plates much wider than the gap we ignore that tiny edge and treat the inside as perfectly uniform.

Step 5 — Turn field into voltage

WHAT. Voltage $V$ is the push per unit charge a test charge feels as it crosses the gap. For a uniform field, that push is simply field strength times distance travelled:

$voltage across gap V = E field strength \times distance the charge is pushed d = \frac{Q d}{ε A}$

WHY THIS TOOL. In general voltage is the running total (an integral) of field along the path. But "running total of a constant" is just constant × length. So the whole integral collapses to $E \times d$ — no calculus needed here, precisely because Step 4 gave us a uniform field.

PICTURE. Walk a $+ 1$ test charge from the bottom plate to the top. At every step the same-length field arrow gives it the same little shove. Add up all the identical shoves across distance $d$ and you get the total climb $V = E d$ — like climbing a staircase of equal steps.

Step 6 — The magic cancellation: form the ratio $Q / V$

WHAT. Capacitance is defined (parent note) as $C = Q / V$ . We now have $V$ in terms of $Q$ , so substitute:

$C = \frac{Q}{V} = \frac{Q}{\frac{Q d}{ε A}} = \frac{Q \cdot ε A}{Q \cdot d} = \frac{ε A}{d}$

Watch the $Q$ : it sits on top and buried in the denominator's fraction. Flipping and multiplying puts a $Q$ upstairs and a $Q$ downstairs — they cancel and vanish.

WHY THIS MATTERS. The disappearance of $Q$ is the whole point of the derivation. It proves the parent note's claim: capacitance does not depend on how much you charged the plates. Charge it a little or a lot — the ratio $Q / V$ is fixed by $ε$ , $A$ and $d$ alone.

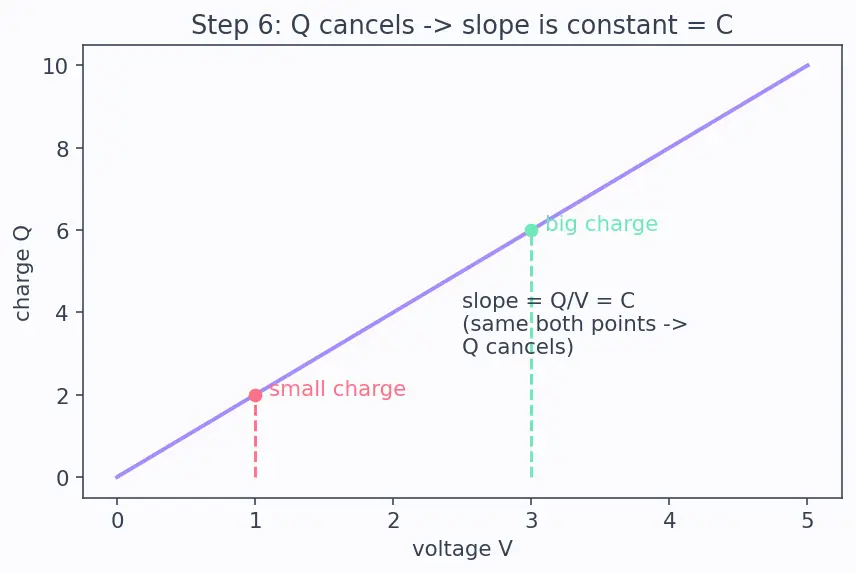

PICTURE. The figure shows two experiments on the same capacitor: small charge (short field arrows, small $V$ ) and big charge (long arrows, big $V$ ). The two right-triangles $Q$ -vs- $V$ have the same slope — that slope is $C$ . Steepness unchanged ⇒ $Q$ cancelled.

Step 7 — The edge cases (never leave the reader stranded)

WHAT + WHY + PICTURE, one degenerate input at a time. The figure stacks all four.

Gap shrinks to zero, $d \to 0$ . $C = ε A / d \to \infty$ . The plates almost touch; the field for a given voltage becomes huge; the bucket holds unlimited charge per volt. In reality the insulator breaks down (sparks) before this — so $d$ can't truly reach 0.
Gap grows huge, $d \to \infty$ . $C \to 0$ . Plates too far apart barely influence each other; almost no charge is held per volt.
Zero charge, $Q = 0$ . Then $σ = 0$ , so $E = 0$ and $V = 0$ . The ratio $0/0$ looks scary, but $C$ was never defined by one measurement — it's the fixed slope, still $ε A / d$ . An empty bucket still has its size.
Vacuum gap, $ε_{r} = 1$ . Then $ε = ε_{0}$ and $C = ε_{0} A / d$ . This is the baseline; any real insulator ( $ε_{r} > 1$ ) only raises $C$ .

The one-picture summary

Everything above compressed into one flow: charge → density → field → voltage → ratio → the $Q$ cancels → pure geometry.

Recall Feynman retelling — say it like a story

I put charge $Q$ on two plates. First I stop thinking about total charge and think about crowdedness $σ = Q / A$ — how packed the charge is, because that's all the field cares about. Then I use Gauss's law, because it turns crowdedness straight into a field without adding up a million tiny arrows: $E = σ / ε$ . That field is the same everywhere in the gap, which is lucky, because it means the voltage is just field × gap, $V = E d$ — no hard maths. Now I form the ratio the definition asks for, $Q / V$ , and something beautiful happens: the $Q$ on top and the $Q$ hidden inside $V$ cancel. What's left, $ε A / d$ , has no charge in it at all. That's the proof: capacitance is the size of the bucket, set only by how big the plates are, how close they sit, and what's between them — never by how much I poured in.
