Understand capacitance and the farad: Question bank

Before we start, we build every symbol from scratch so this page stands alone.

Definition The cast — every symbol earned

$C$ = capacitance = how much charge the bucket holds per volt of pressure, unit farad (F).
$Q$ = charge stored, in coulombs — the amount of "stuff" — see Electric Charge and the Coulomb.
$V$ = voltage (potential difference) = the electrical "pressure" that fills it — see Voltage and Potential Difference.
$A$ = plate area, $d$ = the gap between the two plates (in metres).
$ε_{0}$ = the permittivity of free space, a fixed constant of nature, $ε_{0} = 8.85 \times 1 0^{- 12} F/m$ . In plain words: it measures how much electric field the empty vacuum lets a given charge produce — a bigger $ε_{0}$ would mean weaker field per charge.
$ε_{r}$ = the relative permittivity (or dielectric constant) of the insulator between the plates — a pure number ( $ε_{r} = 1$ for vacuum, $\approx 2$ – $10$ for plastics, thousands for special ceramics). It says how many times better than vacuum this material lets you store charge. See Dielectrics and Permittivity.
$ε$ (no subscript) = the total permittivity of whatever fills the gap, $ε = ε_{0} ε_{r}$ . So $ε$ is the absolute material property; $ε_{r}$ is only its multiple over vacuum. Wherever a formula shows a bare $ε$ , read it as $ε_{0} ε_{r}$ .
Core relations: $C = \frac{Q}{V}$ , geometry version $C = \frac{ε _{0} ε _{r} A}{d}$ , energy $E = \frac{1}{2} C V^{2}$ .

Below is the picture your whole intuition should hang on: the bucket metaphor made concrete, the plate geometry, and why the energy has a factor $\frac{1}{2}$ .

Figure — Understand capacitance and the farad

The left panel is the bucket: voltage is the water height, charge is the water volume, capacitance is the width of the tank (how much volume per unit height). The right panel is the real hardware those symbols live in — two plates of area $A$ , gap $d$ , with the insulator ( $ε_{r}$ ) sandwiched between.

Definition Where

$C = ε_{0} ε_{r} A / d$ actually comes from (so nothing is on faith) Everything below is built from three plain facts, each earned in turn — no external chasing needed.

Fact 1 — charge spreads evenly, so we talk "charge per area." Put $+ Q$ on the top plate; it smears over the area $A$ as a surface charge density $σ = Q / A$ (coulombs per square metre). Why this quantity? The field between wide plates only cares how crowded the charge is, not the total — so $σ$ is the right handle.

Fact 2 — the field is set by that density. For two wide oppositely-charged plates, Gauss's law gives a uniform field $E = \frac{σ}{ε _{0} ε _{r}} = \frac{Q}{ε _{0} ε _{r} A}$ . Why divide by $ε_{0} ε_{r}$ ? The vacuum baseline $ε_{0}$ sets how much field a given charge makes, and the dielectric ( $ε_{r}$ ) partly cancels it — see Dielectrics and Permittivity — so a bigger $ε_{r}$ means less field per charge.

Fact 3 — voltage is field times distance. With a uniform field, the potential difference from bottom plate to top is simply $V = E d = \frac{Q d}{ε _{0} ε _{r} A}$ . Why multiply by $d$ ? Voltage measures the total "push per charge" accumulated across the whole gap; a constant push over a length $d$ just multiplies.

Assemble. Now take the ratio $C = Q / V$ — the charge cancels, which is the whole point: $C = \frac{Q}{V} = \frac{Q}{\frac{Q d}{ε _{0} ε _{r} A}} = \frac{ε _{0} ε _{r} A}{d}$ The $Q$ vanished, proving capacitance is pure geometry ( $A$ , $d$ ) plus material ( $ε_{r}$ ) — never how much you charged it.

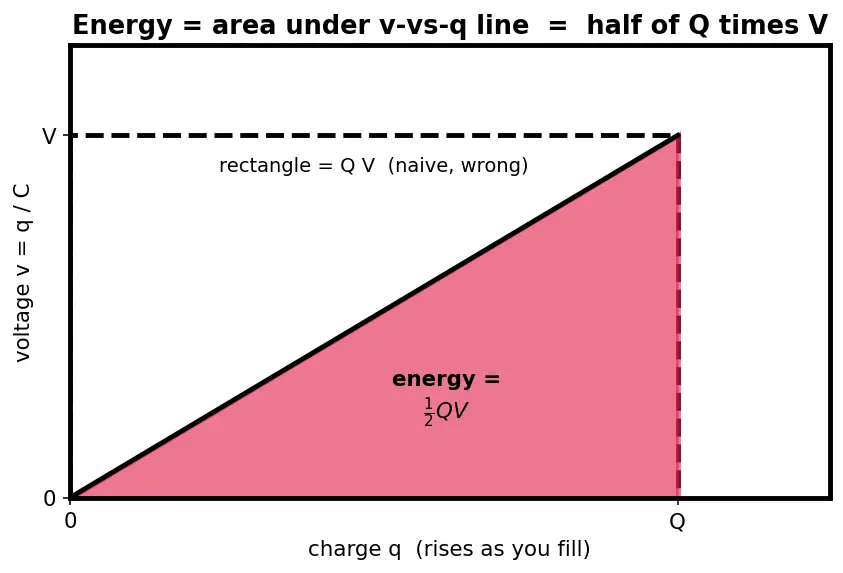

Look at the red triangle. As you charge the capacitor, the voltage rises linearly from $0$ up to the final $V$ (because $v = q / C$ ). The energy you spend is the total work $\sum v Δ q$ = the area under the $v$ -vs- $q$ line. That area is a triangle: $\frac{1}{2} \times base \times height = \frac{1}{2} Q V$ . A rectangle of area $Q V$ (the naive answer) would assume the full voltage acted the whole time — but early charge went in almost for free. The ½ is literally the triangle being half the rectangle.

True or false — justify

Doubling the voltage on a fixed capacitor doubles its capacitance.

False.

C

is fixed by geometry and dielectric; doubling

V

doubles the stored charge

Q

, so the ratio

Q / V

— the capacitance — is unchanged.

A capacitor with zero charge on it has zero capacitance.

False. With

Q = 0

we also have

V = 0

, and

0/0

is not "zero" — capacitance is the slope of

Q

V

, which still equals

ε_{0} ε_{r} A / d

set by the hardware, empty or not.

If you double both the plate area

A

and the gap

d

, the capacitance is unchanged.

True.

C = ε_{0} ε_{r} A / d

; doubling top and bottom of the fraction cancels, leaving

C

the same.

Two identical capacitors, one charged to 10 V and one to 5 V, have the same capacitance.

True. Identical plates and dielectric give identical

C

; only their stored charge and energy differ, not the bucket size.

Filling the gap with a dielectric (

ε_{r} > 1

) always increases capacitance.

True. The dielectric polarises and partly cancels the field, so more charge sits at the same voltage — see Dielectrics and Permittivity. Since

C = ε_{0} ε_{r} A / d

, a larger

ε_{r}

raises

C

A 3-farad supercapacitor is physically smaller than a 3-microfarad film capacitor.

False. A whole farad is enormous (

1 C

per volt); reaching several farads needs vast effective area, so supercapacitors are usually bigger and heavier, not smaller.

Energy stored is proportional to voltage.

False.

E = \frac{1}{2} C V^{2}

grows with the square of voltage; doubling

V

quadruples the stored energy, not doubles it.

If two capacitors hold the same charge, they store the same energy.

False.

E = Q^{2} / (2 C)

: at equal

Q

, the smaller-

C

capacitor holds more energy because it sits at a higher voltage.

The relative permittivity

ε_{r}

of a capacitor is always a fixed constant of the material.

False. For many real dielectrics

ε_{r}

drifts with voltage, temperature and frequency (e.g. Class-2 ceramics can lose over half their

ε_{r}

near rated voltage), so their

C

is not strictly geometry-fixed.

Spot the error

C = Q / V

, so a capacitor with more charge has more capacitance."

The error is treating

Q

as independent of

V

. On a fixed capacitor

V

rises in step with

Q

, so their ratio is pinned by geometry — more charge does not raise

C

"Energy stored is

E = Q V

because work equals charge times voltage."

Missing the factor

\frac{1}{2}

. The voltage climbs from

0

V

as the bucket fills, so charge is pushed against the average voltage

V /2

— the triangle, not the rectangle — giving

E = \frac{1}{2} Q V

1 F = 1 C

, since a farad just measures stored charge."

A farad is charge per volt (

1 F = 1 C/V

), not charge itself. Only at exactly

1

volt do the numbers of coulombs and farads happen to match.

"Since

C = ε_{0} ε_{r} A / d

, making

d

zero gives infinite capacitance — free unlimited storage."

Mathematically

C \to \infty

, but physically the plates touch and short out, or the field exceeds the dielectric's breakdown and it arcs. The formula's domain excludes

d = 0

"To store more energy just charge to a higher voltage; there's no limit."

Every dielectric has a breakdown field; past it the insulator conducts and the capacitor fails. Voltage — hence

\frac{1}{2} C V^{2}

— is capped by the material, not unlimited.

"Bigger plate area lowers capacitance because the charge spreads out thinner."

Reversed. Larger

A

lets more total charge sit at the same voltage (

C = ε_{0} ε_{r} A / d

rises with

A

); the thinner surface density is exactly why more charge fits before the voltage builds.

"Doubling the charge doubles the energy, since energy depends on charge."

E = Q^{2} / (2 C)

: doubling

Q

quadruples the energy, because energy scales with charge squared, not linearly.

ε_{0}

can just be dropped since

ε_{r}

already handles the material."

ε_{0}

is the absolute vacuum baseline (with units F/m) that sets the physical scale;

ε_{r}

is only a dimensionless multiplier on top of it. Drop

ε_{0}

and

C = ε_{r} A / d

loses its units and its magnitude.

Why questions

Why does the

Q

cancel when we derive

C = ε_{0} ε_{r} A / d

Because voltage is itself proportional to charge (

V = Q d / (ε_{0} ε_{r} A)

), so in the ratio

Q / V

the charge divides out, leaving only geometry and material.

Why is the farad such an awkwardly huge unit for everyday electronics?

One coulomb is about

6 \times 1 0^{18}

electrons; storing that per single volt needs vast area or tiny gaps, so practical parts live in pF–mF and we scale the unit down.

Why can we treat the field between the plates as uniform when deriving

V = E d

For plates much wider than their gap, Gauss's law gives a constant field from an infinite sheet, so the potential difference is simply field times distance,

E \times d

Why does a smaller gap

d

increase capacitance?

A smaller gap means the same voltage produces a stronger field, so more charge is needed to reach that voltage — more charge per volt is exactly higher capacitance.

Why is there a factor of

\frac{1}{2}

\frac{1}{2} C V^{2}

and not in

Q = C V

Q = C V

is a snapshot at the final voltage; the energy is a running total summed while the voltage climbed from zero, so it is the triangular area under the

v

-vs-

q

line — half the rectangle

Q V

Why does the energy formula have three equivalent forms

\frac{1}{2} C V^{2} = \frac{1}{2} Q V = Q^{2} /2 C

They are the same quantity rewritten using

Q = C V

; you pick the form whose two quantities you already know — see Energy Storage in Circuits.

Why does capacitance depend on the insulator between the plates but a resistor's resistance depends on the conductor?

A capacitor blocks steady current, so what matters is how the insulator stores field (

ε_{r}

); a resistor passes current, so what matters is how well its material conducts.

Edge cases

What is the capacitance if the plates are pulled infinitely far apart?

d \to \infty

C = ε_{0} ε_{r} A / d \to 0

— the plates barely influence each other, so almost no charge is held per volt.

What happens to a charged capacitor's voltage if you widen the gap while it is disconnected?

With

Q

trapped fixed, increasing

d

lowers

C

, so

V = Q / C

rises — you did work pulling the attracting plates apart, stored as extra energy.

What happens to the stored energy if a charged, disconnected capacitor has a dielectric inserted?

C

increases at fixed

Q

, so

V = Q / C

falls and

E = Q^{2} /2 C

decreases — the capacitor pulls the dielectric in, doing work on it, so energy leaves the field.

Is a capacitor charged to

0 V

storing any energy?

No.

E = \frac{1}{2} C V^{2} = 0

V = 0

; with no voltage there is no charge separation and nothing to release.

Can capacitance ever be negative?

No.

Q

and

V

always share the same sign across a passive capacitor (positive plate is at higher potential), so their ratio

C = Q / V

is always positive.

C = Q / V

still meaningful for a capacitor whose

ε_{r}

changes with voltage?

Yes at each instant, but

C

is then not one fixed number — you get a voltage-dependent

C (V)

, and

Q

V

becomes a curve, not a straight line. Real nonlinear ceramics behave exactly this way.

What limits how much charge a real capacitor can hold, if

Q = C V

has no built-in ceiling?

The dielectric's breakdown voltage. Beyond it the insulator conducts and discharges the plates, so the maximum

Q

C

times that breakdown voltage.

Active Recall

Recall One-line summary of every trap

Capacitance is a fixed bucket size (unless the dielectric is nonlinear) — voltage and charge move together and cancel in the ratio; energy is the triangular half $\frac{1}{2} C V^{2}$ ; a farad is huge; and $d = 0$ , $V = 0$ , infinite voltage all break something physical. Say the phrase ::: "The bucket's size never changes — only how full it gets."
