Define voltage (potential difference) and its units
WHY does voltage exist?

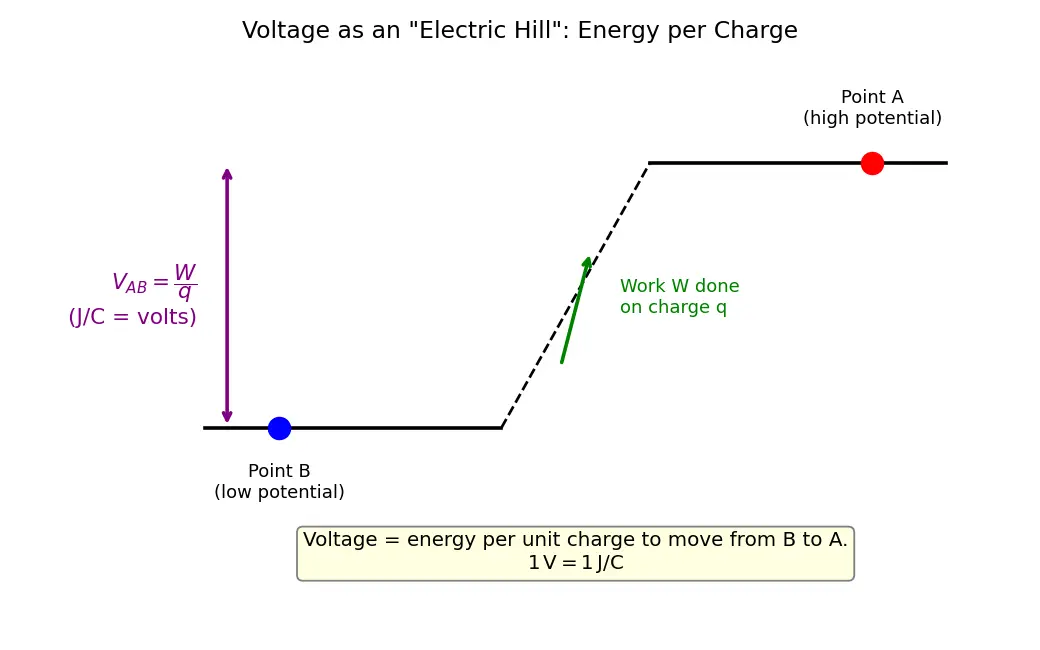

Charges create electric fields. To move a positive charge against that field (say, from a low-energy spot to a high-energy spot), you must do work on it — just like lifting a rock against gravity stores gravitational potential energy.
That stored energy, measured per coulomb of charge, is the electric potential. The difference in this stored-energy-per-charge between two points is what we call voltage.
WHAT is voltage, precisely?
Key subtlety: Voltage is always between two points. A single point has no voltage on its own until we pick a reference ("ground", usually 0 V). Saying "the voltage at node X is 5 V" secretly means "5 V relative to ground."
HOW do we derive the units from first principles?
We build the volt from what we already know, no memorization:
- Work / Energy is force × distance: , unit = joule (J).
- Charge is measured in coulombs (C).
- Voltage is defined as energy per charge:
- We name this ratio the volt. That's it — the volt is not fundamental; it is a shorthand for J/C.
Worked Examples
Forecast-then-Verify
Recall Forecast before you compute
Q: If you double the charge you move between two fixed points but keep the same field, does the voltage between them change? Forecast your answer, then reveal: A: No. Voltage is a property of the two points (energy per charge). Doubling doubles the work , but stays the same. The "hill height" is unchanged.
Common Mistakes (Steel-manned)
#flashcards/hardware
What is the definition of potential difference (voltage)?
What is the SI unit of voltage and its base definition?
Why is voltage always measured "between two points"?
If you triple the charge moved between two fixed points, what happens to the voltage?
Derive the volt's units from first principles.
Rearrange to find energy delivered to a charge.
How is derived from voltage?
A 9 V battery moves 0.5 C. How much energy?
Recall Feynman: explain to a 12-year-old
Imagine a water slide. The higher the top of the slide, the more the water speeds down. Voltage is like the height of that slide — it's the push that makes tiny electric charges want to move. A 9-volt battery is a taller slide than a 1.5-volt battery, so it pushes harder. And here's the trick: we measure the push per drop of water (per unit of charge), so it doesn't matter how much water you send — the slide height stays the same. That "push per charge" is voltage, and we count it in volts, where 1 volt means it takes 1 unit of energy to move 1 unit of charge.
Connections
- Electric charge and the coulomb — voltage is defined per coulomb.
- Electric current and the ampere — current combines with to give power.
- Electric field and potential energy — voltage is potential energy per charge.
- Ohm's Law V=IR — voltage across a resistor.
- Power in electric circuits P=VI — derived directly from voltage.
- Batteries and EMF — a source that maintains a fixed potential difference.
Concept Map
Hinglish (regional understanding)
Intuition Hinglish mein samjho
Dekho, voltage ko samajhne ka sabse easy tareeka hai use ek "electric height" ya "pressure" ki tarah sochna. Jaise paani upar se neeche girta hai kyunki height ka difference hota hai, waise hi charges ek point se doosre point tak move karte hain kyunki unke beech potential difference hota hai. Yeh potential difference hi voltage hai. Formula simple hai: , matlab kitni energy (joules mein) lagti hai ek unit charge (coulomb) ko move karne mein.
Iska unit hai volt, aur volt ka matlab hai joule per coulomb (). Yeh koi magic number nahi hai — hum bas energy ko charge se divide kar dete hain, aur us ratio ko "volt" naam de dete hain. Isliye jab bhi confusion ho, yaad rakho: volt = joule bata coulomb. Ratta maarne ki zaroorat nahi, derive kar lo.
Ek important baat: voltage hamesha do points ke beech hota hai, ek single point ka nahi. Jaise height ka difference do jagah ke beech hota hai. Multimeter jab "5 V" dikhata hai, toh woh actually ground (0 V) ke relative bata raha hota hai. Aur ek common galti — mat kehna ki "voltage flows through the wire." Current flow karta hai, voltage nahi. Voltage toh bulb ke across hoti hai, uske through nahi.
Yeh cheez matter kyun karti hai? Kyunki har electric circuit — battery, bulb, mobile charger — sab voltage par chalte hain. Jab tum aur jaise formulas samajh loge, toh circuits ki poori duniya khul jaati hai. Toh voltage ko as "energy per charge" pakdo, aur baaki sab easily flow ho jayega!
