Intuition The one-sentence pictureElectric current is just charge moving past a point , counted per second. If charge is "water," current is the "litres per second" flowing through a pipe. The ampere is simply the unit that answers: how much charge passed by each second?
Definition Electric currentCurrent I I I rate of flow of electric charge through a cross-section of a conductor.
I = Δ Q Δ t I = \frac{\Delta Q}{\Delta t} I = Δ t Δ Q Δ Q \Delta Q Δ Q Δ t \Delta t Δ t
Definition The ampere (A)One ampere is one coulomb of charge passing a point per second :
1 A = 1 C s 1\ \text{A} = 1\ \frac{\text{C}}{\text{s}} 1 A = 1 s C SI base unit — current is so fundamental that charge is actually defined from it : 1 C = 1 A ⋅ s 1\ \text{C} = 1\ \text{A}\cdot\text{s} 1 C = 1 A ⋅ s
We want a number that captures "how strong is the flow." Two things obviously matter:
How much charge moved — more charge = stronger flow.How long it took — the same charge over a longer time is a weaker flow.
So the natural quantity is charge divided by time. Start from the total charge that crosses a surface:
Q = ∫ I d t Q = \int I\, dt Q = ∫ I d t
If the current is steady (constant), the integral collapses:
Q = I ⋅ t ⟹ I = Q t Q = I \cdot t \quad\Longrightarrow\quad I = \frac{Q}{t} Q = I ⋅ t ⟹ I = t Q
Why this step? A constant pulled out of an integral over time just multiplies by the length of time. This is the everyday form you use.
For changing current we take the limit, giving the instantaneous definition:
I = lim Δ t → 0 Δ Q Δ t = d Q d t I = \lim_{\Delta t \to 0}\frac{\Delta Q}{\Delta t} = \frac{dQ}{dt} I = lim Δ t → 0 Δ t Δ Q = d t d Q
Why this step? The average Δ Q / Δ t \Delta Q/\Delta t Δ Q /Δ t is .

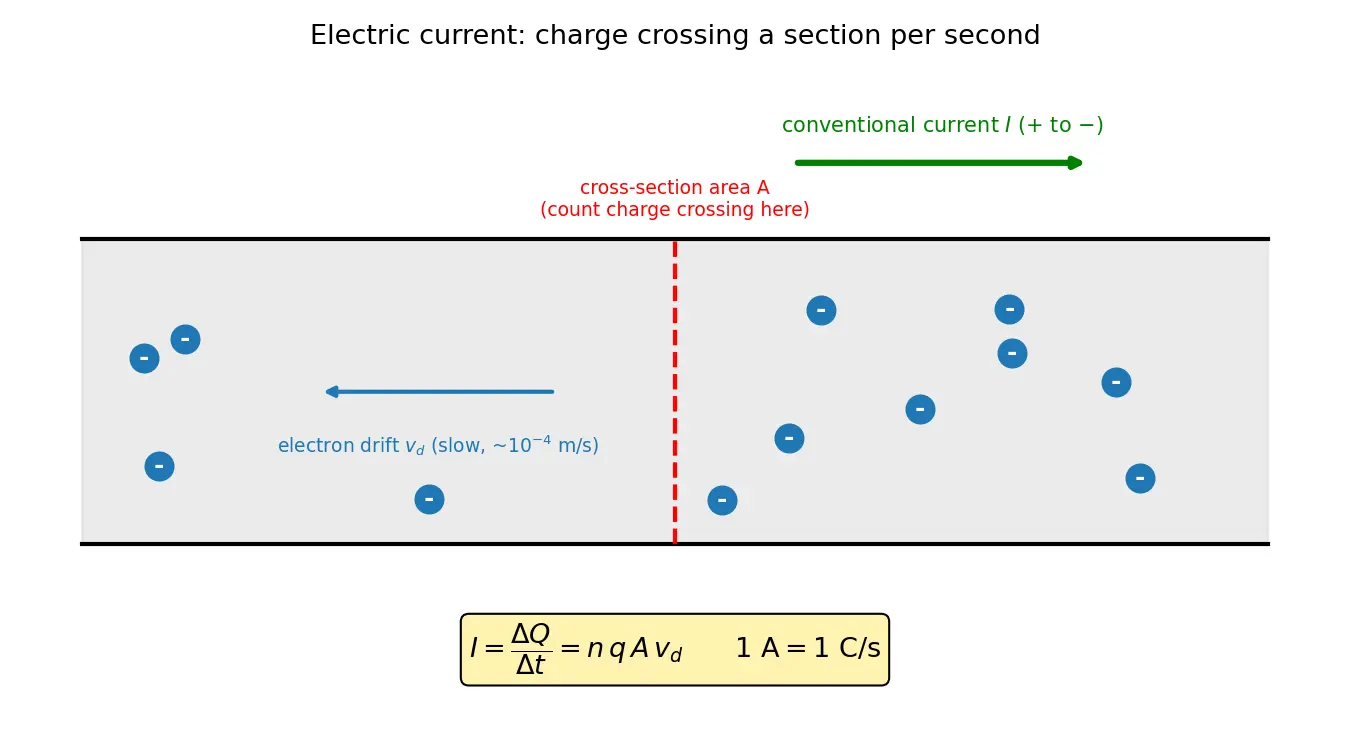

Inside a wire, current is carried by drifting electrons. Suppose there are n n n q q q v d v_d v d A A A
In time Δ t \Delta t Δ t v d Δ t v_d \Delta t v d Δ t A v d Δ t A\,v_d\,\Delta t A v d Δ t
Δ Q = q ⋅ n ⋅ ( A v d Δ t ) \Delta Q = q \cdot n \cdot (A\, v_d\, \Delta t) Δ Q = q ⋅ n ⋅ ( A v d Δ t )
Why this step? Number of carriers = density × volume; total charge = that count × charge-each.
Divide by Δ t \Delta t Δ t
I = n q A v d \boxed{I = n\,q\,A\,v_d} I = n q A v d
This shows current depends on how many carriers, how much each carries, how wide the wire, and how fast they drift.
Intuition Two "directions" that go opposite waysConventional current points the way positive charge would move (+ to –, outside the source). Real electrons (negative) drift the opposite way. Both describe the same physical flow — it's a bookkeeping choice made before electrons were discovered.
Worked example 1 — Charge from steady currentA wire carries a steady I = 2 A I = 2\ \text{A} I = 2 A t = 5 s t = 5\ \text{s} t = 5 s Q = I t = 2 A × 5 s = 10 C Q = I t = 2\ \text{A} \times 5\ \text{s} = 10\ \text{C} Q = I t = 2 A × 5 s = 10 C Why this step? Steady current, so use Q = I t Q = It Q = I t
Worked example 2 — How many electrons?How many electrons make up that 10 C 10\ \text{C} 10 C e = 1.6 × 10 − 19 C e = 1.6\times10^{-19}\ \text{C} e = 1.6 × 1 0 − 19 C N = Q e = 10 1.6 × 10 − 19 ≈ 6.25 × 10 19 electrons N = \frac{Q}{e} = \frac{10}{1.6\times10^{-19}} \approx 6.25\times10^{19}\ \text{electrons} N = e Q = 1.6 × 1 0 − 19 10 ≈ 6.25 × 1 0 19 electrons Why this step? Total charge ÷ charge-per-electron = count of electrons.
Worked example 3 — Current from a graph (changing charge)Charge builds as Q ( t ) = 3 t 2 Q(t) = 3t^2 Q ( t ) = 3 t 2 t = 4 s t = 4\ \text{s} t = 4 s I = d Q d t = 6 t ⇒ I ( 4 ) = 24 A I = \frac{dQ}{dt} = 6t \;\Rightarrow\; I(4) = 24\ \text{A} I = d t d Q = 6 t ⇒ I ( 4 ) = 24 A Why this step? Current is the slope of Q Q Q t t t
Worked example 4 — Tiny drift speedA copper wire (n ≈ 8.5 × 10 28 m − 3 n \approx 8.5\times10^{28}\ \text{m}^{-3} n ≈ 8.5 × 1 0 28 m − 3 A = 1 × 10 − 6 m 2 A = 1\times10^{-6}\ \text{m}^2 A = 1 × 1 0 − 6 m 2 I = 1 A I = 1\ \text{A} I = 1 A v d = I n q A = 1 ( 8.5 × 10 28 ) ( 1.6 × 10 − 19 ) ( 10 − 6 ) ≈ 7.4 × 10 − 5 m/s v_d = \frac{I}{nqA} = \frac{1}{(8.5\times10^{28})(1.6\times10^{-19})(10^{-6})} \approx 7.4\times10^{-5}\ \text{m/s} v d = n q A I = ( 8.5 × 1 0 28 ) ( 1.6 × 1 0 − 19 ) ( 1 0 − 6 ) 1 ≈ 7.4 × 1 0 − 5 m/s Why this step? Rearrange I = n q A v d I = nqAv_d I = n q A v d signal (field) travels near light speed!
Common mistake "Electrons move at the speed of light."Why it feels right: a light switch works instantly, so surely the electrons zoom. The fix: it's the electric field / signal that propagates near light speed; individual electrons drift at fractions of a mm/s (Example 4). The whole "column" of charge nudges at once.
Common mistake "Current flows in the direction electrons move."Why it feels right: electrons are the actual movers. The fix: by convention, current direction = flow of positive charge, which is opposite to electron drift. Circuit analysis assumes conventional current.
Common mistake "More current means faster electrons only."Why it feels right: speed seems the obvious knob. The fix: I = n q A v d I = nqAv_d I = n q A v d n n n A A A
Q = I t Q = It Q = I t Why it feels right: it's the formula you memorized. The fix: Q = I t Q=It Q = I t constant I I I Q = ∫ I d t Q=\int I\,dt Q = ∫ I d t
Recall Feynman: explain to a 12-year-oldImagine a busy doorway and you count how many people walk through each second. Electric current is exactly that, but for tiny electric charges instead of people. "1 ampere" means "1 coulomb-sized bucket of charge walks through every second." If more charge marches through each second, the current is bigger. Simple as counting!
Mnemonic Remember the ampere"A CoP per Second" → A mpere = Co ulomb P er S econd. And for the micro-formula: "I nqAv" sounds like "I NEED a van" → I = n q A v d I = nqAv_d I = n q A v d
What is the defining equation of current?
Express 1 ampere in base units.
Which way does conventional current flow relative to electrons?
Why is drift speed so slow yet devices respond instantly?
What is electric current? The rate of flow of electric charge past a point,
I = Δ Q / Δ t I=\Delta Q/\Delta t I = Δ Q /Δ t .
Define the ampere. One coulomb of charge passing a point per second:
1 A = 1 C/s 1\text{ A}=1\text{ C/s} 1 A = 1 C/s .
Which is the SI base unit, current or charge? The ampere (current); charge is derived as
1 C = 1 A⋅s 1\text{ C}=1\text{ A·s} 1 C = 1 A⋅s .
Instantaneous form of current? I = d Q d t I=\dfrac{dQ}{dt} I = d t d Q — the slope of the charge–time graph.
Charge for steady current formula? Q = I t Q=It Q = I t (valid only when
I I I is constant).
How to find charge if current varies? Q = ∫ I d t Q=\int I\,dt Q = ∫ I d t = area under the
I I I –
t t t graph.
Microscopic current equation? I = n q A v d I=nqAv_d I = n q A v d (carrier density × charge × area × drift speed).
Direction of conventional current vs electrons? Conventional current flows opposite to electron drift (from + to –).
Number of electrons in 1 C? N = 1 / ( 1.6 × 10 − 19 ) ≈ 6.25 × 10 18 N=1/(1.6\times10^{-19})\approx6.25\times10^{18} N = 1/ ( 1.6 × 1 0 − 19 ) ≈ 6.25 × 1 0 18 .
Why do lights turn on instantly if electrons drift slowly? The electric field/signal propagates near light speed, nudging all electrons at once.
Intuition Hinglish mein samjhoDekho, current ka matlab bahut simple hai: charge ka bahav (flow). Jaise pipe mein paani "litre per second" mein flow karta hai, waise hi wire mein charge "coulomb per second" mein flow karta hai. Aur yahi "coulomb per second" ka naam hai ampere . Formula bas itna: I = Q / t I = Q/t I = Q / t
Agar current constant nahi hai, toh Q = I t Q = It Q = I t I = d Q / d t I = dQ/dt I = d Q / d t dheere chalte hain (snail se bhi slow, Example 4 dekho), lekin bulb turant jal jaata hai kyunki electric field light ki speed ke aas-paas travel karta hai — saare electrons ek saath halka sa aage khisak jaate hain.
Ek confusion clear kar lo: conventional current plus se minus (+ se –) chalta hai, lekin asli electrons ulti direction mein. Yeh sirf ek purani convention hai jo electron discover hone se pehle bani thi. Circuit solve karte waqt hamesha conventional current maano.
Micro-level formula I = n q A v d I = nqAv_d I = n q A v d ginti (n n n q q q motai (A A A
