Define current (flow of charge) and the ampere: Foundations

Before you can read the parent note Define current and the ampere, you must be able to look at each of its symbols and see a picture. This page builds every one of them from nothing, in the order they depend on each other.

0. The starting picture: a doorway you count through

Imagine a doorway. People walk through it. You stand beside it with a clicker and count how many pass each second. That single act — counting things crossing a line per unit time — is the whole topic. Everything below is just naming the pieces of this picture precisely.

Figure — Define current (flow of charge) and the ampere

Look at the red dashed line in the figure: that is our counting line (physicists call it a cross-section). We do not care where a charge came from or where it goes — only whether it crossed that line.

1. Charge — the "stuff" that flows

Plain words: a number saying how much electric stuff you have.
The picture: the little dots in the figure that march through the doorway. Each dot carries a fixed amount of charge.
Why the topic needs it: current is a flow of charge, so we first need a word for the thing that flows.

Learn the coulomb properly in Electric charge and the coulomb.

2. Time — how long we watch

Plain words: how long your clicker was clicking.
The picture: the length of time you stand at the doorway counting.
Why the topic needs it: "flow" is meaningless without "per second." The same crowd through the door in 1 second vs 1 hour is a very different flow.

3. Current — charge per second

Now we combine charge and time. Two things obviously make a flow "stronger":

More charge crossing the line → stronger flow.
The same charge crossing in less time → stronger flow.

The one recipe that grows with (1) and shrinks with (2) is charge divided by time.

Plain words: your clicker's reading, in charge-per-second.
The picture: the rate at which dots cross the red line in the figure.
Why the letter $I$ ? Historical — from the French intensité (intensity of current). Just accept it as the name for current.

The figure shows two doorways: a thin trickle (small $I$ ) and a busy rush (large $I$ ). Same idea, different rate.

4. The ampere — the unit that measures current

Plain words: a size-of-flow. "2 amperes" = "2 coulombs cross every second."
The picture: a fixed number of dots per second in the figure. Double the dots-per-second → double the amperes.
Why the topic needs it: you cannot say "the flow is this big" without a unit. The ampere is that unit.

5. Fraction and division — reading $\frac{Δ Q}{Δ t}$

Because the whole topic lives inside a fraction, be sure you read one correctly.

6. The limit, the derivative $\frac{d Q}{d t}$ , and its inverse — when the flow changes

Sometimes the flow is not steady — it speeds up or slows down. Then "charge ÷ total time" gives only an average. To get the flow at one exact instant, we need the slope of the charge-vs-time graph.

Plain words: how steeply the total-charge line is rising right now.

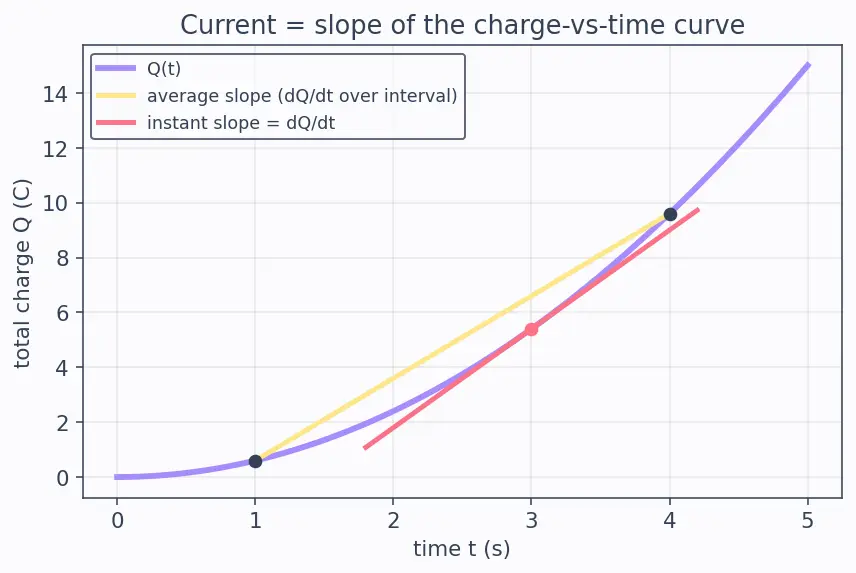

The picture (figure): pick two points on the curve, draw the straight line between them (that's the average, $Δ Q /Δ t$ ). Now slide the second point toward the first — the line becomes the tangent touching one point. Its steepness is $d Q / d t$ .
Why this tool and not a plain fraction? A plain fraction needs two moments to divide. A derivative answers "what is the flow at this one moment," which a single division cannot. That is exactly why the parent uses $I = d Q / d t$ for changing currents.

7. The microscopic pieces: $n$ , $q$ , $A$ , $v_{d}$

The parent goes one level deeper and looks inside the wire. Four new symbols appear. Picture the wire as a straw packed with drifting dots.

Now let us build the parent's formula $I = n q A v_{d}$ step by step, so it is not just handed to you. (In this build we use the magnitude of the carrier charge, so $I$ comes out as the size of the current; the sign is handled separately by choosing the direction, as in section 3.)

Formula Deriving

$I = n q A v_{d}$ Step 1 — how far carriers move in time $Δ t$ . Each carrier drifts at speed $v_{d}$ , so in time $Δ t$ it travels a distance $d = v_{d} Δ t .$ What it looks like: the length of the shaded cylinder in the figure.

Step 2 — the volume that empties across the line. Every carrier within that distance $d$ behind the counting line will reach and cross it in time $Δ t$ . Those carriers fill a cylinder of face-area $A$ and length $d$ , so its volume is $V = A \cdot d = A v_{d} Δ t .$

Step 3 — count the carriers inside. Number of carriers = density × volume: $N = n \cdot V = n A v_{d} Δ t .$

Step 4 — total charge that crossed. Each carrier carries charge of size $q$ , so $Δ Q = q \cdot N = q n A v_{d} Δ t .$

Step 5 — divide by time to get current. Use the definition $I = \frac{Δ Q}{Δ t}$ : $I = \frac{Δ Q}{Δ t} = \frac{n q A v _{d} Δ t}{Δ t} = n q A v_{d} .$ The $Δ t$ cancels — the current does not depend on how long you happened to watch, only on the four factors.

Why the topic needs these: they explain what physically sets the current. The result $I = n q A v_{d}$ is a product of all four — you can raise the current four different ways, not just by speeding electrons.

8. Direction: two arrows, one flow

Two carrier ideas — conductors let charge move, insulators don't — are set up in Conductors and insulators. What pushes the charge along is the voltage in Voltage (potential difference).

How the foundations stack up

Think of it as a tower: each idea rests on the ones below it, and the top of the tower is the parent topic.

Charge $Q$ and time $t$ are the two raw ingredients — you need both before you can talk about a rate.
Put them into a fraction ( $Δ Q /Δ t$ ) and you get current $I$ — the rate of net charge flow.
Give that rate a unit and you have the ampere.
Sharpen the fraction with a limit and it becomes the derivative $d Q / d t$ (instant flow); run it backwards with the integral $\int I d t$ (accumulated charge).
Zoom inside the wire and the same current re-appears as the micro-model $n q A v_{d}$ .
Attach a sign / direction and you can distinguish conventional current from electron drift.

Everything above (1–6) is what you must already picture clearly before the parent note will feel obvious rather than mysterious.

Equipment checklist

Cover the right side and test yourself before opening the parent note.

What does the symbol

Q

(or

q

) stand for, and its unit?

Electric charge, measured in coulombs (C); big

Q

= bulk, little

q

= one particle.

Can charge be negative, and why does that matter?

Yes — charge comes in

+

and

-

; the sign decides which way a particle moves and how net flow is counted.

What does

Δ

in front of a letter mean?

"The change in" or "a chunk of" that quantity —

Δ t

is one single amount, not a multiplication.

What exactly does

Δ Q

count?

The net charge crossing the line: positives one way minus negatives (or positives the other way); equal both ways gives

Δ Q = 0

Write the defining equation of current and read it in words.

I = \frac{Δ Q}{Δ t}

— net charge crossing a line divided by the time it took.

What does a negative value of

I

mean?

Net positive charge is crossing the line in the direction you chose as negative; the sign is direction bookkeeping, not "less than nothing."

What is one ampere in words and units?

One coulomb crossing a point each second:

1 A = 1 C / s

Which is the SI base unit — the ampere or the coulomb?

The ampere; the coulomb is defined from it as

1 C = 1 A \cdot s

What does the notation

lim_{Δ t \to 0}

mean?

The value an expression settles toward as

Δ t

is squeezed toward zero, without ever setting

Δ t

exactly to zero.

How does

d

differ from

Δ

Δ t

is a real measurable chunk;

d t

is an infinitesimal — the chunk after the limit has shrunk it toward zero.

Why is

d Q / d t

not just an ordinary fraction?

You cannot measure

d Q

d t

separately; the whole symbol means one slope — the value

Δ Q /Δ t

homed in on.

What does

\frac{d Q}{d t}

measure on a

Q

-vs-

t

graph?

The slope at a single instant — the current at that exact moment.

What does

Q = \int I d t

give you, and what picture matches it?

The total charge accumulated; it is the area under the current-vs-time graph.

Why use a derivative instead of

Q / t

when current changes?

Q / t

gives only an average over an interval; the derivative gives the flow at one exact instant.

Name the four microscopic symbols in

I = n q A v_{d}

and sketch its derivation.

n

density,

q

charge-each,

A

area,

v_{d}

drift speed; count

N = n A v_{d} Δ t

carriers, times

q

gives

Δ Q = n q A v_{d} Δ t

, divide by

Δ t

What is the actual charge of an electron (with sign)?

- 1.6 \times 1 0^{- 19} C

; the symbol

e = 1.6 \times 1 0^{- 19} C

is just its magnitude.

How do the italic

A

and upright

A

differ?

Italic

A

= cross-sectional area (m²); upright

A

= the ampere unit.

Which way does conventional current point relative to electron drift?

Opposite — conventional current flows

+

-

, electrons drift the other way.
