1.1.2Electricity & Charge Basics

Understand conductors, insulators, and semiconductors

2,159 words10 min readdifficulty · medium5 backlinks

WHY does this classification exist?

WHAT problem are we solving? Electricity is just charge in motion. But not every material moves charge the same way. If we want to design hardware — wires that carry current, plastic that protects your fingers, transistors that compute — we need a way to sort materials by their willingness to conduct.

WHY does willingness differ? It comes down to electrons and energy. In every solid, electrons live in allowed energy ranges called bands:

  • The valence band = where electrons normally sit (bound to atoms).
  • The conduction band = where electrons are free to roam and carry current.
  • The band gap EgE_g = the energy "wall" between them.

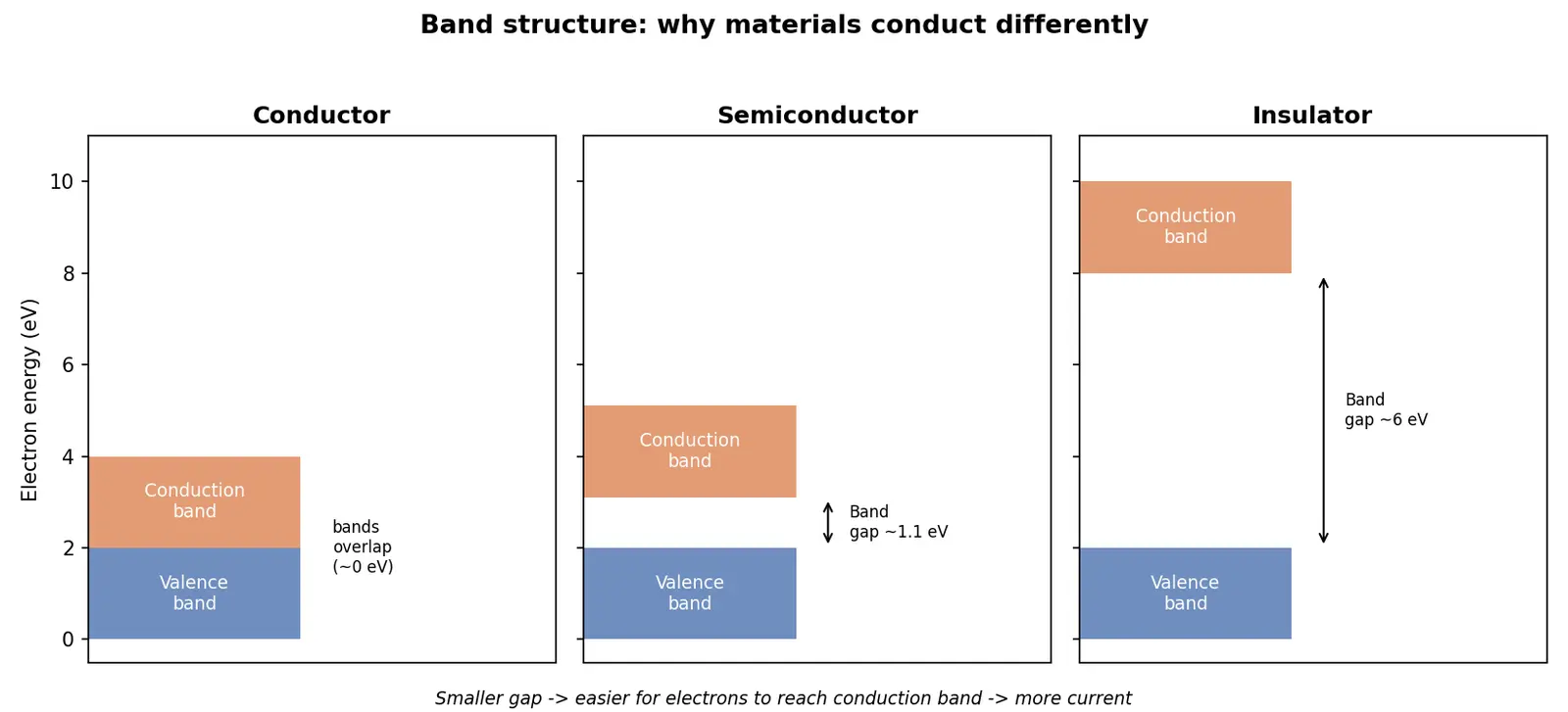

Figure — Understand conductors, insulators, and semiconductors

The three classes

Property Conductor Semiconductor Insulator
Band gap EgE_g 0\approx 0 eV 1\sim 1 eV >5> 5 eV
Resistivity ρ\rho (Ω·m) 10810^{-8} 10410^{-4}10310^{3} 101010^{10}101610^{16}
ρ\rho vs. temperature ==increases with TT== ==decreases with TT== huge, barely changes
Carriers many free ee^- few ee^- + holes almost none

HOW do we quantify conduction? (Derivation from scratch)

WHAT quantity? ==Resistivity ρ\rho== — an intrinsic property (independent of shape). Its inverse is conductivity σ=1/ρ\sigma = 1/\rho.

Step 1 — Ohm's law for a shaped object. Resistance RR of a wire depends on geometry: R=ρLAR = \rho \frac{L}{A} Why this form? Longer wire (LL) = more collisions = more resistance. Fatter wire (area AA) = more parallel paths = less resistance. ρ\rho is the "per material" constant left over.

Step 2 — Where does conduction come from microscopically? Current density J\vec J = charge per area per time. If there are nn free carriers per volume, each charge ee, each drifting at velocity vdv_d: J=nevdJ = n\,e\,v_d Why? In time Δt\Delta t a slab of length vdΔtv_d\Delta t passes through area AA; it holds n(AvdΔt)n\,(A v_d \Delta t) carriers, each ee. Divide charge by AΔtA\Delta tJ=nevdJ = n e v_d.

Step 3 — Drift velocity from the field. An electric field EE pushes carriers; collisions (average time τ\tau) limit them, giving a steady drift with mobility μ\mu: vd=μEv_d = \mu E Why proportional? Force =eE=eE, acceleration a=eE/ma=eE/m, and average drift over time τ\tau is vd=aτ=eτmEv_d = a\tau = \dfrac{e\tau}{m}E, so μ=eτm\mu = \dfrac{e\tau}{m}.

Step 4 — Combine. J=ne(μE)=(neμ)EσEJ = n e (\mu E) = (n e \mu)\,E \equiv \sigma E

Why nn depends on temperature (semiconductors): thermally excited carriers follow neEg/(2kBT)n \propto e^{-E_g/(2k_BT)} Why the 22? Each excited electron leaves a hole, so both carriers are created together; the exponent splits the gap energy between the pair. Higher TT → more carriers → resistivity drops. This is the opposite of a metal, where more heat just means more collisions (smaller τ\tau, bigger ρ\rho).


Doping — why semiconductors run hardware

Joining p and n makes a diode / transistor — the switch behind every logic gate. That controllability (not raw conductivity) is why silicon, not copper, computes.


Worked examples


Common mistakes (steel-manned)


Recall Feynman: explain to a 12-year-old

Imagine a hallway full of kids (electrons). In a conductor the hallway is empty and smooth — kids run through instantly (copper wire). In an insulator there's a tall locked gate — nobody gets through (rubber around the wire keeps you safe). A semiconductor has a short gate: normally closed, but if you warm it up or sneak a few helper kids in (doping), the gate opens. Because we can open and close that gate whenever we want, we build tiny switches (transistors) — millions of them make a computer chip. So the whole computer is really just people learning to open and close gates inside silicon.


Recall block


Flashcards

What determines whether a material conducts, in band terms?
The size of the band gap EgE_g between valence and conduction bands (0 = conductor, ~1 eV = semiconductor, >5 eV = insulator).
Formula for resistance of a shaped conductor?
R=ρL/AR=\rho L/A — resistivity × length ÷ cross-sectional area.
Formula for conductivity from carriers?
σ=neμ\sigma = n e \mu (carrier density × charge × mobility).
Why does a metal's resistance rise with temperature?
More thermal vibration → more electron scattering → shorter mean free time τ\tau, lowering mobility.
Why does a semiconductor's resistance fall with temperature?
Carrier density grows as neEg/2kBTn\propto e^{-E_g/2k_BT}, adding far more carriers than scattering removes.
n-type vs p-type doping?
n-type adds donor atoms giving extra electrons; p-type adds acceptor atoms giving extra holes.
Typical resistivity of a conductor vs insulator?
Conductor ~10810^{-8} Ω·m; insulator ~101010^{10}101610^{16} Ω·m.
Why is silicon used for chips instead of copper?
Its conductivity is controllable via doping/voltage, letting it act as a switch (transistor); copper is always on.
Do insulators lack electrons?
No — they have plenty, but electrons are tightly bound and can't cross the large band gap.
Band gap of silicon?
About 1.1 eV.

Connections

  • Electric Charge and Current — carriers in motion define II.
  • Ohm's Law and Resistance — where R=ρL/AR=\rho L/A is used.
  • Semiconductor Diodes and Transistors — the payoff of doping.
  • Energy Bands in Solids — the deeper quantum origin.
  • Temperature Coefficient of Resistance — quantifies the ρ\rhoTT trends.

Concept Map

explained by

contains

contains

separated by gap Eg

size determines

Eg approx 0

Eg approx 1 eV

Eg over 5 eV

switched by heat light doping

quantified by low

quantified by high

inverse is

used in geometry law

Electron mobility under voltage

Energy bands

Valence band

Conduction band

Band gap Eg

Material class

Conductor

Semiconductor

Insulator

Controllable conduction

Resistivity rho

Conductivity sigma

R = rho L over A

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, saari cheez ka core idea ye hai: har material me electrons hote hain, lekin sab me wo electron aasani se move nahi karte. Isko samajhne ke liye hum "energy bands" ka picture use karte hain — ek valence band (jahan electron normally baithe hote hain) aur ek conduction band (jahan pahunch jaaye to current chalu). Beech me jo khali jagah hai use band gap kehte hain. Jitna chhota gap, utna easy electron ka upar chadhna, utna zyada conduction.

Ab teen types: Conductor (jaise copper) me gap almost zero hota hai, electrons free ghoomte hain, isliye current turant flow karta hai. Insulator (rubber, plastic, glass) me gap bahut bada hota hai, electron cross hi nahi kar paata, isliye current block. Semiconductor (silicon) beech ka hai — gap chhota (~1 eV), thanda ho to insulator jaisa, garam karo ya doping karo to conduct karne lagta hai.

Important cheez: metal ko garam karoge to uska resistance badhta hai (electrons zyada takraate hain), lekin semiconductor ko garam karoge to resistance ghatta hai (naye carriers ban jaate hain, formula neEg/2kBTn \propto e^{-E_g/2k_BT}). Ye ulta behaviour exam me bahut poocha jaata hai, yaad rakho.

Aur asli hardware wali baat: silicon isliye special hai kyunki hum doping se uska conduction control kar sakte hain — thoda phosphorus daalo to extra electrons (n-type), boron daalo to holes (p-type). Isi control se transistor aur diode bante hain, aur wahi tumhare CPU/RAM ke andar switch ka kaam karte hain. Isliye computer copper se nahi, silicon se banta hai — kyunki silicon ko ON/OFF kiya ja sakta hai.
