Valence electrons and bonding
1. What is a valence electron?
WHY the outermost shell? Electrons fill shells Inner shells are held tightly by the nucleus (strong Coulomb pull, low energy). The outer electrons are farthest away, most weakly bound, and thus the ones free to interact, break away, or share. Physics/chemistry happens where binding is weakest.
HOW to count them (quick rule for main-group elements): The valence count equals the group number's ones-digit for main groups.
| Element | Z | Config | Valence e⁻ |
|---|---|---|---|
| Hydrogen | 1 | 1 | |
| Carbon | 6 | 4 | |
| Silicon | 14 | 4 | |
| Phosphorus | 15 | 5 | |
| Boron | 5 | 3 |
2. The octet rule — the driving force
WHY 8? A full subshell is a low-energy, symmetric, closed configuration (like the noble gases). Systems fall to low energy → atoms bond to fake having a full shell.
3. Types of bonds (from first principles)
Every bond is atoms lowering total energy by rearranging valence electrons. Three flavours:

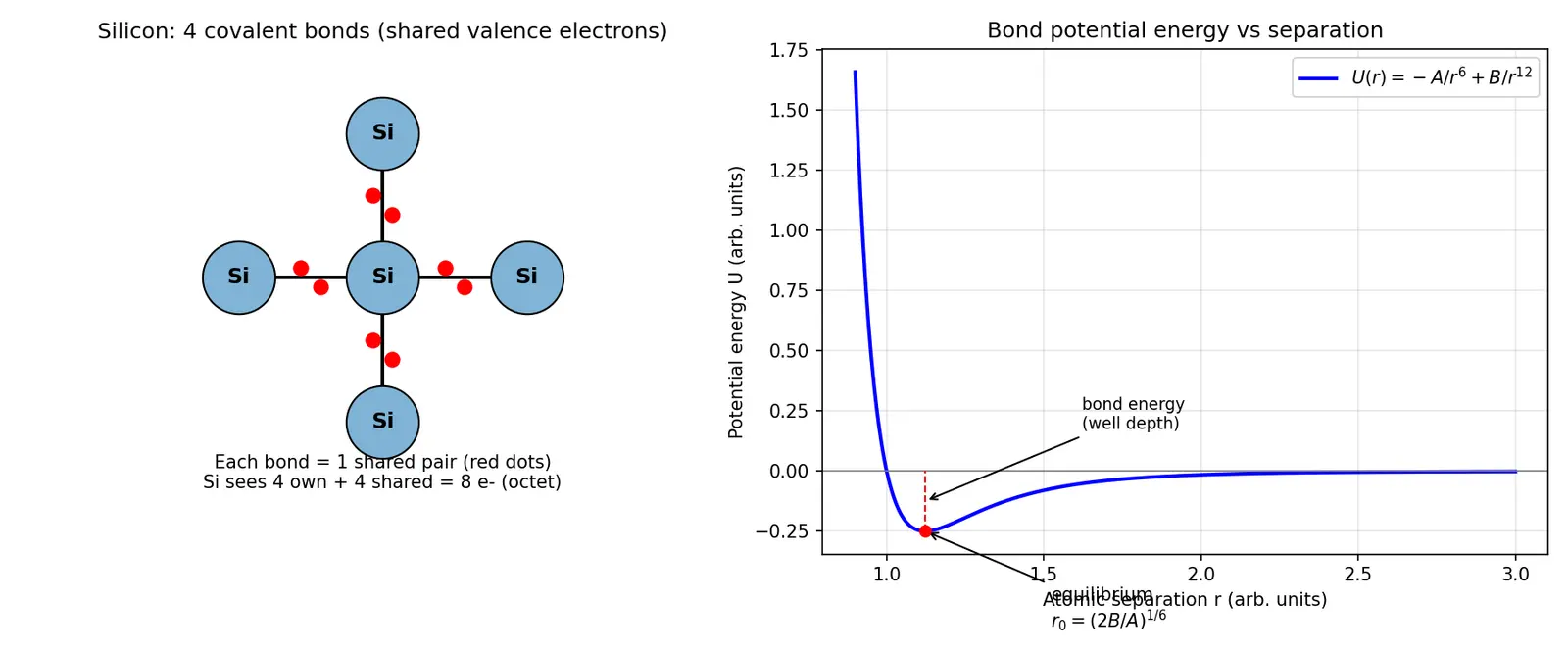

Deriving why covalent silicon is a semiconductor
- Si has 4 valence electrons.
- Each Si atom bonds covalently to 4 neighbours, sharing 1 electron with each → it "sees" electrons → octet satisfied.
- At K every valence electron is locked in a bond → no free carriers → behaves like an insulator.
- Bonds are only moderately strong. A modest energy (the band gap eV) can break a bond, freeing an electron and leaving a hole.
- Therefore conductivity rises with temperature and can be engineered by doping — the definition of a semiconductor.
4. Bond energy: a first-principles model
Two atoms feel attraction (electrons–nuclei) at long range and repulsion (nuclei–nuclei, Pauli) at short range. Model the potential energy vs separation :
Why this step? Setting finds the balance point where attraction and repulsion cancel — that's the natural bond length atoms settle into.
5. Worked examples
6. Common mistakes (Steel-man + fix)
7. Flashcards
What is a valence electron?
How many valence electrons does silicon have?
State the octet rule.
Ionic vs covalent bond — one-line difference?
Why does each Si atom form 4 bonds?
What makes silicon a semiconductor at the bonding level?
In metallic bonding where do valence electrons go?
Condition for equilibrium bond length ?
For , what is ?
Does a higher valence-electron count guarantee good conduction?
Recall Feynman: explain to a 12-year-old
Imagine each atom is a kid who wants exactly 8 marbles to be happy. Some kids have too many and hand extras away (that's ionic), some hold hands and share a marble that counts for both (that's covalent — this is what silicon does), and in metals all the kids toss their marbles into one big shared pile everyone can grab from (that's metallic — that's why metals carry electricity so well). Silicon is special because it has exactly 4 marbles and needs 4 more, so it teams up with 4 neighbours perfectly — and if you warm it up, a marble occasionally pops loose and can carry current. That's a semiconductor.
Connections
- Atomic structure and electron shells — where valence electrons come from
- Silicon crystal lattice — the 4-bond tetrahedral arrangement in 3D
- Energy bands and band gap — why breaking a bond ↔ jumping the gap
- Doping and carriers — adding group 3/5 atoms to control valence behaviour
- Conductors insulators and semiconductors — the classification this note explains
Concept Map
Hinglish (regional understanding)
Intuition Hinglish mein samjho
Dekho, har atom ke bahar wale shell me jo electrons hote hain unhe valence electrons kehte hain. Yehi electrons decide karte hain ki atom doosre atoms se kaise judega. Inner electrons nucleus ke bahut paas hote hain, tight bandhe hote hain — unse kuch nahi hota. Saari chemistry aur conduction bahar wale (weakly bound) electrons se hoti hai. Rule simple hai: atom ko apna outer shell 8 electrons se bharna hai (octet) — tabhi wo stable feel karta hai.
Ab bonding 3 tarah ki hoti hai. Ionic — ek atom electron de deta hai, doosra le leta hai (jaise Na aur Cl). Covalent — dono atom electron pair share karte hain, dono ko count hota hai (yehi silicon karta hai). Metallic — saare valence electrons ek common "sea" me tairte hain, isliye metals current itni achhi tarah carry karte hain. Yaad rakhne ke liye: "I Steal, We Share, They Swim".
Silicon ka jaadu yeh hai ki uske paas exactly 4 valence electrons hain aur 4 aur chahiye. Toh wo 4 neighbours ke saath covalent bond banata hai, har bond me ek electron share — total 8, octet complete. 0 K par saare electrons bonds me locked hote hain, isliye current nahi chalti. Lekin thodi si energy (band gap ~1.1 eV) do toh ek bond toot jaata hai, ek free electron aur ek hole ban jaata hai. Yehi "in-between" behaviour Silicon ko semiconductor banata hai — na pura conductor, na pura insulator. Isi wajah se puri hardware/chip industry silicon par tiki hai.
