Intuition The one-sentence pictureAn atom is like a tiny solar system : a heavy positive nucleus at the center, with light negative electrons orbiting it — but the key twist is that electrons can only live in certain fixed circular orbits (shells) , not anywhere they please.
Intuition The problem Bohr was solvingClassical physics said an orbiting electron (an accelerating charge) must radiate energy continuously , spiral inward, and crash into the nucleus in ~10 − 11 10^{-11} 1 0 − 11 stable and emit light only at specific colors (spectral lines) , not a smooth rainbow.
Bohr's fix: forbid the smooth spiral. Allow only quantized orbits where the electron does NOT radiate. Light is emitted only when it jumps between orbits.
WHY it matters for Hardware: everything about semiconductors, conductors, insulators, doping, and band gaps starts here. Whether silicon conducts depends on how electrons sit in shells and how much energy is needed to knock the outer ones loose.
Definition Bohr's postulates
Electrons orbit the nucleus in fixed circular orbits called shells (or energy levels), labelled by an integer n = 1 , 2 , 3 , … n = 1, 2, 3, \dots n = 1 , 2 , 3 , …
In an allowed orbit the electron is in a stationary state and does not radiate energy.
Only orbits where the angular momentum is quantized are allowed: L = n ℏ L = n\hbar L = n ℏ
Energy is emitted/absorbed only when an electron jumps between orbits, as a photon of energy Δ E = h f \Delta E = h f Δ E = h f
We consider a hydrogen atom: one electron (charge − e -e − e + e +e + e
The electrostatic (Coulomb) attraction supplies the centripetal force:
1 4 π ε 0 e 2 r 2 = m v 2 r \frac{1}{4\pi\varepsilon_0}\frac{e^2}{r^2} = \frac{m v^2}{r} 4 π ε 0 1 r 2 e 2 = r m v 2
Why this step? A circular orbit needs an inward force m v 2 / r mv^2/r m v 2 / r
m v r = n ℏ ⇒ v = n ℏ m r m v r = n\hbar \quad\Rightarrow\quad v = \frac{n\hbar}{m r} m v r = n ℏ ⇒ v = m r n ℏ
Why this step? Postulate 3 restricts which orbits are allowed. Without it we'd get a continuous range of r r r
Substitute v v v
1 4 π ε 0 e 2 r 2 = m r ( n ℏ m r ) 2 = n 2 ℏ 2 m r 3 \frac{1}{4\pi\varepsilon_0}\frac{e^2}{r^2} = \frac{m}{r}\left(\frac{n\hbar}{m r}\right)^2 = \frac{n^2\hbar^2}{m r^3} 4 π ε 0 1 r 2 e 2 = r m ( m r n ℏ ) 2 = m r 3 n 2 ℏ 2
Cancel and solve for r r r
r n = 4 π ε 0 ℏ 2 m e 2 n 2 \boxed{r_n = \frac{4\pi\varepsilon_0 \hbar^2}{m e^2}\, n^2} r n = m e 2 4 π ε 0 ℏ 2 n 2
Kinetic K E = 1 2 m v 2 KE = \frac12 m v^2 K E = 2 1 m v 2 m v 2 = 1 4 π ε 0 e 2 r mv^2 = \frac{1}{4\pi\varepsilon_0}\frac{e^2}{r} m v 2 = 4 π ε 0 1 r e 2 K E = 1 8 π ε 0 e 2 r KE = \frac{1}{8\pi\varepsilon_0}\frac{e^2}{r} K E = 8 π ε 0 1 r e 2 P E = − 1 4 π ε 0 e 2 r PE = -\frac{1}{4\pi\varepsilon_0}\frac{e^2}{r} P E = − 4 π ε 0 1 r e 2
E = K E + P E = 1 8 π ε 0 e 2 r − 1 4 π ε 0 e 2 r = − 1 8 π ε 0 e 2 r E = KE + PE = \frac{1}{8\pi\varepsilon_0}\frac{e^2}{r} - \frac{1}{4\pi\varepsilon_0}\frac{e^2}{r} = -\frac{1}{8\pi\varepsilon_0}\frac{e^2}{r} E = K E + P E = 8 π ε 0 1 r e 2 − 4 π ε 0 1 r e 2 = − 8 π ε 0 1 r e 2
Why negative? Bound systems have negative total energy — you must add energy to free the electron.
Insert r n r_n r n
E n = − m e 4 8 ε 0 2 h 2 1 n 2 = − 13.6 eV n 2 \boxed{E_n = -\frac{m e^4}{8\varepsilon_0^2 h^2}\,\frac{1}{n^2} = -\frac{13.6\text{ eV}}{n^2}} E n = − 8 ε 0 2 h 2 m e 4 n 2 1 = − n 2 13.6 eV
When electron drops n i → n f n_i \to n_f n i → n f
h f = E n i − E n f = 13.6 eV ( 1 n f 2 − 1 n i 2 ) hf = E_{n_i} - E_{n_f} = 13.6\text{ eV}\left(\frac{1}{n_f^2} - \frac{1}{n_i^2}\right) h f = E n i − E n f = 13.6 eV ( n f 2 1 − n i 2 1 )
This reproduces the observed hydrogen spectrum — the win that made the model famous.
Definition Shell capacityShell n n n 2 n 2 2n^2 2 n 2 n = 1 n=1 n = 1 n = 2 n=2 n = 2 n = 3 n=3 n = 3 n = 4 n=4 n = 4
Definition Valence electronsThe electrons in the outermost occupied shell are valence electrons . They decide chemical bonding and electrical conductivity .
Intuition Why silicon is a semiconductorSilicon has 4 valence electrons . They're bound tightly enough to insulate at low energy, but loosely enough that a little energy (heat, light, voltage) frees some → conduction. Metals (e.g. copper, 1 valence electron) let go easily → good conductors.

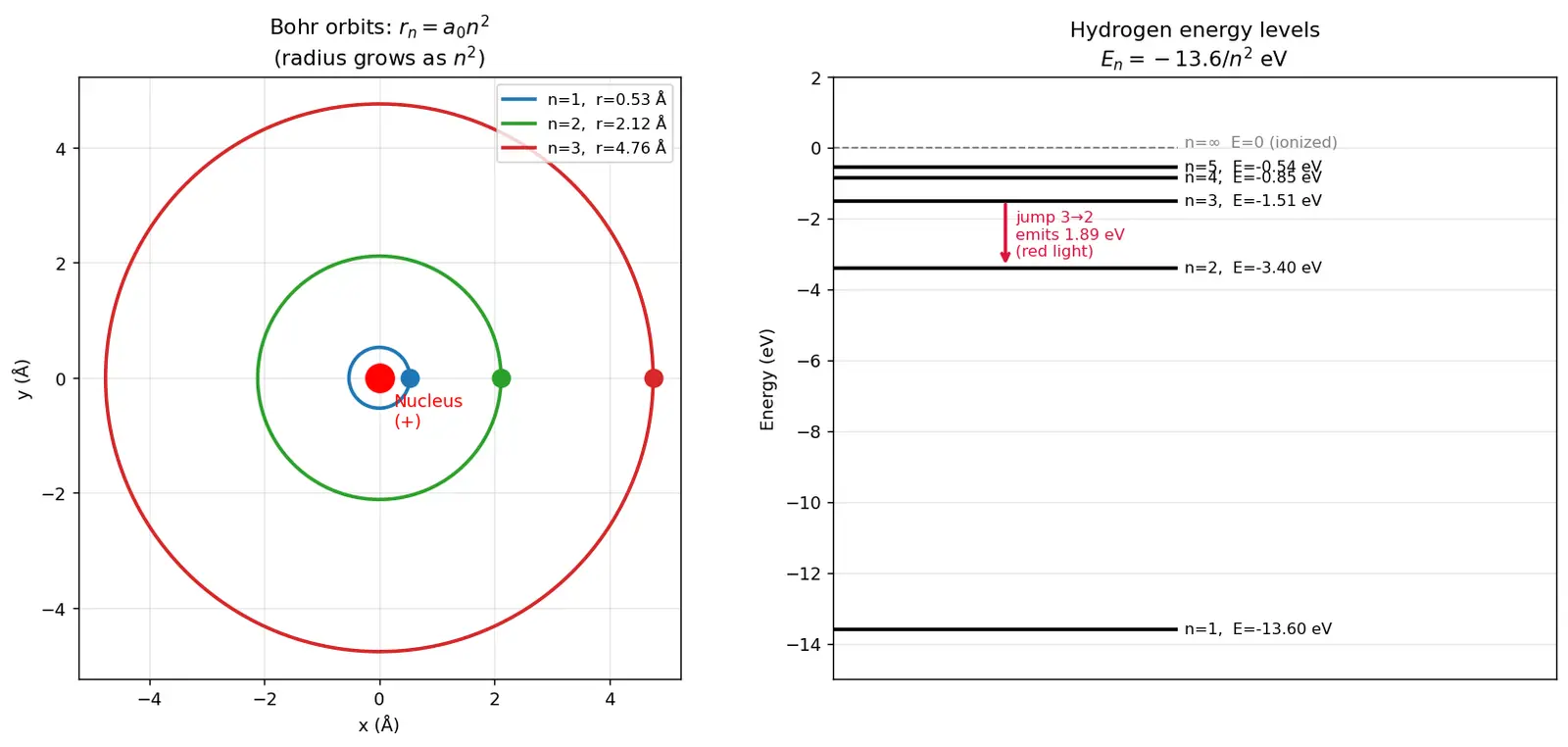

Worked example Example 1 — Radius of the 3rd shellFind r 3 r_3 r 3
r n = a 0 n 2 = 0.529 A ˚ × 3 2 = 0.529 × 9 = = = 4.76 A ˚ = = r_n = a_0 n^2 = 0.529\text{ Å} \times 3^2 = 0.529 \times 9 = ==4.76\text{ Å}== r n = a 0 n 2 = 0.529 A ˚ × 3 2 = 0.529 × 9 === 4.76 A ˚ == Why this step? Radius scales as n 2 n^2 n 2 9 9 9
Worked example Example 2 — Energy of a jump (visible light)Electron falls from n = 3 n=3 n = 3 n = 2 n=2 n = 2
E 3 = − 13.6 / 9 = − 1.51 E_3 = -13.6/9 = -1.51 E 3 = − 13.6/9 = − 1.51 E 2 = − 13.6 / 4 = − 3.4 E_2 = -13.6/4 = -3.4 E 2 = − 13.6/4 = − 3.4 Δ E = E 3 − E 2 = − 1.51 − ( − 3.4 ) = = = 1.89 eV = = \Delta E = E_3 - E_2 = -1.51 - (-3.4) = ==1.89\text{ eV}== Δ E = E 3 − E 2 = − 1.51 − ( − 3.4 ) === 1.89 eV == Why positive? Electron loses energy, so the atom emits a photon of + 1.89 +1.89 + 1.89
Worked example Example 3 — Shell filling of Silicon (Z = 14)Fill from inside out: K( 2 ) (2) ( 2 ) ( 8 ) (8) ( 8 ) ( 4 ) (4) ( 4 ) = 2 + 8 + 4 = 14 =2+8+4=14 = 2 + 8 + 4 = 14 Valence electrons = 4 (in shell M). Why this matters: 4 valence electrons is exactly what makes covalent crystals like Si and Ge semiconductors.
n n n Why it feels right: bigger orbit sounds like "more stuff, more energy." The fix: E n ∝ − 1 / n 2 E_n \propto -1/n^2 E n ∝ − 1/ n 2 n n n E n → 0 E_n \to 0 E n → 0 increases (becomes less negative). The ground state n = 1 n=1 n = 1 lowest (most negative). Being lower means more tightly bound.
Common mistake "Electrons radiate while orbiting."Why it feels right: classical accelerating charges DO radiate. The fix: Bohr's whole point (postulate 2) is that stationary states are special — no radiation unless the electron jumps . This is a non-classical rule you must accept.
n = 3 n=3 n = 3 Why it feels right: the 2 n 2 2n^2 2 n 2 The fix: 2 n 2 2n^2 2 n 2 maximum , not a required count. Sub-shell energy ordering means the 4th shell can start filling before the 3rd is full. For basic Hardware you use 2 n 2 2n^2 2 n 2
Recall Test yourself (hide the answers)
What force keeps the electron in orbit? → Coulomb (electrostatic) attraction.
What quantity is quantized in Bohr's model? → Angular momentum, L = n ℏ L=n\hbar L = n ℏ
Formula for allowed radii? → r n = a 0 n 2 r_n=a_0 n^2 r n = a 0 n 2
Energy of level n n n − 13.6 / n 2 -13.6/n^2 − 13.6/ n 2
Max electrons in shell n n n 2 n 2 2n^2 2 n 2
What determines conductivity? → number of valence electrons.
Recall Feynman: explain to a 12-year-oldImagine a staircase. A ball can sit on step 1, step 2, step 3 — but never floating between steps. An electron is that ball; the steps are shells. It sits quietly on a step forever. To go up a step it must eat exactly the right amount of energy; when it falls down a step it spits out a flash of light of an exact color. That's why heated atoms glow in specific colors, not every color — each color is one electron hopping down one specific set of steps.
Mnemonic Remember the pieces"KLMN holds 2-8-18-32" — sing it. And for energy: "minus thirteen-six over n-squared" (−13.6/n²). Shells = K eeps L ots of M erry N eutrons... (nonsense sticks!).
Atomic structure and the periodic table — shells explain periods & groups.Valence electrons and bonding — outer shell → covalent/ionic/metallic bonds.Energy bands in solids — shells broaden into bands in crystals.Semiconductors and the band gap — why Si (4 valence e⁻) conducts partially.Conductors insulators and doping — direct Hardware application.Quantum mechanical model of the atom — the successor that fixes Bohr's flaws.
What force provides the centripetal force in the Bohr model? The Coulomb (electrostatic) attraction between the positive nucleus and negative electron.
What is Bohr's quantization condition? Angular momentum is quantized:
L = m v r = n ℏ L = mvr = n\hbar L = m v r = n ℏ , with
n = 1 , 2 , 3 , … n=1,2,3,\dots n = 1 , 2 , 3 , … Formula for the radius of the n n n r n = a 0 n 2 r_n = a_0 n^2 r n = a 0 n 2 where
a 0 ≈ 0.529 a_0 \approx 0.529 a 0 ≈ 0.529 Å is the Bohr radius.
Energy of the n n n E n = − 13.6 / n 2 E_n = -13.6/n^2 E n = − 13.6/ n 2 eV.
Why is the total energy of a bound electron negative? Because you must add energy to free (ionize) it; the potential energy dominates the kinetic energy.
Maximum number of electrons in shell n n n 2 n 2 2n^2 2 n 2 (K=2, L=8, M=18, N=32).
What are valence electrons and why do they matter? Electrons in the outermost shell; they control bonding and electrical conductivity.
How many valence electrons does silicon have, and what does that make it? 4 valence electrons → a semiconductor.
When does a Bohr atom emit light? Only when an electron jumps from a higher orbit to a lower one, emitting a photon of energy
Δ E = h f \Delta E = hf Δ E = h f .
Photon energy for an n = 3 → 2 n=3\to2 n = 3 → 2 E 3 − E 2 = − 1.51 − ( − 3.4 ) = 1.89 E_3-E_2 = -1.51-(-3.4)=1.89 E 3 − E 2 = − 1.51 − ( − 3.4 ) = 1.89 eV (H-alpha, red).
As n → ∞ n\to\infty n → ∞ E n E_n E n E n → 0 E_n\to 0 E n → 0 ; the electron becomes free (the atom is ionized).
Which classical prediction did Bohr's model overturn? That an orbiting (accelerating) electron continuously radiates and spirals into the nucleus.
Electron spirals in, crashes
Atoms are stable, line spectra
Angular momentum L = n h-bar
Coulomb equals centripetal force
Orbit radius r_n = a0 n^2
Jumps emit photon dE = h f
Semiconductors and band gaps
Intuition Hinglish mein samjhoDekho, Bohr ka atomic model bilkul solar system jaisa hai: beech mein heavy positive nucleus aur uske around ghoomte hue chhote negative electrons . Par twist ye hai ki electron kahin bhi orbit nahi kar sakta — sirf kuch fixed shells (n = 1, 2, 3...) mein hi reh sakta hai, jaise seedhi (staircase) ke steps. Beech mein float karna allowed hi nahi hai. Isko hum quantization bolte hain, aur yahi cheez classical physics se alag hai.
Radius nikalne ka logic simple hai: Coulomb attraction hi centripetal force provide karta hai, aur Bohr ka rule kehta hai angular momentum m v r = n ℏ mvr = n\hbar m v r = n ℏ r n = a 0 n 2 r_n = a_0 n^2 r n = a 0 n 2 a 0 = 0.529 a_0 = 0.529 a 0 = 0.529 E n = − 13.6 / n 2 E_n = -13.6/n^2 E n = − 13.6/ n 2 negative hai kyunki electron bound hai, use free karne ke liye energy deni padti hai. Jab electron upar wale shell se neeche gireta hai, to exact ek color ki light (photon) nikalti hai — isliye atoms specific colors mein glow karte hain, poora rainbow nahi.
Hardware ke liye ye kyun important hai? Kyunki valence electrons (sabse bahar wali shell ke electrons) decide karte hain ki material conductor hai, insulator hai, ya semiconductor. Silicon ke paas 4 valence electrons hote hain — na bahut tight, na bahut loose — isliye wo semiconductor banta hai, jo poore electronics ki foundation hai. Shell capacity ka formula yaad rakho: 2 n 2 2n^2 2 n 2
Ek common galti: log sochte hain bada n n n E n = − 1 / n 2 E_n = -1/n^2 E n = − 1/ n 2 n n n n = 1 n=1 n = 1
