Before you can read the Bohr page line by line, you need to already own every symbol it throws at you. Below, each symbol is introduced only after the one it depends on. We start from literally nothing — a charge, a distance — and build up to the boxed formulas.
The picture: two dots. Look at the red proton in the center and the black electron out to the side. The arrow points from electron toward proton — that is the pull. The whole Bohr model is a fight between this inward pull and the electron's tendency to fly off in a straight line.
Why the topic needs it: without charge there is no force, without force there is no orbit, without an orbit there is nothing to quantize.
Why the topic needs it: the force gets weaker the farther apart the charges are, so how far matters enormously. The final boxed answer rn=a0n2 is literally a list of allowed distances.

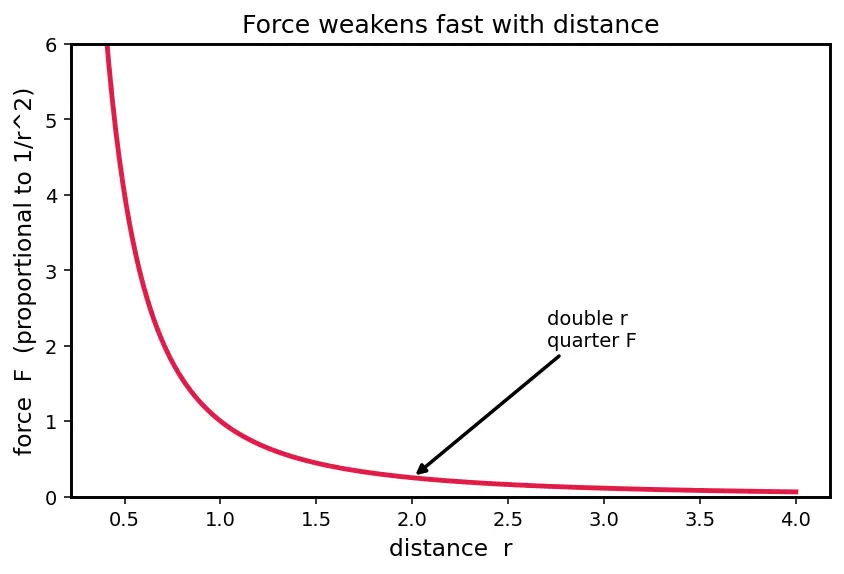

The picture: the red curve shows how the force shrinks as r grows. Notice it drops fast — double the distance, quarter the force. That "r2 on the bottom" is why.
Why the r2 and not just r? Because the field spreads out over a sphere, and a sphere's surface grows as r2. This is the exact form Step 1 of the parent derivation uses.
The picture: the electron on its circle, black arrow tangent (the direction it wants to fly), red arrow inward (the Coulomb pull that bends it into a circle). Step 1 of the derivation simply sets the pull = the required inward force.
Why the topic needs it: this balance is the entire Step 1 equation. Once you accept "inward force needed =rmv2," Coulomb's law fills in what supplies it.
Why the topic needs it: this is Bohr's brand-new rule (Postulate 3). It is the mathematical form of "only certain orbits are allowed." Without it, r could be anything.
The picture: the red energy-well curve. The bottom is the ground state n=1 (most negative, most trapped). The rungs climb toward zero as n grows. This is the same picture behind En=−13.6/n2 eV.
Why the topic needs it: this connects the invisible energy ladder to something you can see — spectral lines. Step 5 of the parent derivation is just this rule applied between two rungs.
Read it upward: charge and radius feed the Coulomb force; mass and speed feed the centripetal force; the two forces balance in Step 1; the counting number and angular momentum give the quantization rule; those two together produce the allowed radii, then the energy levels, then jumps and shells.
