WHY complex numbers? Because AC quantities have both a size (amplitude) and a timing (phase). A single real number can't hold both; a complex number can. The angle of Zis the phase shift.
Why this step? This is the physics: voltage across an inductor is proportional to how fast current changes. Solve for current by integrating:
i(t)=L1∫Vmcos(ωt)dt=ωLVmsin(ωt)
Why this step? Integrating cos gives ω1sin, and the L1 came from rearranging.
Now peak current is Im=ωLVm. Compare with Ohm's law Im=Vm/X:
Why does it grow with f? Faster changes → bigger di/dt → bigger opposing voltage needed → less current gets through. Inductors block high frequencies.
Why this step? Current is the flow of charge onto the plates; more voltage swing per second = more current.
i(t)=Cdtd(Vmcosωt)=−ωCVmsin(ωt)=ωCVmcos(ωt+90°)
Peak current Im=ωCVm, so Vm/Im=1/(ωC):
Why does it shrink with f? Fast wiggling voltage keeps charging/discharging → lots of current flows → little opposition. Capacitors pass high frequencies.

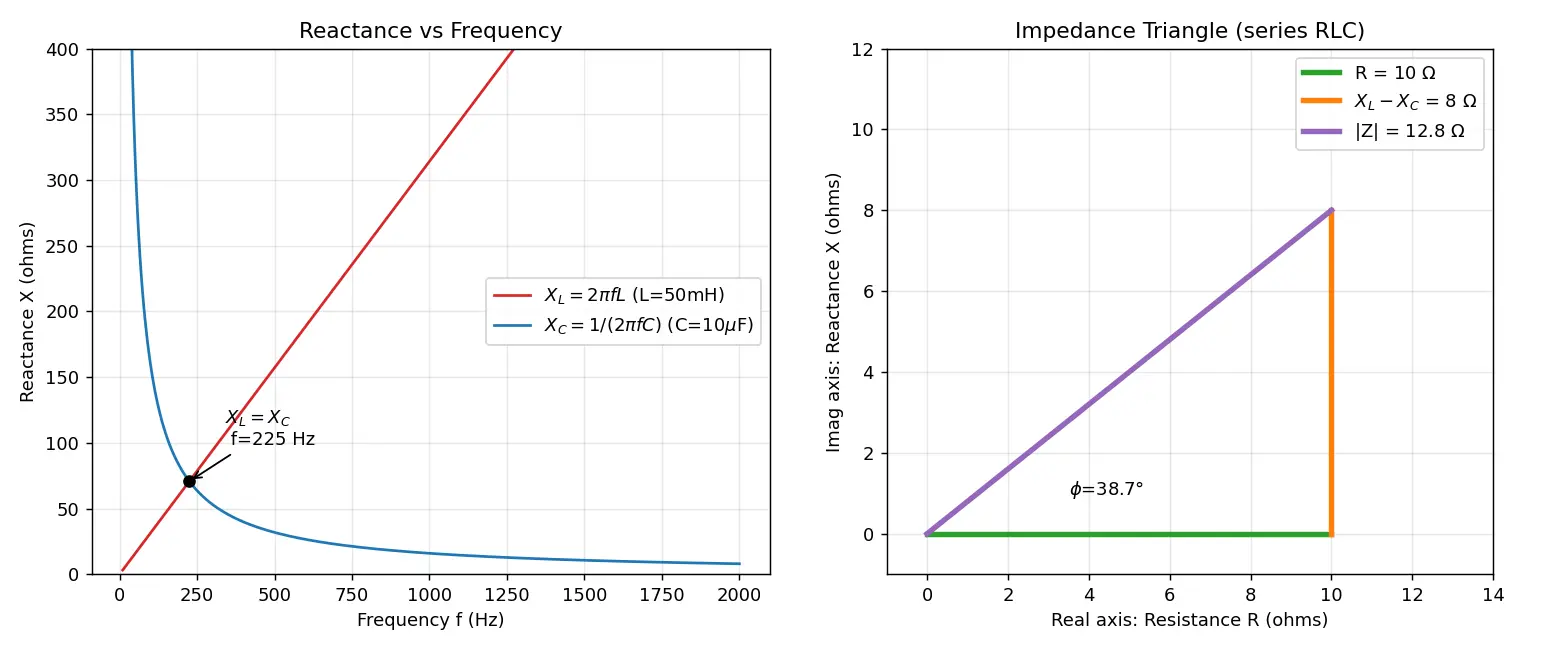

For R, L, Cin series, add impedances (they share the same current):
Z=R+j(XL−XC)
Magnitude (Pythagoras, because real and imaginary parts are perpendicular):
∣Z∣=R2+(XL−XC)2,ϕ=tan−1RXL−XC
Why Pythagoras?R (in-phase) and X (90° out-of-phase) are like two axes at right angles.
Imagine pushing a kid on a swing back and forth. A resistor is like sticky mud — it just slows you and turns your effort into heat. An inductor is like a heavy swing that hates changing direction; the faster you try to wiggle it, the harder it fights — so fast wiggles (high frequency) get blocked. A capacitor is a springy trampoline; slow gentle pushes barely move it (blocks low frequency) but fast little bounces flow easily. Reactance is just "how much the springy or heavy thing pushes back," and it changes with how fast you wiggle. When you mix pushback (X) and mud (R), you can't just add them because they hit you at different moments — so you use the diagonal of a rectangle (Pythagoras).
Dekho, DC circuit me sirf resistance R hoti hai. Lekin AC me current lagataar change ho raha hai, aur inductor/capacitor iss change ko oppose karte hain. Yeh opposition frequency pe depend karta hai — isko hum reactanceX kehte hain. Inductor ka XL=2πfL, matlab frequency badhne pe opposition badhta hai (high frequency block karta hai). Capacitor ka XC=1/(2πfC), matlab frequency badhne pe opposition ghatta hai (high frequency easily pass karta hai). Yaad rakho: "CLiFF" — C cliff se girta hai jaise f badhta hai.
Ab timing ka funda: inductor me current voltage ke peeche rehta hai (lags), capacitor me current voltage se aage rehta hai (leads), dono 90 degree se. Isliye "ELI the ICE man" mnemonic use karo. Yeh phase shift hi reason hai ki hum complex number Z=R+jX use karte hain — kyunki humein size aur timing dono store karna hota hai.
Sabse important mistake: R aur X ko seedha add mat karo! Dono 90 degree apart hain, isliye Pythagoras lagao: ∣Z∣=R2+(XL−XC)2. Phir Ohm's law se current nikaalo: I=V/∣Z∣. Phase angle ϕ=tan−1((XL−XC)/R) batata hai current lead kar raha hai ya lag.
Yeh cheez matter karti hai kyunki har filter, tuner, radio, power supply — sab isi reactance concept pe chalte hain. Jab XL=XC ho jaate hain to reactance cancel ho jaata hai — ussi ko resonance kehte hain, jahan circuit sabse zyada current pass karta hai. Toh derivation samajh lo, formula ratta mat maro.
