WHY do we need it? Because with n nodes there are n unknown potentials, but only their differences affect the circuit. If we don't pin one node, the system is underdetermined — you could add +5 V to every node and nothing physical changes. Fixing one node to 0 removes that redundant "floating" freedom.
WHY earth for safety: if a live wire touches a metal case, earth ground provides a path so a large current flows, tripping the fuse/breaker before a person touching the case gets shocked.
The node we choose and define as 0 V; all other node voltages are measured relative to it.
Why must we fix one node's voltage in nodal analysis?
Only voltage differences are physical, so absolute potentials have a free additive constant; fixing one node removes this redundancy and makes the system solvable.
Does choosing a different ground change branch currents?
No — currents depend on VA−VB, and shifting all nodes by +c cancels in the difference.
Why does I=(VA−VB)/R simplify when one node is ground?
The grounded node is 0, so the term becomes I=VA/R — the −0 vanishes, simplifying KCL.
Are all ground symbols in one schematic the same node?
Yes — they are all the same 0 V electrical node, drawn separately for neatness.
What is earth ground used for?
Safety: a low-resistance path to Earth for fault current, tripping protection before a person is shocked.

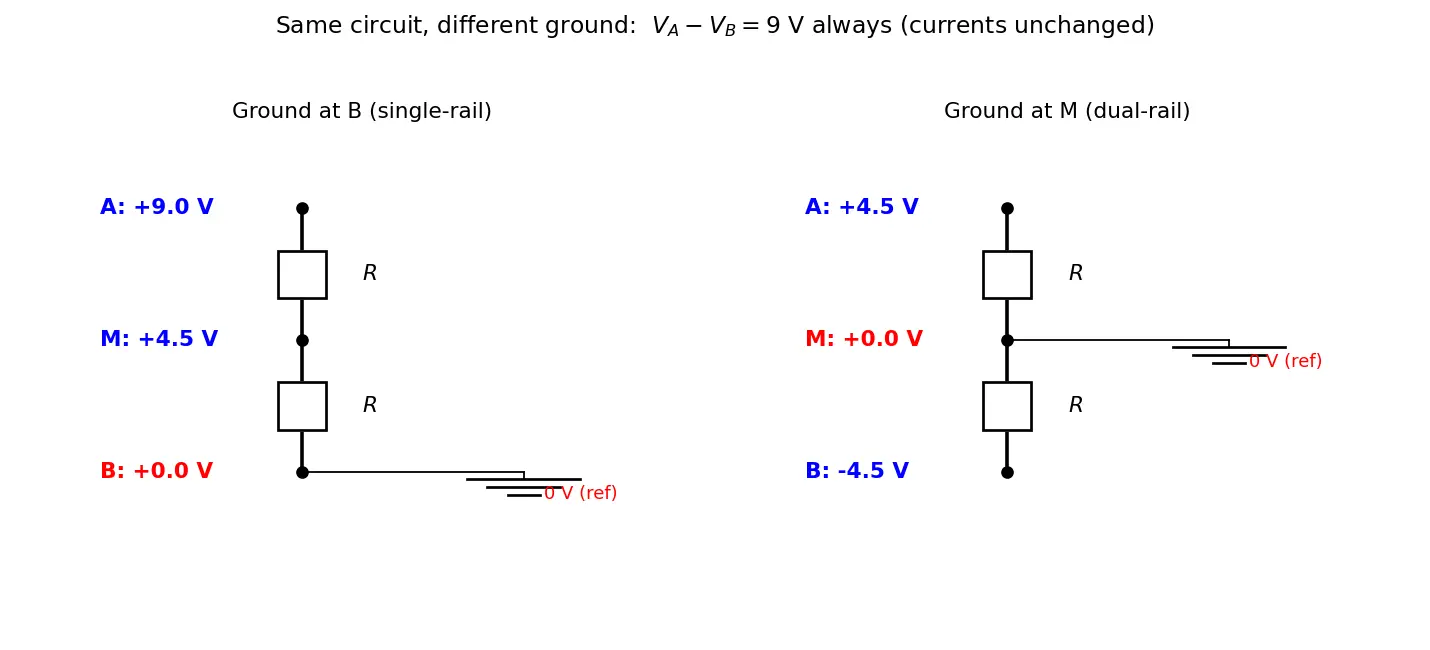

How do you get a ±4.5 V dual supply from a 9 V battery?
Place ground at the midpoint of two equal resistors (or a center tap); top = +4.5, bottom = −4.5.
Recall Feynman: explain to a 12-year-old
Imagine a staircase. You can say "step 5 is higher than step 2" without knowing how high the whole staircase is off the ground floor. Voltage is like the height difference between steps. To give each step a single number, we just pick one step and call it "floor = 0." That's ground! We could have picked any step — the differences between steps stay exactly the same, so the electricity flows the same. Ground is just where we start counting from.
Dekho, voltage hamesha difference hota hai — kabhi bhi absolute number nahi. Jaise pahaad ki height "sea level se" batate hain, waise hi circuit mein hum ek node ko chun ke bolte hain "yeh mera 0 V hai" — usko hi ground ya reference node kehte hain. Baaki sab node voltages isi ke respect mein measure hote hain. Yeh choice humari hai, nature mein koi "asli zero" nahi hota.
Iska sabse bada faayda: kisi bhi component se current sirf uske do sire ke difference pe depend karta hai, I=(VA−VB)/R. Agar aap saare nodes mein +c add kar do, toh difference mein c cancel ho jaata hai — matlab current bilkul same. Isiliye hum bina physics badle koi bhi node ground bana sakte hain. Aur agar ground ko sabse zyada resistors wale node ke paas rakho, toh KCL equations mein bohot saare "−0" terms gayab ho jaate hain, calculation easy ho jaati hai.
Ek important baat: schematic mein jitne bhi ground ke symbol dikhte hain, woh sab ek hi node hote hain, sirf drawing saaf rakhne ke liye alag dikhaye jaate hain. Aur "earth ground" thoda alag cheez hai — woh safety ke liye hota hai, taaki fault current Earth mein jaaye aur fuse trip ho jaaye, insaan ko shock na lage.
Exam tip (80/20): bas yeh yaad rakho — ground = chuna hua zero, currents kabhi nahi badalte, aur 9 V battery ka beech point ground banao toh ±4.5 V dual supply mil jaati hai. Itna clear ho gaya toh ground ke saare questions ho jayenge.
