Foundations — Understand grounding and reference nodes

Before you can use grounding, you have to be fluent in a handful of symbols and pictures. This page builds each one from absolute zero, in the order they depend on each other. Nothing here is assumed — if the parent note leaned on it, we build it here first.

1. The node — a "meeting point" of wires

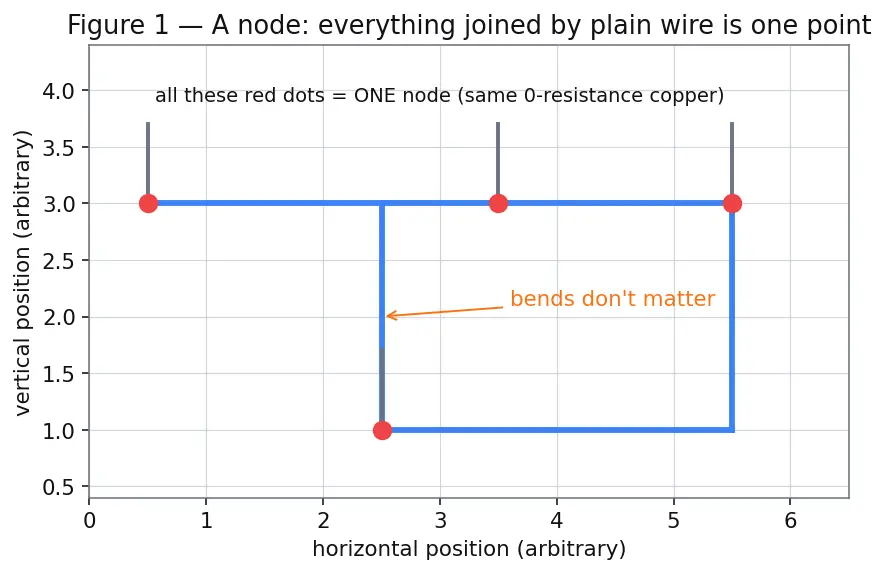

Picture it. Look at Figure 1. A wire has no resistance in our idealised world, so the potential does not change as you slide along it. That means the whole stretch of copper — even if it bends around three corners — is the same electrical point.

Why the topic needs it. Ground is a node we choose. If you don't yet see which blobs of wire are "the same point," you can't choose one to be zero. Every ground symbol scattered around a schematic is really pointing at one node — the same idea, restated.

2. Charge $q$ — what actually moves

Picture it. Imagine a bucket of tiny identical marbles flowing through a wire. Each marble carries a fixed amount of charge. $q$ just counts how much marble-stuff we're talking about.

Why the topic needs it. Voltage is defined as energy per unit of this charge. You can't understand "potential difference" until you know what the "per charge" is measuring.

3. Electric potential $V$ — "energy height"

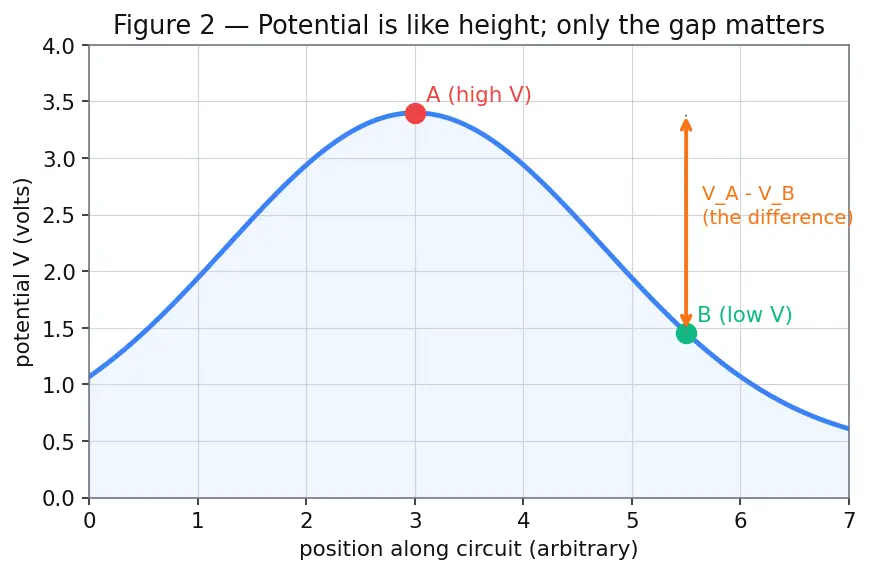

Picture it — the hill (Figure 2). Roll a ball up a hill and it stores energy; let it go and it rolls down. Height is to a ball what potential is to charge. A point "high" in potential is where a positive charge is eager to leave, like a ball perched at the top of a slope.

Why "difference" is baked in. Notice the formula gives you $V_A-V_B$, never $V_A$ alone. Just like a hill only has a height difference between two spots until you agree where "sea level" is, potential only has meaning between two points until you pick a reference. This is the mathematical seed of the entire grounding idea — see Electric Potential.

4. The subtraction $V_A-V_B$ — the difference itself

Picture it. On the hill in Figure 2, this is just the vertical gap between two marked points — an arrow drawn straight up (or down) between them.

Why the topic needs it. Every component reacts to this arrow, not to either point on its own. The parent note's central proof — that adding a constant $c$ to every node cancels — is entirely about this subtraction: $(V_A+c)-(V_B+c)=V_A-V_B.$ The $+c$ and $-c$ annihilate. That cancellation is why we're allowed to slide the whole "hill" up or down and pick any zero.

5. Current $I$ — the flow, driven by the difference

Picture it. Back to the marbles: current is how many marbles per second stream past a checkpoint in the wire. More marbles per second = more current.

Why the topic needs it. Current is what a resistor lets through, and it depends only on the difference across it: $I=\frac{V_A-V_B}{R}.$ Because the numerator is a difference, current is immune to your choice of ground. Shift everything by $c$ and $I$ doesn't budge — the whole "changing ground never changes physics" claim lives here.

6. Resistance $R$ and the ratio in Ohm's law

Why a ratio, and why division? We want a single number that says "how hard is it to push current through this?" The honest question is: for a given push (voltage difference), how much flow (current) do I get? That is a ratio, so we divide: $R=\frac{V_A-V_B}{I}.$ Rearranged, this is $I=(V_A-V_B)/R$ — the same formula from step 5. We chose division (not, say, subtraction) because doubling the push should double the flow: a proportional relationship is captured by a ratio, and this ratio stays constant for an ideal resistor. That constancy is exactly what "ohmic" means.

Picture it. A narrow pipe versus a wide pipe: same pressure difference, but the narrow (high-$R$) pipe passes less water per second.

7. The zero and the ground symbol ⏚

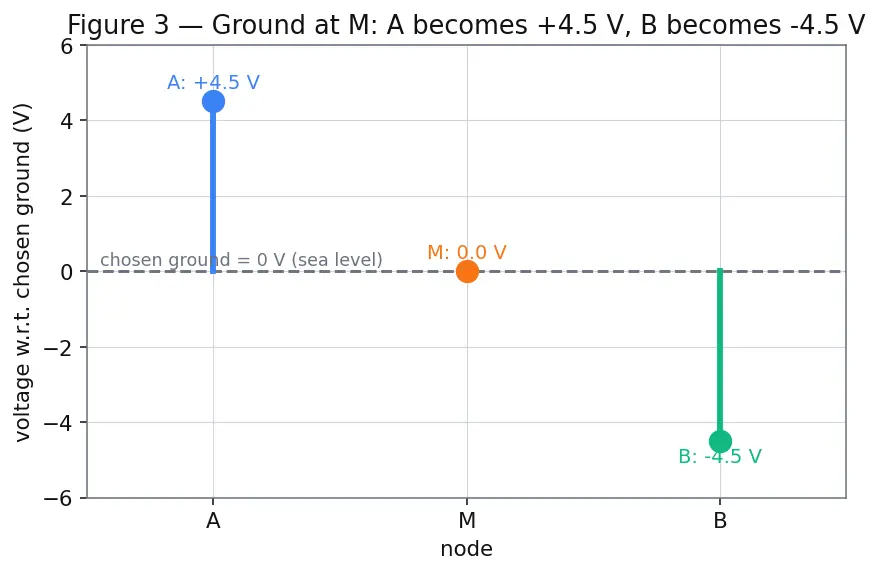

Picture it — Figure 3. This is the moment we paint a horizontal "sea-level" line onto the hill. Every point's height is now a single number: its gap above (or below) that line. Points below the line get negative voltages — perfectly valid, just downhill of our chosen zero.

Why the topic needs it — the underdetermined system. With $n$ nodes you have $n$ unknown potentials, but the physics only pins down their differences. That leaves one free constant $c$ (you can raise the whole landscape). Nailing one node to $0$ removes that freedom, so the equations of Nodal Analysis have a unique solution. Ground is the anchor that makes the maths solvable — nothing more, nothing mystical.

8. Putting the symbols in a sentence

Now every piece of $I=\frac{V_A-V_B}{R}$ is earned:

• $I$ — flow of charge (amps),
• $V_A-V_B$ — the potential difference (volts), the "downhill push,"
• $R$ — how hard the component fights (ohms),
• and once ground fixes $V_{\text{ref}}=0$, a lone $V_A$ is legal shorthand.

This single equation, and the fact that its top is a difference, is the engine behind Kirchhoff's Voltage Law, Nodal Analysis, and Voltage Dividers alike.
