1.8.16Electromagnetism

Ohm's law — microscopic origin, resistivity

1,863 words8 min readdifficulty · medium6 backlinks

WHY does a current even flow? (first principles)

WHAT we want: explain why V=IRV = IR (the macroscopic law) comes out of what individual electrons do.

WHY it's not obvious: if a constant force acted on a free electron, it would accelerate forever (a=F/ma = F/m), and the current would grow without limit. But experiments show a steady, constant current for a constant voltage. Something must be stopping the runaway. That "something" is collisions.


HOW the field produces a steady drift (the derivation)

Step 1 — Force on one electron. An electron (charge e-e) in field E\vec{E} feels F=eE,a=Fm=eEm.\vec{F} = -e\vec{E}, \qquad \vec{a} = \frac{\vec F}{m} = -\frac{e\vec E}{m}. Why this step? Newton's 2nd law — the only honest starting point for "what does the electron do."

Step 2 — Collisions reset the velocity. On average an electron travels for a time τ\tau (the relaxation time, the mean time between collisions) before a collision randomizes its velocity. Right after a collision its drift contribution is, on average, zero (collisions scatter it in random directions).

Why this step? The collision is the "brake." After each bump the electron forgets the velocity it had built up — so velocity can't accumulate forever.

Step 3 — Average the velocity gained between collisions. Starting from zero drift, after time tt the electron has v=at\vec v = \vec a\, t. Averaging over the time-since-last-collision (which averages to τ\tau): vd=aτ=eτmE\boxed{\vec v_d = \vec a\,\tau = -\frac{e\tau}{m}\vec E} Why this step? This is the steady-state balance: gain from the field over one free flight τ\tau, lost at each collision. The result is constant in time — that's why current is steady.

Step 4 — From drift to current density. Let nn = number of free electrons per unit volume. In time dtdt all electrons within distance vddtv_d\,dt of a cross-section AA cross it. The charge crossing is dQ=(n)(Avddt)(e)dQ = (n)(A\,v_d\,dt)(e), so I=dQdt=neAvd,JIA=nevd.I = \frac{dQ}{dt} = n e A v_d, \qquad J \equiv \frac{I}{A} = n e v_d. Why this step? Current = charge per second; count how many carriers sweep through.

Step 5 — Combine. Put vd=eτmEv_d = \dfrac{e\tau}{m}E (magnitudes) into J=nevdJ = n e v_d:   J=ne2τmE=σE  \boxed{\;J = \frac{n e^2 \tau}{m}\,E = \sigma E\;}


HOW the macroscopic V=IRV=IR falls out

Take a wire, length LL, area AA, uniform field. Then E=V/LE = V/L and I=JA=σEAI = JA = \sigma E A: I=σVLA    V=LσARI=ρLAI.I = \sigma \frac{V}{L} A \;\Rightarrow\; V = \underbrace{\frac{L}{\sigma A}}_{R}\, I = \frac{\rho L}{A}\,I.

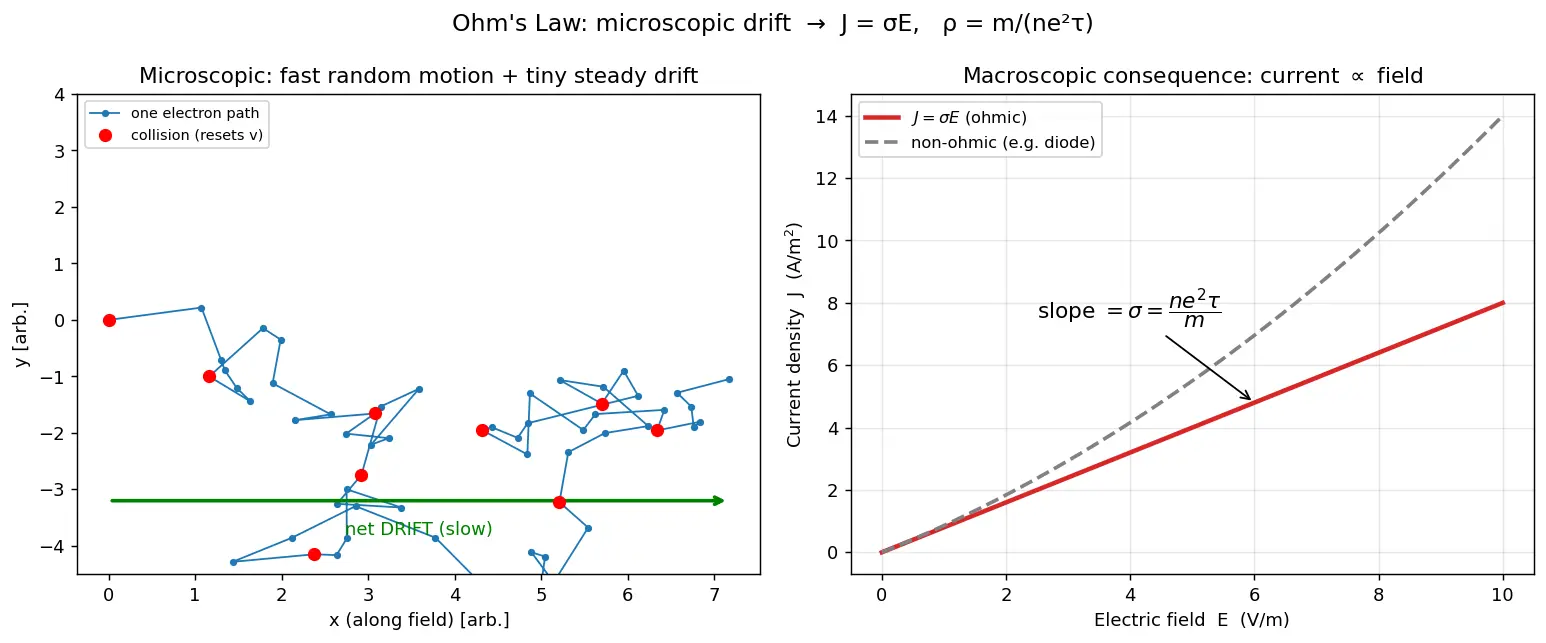

Figure — Ohm's law — microscopic origin, resistivity

WHY resistance rises with temperature (in metals)

ρ=m/(ne2τ)\rho = m/(ne^2\tau). Heat the metal → atoms vibrate harder → electrons collide more oftenτ\tau dropsρ\rho rises. (In semiconductors the opposite often wins: nn grows fast with TT, so ρ\rho falls.)


Common mistakes (Steel-man them)


Recall Feynman: explain to a 12-year-old

Imagine pushing a shopping cart down a crowded hallway. You push steadily, but you keep bumping into people. You never speed up forever — you just keep moving at a slow, steady walk. The harder you push (bigger voltage), the faster you walk (more current). A narrower hallway with more people in the way is harder to get through — that's higher resistance. Heating things up makes everyone wiggle more and bump you more, so it's even harder to push through.


Active Recall

What stops electrons from accelerating forever in a wire?
Collisions with vibrating lattice ions, which reset the drift velocity roughly every relaxation time τ\tau.
Define drift velocity.
The small average velocity of the electron sea along E\vec E, superposed on random thermal motion (which carries no net current).
Derive vdv_d in terms of E,τE,\tau.
a=eE/ma=eE/m, averaged over free time τ\tau: vd=eEτ/mv_d = eE\tau/m.
Relate current density to drift velocity.
J=nevdJ = n e v_d.
Microscopic form of Ohm's law?
J=σE\vec J = \sigma\vec E with σ=ne2τ/m\sigma = ne^2\tau/m.
Why is this "Ohm's law"?
Because σ\sigma is independent of EE, so JEJ\propto E (and hence IVI\propto V) — a linear relation.
Formula for resistivity?
ρ=m/(ne2τ)\rho = m/(n e^2 \tau).
Resistance from geometry?
R=ρL/AR = \rho L/A.
Why does metal resistance rise with temperature?
Hotter lattice vibrates more → more collisions → τ\tau falls → ρ=m/(ne2τ)\rho = m/(ne^2\tau) rises.
Is drift speed fast or slow?
Very slow (~10410^{-4} m/s), but the field/signal propagates near light speed, so current starts instantly.
Difference between ρ\rho and RR?
ρ\rho is a material property; R=ρL/AR=\rho L/A also includes geometry.
Name a non-ohmic device.
Diode (also filament lamp at high T, gas/plasma).

Connections

Concept Map

Newton 2nd law

would accelerate forever

reset velocity

gain over free flight tau

brake, averages to zero

averages to zero, no net current

carriers sweep through A

counts carriers

combine with v_d

sigma = n e squared tau over m

reciprocal rho = 1 over sigma

integrates to

Constant E field

Acceleration a = eE/m

Runaway current problem

Collisions every tau

Drift velocity v_d = eEtau/m

Random thermal motion

Current density J = n e v_d

Carrier density n

Microscopic Ohm J = sigma E

Conductivity sigma

Resistivity rho

Macroscopic V = IR

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, sawaal yeh hai: agar metal ke andar electron par constant electric field se constant force lag raha hai, toh Newton ke hisaab se woh forever accelerate karega aur current infinite ho jaayegi. Par real life mein constant voltage se steady current milti hai. Iska matlab koi "brake" hai — aur woh brake hai collisions. Electron field se thoda speed pakadta hai, phir lattice ke vibrating atoms se takra jaata hai aur uski speed reset ho jaati hai. Average time between collisions ko relaxation time τ\tau kehte hain.

Is balance se aata hai drift velocity: vd=eEτ/mv_d = eE\tau/m. Yeh woh chhoti si average speed hai jisse poora electron-sea field ke direction mein slowly khisakta hai. Phir current density J=nevdJ = nev_d likh ke combine karo, toh milta hai J=σEJ = \sigma E jahan σ=ne2τ/m\sigma = ne^2\tau/m. Yahi microscopic Ohm's law hai — aur resistivity ρ=1/σ=m/(ne2τ)\rho = 1/\sigma = m/(ne^2\tau). Wire ke liye R=ρL/AR = \rho L/A.

Important baat: drift speed bahut hi slow hota hai (~0.07 mm/s copper mein), lekin bulb instantly jalta hai kyunki field/signal almost light-speed se travel karta hai aur saare electrons ek saath push hote hain — bilkul nal kholne jaisa, paani turant nikalta hai. Temperature badhao toh atoms zyada hilte hain, collisions badhte hain, τ\tau ghatta hai, isliye metal ka ρ\rho badhta hai. Yaad rakho: ρ\rho material property hai, RR mein geometry (L, A) bhi add hoti hai. Ohm's law fundamental nahi hai — diode jaise non-ohmic cheezein bhi hoti hain.
