Define resistance and the ohm

WHAT is resistance?

WHY do we even define resistance this way? Because when engineers experimented with metal wires, they noticed that for a fixed wire, doubling the voltage doubled the current, tripling voltage tripled current — the ratio $V/I$ stayed constant. That stubborn, repeatable constant deserved a name: resistance.

HOW do we derive the ohm from first principles?

We don't invent $R=V/I$ arbitrarily — we build it from what voltage and current already mean.

Formula Derivation of

$R = V/I$ Step 1 — What is current? Current is charge flow per second: $I = \dfrac{Q}{t}$ (units: coulombs/second = amperes). Why this step? Current tells us how much charge is getting through per second — a measure of flow rate.

Step 2 — What is voltage? Voltage is energy delivered per unit charge: $V = \dfrac{E}{Q}$ (units: joules/coulomb = volts). Why this step? Voltage is the "push" — the energy each coulomb carries to move through the component.

Step 3 — Observed law (Ohm's law). Experiment shows: for a metal at fixed temperature, $V \propto I$ . A proportionality becomes an equation with a constant: $V = R\,I$ Why this step? Any straight line through the origin is $y = kx$ ; here $k$ is the constant we name $R$ .

Step 4 — Solve for the constant. $R = \frac{V}{I}$ Why this step? We isolate the constant so we can measure it directly from any $(V, I)$ pair.

Step 5 — Get the unit. $[R] = \frac{[V]}{[I]} = \frac{\text{volt}}{\text{ampere}} = \text{ohm} = \Omega$

So the ohm is a derived unit: $1\ \Omega = 1\ \text{V/A} = 1\ \dfrac{\text{J/C}}{\text{C/s}} = 1\ \dfrac{\text{J}\cdot\text{s}}{\text{C}^2}$ .

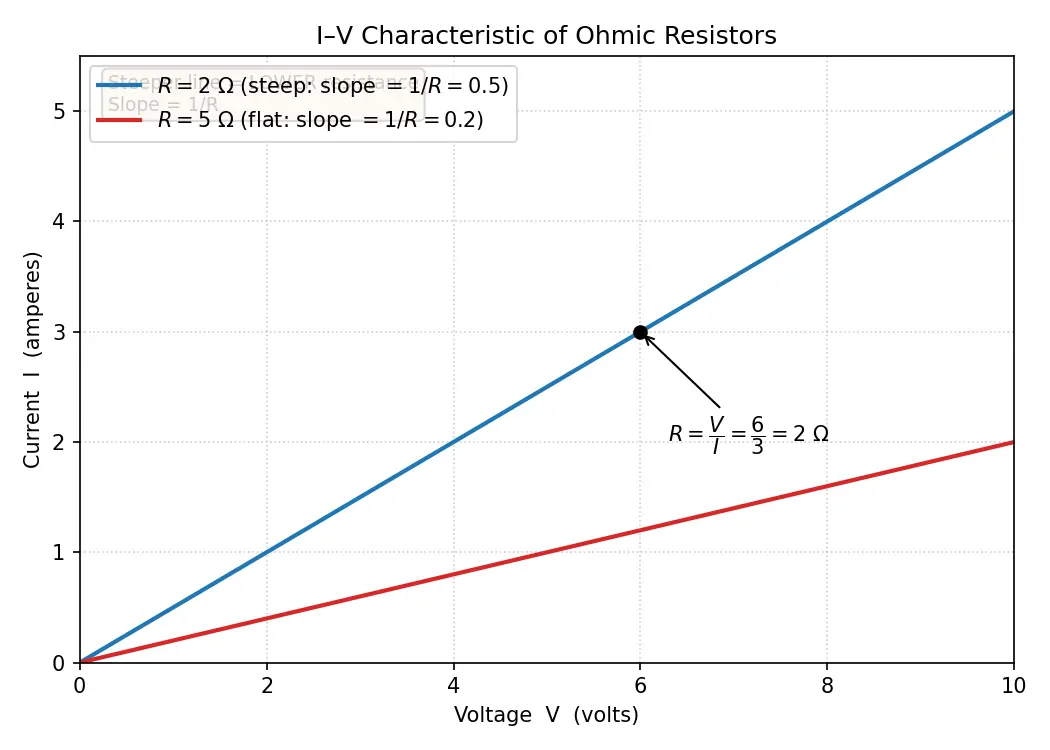

The graph above is the I–V characteristic. For an ohmic resistor it is a straight line through the origin; its slope is $1/R$ , so a steeper line means smaller resistance.

Worked Examples

Common Mistakes (Steel-manned)

Recall Feynman: explain it to a 12-year-old

Imagine water flowing through a pipe. Voltage is how hard you push the water. Current is how much water actually comes out per second. Resistance is how narrow or clogged the pipe is. A thin, clogged pipe (high resistance) lets only a trickle out even with a big push. A wide clean pipe (low resistance) gushes water with a small push. Resistance = "how much the pipe fights back," and we measure it in ohms: 1 ohm means 1 volt of push gives exactly 1 amp of flow.

Active Recall

What is resistance in one sentence?

The opposition a component offers to electric current, equal to voltage divided by current (

R=V/I

What is the SI unit of resistance and its symbol?

The ohm, symbol

\Omega

Define one ohm.

The resistance when 1 volt drives exactly 1 ampere through the component (

1\,\Omega = 1\,\text{V}/1\,\text{A}

Rearrange

R=V/I

to find current.

I = V/R

Rearrange

R=V/I

to find voltage.

V = IR

On an I-vs-V graph, what does the slope equal?

The reciprocal of resistance,

1/R

(steeper = lower resistance).

If voltage stays fixed and resistance halves, what happens to current?

It doubles (

I=V/R

Express the ohm in base units.

1\,\Omega = 1\,\text{J·s/C}^2

(from V/A = (J/C)/(C/s)).

Is resistance a property of the component or of the applied voltage?

Of the component (its material, size, temperature) — not the applied voltage.

A 12 V supply gives 4 A. What is R?

12/4 = 3\,\Omega

Connections

Ohm's Law — the $V=IR$ relationship this note is built on.
Voltage and Potential Difference — the "push" in the numerator.
Electric Current — the charge-flow in the denominator.
Resistivity and Resistance of a Wire — how length, area, material set $R$ .
Conductors and Insulators — extremes of low vs high resistance.
Power Dissipation in Resistors — where $P=I^2R$ comes from.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, resistance ka matlab hai ki koi material electric current ko kitna rokta hai. Socho ek pipe mein paani ja raha hai — agar pipe patli aur gandi hai to paani mushkil se nikalta hai, matlab uski resistance zyada hai. Electricity mein bhi bilkul aisa hi hai: voltage push hai, current flow hai, aur resistance batati hai ki wo path current ko kitna fight karta hai. Formula simple hai: $R = V/I$ .

Iska unit hai ohm ( $\Omega$ ). Ek ohm ka matlab — jab 1 volt lagane par exactly 1 ampere current bahe, tab resistance 1 ohm hoti hai. Yeh koi random rule nahi hai; scientists ne experiment mein dekha ki metal wire mein voltage double karo to current bhi double ho jaata hai, ratio $V/I$ hamesha constant rehta hai — us constant ko naam de diya "resistance".

Ek important baat jo students galat samajhte hain: "zyada voltage matlab zyada resistance" — ye galat hai! Resistance component ki apni property hai (uska material, mota-patla hona, temperature). Voltage badhao to current proportional badhega, ratio same rahega. Aur graph mein: agar $I$ ko $V$ ke against plot karo, to line ka slope = $1/R$ hota hai — steep line matlab kam resistance (current easily flow karta hai).

Yaad rakhne ke liye triangle trick: upar $V$ , neeche $I$ aur $R$ . Jo cover karo wahi answer — "Very Important Rule". Bas isse pura chapter cover ho jata hai: $V=IR$ , $I=V/R$ , $R=V/I$ .
