Foundations — Valence electrons and bonding

This page assumes you know nothing. We will name every letter, picture, and rule the parent note (Valence electrons and bonding) leans on, in an order where each idea rests on the one before it. Nothing appears until it is earned.

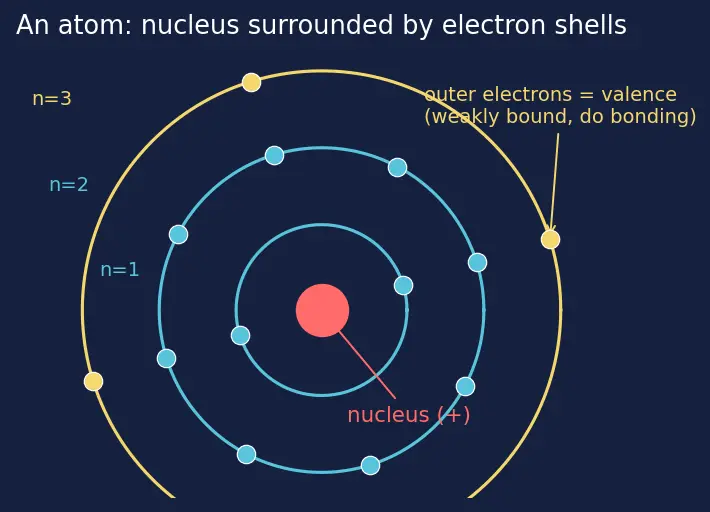

1. The atom: nucleus + shells

Before we can talk about valence electrons, we must picture any electron.

The picture. Think of a tiny sun (the nucleus) with planets orbiting at fixed distances. Electrons are not allowed to sit anywhere — they live only in specific rings called shells.

WHY do we need shells at all? Because electrons cannot pile up anywhere — nature only allows certain energy levels. Each shell is one energy level. The parent note writes "$n=1,2,3,\dots$" — that $n$ is simply which ring, counting outward. See Atomic structure and electron shells to go deeper on this.

2. Reading $n=1,2,3$ and why "outermost" matters

Look at figure s01 again. The inner ring ($n=1$) hugs the nucleus — those electrons are held tightly. The outer ring is far away — weakly held.

WHY does the topic obsess over the outer ring? Because chemistry and conduction happen where electrons are easiest to move. Inner electrons are locked in place; only the outer ones can break free, be shared, or be handed over. The whole topic is about these.

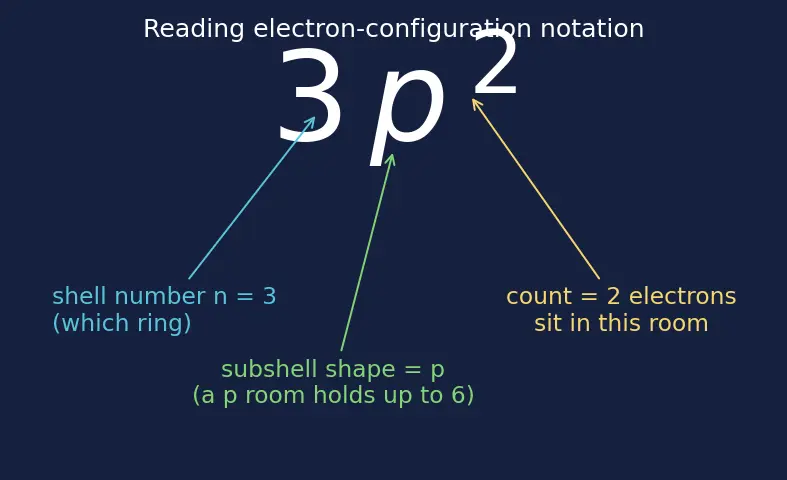

3. The notation $1s^{2}2s^{2}2p^2$ decoded

The parent note writes silicon as $[\text{Ne}]3s^{2}3p^2$. This looks like code — let's read it symbol by symbol.

So $3p^2$ means: shell $3$, sub-room $p$, holding $2$ electrons.

4. The symbol $Z$ (atomic number)

WHY the topic needs it. To write a configuration you must know how many electrons to distribute. $Z$ tells you the total; the shell/subshell rules tell you where they go. The table in the parent note ("Si, $Z=14$") is exactly this.

5. Charge, ions, and the $\pm$ signs

The parent note writes ${\text{Na}}^{+}$, ${\text{Cl}}^{-}$, ${\text{Mg}}^{2+}$. Those little superscripts are charge, not electron counts.

The picture: balance a see-saw of protons (+) vs electrons (−). Remove one electron → the + side wins by one → net $+1$.

6. Energy, $\text{eV}$, and the band gap $E_g$

The parent note casually drops "$E_g\approx 1.1\text{eV}$". Two new symbols hide here.

WHY introduce it now? Because the parent's punchline — "silicon is a semiconductor" — is a statement about $E_g$ being medium-sized. This idea is expanded fully in Energy bands and band gap and Conductors insulators and semiconductors.

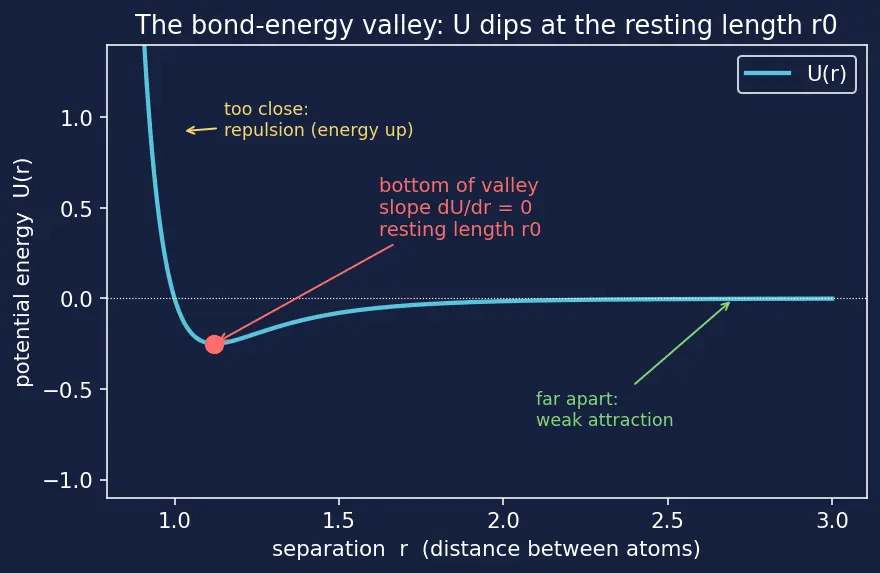

7. Reading calculus symbols: $r$, $U$, $\frac{dU}{dr}$

Section 4 of the parent note uses a bond-energy model. Three symbols must be earned.

The picture: a valley. Plot $U$ (up) against $r$ (right). Far apart → weak attraction pulls them in. Too close → fierce repulsion pushes them out. In between sits the bottom of a valley — the resting distance $r_0$.

8. How it all fits — prerequisite map

Every arrow is a "you need this before that". Notice how valence electrons (D) is the hub: it needs shells, configuration, and $Z$ upstream, and feeds the octet rule and every bond downstream.

Equipment checklist

Test yourself — cover the right side. If you can answer all, you are ready for the parent note.
