Crystal lattice structure of silicon

WHAT is the silicon lattice?

WHY diamond cubic? Silicon is in group IV of the periodic table → it has 4 valence electrons. Each atom wants a full outer shell of 8. By sharing one electron with each of 4 neighbours (4 shared pairs = 8 electrons around each atom), every atom is satisfied. Four neighbours pushing apart equally arrange themselves into a tetrahedron — that geometry, tiled through space, is the diamond cubic lattice.

HOW the bonding forces the geometry

Deriving the tetrahedral bond angle from scratch:

Place a tetrahedron's 4 vertices at alternate corners of a cube: $\mathbf{a}=(1,1,1),\ \mathbf{b}=(1,-1,-1),\ \mathbf{c}=(-1,1,-1),\ \mathbf{d}=(-1,-1,1)$

The central atom is at the origin. The angle between two bonds (say to $\mathbf a$ and $\mathbf b$ ) comes from the dot product: $\cos\theta = \frac{\mathbf a\cdot\mathbf b}{|\mathbf a||\mathbf b|}$

Why this step? The angle between vectors is defined by the dot product; that's the only tool needed.

$\mathbf a\cdot\mathbf b = (1)(1)+(1)(-1)+(1)(-1) = -1,\qquad |\mathbf a|=|\mathbf b|=\sqrt3$ $\cos\theta = \frac{-1}{3} \Rightarrow \theta = \arccos(-\tfrac13) \approx 109.47^\circ$

Why this step? Plug numbers in. The negative cosine tells us the angle is obtuse — bonds point away from each other, confirming maximum spread.

HOW many atoms are actually in the unit cell?

Why divide by 8 and 2? A corner atom is a shared "communal" atom — only 1/8 of it belongs to this cube; a face atom is split between 2 cubes. The 4 tetrahedral interior atoms belong entirely to this cell.

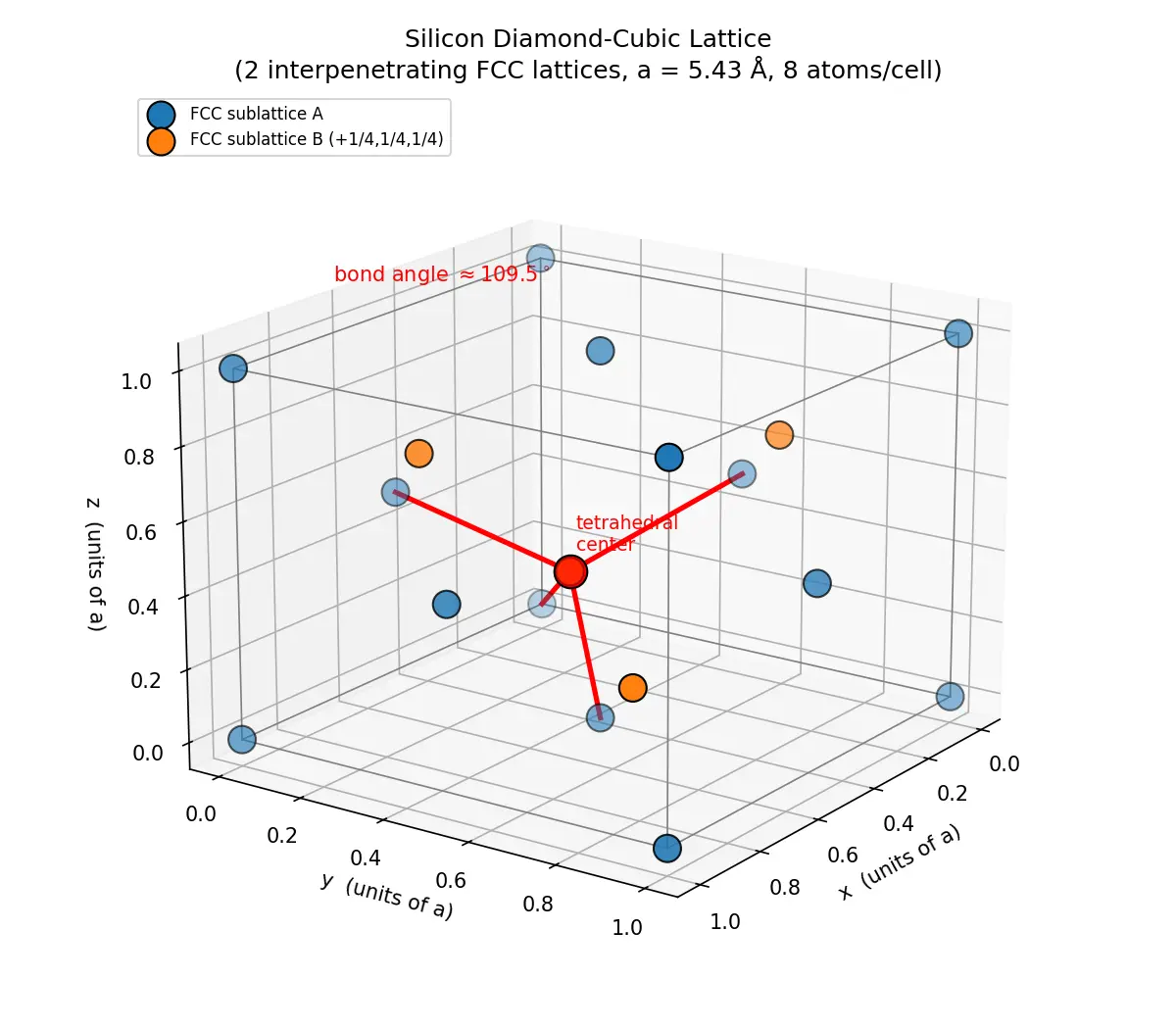

Figure — Crystal lattice structure of silicon

WHY this matters for chips

Common mistakes

Recall Feynman: explain to a 12-year-old

Imagine a giant, perfectly neat 3D jungle-gym where every ball is connected to exactly 4 other balls by rods, spread out like a pyramid tent. Silicon atoms build themselves into this exact repeating cage. Because every atom is holding hands with 4 friends, none of them wants to run around freely — so silicon barely conducts electricity. But if we heat it a little, or sneak in a different kind of atom, a few "hands" let go and electricity can flow. That controllable in-between-ness is why we build computer chips out of it!

Flashcards

What crystal structure does silicon form?

Diamond cubic — two interpenetrating FCC lattices offset by 1/4 of the body diagonal.

How many nearest neighbours does each Si atom have, and in what geometry?

4 neighbours arranged in a tetrahedron.

What is the tetrahedral bond angle and how is it derived?

109.47^\circ = \arccos(-1/3)

, from the dot product of vectors to alternate cube corners.

How many atoms are in the diamond-cubic unit cell of silicon?

8 (= 8×1/8 corners + 6×1/2 faces + 4 interior).

What is silicon's lattice constant?

a \approx 5.43\ \text{Å}

(0.543 nm).

What is the atomic density of silicon?

\approx 5.0\times10^{22}\ \text{atoms/cm}^3

Why does silicon form 4 bonds?

It's group IV with 4 valence electrons; sharing one with each of 4 neighbours gives every atom a full octet (8 electrons).

What is silicon's bond length in terms of a?

\frac{\sqrt3}{4}a \approx 2.35\ \text{Å}

(quarter of the body diagonal).

Why does the periodic lattice matter for semiconductors?

Periodicity creates the energy band gap (

E_g\approx1.12

eV); without an ordered lattice, band structure and device behaviour degrade.

At 0 K, is pure silicon a conductor or insulator, and why?

Insulator — all electrons locked in bonds, none free to move.

Connections

Face-centred cubic (FCC) lattice
Diamond cubic structure
Valence electrons and the octet rule
Energy band gap in semiconductors
Holes and electrons as charge carriers
Doping of silicon
Single-crystal silicon wafer manufacturing
Miller indices and crystal planes

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, silicon ek group-IV element hai, matlab uske paas 4 valence electrons hote hain. Har silicon atom apne 4 padosi atoms ke saath ek-ek electron share karta hai, taaki uska outer shell 8 electrons se full ho jaaye. Ye 4 bonds ek-doosre se door bhagte hain, isliye woh apne aap ko ek tetrahedron (tent jaisi pyramid) shape mein arrange kar lete hain, jismein bond angle around $109.5^\circ$ hota hai. Yahi geometry poore 3D space mein repeat hoti hai — isko hum diamond cubic structure kehte hain, jo actually do FCC lattices ka combination hai, ek doosre se 1/4 body-diagonal shifted.

Ab important baat: is unit cube ke andar total 8 atoms aate hain, aur cube ki edge (lattice constant) $a = 5.43$ Å hoti hai. Isse density nikaalo to $\sim 5\times10^{22}$ atoms per cm³ aati hai — ye number yaad rakhna, kyunki jab hum doping padhenge to impurity concentration ko isi se compare karenge.

Isse kya faayda? Kyunki saare electrons bonds mein locked hain, pure silicon room temperature pe bahut kam conduct karta hai — na pura conductor, na pura insulator, balki semiconductor. Iski regular repeating lattice ke wajah se energy band gap (~1.12 eV) banta hai. Thoda heat do ya impurity daalo, to kuch electrons free ho jaate hain aur current flow karta hai. Bas yahi "control kar sakne wali" property hai jiske kaaran har chip silicon se banti hai. Yaad rakho: single-crystal silicon (bilkul perfect lattice) chahiye — koi bhi defect performance kharaab karta hai.
