Energy bands - valence band and conduction band

WHY do bands form at all?

HOW does this decide metal vs insulator vs semiconductor?

Formula Thermal population across the gap (WHY the factor appears)

WHAT: The chance an electron has enough thermal energy to cross the gap. HOW (derivation sketch): Boltzmann statistics say the probability of a state at energy $\Delta E$ above the reference being occupied by thermal fluctuation scales as $e^{-\Delta E / k_B T}$ . An electron must climb $E_g$ , so $n \propto e^{-E_g / (2k_B T)}$ WHY the factor of 2? Creating a free carrier makes an electron in CB AND a hole in VB — the intrinsic carrier density $n_i$ splits the gap energetically between the two. The full result (derived from the density of states) is: $n_i = \sqrt{N_c N_v}\;\, e^{-E_g/(2k_B T)}$ where $N_c, N_v$ are effective densities of states. Larger $E_g$ ⇒ exponentially fewer carriers.

Worked examples

Worked example 1 — Ratio of intrinsic carriers: Ge vs Si at 300 K

Take $k_B T = 0.02585$ eV at 300 K. Compare only the exponential factor. $\frac{n_i(\text{Ge})}{n_i(\text{Si})} \sim \frac{e^{-0.66/(2\cdot0.02585)}}{e^{-1.12/(2\cdot0.02585)}} = e^{(1.12-0.66)/(2\cdot0.02585)}$

Why this step? The prefactors are similar order; the gap dominates the difference, and it lives in the exponent. $= e^{0.46/0.0517} = e^{8.90} \approx 7.3\times10^3$ Interpretation: Ge (smaller gap) has thousands× more intrinsic carriers — why early transistors used Ge, and why Ge is "leakier."

Worked example 2 — Why a photon of

$\lambda = 700$ nm is not absorbed by GaAs interband? Photon energy $E = \dfrac{hc}{\lambda} = \dfrac{1240\ \text{eV·nm}}{700\ \text{nm}} = 1.77$ eV.

Why this step? $hc = 1240$ eV·nm is the handy shortcut for optical energies. Since $1.77\ \text{eV} > E_g(\text{GaAs}) = 1.42$ eV, the photon has enough energy to lift a VB electron across the gap into the CB → it is absorbed. Steel-man the trap: A photon is absorbed (excites an electron) only if $E_{photon} \ge E_g$ . Below $E_g$ the material is transparent — that's why Si ( $E_g=1.12$ eV ⇒ cutoff $\lambda \approx 1100$ nm) is transparent to infrared.

Common mistakes (Steel-man + fix)

Flashcards

What is the valence band?

The highest energy band that is completely filled with (bonding) electrons at

T=0

What is the conduction band?

The lowest band that is empty at

T=0

; electrons here are free to conduct.

Define the band gap

E_g

E_g = E_c - E_v

, the forbidden energy range with no allowed electron states between VB top and CB bottom.

Why do discrete atomic levels become bands in a solid?

Pauli exclusion forces overlapping identical orbitals of

N

atoms to split into

N

closely-spaced levels ≈ a continuous band.

Why can't a completely full band conduct?

Every rightward-moving electron is cancelled by a leftward one; net current is zero. Conduction needs empty adjacent states.

How does intrinsic carrier density depend on the gap and temperature?

n_i = \sqrt{N_c N_v}\,e^{-E_g/(2k_BT)}

; more carriers for smaller

E_g

and higher

T

Why the factor of 2 in the exponent of

n_i

Creating a carrier makes an electron in CB AND a hole in VB, splitting the gap energy between the two species.

Metal vs insulator vs semiconductor by band picture?

Metal: overlapping/partly-filled bands (no effective gap). Insulator: large gap (>~5 eV). Semiconductor: small gap (~0.5–2 eV).

E_g

of Si, Ge, GaAs at 300 K?

Si 1.12 eV, Ge 0.66 eV, GaAs 1.42 eV.

Photon absorption condition across the gap?

Absorbed only if

E_{photon}=hc/\lambda \ge E_g

; below that the material is transparent.

Recall Feynman: explain to a 12-year-old

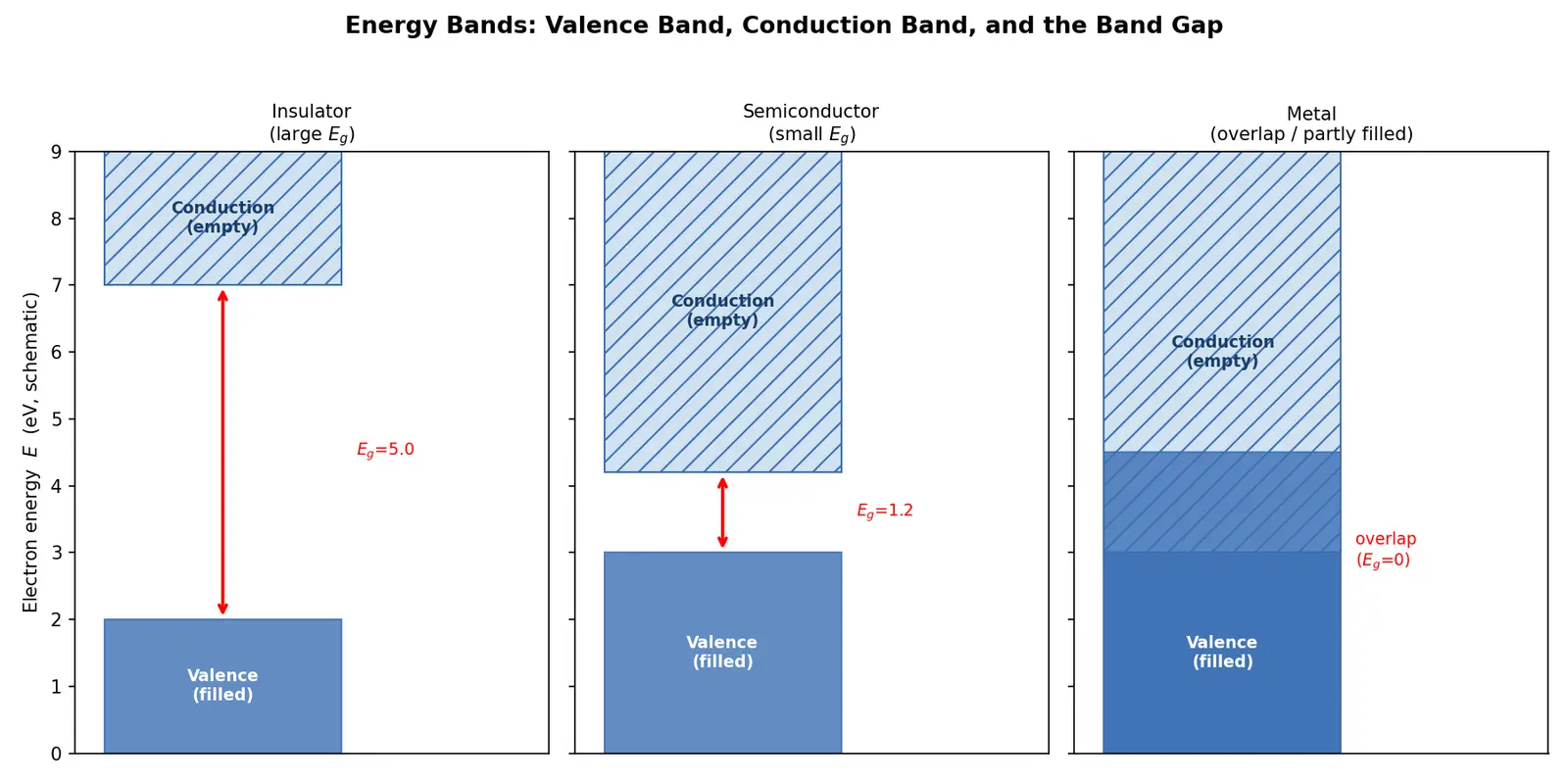

Imagine a parking garage. The bottom floor (valence band) is completely full of cars — nobody can move, total gridlock, no traffic flows. The top floor (conduction band) is empty — plenty of room to drive around. Between them is a floor with no ramp and no parking spots — that's the band gap; cars can't stop there. To get traffic moving you must lift a car all the way up to the empty floor. If the jump is small (semiconductor), a little heat or light can toss a car up. If it's huge (insulator), no car ever makes it. In a metal, the top floor is already half-full and open — traffic flows freely all the time.

Connections

Fermi level and Fermi-Dirac distribution — decides how bands are filled at temperature $T$ .
Density of states — gives $N_c$ , $N_v$ used in the $n_i$ formula.
Intrinsic and extrinsic semiconductors — doping shifts carriers without changing $E_g$ much.
Holes as charge carriers — the empty states left behind in the VB.
Direct vs indirect band gap — why GaAs emits light but Si doesn't.
Kronig-Penney model — the quantum-mechanical origin of allowed/forbidden bands.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, ek akela atom ke andar electron ke energy levels bilkul sharp aur alag-alag hote hain. Lekin jab hum $N$ atoms ko paas-paas laake ek crystal banate hain, to Pauli exclusion principle kehta hai ki do electrons same state me nahi reh sakte. Isliye har level thoda-thoda split ho jaata hai, aur $10^{23}$ atoms ke liye ye itne saare closely-spaced levels ban jaate hain ki wo ek continuous band jaisa dikhta hai. Sabse upar wala pura bhara hua band valence band hai, uske upar khaali band conduction band hai, aur beech me jo forbidden khaali jagah hai — jahan koi allowed state nahi hoti — wo band gap $E_g$ hai.

Conduction ke liye zaroori kya hai? Electron ko thoda energy milne pe ek khaali paas wale state me jaana padta hai. Agar band pura bhara hai (valence band), to koi khaali jagah hi nahi — isliye current zero. Conduction band khaali hai, wahan electron ghoom sakta hai. Metal me VB aur CB overlap karte hain ya band aadha bhara hota hai, isliye current easily chalta hai. Insulator me gap bahut bada ( $>5$ eV) — electron jump nahi kar paata. Semiconductor me gap chhota (Si = 1.12 eV, Ge = 0.66 eV), isliye thodi si heat ya light se kuch electrons jump kar jaate hain.

Formula yaad rakho: $n_i \propto e^{-E_g/(2k_BT)}$ — jitna bada gap, utne exponentially kam carriers. Isiliye Ge (chhota gap) me Si se hazaaron guna zyada intrinsic carriers hote hain. Aur 2 ka factor isliye aata hai kyunki ek carrier banane pe CB me electron aur VB me hole — dono ban-te hain, gap ki energy dono me baant jaati hai.

Ek quick trick: "Very Good Cars" — Valence, Gap, Conduction, neeche se upar. Aur photon absorb tabhi hoga jab $E_{photon} = hc/\lambda \ge E_g$ , warna material transparent rahega. Bas yahi core idea hai — band theory ki poori device physics isi neev par khadi hai.
