Valence electrons and bonding: Question bank — Hardware deep dive

Before we start, one shared vocabulary reminder so no word is used before it's anchored:

Anchoring the bond-energy picture (read before the questions)

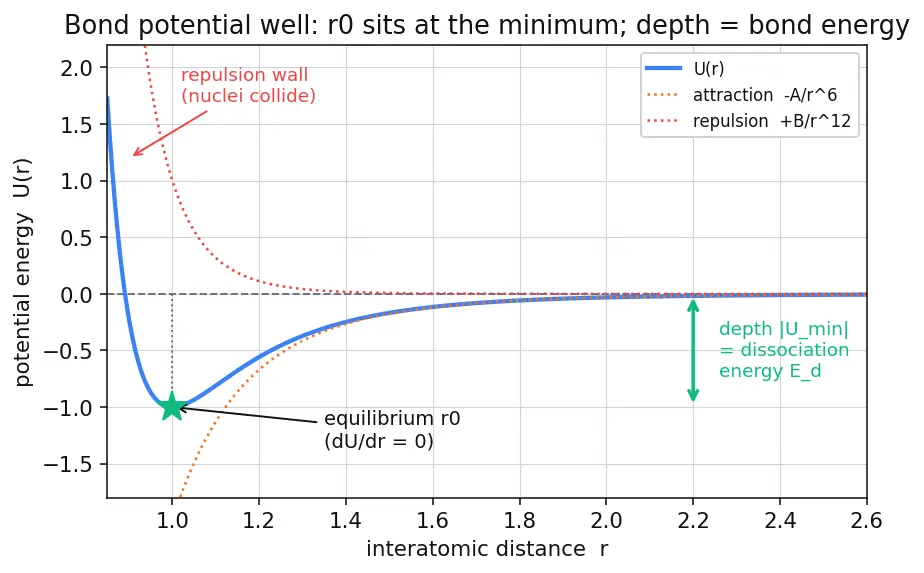

Several traps below use the potential-energy model, so let's earn every symbol first. Two atoms sitting a distance apart have a stored energy that depends on how far apart they are. We call that stored energy $U$ , and the separation between the two nuclei we call $r$ (measured in, say, nanometres). Look at the curve below.

True or false — justify

Silicon at absolute zero conducts electricity well because it has 4 valence electrons.

False. At

0

K all 4 valence electrons are locked into covalent bonds, so there are zero free carriers — silicon behaves like an insulator until heat or doping frees a carrier.

A covalent bond means one atom keeps both shared electrons.

False. The shared pair belongs to both atoms at once; each atom counts the full pair toward its own octet. Keeping/losing electrons is the ionic story, not covalent.

An atom with a completely full outer shell (a noble gas) has no valence electrons available for bonding.

True. Its outer shell is already at the octet, so there is no energy to be gained by bonding — that's exactly why noble gases are chemically inert.

Every atom in a covalent bond ends up neutral, so no charges exist anywhere.

True for pure covalent (Si–Si). No electrons are transferred, so both atoms stay neutral. (In polar covalent bonds charge is unevenly shared, but no full transfer occurs.)

Metals conduct well because their atoms have more valence electrons than insulators.

False. Conduction is about electrons being delocalized, not numerous. Chlorine has 7 valence electrons yet insulates because they are tightly bound completing octets.

The equilibrium bond length

r_{0}

is the interatomic distance where the attractive and repulsive forces exactly cancel.

True. At

r_{0}

the net force is zero, which is the same as saying the potential energy

U (r)

sits at its minimum (

d U / d r = 0

) — the lowest point of the well in the figure.

A deeper potential-energy well means a weaker bond.

False. A deeper well (

U_{m i n}

more negative) makes the dissociation energy

E_{d} = - U_{m i n}

larger — more energy is needed to pull the atoms apart — so it's a stronger bond, and typically a larger band gap.

Silicon and carbon both have 4 valence electrons, so both are semiconductors in the same way.

False. Same valence count, but diamond's C–C bonds are much stronger (deeper well), giving a band gap of ~5.5 eV (an insulator) versus silicon's ~1.1 eV. Bond strength, not just count, sets behaviour.

The octet rule of 8 electrons applies to every element in the periodic table.

False. Hydrogen and helium target a duet (2); boron is stable sub-octet (6); and period-3+ elements like P and S can be hypervalent, holding 10 or 12. Eight is a period-2 rule of thumb, not universal.

Spot the error

"Phosphorus (group 15) has 5 valence electrons, so when it replaces a silicon atom it gives silicon 5 bonds."

Error: silicon's lattice only offers 4 neighbours to bond with. Phosphorus uses 4 electrons for bonds and has one left over, which is easily freed — that's exactly how n-type doping adds a mobile electron.

"Boron has 3 valence electrons, so bonding it into silicon creates an extra free electron."

Error: boron is short one electron for four bonds, so it creates a missing bond — a hole — not an extra electron. This is p-type doping; it adds a positive carrier.

"Silicon needs 4 more electrons, so it grabs 4 electrons from its neighbours to complete its octet."

Error: "grabbing" is ionic language. Silicon shares one electron with each of 4 neighbours; each shared pair is counted by both atoms, and no atom loses ownership.

"Inner-shell electrons help hold the crystal together, so they matter for bonding."

Error: inner electrons are held tightly by the nucleus and are spectators. Only the outermost (valence) electrons participate in bonding and conduction.

"To count valence electrons in silicon (Z = 14), we count all 14 electrons."

Error: valence = only the outermost shell. Silicon's config is

[Ne] 3 s^{2} 3 p^{2}

, so

2 + 2 = 4

valence electrons; the 10 in

[Ne]

are core spectators.

"An ionic bond forms because both atoms want to share, so they trade back and forth."

Error: ionic bonding is a one-way transfer, not sharing. One atom donates and becomes positive, the other accepts and becomes negative; they then stick by Coulomb attraction.

"In

U (r) = - A / r^{m} + B / r^{n}

we can pick

m > n

, it makes no difference."

Error: we need

n > m

so the repulsion term rises faster than attraction as

r \to 0

. If

m > n

the well would have no short-range wall and the atoms would collapse — there'd be no stable

r_{0}

Why questions

Why does bonding lower an atom's energy at all?

Because filling every low-energy orbital of the outer shell (the

s^{2} p^{6}

octet) is a closed, symmetric, low-energy state; the next electron would face a big jump to the shell above. Systems fall to low energy, so atoms bond to reach that state.

Why is silicon a semiconductor rather than a conductor or an insulator?

Its 4 covalent bonds lock all valence electrons at 0 K (insulator-like), but the bonds are only moderately strong (~1.1 eV), so modest heat or doping can break one and free carriers — an in-between, controllable behaviour.

Why does raising the temperature increase silicon's conductivity but decrease a metal's?

In silicon, heat breaks bonds and creates new free carriers (more carriers wins). In a metal the carrier count is already fixed and huge, so heat only makes the lattice vibrate more, scattering electrons and raising resistance.

Why do we set

d U / d r = 0

to find the bond length instead of solving

U = 0

U = 0

is an arbitrary reference point (infinite separation), but the minimum of

U

is the physically special place where net force vanishes and atoms naturally rest. The slope

d U / d r

is (minus) the force, so zero slope means zero force.

Why must the repulsion term in

U (r) = - A / r^{m} + B / r^{n}

have

n > m

The repulsion must dominate at short range to keep the nuclei from collapsing together. A larger power

n

makes

B / r^{n}

blow up faster than the attraction as

r \to 0

, producing the wall that sets a finite bond length.

Why does a deeper potential well correspond to a stronger bond and often a bigger band gap?

The dissociation energy equals the well depth,

E_{d} = - U_{m i n}

, so a deeper well literally means more energy to break the bond. Bonds that are harder to break also hold their electrons more tightly, pushing the energy gap between bound and free states wider.

Why can silicon form a neat, symmetric 3D lattice while sodium or chlorine cannot?

Silicon is perfectly balanced — 4 electrons and 4 needed — so every atom shares equally with 4 identical neighbours. Na wants to dump 1 and Cl wants to grab 1, so they form charged ions, not an equal-sharing network.

Why don't the electrons shared in a covalent bond simply conduct current at room temperature?

They are localized between the two bonded atoms, not delocalized across the crystal. They only carry current after a bond is broken and an electron is lifted into the conduction band (see Energy bands and band gap).

Edge cases

For a first-shell atom like hydrogen, is the "octet" target of 8 correct?

No — the target is 2. The first shell has only the

1 s

orbital (holds 2 electrons), so hydrogen and helium chase a "duet," not an octet. The 8 rule applies from the second shell onward.

Can a main-group atom ever be stable with fewer than 8 valence electrons?

Yes. Boron forms stable compounds like

BF_{3}

with only 6 shared electrons around it — a genuine sub-octet, because completing to 8 would cost more than it saves.

Can a main-group atom ever hold more than 8 valence electrons?

Yes — hypervalency. From period 3 down, larger atoms with accessible higher-energy orbitals can exceed the octet: phosphorus has 10 in

PCl_{5}

, sulfur has 12 in

SF_{6}

What happens to silicon's free carriers as temperature approaches 0 K?

They vanish — thermal energy can no longer break bonds, so every valence electron returns to a bond. Intrinsic silicon becomes an insulator in the limit

T \to 0

Is a hole (missing electron) a real particle, or just bookkeeping?

It behaves like a real positive carrier: it moves, carries current, and responds to fields, even though it is physically the absence of an electron in a bond. Treating it as a positive particle is a correct and useful shortcut.

If an atom already has 8 valence electrons (like neon), what does the octet rule predict about its bonding?

It predicts essentially no bonding — the shell is full, there is no energy to gain, so the atom stays inert. This is the limiting case where the "driving force" of bonding is zero.

At the exact separation

r = r_{0}

, what is the force between the two atoms?

Zero. It's the balance point where attraction and repulsion cancel; push closer and repulsion pushes back, pull farther and attraction pulls in — a stable equilibrium at the bottom of the well.

Recall One-line self-test

If someone says "silicon conducts because it has 4 valence electrons," what's the single word missing from their model? ::: Delocalized — the electrons are locked in bonds, not free, until a bond is broken.
