Visual walkthrough — Electric charge — properties, quantization, conservation

We build one idea per step. Follow the figures in order; the pink, yellow and blue chalk strokes carry the argument.

Step 1 — Start with a single indivisible brick

WHAT. Nature does not hand us charge in a smooth stream. It hands us tiny identical carriers. The smallest free carrier of charge is the electron, and the amount of charge it carries has a fixed magnitude we call $e$ (the elementary charge).

WHY start here. Before we can count anything we need one thing to count — a unit that never splits. If the unit could be halved, "how many" would be meaningless. So we first fix the brick.

PICTURE. A single chalk circle = one electron. Beside it we write its charge value.

The number $1.602\times 10^{-19}$ just says the brick is extremely small compared to a coulomb — hold that thought, it explains Step 8.

Step 2 — Charge has a colour: the two signs

WHAT. A brick can carry its charge in one of exactly two "flavours": positive ($+$) or negative ($-$). An electron's brick is negative; a proton's brick is positive, but the magnitude $e$ is identical.

WHY two, not one. Two simple experiments force the issue. (1) Rub a glass rod with silk and hang it up; bring a second rubbed glass rod near it — they push apart. (2) Rub a plastic rod with fur and bring it near the hanging glass rod — they pull together. Same-treatment rods repel; opposite-treatment rods attract. A single flavour could only ever do one of those behaviours. Two flavours — with a $+/-$ sign to tell them apart — is the minimum needed to explain both.

PICTURE. The two experiments drawn side by side (glass–glass repel, glass–plastic attract), then the two bricks they justify: one pink with a $-$, one yellow with a $+$. Same size (same $|e|$), opposite label.

Step 3 — Stacking identical bricks: repeated addition

WHAT. We now name the charge on a whole object. Let $q$ stand for that object's total charge, and let $|q|$ (read "the size of $q$") mean its magnitude — the amount ignoring the $+/-$ label. Suppose the object has $n$ extra electrons, all identical. Then its charge magnitude $|q|$ is the size of one brick added to itself $n$ times.

WHY addition. Each brick contributes the same amount $e$, independently. When identical things pile up and each adds the same fixed amount, "add $e$, $n$ times" is exactly what multiplication means. That is the whole reason a $\times$ appears.

PICTURE. A stack of $n$ pink bricks; a bracket labels the pile "$n$ bricks", and the running total climbs $e,2e,3e,\dots$

Reading it term by term:

• $|q|$ — the total charge magnitude on the object (the height of the whole stack).
• each $e$ — one brick's contribution.
• $n$ — how many bricks we stacked (a plain whole number: $1,2,3,\dots$).
• $ne$ — the shortcut for "$e$ added $n$ times."

This is the quantization of charge: allowed charges are only $e,2e,3e,\dots$, never anything in between, because you cannot stack half a brick.

Step 4 — Invert the stack: the counting formula

WHAT. Usually we measure the total charge magnitude $|q|$ and want to know how many bricks made it. So we run Step 3 backwards.

WHY divide. If $n$ bricks of size $e$ give total $|q|=ne$, then asking "how many bricks?" means "how many times does one brick $e$ fit inside the total $|q|$?" — and "how many times does one thing fit inside another" is precisely division.

PICTURE. The same stack, now with a chalk ruler of length $e$ laid against it, ticking off how many brick-heights fit into $|q|$.

The units cancel — coulomb over coulomb — leaving a bare count, exactly as a "how many" answer should be.

Step 5 — Use it: a worked count

WHAT. A body carries $-1\mu \text{C}$. How many electrons were added?

WHY. This is Step 4 with numbers. The minus sign tells us the flavour (extra negative bricks = electrons gained); the magnitude tells us how many.

PICTURE. The ratio drawn as "big bag $÷$ tiny brick," with the answer written on the board.

Step 6 — The signed total: additivity across a box

WHAT. Put several charged objects in one box. The box's total charge is the sum — but with signs, because pink ($-$) bricks cancel yellow ($+$) bricks one-for-one.

WHY signed sum, not plain sum. A $+e$ brick and a $-e$ brick together push and pull on the outside world by equal and opposite amounts — they neutralise. So they must add to zero, not to $2e$. Only a signed sum does that.

PICTURE. A box holding some yellow and some pink bricks; pairs annihilate visually, leaving a small net pile whose colour is the leftover flavour.

• $q_i$ — each object's own signed charge (yellow $+$, pink $-$).
• ${\sum }_i$ — "add them all up, keeping signs."
• $Q_{\text{total}}$ — the single signed number describing the whole box.

Step 7 — The sealed box never changes: conservation

WHAT. If the box is isolated (nothing charged crosses its wall), then no matter how the bricks rearrange inside, the signed total $Q_{\text{total}}$ stays fixed as time passes.

WHY. Bricks can move between objects and $+/-$ pairs can be created or destroyed together, but a brick never appears or vanishes alone. Every event changes the count by $(+e)+(-e)=0$. So the running total cannot budge.

PICTURE. Two panels of the same box, "before" and "after" an internal shuffle: the arrangement differs, the tally at the bottom is identical.

Before writing this in symbols, let $t$ = time (a clock reading, measured in seconds). We want to say "$Q_{\text{total}}$ does not change as the clock advances." The compact way to write "the rate at which a quantity changes as time advances" is the derivative, written $\frac{d\square }{dt}$ — read it literally as "how fast $\square$ changes per second." If a quantity holds perfectly steady, that rate is exactly $0$. So "the total is frozen in time" becomes:

• $t$ — the time (clock reading, in seconds).
• $\frac{d{Q}_{\text{total}}}{dt}$ — the rate at which the total $Q_{\text{total}}$ changes per second.
• $=0$ — that rate is zero, i.e. it does not change at all.
• The arrow: therefore the tally before equals the tally after.

Step 8 — The edge and degenerate cases (never leave the reader stranded)

Every scenario must be covered. Here are the boundary cases the formula must survive.

Case A — the neutral object, $n=0$. Equal numbers of yellow and pink bricks. $Q_{\text{total}}=0$. Not "no charge exists," but "charges cancel." Perfectly allowed ($n=0$ is a whole number).

Case B — a fractional answer is forbidden. Ask: can a free body carry $2.4\times 10^{-19}\text{C}$? $n=\frac{2.4\times 10^{-19}}{1.6\times 10^{-19}}=1.5$ $1.5$ is not a whole number ⇒ impossible. You cannot stack half a brick. The formula's integer-ness is a physical veto.

Case C — why the steps look invisible in daily life. One coulomb is $n=\frac{1}{1.6\times 10^{-19}}\approx 6.24\times 10^{18}\text{electrons.}$ The step from $n$ to $n+1$ is one part in $10^{18}$ — like adding one grain to a beach. So charge looks smooth even though it is grainy.

Case D — the "smaller brick" trap (quarks). Quarks carry $\pm e/3$, seemingly a smaller brick. But quarks are confined — never free. Any observable free charge is still a whole multiple of $e$.

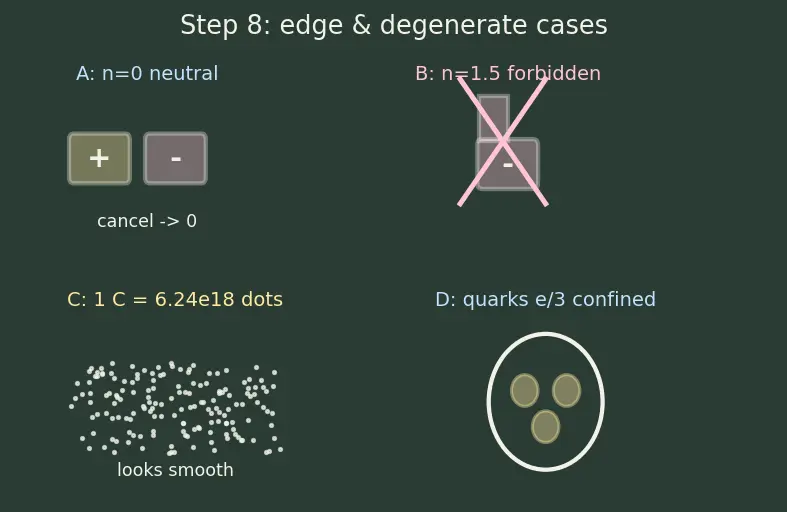

PICTURE. Four mini-panels: (A) balanced box $=0$; (B) a $1.5$-brick stack with a red cross; (C) a beach of dots to show smoothness; (D) three thirds locked inside one particle.

The one-picture summary

One brick $e$ → stack $n$ of them → total $|q|=ne$ → invert to count $n=|q|/e$ → sum with signs across a box → and the sealed box's tally never moves. That single chain is all three properties at once: Quantized (whole bricks), Additive (signed sum), Conserved (fixed tally).
