Foundations — Electric charge — properties, quantization, conservation

Before you can read the parent note, Electric charge, comfortably, you must own every symbol it fires at you. Below, each one is built from nothing: plain words → a picture → why the topic needs it. Read top to bottom; each rung stands on the one below it.

1. The plus and minus signs: $+$ and $-$

Plain words: think of two teams. Same-team objects shove each other away; opposite-team objects reach for each other.

The picture: two carts on a frictionless rail. Give them the same sign and they roll apart; give them opposite signs and they roll together.

Why the topic needs it: the whole reason charge exists as an idea is to explain both attraction and repulsion with one number. A single sign could only do one of those. Look at the picture: the red arrows (force) point outward for same signs and inward for opposite signs — that flip is entirely carried by the sign.

2. The letter $q$ (and $Q$): a charge, named

The picture: stick a name tag reading "$q$" on a ball. From now on, whenever we say $q$, we mean that ball's charge, e.g. $q=+3$ (three units, positive team).

Why the topic needs it: so we can write sentences about charge without redrawing the ball every time. When the parent writes $q_1,q_2,\dots$, the little numbers (called subscripts) are just tags — "charge number 1," "charge number 2" — so we can talk about many charges at once.

3. The coulomb $\text{C}$: the ruler for charge

The picture: a ruler, but instead of centimetre ticks it has coulomb ticks. A charge is "how far along the charge-ruler" the object sits — and it can sit on the negative side too.

Why the topic needs it: numbers are meaningless without a unit. "$q=2$" answers nothing until you say 2 of what. Every formula in the parent secretly measures in coulombs.

4. Scalars vs. vectors: why charge is just a number

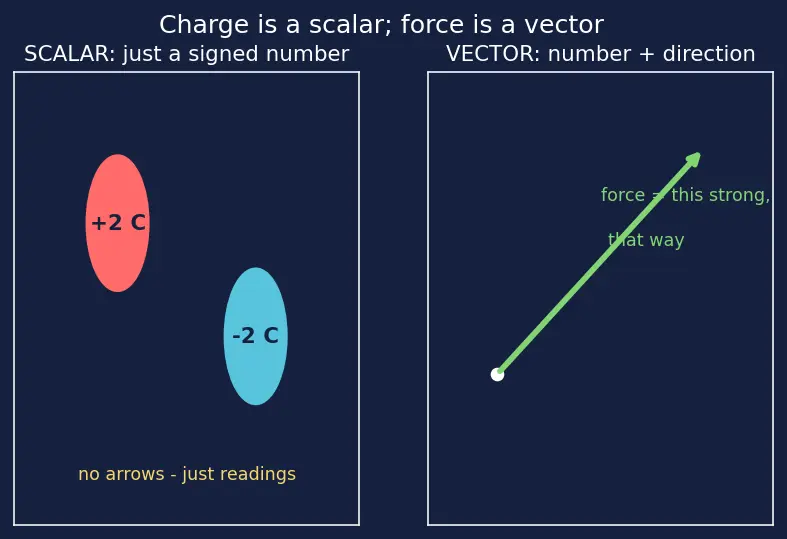

The picture: temperature is a scalar → one dial reading ($-4^{\circ }$). A push is a vector → an arrow (this strong, that way).

Why the topic needs it: the parent insists charge is a scalar. That is why charges add with plain signed arithmetic: $(+2\text{C})+(-2\text{C})=0$. If charge were a vector you would have to add arrows tip-to-tail and could never get clean cancellation from opposite signs alone. In the figure, the two charges on the right have directions of force, but the charges themselves are just the dial readings on the left — no arrow.

5. Summation $\sum$: add up a pile of charges

Plain reading of $\sum _i{q}_i$: "start the counter $i$ at 1, grab $q_1$; bump $i$ to 2, grab $q_2$; keep going to the last one; add everything you grabbed."

${\sum }_i{q}_i=q_1+q_2+q_3+\cdots +q_n$

The picture: a conveyor belt of labelled balls passing a running total on a screen. Each ball adds its signed value.

Why the topic needs it: it's the compact way to state additivity — the total charge of a system is the running sum of every piece, signs included. Writing $q_1+q_2+\cdots$ forever is clumsy; $\sum$ says it once.

6. Whole numbers and $\mathbb{Z}$: charge comes in bricks

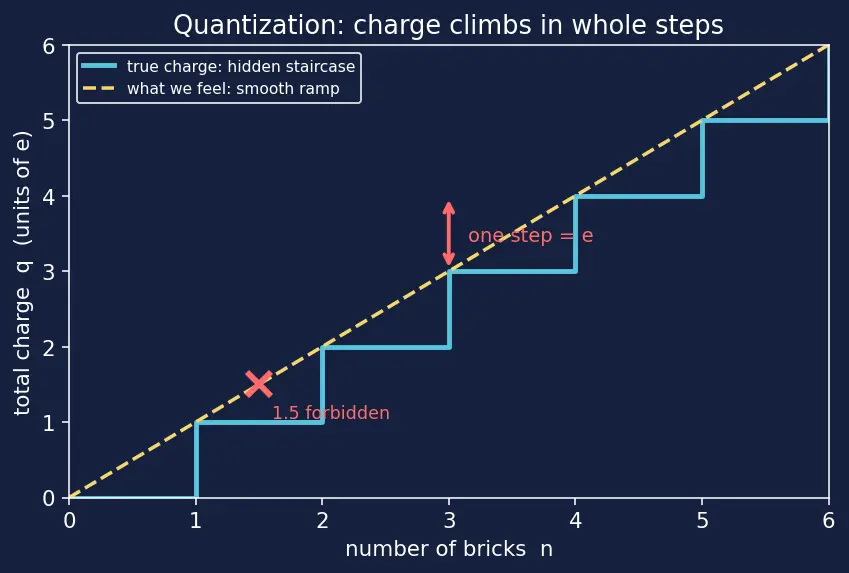

The picture: a staircase. You can stand on step 3 or step 4, never on step 3.5 — there is no floor there.

Why the topic needs it: this is the heart of quantization. Charge is carried by whole particles, so the count $n$ of transferred electrons must be a whole number. In the figure, the smooth ramp (what we feel at large scale) is really a hidden staircase — each step is one elementary charge.

7. The elementary charge $e$: the size of one brick

Decoding $10^{-19}$: the ==$10^{-19}$== is scientific shorthand for "move the decimal point 19 places left" — an incredibly tiny number, $0.0000000000000000001602\text{C}$.

The picture: the height of one step on the quantization staircase from §6.

Why the topic needs it: every real charge is $q=ne$ — a whole number $n$ of these bricks. Because $e$ is so minuscule, the staircase looks like a smooth ramp in everyday life (§6 figure), which is why we never notice the steps.

8. Rates of change: $\frac{dQ}{dt}$ and "$=0$"

Why this tool and not just subtraction? We want to say charge is steady at every instant, not merely "same at the end as the start." A rate ($\text{change per second}$) captures the moment-by-moment story. Setting it to $0$ — $\frac{dQ}{dt}=0$ — says "the running total never budges, ever." That is exactly conservation.

The picture: a bank balance graph that is a flat horizontal line. Flat line = zero slope = zero rate of change = the balance (total charge) is conserved.

Why the topic needs it: the parent's conservation law is written as $\frac{d{Q}_{\text{total}}}{dt}=0$. Reading it now just means "the total-charge line is flat," which immediately gives $\sum q_{\text{before}}=\sum q_{\text{after}}$.

9. How the foundations feed the topic

Additivity, quantization, and conservation — the parent's three pillars — each sit on top of its own tower of symbols. Master the towers and the pillars read themselves.

Equipment checklist

Test yourself — cover the right side and answer before revealing.

Once every line comes instantly, open the parent note and the symbols will feel like old friends. Related next steps you can already peek at: Atomic Structure (where electrons and protons live), Methods of Charging (moving the bricks), and Conservation Laws in Physics (the bigger family that $\frac{dQ}{dt}=0$ belongs to).
