1.1.13Electricity & Charge Basics

Define energy (joules) vs power (watts)

1,920 words9 min readdifficulty · medium

WHY do we need two separate ideas?

Because "how much" and "how fast" are genuinely different questions.

  • A phone charger might deliver a huge total of energy overnight, but does it slowly (low power) → your hand never gets hot.
  • A camera flash delivers a tiny total of energy, but in a microsecond (enormous power) → a blinding burst.

Same fact, two lenses: energy tells you the bill; power tells you whether the wire melts.


WHAT each term means


HOW the relationship is derived (from first principles)

Step 1 — Start from the definition of a rate. "Rate" means amount per unit time. Power is the rate of energy transfer, so by definition:

P=ΔEΔtP = \frac{\Delta E}{\Delta t}

Why this step? We are literally defining power as "energy per second", so it must be energy divided by the time taken. No assumptions — this is the definition.

Step 2 — Make it instantaneous. If the rate changes over time, take the limit:

P=dEdtP = \frac{dE}{dt}

Why this step? ΔE/Δt\Delta E / \Delta t is an average. For the power at one instant we shrink Δt0\Delta t \to 0.

Step 3 — Invert to get energy. If power is the derivative of energy, energy is the integral of power:

E=Pdtconstant PE=PtE = \int P \, dt \quad\xrightarrow{\text{constant } P}\quad E = P\,t

Why this step? Integration "adds up" all the little joules-per-second over the whole time. If power is steady, the integral is just P×tP \times t (area of a rectangle).

Step 4 — Connect to electricity. In a circuit, moving charge QQ through a voltage VV does work E=QVE = QV (this is the definition of voltage: joules per coulomb). Then:

P=Et=QVt=(Qt)V=IVP = \frac{E}{t} = \frac{QV}{t} = \left(\frac{Q}{t}\right)V = IV

Why this step? Current I=Q/tI = Q/t is charge per second, so substituting gives the famous electrical power law P=IVP = IV — derived, not memorised.

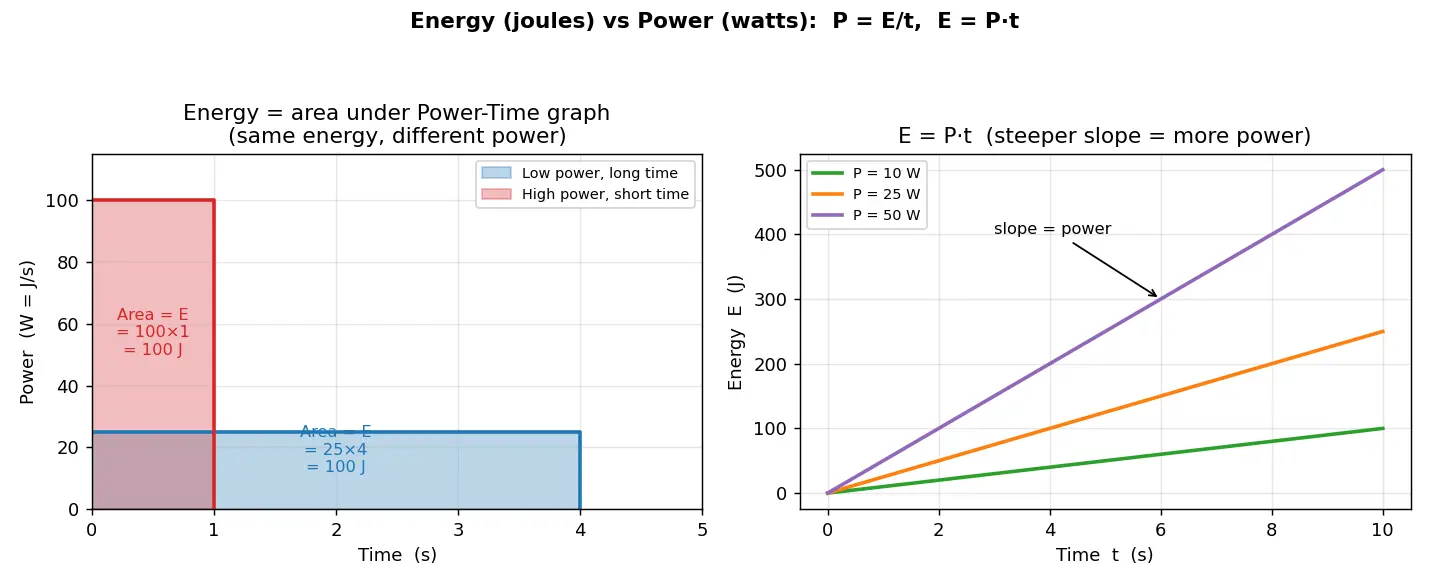

Figure — Define energy (joules) vs power (watts)

Worked examples


Common mistakes (steel-manned)


Recall Feynman: explain it to a 12-year-old

Imagine filling a bucket with water. Energy is the total water in the bucket — a fixed amount you can measure. Power is how fast the tap runs — litres each second. A slow tap (low power) can still fill the bucket to the top if you leave it long enough. A fire-hose (high power) fills it in a flash. So "how much" (energy, joules) and "how fast" (power, watts) are two different things, and they're linked by how long: total = speed × time.


Active recall — self test

What is the SI unit of energy?
The joule (J), equal to 1 N·m = 1 W·s.
What is the SI unit of power?
The watt (W), equal to 1 joule per second (J/s).
Define power in words.
The rate at which energy is transferred or converted (energy per unit time).
Formula linking power, energy and time?
P = E/t, equivalently E = Pt and t = E/P.
Why isn't a joule the same as a watt?
A watt has time built in (J/s); a joule is a fixed amount of energy with no time.
Derive P = IV from first principles.
Energy E = QV; power P = E/t = QV/t = (Q/t)V = IV, since current I = Q/t.
A kettle is 2000 W for 90 s — energy used?
E = Pt = 2000 × 90 = 180,000 J = 180 kJ.
Is a kilowatt-hour a unit of power or energy?
Energy: kWh = 1000 W × 3600 s = 3.6 MJ.
Can a 40 W bulb ever use more energy than a 100 W bulb?
Yes, if it runs long enough — energy = power × time.
Why must time be in seconds for E = Pt?
Because a watt is defined as joules per second.

Connections

Concept Map

is the rate of

defines

SI unit

SI unit

gives

defines work as

substitute into P=E/t

Q/t substituted

links E, P, t

derived from

Energy - joules J

Power - watts W

Rate = amount per time

1 J = 1 N.m

1 W = 1 J/s

P = E/t and E = P.t

Work E = QV

P = IV

Voltage = J per coulomb

Current I = Q/t

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, sabse important cheez samajh lo: energy aur power do alag cheezein hain. Energy matlab total kitna kaam hua — iska unit hai joule (J). Power matlab kitni tezi se woh kaam ho raha hai — iska unit hai watt (W), aur ek watt ka matlab hai ek joule per second (J/s). Yaani watt ke andar time already chhupa hua hai.

Ek simple analogy: paani ki tanki bharna. Energy = kitna litre paani total daala, aur power = pipe se kitne litre per second aa rahe hain. Slow tap (kam power) bhi tanki full kar sakta hai agar tum time zyada do. Fire-hose (zyada power) sekandon mein bhar dega. Isliye "kitna" (energy) aur "kitni jaldi" (power) alag questions hain, aur inhe jodta hai time: E = P × t.

Formula khud derive karna easy hai. Power ki definition hi hai "energy per unit time", toh P=E/tP = E/t. Ulta karo toh E=P×tE = P \times t. Bijli mein ek aur trick: charge QQ ko voltage VV se guzaaro toh kaam hota hai E=QVE = QV, aur current I=Q/tI = Q/t hota hai, toh P=QV/t=IVP = QV/t = IV — yeh famous P=IVP = IV apne aap nikal aaya.

Do galtiyan avoid karo: (1) time hamesha seconds mein daalo kyunki watt = J/s. (2) Zyada watt ka matlab hamesha zyada energy nahi — 40 W bulb raat bhar chale toh 100 W bulb ek minute se zyada energy le lega. Bill mein kilowatt-hour aata hai, woh bhi energy hi hai (power nahi), bas convenient unit hai: 1 kWh = 3.6 MJ. Yeh concept isliye important hai kyunki har circuit, har device, har bijli ke bill ke peeche yahi baithe hain.
