WHAT is this? After a wafer is fabricated and diced into individual dies, each bare silicon die must be packaged: mechanically protected, electrically connected to the outside world, and given a path to shed heat. Wire bonding and flip-chip are the two dominant ways to make those electrical connections between the die's tiny on-chip pads and the package leads.
Ball bonding (thermosonic): a spark melts the wire tip into a ball, pressed onto the pad ("first bond"), then a "stitch/wedge" seals the second end. Fast, common for Au/Cu.
Wedge bonding (ultrasonic): wire is dragged and pressed with no ball; used for Al, coarse pitch, RF/power.
Recall Cover the answers — can you reconstruct them?
The four jobs of a package? → connect, protect, cool, fan-out.
Why does flip-chip scale quadratically? → area array vs 1-D perimeter.
The three energies of thermosonic bonding? → thermal, mechanical, ultrasonic.
Why underfill? → CTE mismatch stress relief.
Formula for wire-bond max I/O? → 4L/p.
Recall Feynman: explain to a 12-year-old
A computer chip is a tiny glass tile covered in invisible wiring, but it's too small and fragile to plug into anything. So we put it in a "house" (the package). To let electricity in and out, we either sew thin gold threads from the tile's edge to the house's legs (wire bonding) — but you can only sew around the edge, so not many threads fit. OR we cover the whole face of the tile with tiny solder blobs, flip it upside down, and press it down so every blob touches a pad (flip-chip). Because you use the whole face, not just the edge, you get way more connections — and the tiny blobs let electricity flow faster than long threads.
Dekho, jab wafer ban jaata hai aur usko chhote-chhote dies me kaat lete hain, to har die ek bahut hi naazuk kaanch jaisa hota hai — transistors micron-size ke, aur pads sirf 50-100 micron ke. Isko seedha PCB pe nahi laga sakte. Isliye packaging karte hain: die ko protect karo, heat nikalne ka raasta do, aur electrical connections banao. Yahi package ka kaam hai.

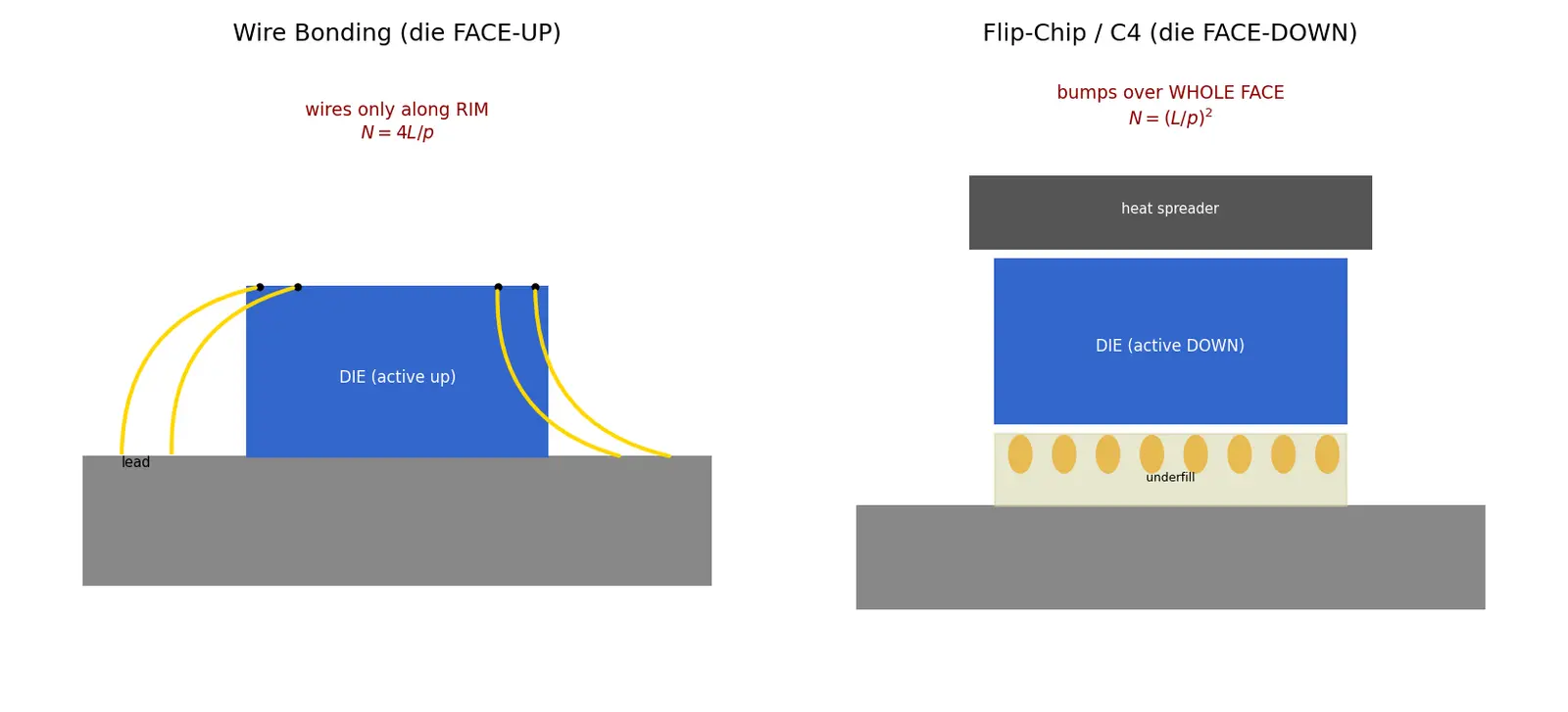

Connection banane ke do main tareeke hain. Pehla wire bonding — die ko seedha rakh ke (face-up) gond se chipka do, aur patli gold/copper taar se die ke edge wale pads se package ke legs tak "silai" kar do. Problem: taar sirf die ke rim/edge pe hi laga sakte ho, isliye connections kam milte hain — N=4L/p (linear). Dusra flip-chip (C4) — die ke poore face pe chhote solder bumps uga do, phir die ko ulta (face-down) karke substrate pe daba do. Ab poora area kaam aata hai, to N=(L/p)2 — bahut zyada connections!
Flip-chip ke teen bade fayde: (1) I/O bahut zyada kyunki area 2-D hota hai vs rim 1-D. (2) Bump chhota (~0.1 mm) hota hai vs taar lamba (~2 mm), isliye parasitic inductance kam — V=Ldi/dt wala noise (ground bounce) kam hota hai, chip fast chalti hai. (3) Die ka back upar rehta hai, to heatsink lagana easy. Isiliye modern CPU/GPU sab flip-chip use karte hain.
Do cheezein yaad rakho: flip-chip me underfill epoxy zaroori hai kyunki silicon aur substrate ki CTE (thermal expansion) alag hai — garmi me bumps tootenge, underfill stress ko balance karta hai. Aur bonding me sirf heat badhana galat hai — zyada heat se brittle intermetallics (Au-Al "purple plague") ban jaate hain. Wire bonding purana zaroor hai par sasta hai, isliye microcontroller/LED/sensors me abhi bhi chalta hai.
