Intuition The one core ideaA tiny fragile chip must be connected , protected , and cooled — and the number of wires you can attach is the make-or-break bottleneck. Wire bonding attaches wires only around the edge (a line), while flip-chip attaches bumps across the whole face (an area) — and area always beats a line once the chip is big enough.
This page assumes you have seen none of the notation in the parent note. We will build every letter, ratio, and squiggle from scratch, anchor each to a picture, and only then use it. Read top to bottom: each idea is a rung the next one stands on.
Before any symbols, we need a feel for scale, because the whole story is a fight against smallness.
Definition The micrometre (µm) and millimetre (mm)
A millimetre (mm
A micrometre (μ m 1000 1 70 μ m

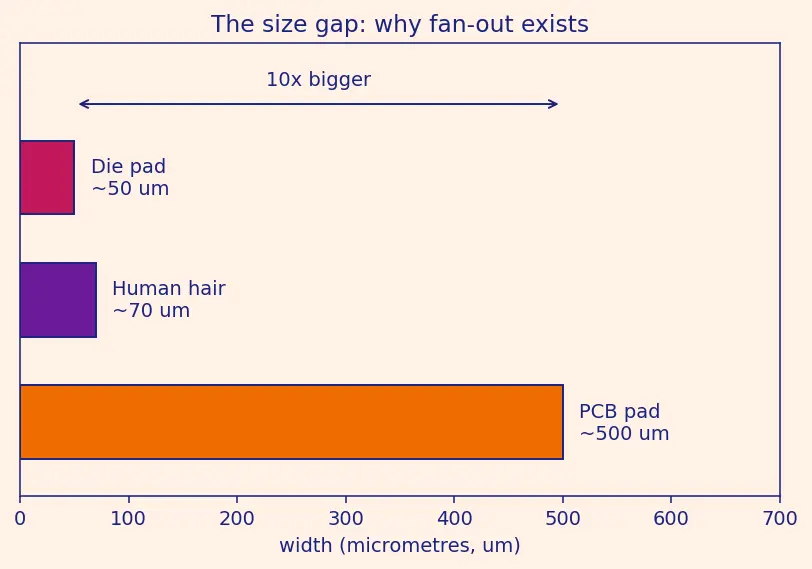

Why we need this: a chip's connection pad is about 50 μ m 500 μ m = 0.5 mm ten times bigger . That size gap is the reason "fan-out" (spreading connections outward) exists.
The die is a single finished chip, a flat square tile of silicon cut from a big wafer (see Wafer Dicing for the cutting step). Picture a small glass floor tile: flat, square, with a top face covered in circuitry and a bare back face .
Definition Bond pad (I/O pad)A bond pad is a small square of metal on the die's top face — the "landing spot" where a wire or bump attaches. "I/O" means In/Out (signals and power going in or out of the chip). Picture tiny metal buttons dotted along the tile.
Why the topic needs these: everything in packaging is about getting electricity from these pads to the outside world without breaking the fragile tile.
L L letter standing in for a number : the length of one edge of the square die, measured in millimetres. If a chip is "10 mm on a side," then L = 10 mm
Picture: the length of the bottom edge of the square tile. Because the die is square, all four edges are the same length L
Why a letter and not a number? Because we want one formula that works for any chip. Writing L
L L reuses the letter L for two totally different things: die side length (mm) and, much later, inductance (a magnetic quantity). They are unrelated — context tells you which. We will handle inductance in section 8 and rename it in our heads as "the coily L
p Pitch is the centre-to-centre distance between two neighbouring pads or bumps . If pads sit every 0.25 mm p = 0.25 mm
Picture a row of fence posts: pitch is the gap from one post's centre to the next post's centre — not the gap between them, but the repeating spacing.
Why we need it: pitch tells us how many connections fit in a given length. Small pitch = tightly packed = more connections. This is the key to counting.
Here is the first real piece of maths, and it is pure division.
Intuition Why division answers "how many fit?"If a shelf is L = 12 cm p = 3 cm 12 ÷ 3 = 4 Division is the tool for "how many copies of size p L That is exactly the question we keep asking, so p L
The ratio p L dimensionless — a plain count, no units — because millimetres cancel millimetres. Always sanity-check: it should come out as a whole-ish number of pads.

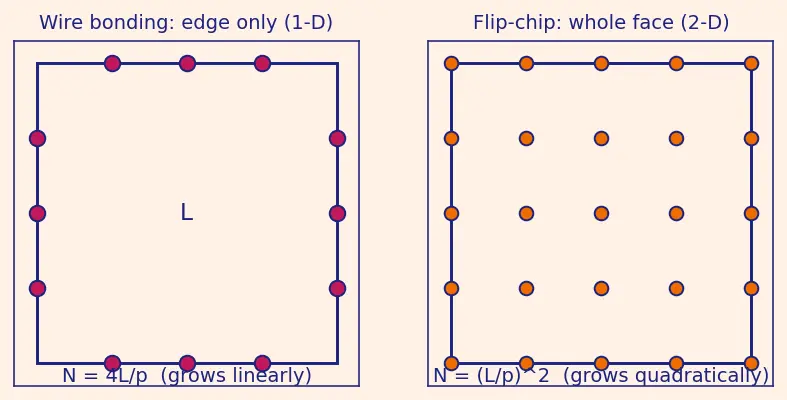

This is the single most important picture on the page.
Definition Perimeter and area
Perimeter = the total length of the edge going all the way around the square: four edges of length L 4 L Area = the whole flat surface of the square: L × L = L 2
Intuition One-dimensional vs two-dimensional resourcesThe edge is a line — a 1-D resource. Make the chip twice as wide and the edge doubles.
The face is a surface — a 2-D resource. Make the chip twice as wide and the face becomes four times bigger (2 × 2 linearly vs an area growing quadratically — is literally why flip-chip was invented.
Definition What the little2 2 (an exponent ) means "multiply the thing by itself once." So x 2 = x × x rows and columns — you multiply the two counts. Whenever you see a squared quantity, think "a 2-D grid" or "an area."
Let's verify the parent's headline claim with L = 10 mm p = 0.25 mm p L = 40
Wire: 4 × 40 = 160
Flip: 4 0 2 = 1600 ten times more connections just from using the face instead of the edge.
> A > B A B "when does flip-chip's count exceed wire bonding's count?"
Common mistake Dividing byx x x = p L L > 0 p > 0 x
The parent adds three energy terms. Let's decode the notation.
E E energy (a store of "ability to make something happen," measured in joules). A subscript — the small word below — labels which energy: E thermal E mechanical E ultrasonic
k T e − E a / k T
T temperature (how hot, on the absolute Kelvin scale).k Boltzmann's constant , a fixed number that converts temperature into energy-per-atom. So k T T e ≈ 2.718 e − E a / k T Arrhenius factor ) answers: "what fraction of atoms have enough energy to jump the barrier E a Hotter T
Why the topic needs this: it explains why heat helps a bond form (more atoms clear the barrier) — and, in the "too much heat" mistake, why it can also go wrong.
Mnemonic Three energies = "Heat, Hug, Hum"Heat (thermal), Hug (mechanical squeeze), Hum (ultrasonic vibration). Thermosonic bonding uses all three.
This is the electrical reason flip-chip wins. Every symbol, one at a time.
ℓ r ℓ length of a bond wire (how long the connecting thread is). r radius (half its thickness). A wire bond is long (1 3 mm ≈ 0.1 mm
L L inductance : a wire's tendency to resist sudden changes in the current flowing through it , because the current wraps itself in a magnetic field. Picture the water in a long hose — it doesn't stop or start instantly; it has "momentum." Inductance is electrical momentum.
μ 0 μ 0 how strong a magnetic field a given current makes in empty space. It's the conversion factor between "current" and "magnetic field." You don't derive it; you look it up.
ln ln ( x ) "e x It is the undo of the e power ln distance 1 distance 1
d t d i i t d t d i "how fast the current is changing, per unit time" (amps per second). Picture the slope of a current-vs-time graph: steep slope = fast switching. Fast digital chips switch current very fast, so d t d i
Quick numbers to feel it: with d t d i = 5 × 1 0 8 A/s 2 nH V = 2 × 1 0 − 9 × 5 × 1 0 8 = 1.0 V 1 V 0.05 nH 0.025 V
Definition CTE (Coefficient of Thermal Expansion)CTE measures how much a material grows when heated . Silicon and the plastic/ceramic substrate have different CTEs, so when the chip heats up and cools down, they expand by different amounts and shear the tiny solder bumps. Picture two glued rulers of different materials being warmed — they slide against each other at the joint.
Underfill epoxy fills the gap and shares that stress so the bumps don't crack. See Coefficient of Thermal Expansion (CTE) Mismatch and Intermetallic Compounds and Bond Reliability .
Cover the right side and test yourself — you're ready for the parent note only if each reveals cleanly.
What is a micrometre in millimetres? One thousandth of a millimetre (1 μ m = 0.001 mm
What does the letter L The side length of the square die (in mm).
What is pitch p The centre-to-centre spacing between neighbouring pads or bumps.
Why does p L Division tells you how many pieces of size p L
Why is a die edge a 1-D resource and the face a 2-D resource? The edge is a line (grows as L L 2
What does the exponent 2 A grid with rows and columns — an area, hence squared.
When does flip-chip beat wire bonding on count? When L > 4 p
What does > "Greater than"; the wide mouth faces the larger side.
What do subscripts on E They are name tags labelling which energy (thermal/mechanical/ultrasonic) — no maths.
What does ln ( x ) It undoes e power e x
What does d t d i How fast the current changes per unit time (the slope of current vs time).
Why does a long wire cause more ground bounce than a bump? Inductance L ∝ ℓ V = L d t d i
What is CTE and why does it force underfill? How much a material expands when heated; mismatched expansion shears the bumps, so underfill spreads that stress.
