Standing waves — formation, nodes, antinodes

WHY do standing waves exist?

WHAT causes the two opposite waves? Usually one wave hits a boundary (a fixed end of a string, a closed pipe end) and reflects straight back on itself.

HOW: deriving the standing wave from scratch

Superpose (waves just add — that's the principle of superposition): $y = A\sin(kx-\omega t) + A\sin(kx+\omega t)$

Use $\sin P + \sin Q = 2\sin\!\frac{P+Q}{2}\cos\!\frac{P-Q}{2}$ .

$\frac{P+Q}{2} = \frac{(kx-\omega t)+(kx+\omega t)}{2} = kx$ — Why? the $\omega t$ cancels.
$\frac{P-Q}{2} = \frac{(kx-\omega t)-(kx+\omega t)}{2} = -\omega t$ — Why? the $kx$ cancels; and $\cos(-\theta)=\cos\theta$ .

Nodes and antinodes — read them straight off $R(x)=2A\sin(kx)$

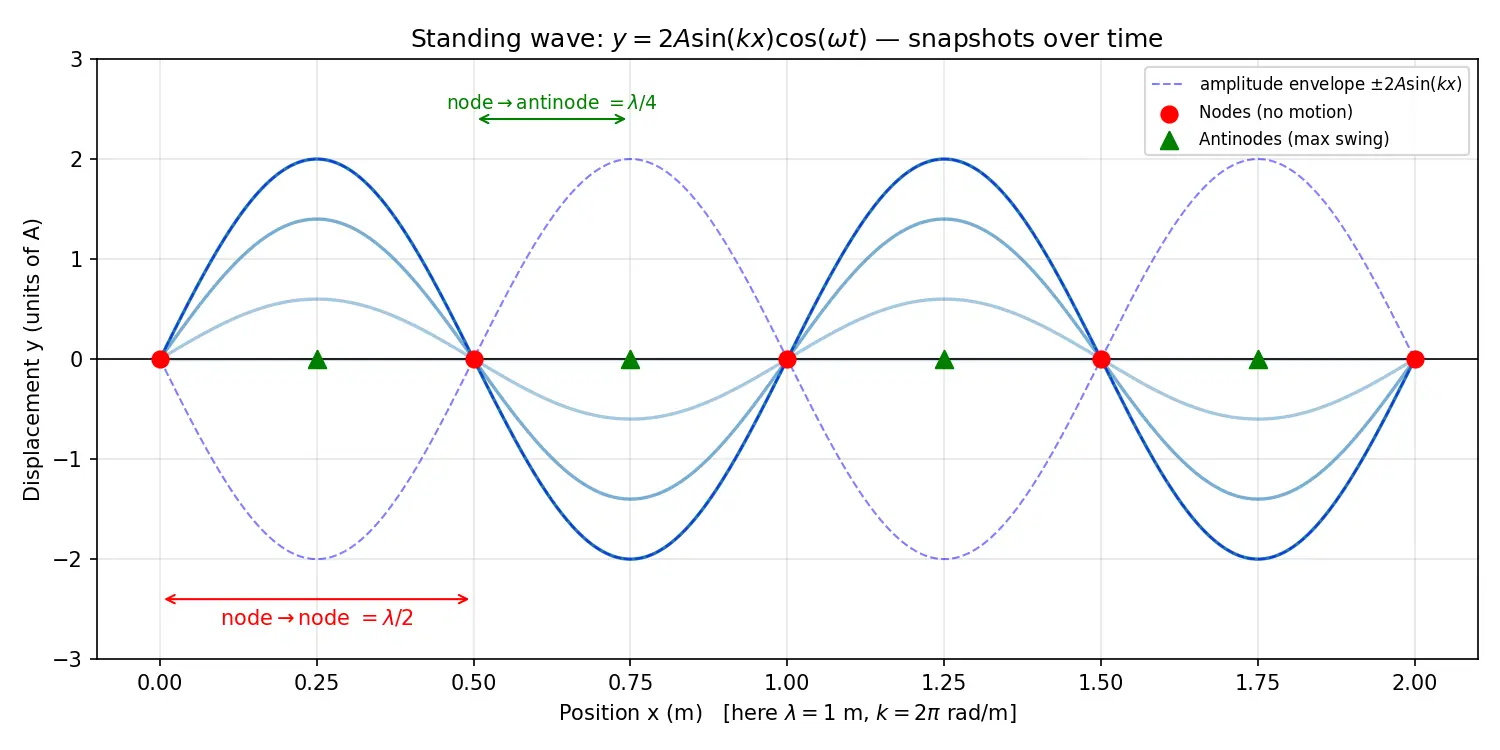

Figure — Standing waves — formation, nodes, antinodes

Forecast-then-Verify

Worked example Predict before you compute

A string wave: $y=0.5\sin(2\pi x)\cos(100\pi t)$ m (x in m). Forecast: Where is the 3rd node from $x=0$ ? Where's the 1st antinode?

Verify — nodes: $\sin(2\pi x)=0 \Rightarrow 2\pi x = n\pi \Rightarrow x=n/2$ . So $x=0,\,0.5,\,1.0,\dots$ → 3rd node ( $n=2$ after origin) at $x=1.0$ m. Why this step? $\sin$ zeros occur at integer multiples of $\pi$ .

Verify — antinodes: $|\sin(2\pi x)|=1 \Rightarrow 2\pi x=\pi/2 \Rightarrow x=0.25$ m. Why? first place $\sin$ reaches $1$ . Check spacing: node(0)→antinode(0.25) = $\lambda/4$ . Here $k=2\pi \Rightarrow \lambda=1$ , so $\lambda/4=0.25$ ✓.

Steel-man your mistakes

Active recall

Recall Quick self-test (cover answers)

What two conditions produce a standing wave? → equal amplitude/frequency, opposite directions.
Amplitude as a function of $x$ ? → $2A\sin(kx)$ .
Node spacing? → $\lambda/2$ .
Node-to-antinode? → $\lambda/4$ .
Does it transport energy? → No (net zero).

Recall Feynman: explain to a 12-year-old

Imagine two kids shaking a long rope toward each other at the exact same rhythm. The wiggles crash into each other. At some spots the rope sits perfectly still — like a knot that never jumps (a node). Right between them the rope flaps up and down like crazy (an antinode). The pattern never slides along the rope; it just keeps flapping in the same places. That's a standing wave — it's standing because the still-spots stay put.

What is a standing wave?

A wave pattern from superposing two identical waves moving in opposite directions; its shape is fixed in space while amplitude oscillates in time, transporting no net energy.

Standing wave equation from

A\sin(kx-\omega t)+A\sin(kx+\omega t)

y=2A\sin(kx)\cos(\omega t)

Position-dependent amplitude of a standing wave?

R(x)=2A\sin(kx)

Condition for a node?

\sin(kx)=0\Rightarrow x=n\lambda/2

(zero displacement always).

Condition for an antinode?

|\sin(kx)|=1\Rightarrow x=(2n+1)\lambda/4

(amplitude

2A

Distance between adjacent nodes?

\lambda/2

Distance from a node to the nearest antinode?

\lambda/4

Does a standing wave transport net energy?

No — equal energy flows both ways, net zero; energy stays trapped swapping KE↔PE.

Why do the

x

and

t

parts separate?

Sum-to-product cancels

\omega t

in one factor and

kx

in the other, giving

f(x)g(t)

What is special mechanically at a node?

Maximum slope/strain and maximum restoring force, even though displacement is zero.

Connections

Superposition principle — the additive law that makes standing waves possible.
Travelling waves — the building blocks moving in opposite directions.
Reflection of waves at boundaries — how the second (returning) wave is created.
Resonance and normal modes — only certain $\lambda$ fit boundary conditions.
Waves on a string / Sound in pipes — applications (harmonics, fundamentals).
Wave number k and wavelength — $k=2\pi/\lambda$ used throughout.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, standing wave ka funda simple hai: do bilkul same waves — same amplitude, same frequency — agar opposite directions mein chalein aur overlap karein, toh ek aisa pattern banta hai jo aage nahi badhta, bas wahin pe "saans leta hai". Usually ek wave deewar/boundary se reflect hoke wapas aati hai, aur yahi do opposite waves ka kaam kar deti hai.

Maths mein, $A\sin(kx-\omega t)+A\sin(kx+\omega t)$ ko add karo toh $2A\sin(kx)\cos(\omega t)$ milta hai. Yahan trick yeh hai ki $x$ aur $t$ alag ho gaye — $\sin(kx)$ shape decide karta hai aur $\cos(\omega t)$ sirf upar-niche size badalta hai. Iska matlab shape fixed hai, isliye wave travel nahi karti. Jahan $\sin(kx)=0$ , wahan point kabhi hilta hi nahi — usko node bolte hain. Jahan $\sin(kx)=\pm1$ , wahan maximum jhulta hai — antinode.

Spacing yaad rakho: node se node $\lambda/2$ , node se nearest antinode $\lambda/4$ . Yeh ratio bohot baar questions mein direct lag jaata hai. Aur ek important baat — standing wave net energy transfer nahi karti, kyunki dono opposite waves barabar energy le ja rahi hain, toh net zero ho jaata hai; energy bas KE aur PE ke beech locally jhulti rehti hai.

Common galti: log sochte hain har point ki amplitude same hai (jaise normal wave mein) — galat! Yahan amplitude $2A\sin(kx)$ hai jo position pe depend karti hai. Aur node pe displacement zero hota hai par strain/force maximum — wahan kuch "ho nahi raha" yeh soch galat hai. Guitar, sitar ki taar, aur organ pipe — sab isi standing wave concept pe chalte hain, isliye yeh chapter exam aur real life dono mein important hai.
