Resonance — physical consequences, design implications

WHY does resonance happen? (first principles)

A real oscillator obeys Newton's law with three forces: a restoring force ( $-kx$ ), a damping force ( $-b\dot{x}$ ), and a periodic driver ( $F_0\cos\omega t$ ):

$m\ddot{x} + b\dot{x} + kx = F_0\cos\omega t$

WHY this equation? Each term is just a force:

$m\ddot{x}$ — inertia (Newton's $F=ma$ ).
$b\dot{x}$ — friction, always opposing velocity, so it removes energy.
$kx$ — spring tries to return to equilibrium.
$F_0\cos\omega t$ — the external driver supplying energy at frequency $\omega$ .

Steady state guess (WHAT we look for): after transients die, the system oscillates at the driving frequency $\omega$ but lagged by a phase $\phi$ :

$x(t) = A(\omega)\cos(\omega t - \phi)$

HOW to get the amplitude (derivation)

Substitute $x = A\cos(\omega t - \phi)$ . Then $\dot{x} = -A\omega\sin(\omega t-\phi)$ and $\ddot{x} = -A\omega^2\cos(\omega t-\phi)$ . Plugging in and balancing the $\cos$ and $\sin$ components (cleanest with phasors / a right triangle) gives:

$\boxed{A(\omega) = \frac{F_0}{\sqrt{(k - m\omega^2)^2 + (b\omega)^2}}}$

WHY the peak? When $\omega=\omega_0$ , the term $(\omega_0^2-\omega^2)$ vanishes, so the denominator shrinks to just $b\omega/m$ . Small $b$ → tiny denominator → huge $A$ . With no damping the amplitude would be infinite — physically impossible, so damping is what caps resonance.

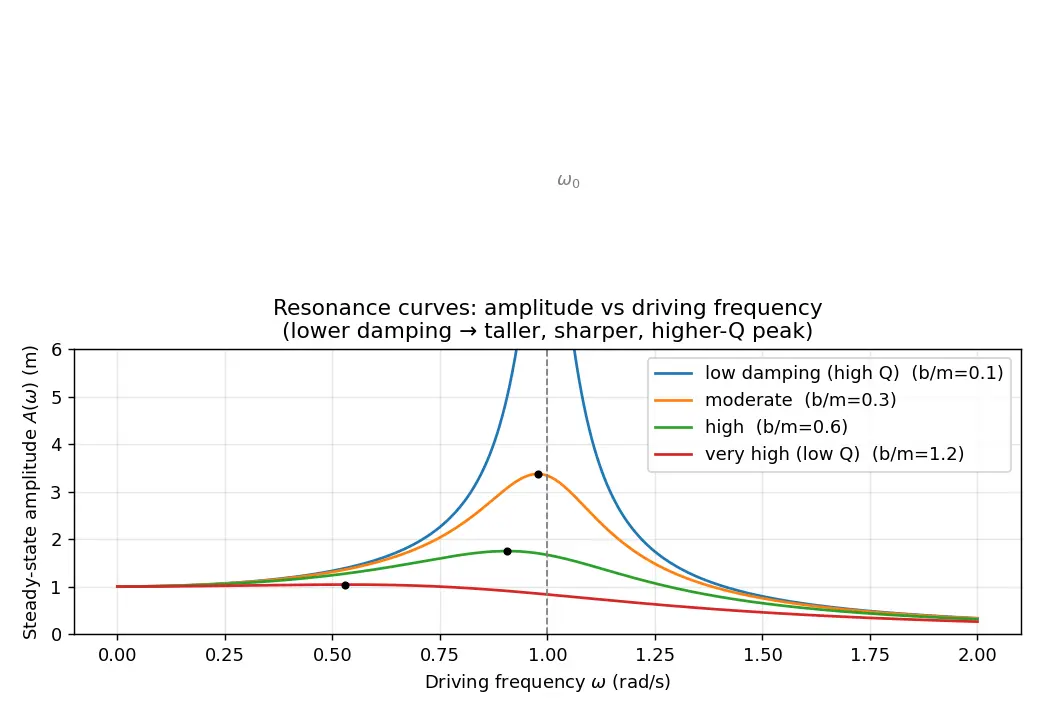

Figure — Resonance — physical consequences, design implications

The Quality Factor $Q$ — sharpness of resonance

Phase at resonance: $\phi = 90°$ exactly. The driver leads the displacement by a quarter cycle, meaning the driving force is in phase with velocity — so it pumps energy in most efficiently every instant. That is the secret of resonance: perfect energy transfer.

Physical consequences & DESIGN implications

Common mistake Steel-manning the wrong ideas

Wrong: "Resonance means infinite amplitude — disasters are inevitable." Why it feels right: the undamped math ( $b=0$ ) literally blows up. Fix: real systems always have damping; amplitude is capped at $F_0/(b\omega_0)$ . Engineers add damping precisely to keep this finite.

Wrong: "Maximum amplitude is exactly at $\omega_0$ ." Why it feels right: it's almost true and we're taught $\omega_{res}\approx\omega_0$ . Fix: the displacement peak is at $\omega_{res}=\sqrt{\omega_0^2 - b^2/2m^2}$ , slightly below $\omega_0$ . (The velocity/power resonance is exactly at $\omega_0$ .)

Wrong: "A microwave oven works by resonating water molecules." Why it feels right: "resonance" sounds like the natural word for "shaking molecules." Fix: it's dielectric heating — dipoles rotating to follow the field and lagging (relaxation), not a sharp resonant peak. That's why the frequency need not be precise.

Wrong: "More mass always helps avoid resonance." Why it feels right: heavy things feel sluggish. Fix: mass lowers $\omega_0$ ; it doesn't remove resonance — it just moves it. You must ensure no driver lives near the new $\omega_0$ .

Active recall

Recall Quick self-test (hide answers)

What single quantity caps the amplitude at resonance? → damping ( $b$ ).
Phase between drive and displacement at resonance? → 90°.
Why "break step" on a bridge? → randomise force, kill the coherent periodic driver.
High $Q$ means peak is...? → tall and narrow (sharp, selective).
What defines the bandwidth $\Delta\omega$ ? → full width between half-power points (amplitude = $1/\sqrt2$ of peak).
Does a microwave oven use resonance? → No — dielectric/dipole-relaxation heating.

Recall Feynman: explain to a 12-year-old

Imagine pushing a friend on a swing. If you push every time the swing comes back to you, even gentle pushes make it go higher and higher — because your pushes "agree" with the swing's natural rhythm. That magic rhythm is the natural frequency, and pushing at it is resonance. If you push at random times, your pushes fight each other and nothing big happens. Bridges and buildings have their own swing-rhythms too; wind or earthquakes can accidentally push at just that rhythm and shake them apart — so engineers add "brakes" (damping) to soak up the energy.

Connections

Simple Harmonic Motion — defines $\omega_0=\sqrt{k/m}$ , the resonance target.
Damped Oscillations — provides $b$ , which limits amplitude and sets $Q$ .
Forced Oscillations — the steady-state machinery behind $A(\omega)$ .
LC Circuits & AC Resonance — electrical twin: $\omega_0=1/\sqrt{LC}$ .
Standing Waves & Normal Modes — resonance of strings/pipes & musical instruments.
Fourier Analysis — why a sharp driver excites matching modes.

What equation governs a damped, driven oscillator?

m\ddot{x}+b\dot{x}+kx=F_0\cos\omega t

Define resonance.

Driving an oscillator at the frequency that maximises its steady-state amplitude (≈ its natural frequency).

Formula for steady-state amplitude

A(\omega)

A=\dfrac{F_0/m}{\sqrt{(\omega_0^2-\omega^2)^2+(b\omega/m)^2}}

Exact displacement-resonance frequency?

\omega_{res}=\sqrt{\omega_0^2-\dfrac{b^2}{2m^2}}

(just below

\omega_0

)

What caps the amplitude at resonance?

Damping;

A_{max}=F_0/(b\omega_0)

Phase lag between drive and displacement at resonance?

90° (drive in phase with velocity → max power transfer).

Define the quality factor

Q

Q=\omega_0 m/b=\omega_0/\Delta\omega=2\pi(\text{energy stored})/(\text{energy lost per cycle})

What is the bandwidth

\Delta\omega

Full width between the half-power points (power = ½ P_max), where amplitude = 1/√2 of its peak.

High

Q

vs low

Q

peak shape?

High Q = tall narrow sharp; Low Q = short broad.

Why do soldiers break step on a bridge?

To randomise the force and avoid matching the bridge's natural frequency (resonance).

What design device protects skyscrapers from resonant sway?

A tuned mass damper (e.g., Taipei 101's pendulum).

Resonant frequency of an LC circuit?

\omega_0=1/\sqrt{LC}

Why did the Tacoma Narrows bridge fail?

Vortex shedding drove a torsional mode at its resonant frequency until amplitude grew to collapse.

Does a microwave oven heat food by resonance?

No — it's dielectric (dipole-relaxation) heating, a broad low-Q effect, not a sharp rotational resonance.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Socho ek swing (jhoola) ko aap push kar rahe ho. Agar har baar tabhi push karo jab jhoola wapas aapke paas aata hai, toh chhoti-chhoti pushes bhi add up ho jaati hain aur jhoola bahut upar chala jaata hai. Ye magic frequency hi hai natural frequency ( $\omega_0=\sqrt{k/m}$ ), aur isi par rhythmic push dena hi resonance hai. Jab driving frequency $\omega$ natural frequency ke barabar ho jaati hai, denominator $(\omega_0^2-\omega^2)$ zero ho jaata hai, sirf damping term bachta hai — isliye amplitude bahut bada ho jaata hai.

Important baat: agar damping ( $b$ ) bilkul na ho toh amplitude infinite ho jaayega (math me), par real duniya me hamesha thoda friction hota hai, jo amplitude ko $F_0/(b\omega_0)$ par cap kar deta hai. Yahi reason hai ki engineers jaan-bujhkar damping add karte hain. Ek aur sookshm point: maximum displacement exactly $\omega_0$ par nahi, balki thoda neeche $\omega_{res}=\sqrt{\omega_0^2 - b^2/2m^2}$ par aata hai. Bandwidth $\Delta\omega$ wo poori width hai jahan power aadhi (half-power points) ho jaati hai — wahan amplitude apne peak ka $1/\sqrt2$ ho jaata hai.

Quality factor $Q$ batata hai peak kitna sharp hai. High $Q$ matlab tall aur narrow peak — radio tuning, quartz watch, MRI me ye chahiye (selectivity aur precision). Low $Q$ matlab broad peak — shock absorber, building dampers me chahiye taaki energy soak ho jaaye. Dhyaan do: microwave oven resonance se kaam nahi karta — wo dielectric heating hai, paani ke dipoles field ke saath ghoomne ki koshish karte hain aur lag ho jaate hain, isse heat banti hai (broad, low-Q effect).

Real life me iska faayda aur khatra dono hai: radio dial ghumakar aap $\omega_0=1/\sqrt{LC}$ ko station se match karte ho (acha resonance). Par Tacoma bridge wind se, aur buildings earthquake se resonance ke kaaran tabah ho sakti hain. Isliye soldiers bridge par "break step" karte hain (force ko random banaane ke liye), aur Taipei 101 jaise buildings me tuned mass damper lagta hai. Yaad rakho: resonance = nature ka amplifier — sahi jagah dost, galat jagah dushman.
