Foundations — Resonance — physical consequences, design implications

Before you can read the parent note, you need a small toolbox of ideas. We build each one from nothing, anchor it to a picture, and say exactly why the topic needs it. Nothing here assumes you have seen a spring equation before.

1. Displacement $x$ — "how far from home"

Picture a mass on a spring hanging still. Mark that resting spot "0". If you pull the mass down by 3 cm, $x=-3$; push it up, $x=+3$. The sign tells you which side of home you are on.

Why the topic needs it: everything the parent note does is about how big $x$ gets. The whole drama of resonance is "the amplitude of $x$ explodes." No $x$, no story.

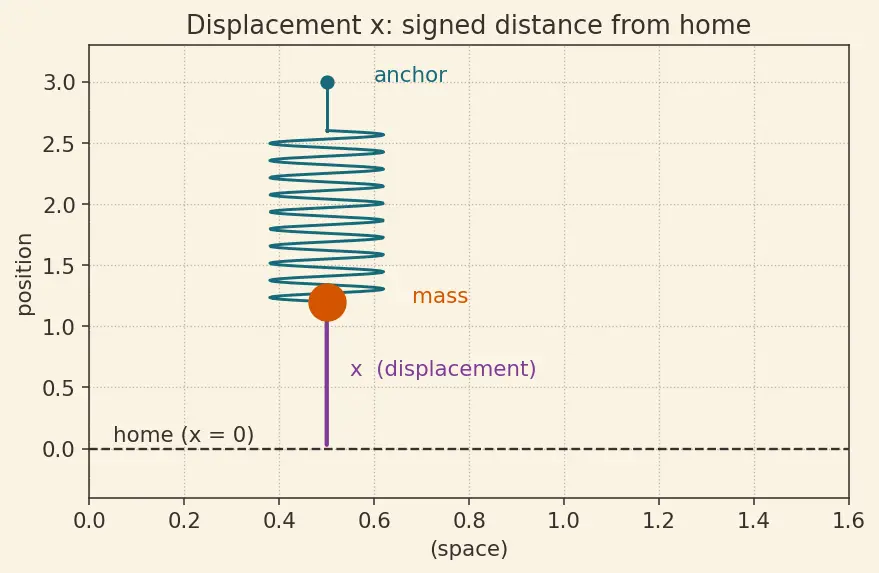

The dot in the figure is not at rest — it is caught mid-swing. The red arrow is $x$, measured from the dashed "home" line.

2. Time $t$, velocity $\dot{x}$, acceleration $\ddot{x}$ — the dot notation

The little dot over a letter is a shorthand a physicist named Newton invented. It means "how fast this thing changes as time $t$ ticks forward."

Why a dot and not just "speed"? Because we need the instantaneous rate — the value at one single instant, not an average over a minute. That "rate at an instant" is exactly what a derivative captures, and the dot is the compact name for it.

Picture the swinging mass:

• At the very bottom of a pull, it is momentarily still turning around — $\dot{x}=0$ but $\ddot{x}$ is large (it is being yanked back hard).
• As it races through home, it is fastest — $\dot{x}$ is largest, and the spring is relaxed so $\ddot{x}=0$.

3. The restoring force $-kx$ — the spring that always wants home

Read the minus sign as a picture: if you push up ($x>0$), the force points down (negative); if you pull down ($x<0$), the force points up (positive). It always aims at home — that is what makes the mass overshoot and swing back, over and over.

Why the topic needs it: without a restoring force there is no natural rhythm at all — the mass would just drift. $k$ is one of the two numbers that set the natural frequency.

4. Inertia $m\ddot{x}$ — why it overshoots

Picture the mass flying through home at top speed. The spring is momentarily relaxed, yet the mass keeps going past home — inertia carries it. That overshoot is what turns a one-time pull into a back-and-forth oscillation.

Why the topic needs it: $m$ is the second number setting the natural frequency. More mass = more sluggish = slower rhythm.

5. Natural frequency ${\omega }_0$ — the favourite rhythm

Now we can build the star of the show. A mass on a spring, once nudged and left alone, swings at one special rate that depends only on $k$ and $m$:

What is $\omega$ (omega)? It is angular frequency: how many radians of the cycle you sweep per second. Why radians and not "swings per second"? Because the smooth back-and-forth of a spring is the shadow of a point going round a circle at steady speed — see the picture. One full circle is $2\pi$ radians, so $\omega$ and ordinary frequency $f$ are linked by $\omega =2\pi f$.

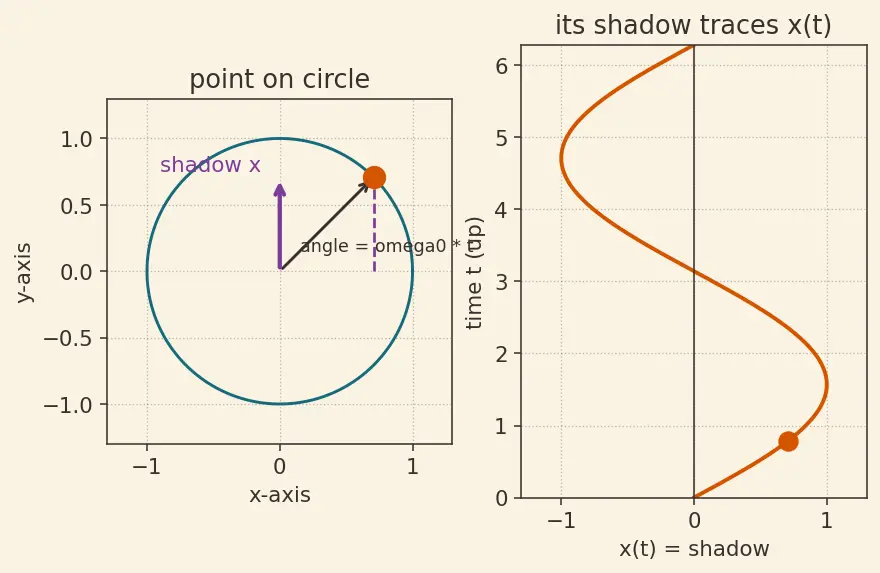

The point crawls around the circle (left) at rate ${\omega }_0$; its shadow on the vertical line (right) is exactly the oscillation $x(t)$. This is why angle-language ($\omega$, $\cos$) describes straight-line bouncing.

Why the topic needs it: ${\omega }_0$ is the target. Resonance means: drive the system at a frequency near ${\omega }_0$. Everything hinges on comparing the driving $\omega$ to this ${\omega }_0$.

6. Damping $b$ and the force $-b\dot{x}$ — the brake

Read this picture: whichever way the mass moves, this force pushes back against that motion — like moving your hand through water. Because it opposes velocity, it removes energy every instant, so a free swing shrinks and dies. See Damped Oscillations.

Why the topic needs it: the parent note's punchline is "damping is the only thing that keeps resonance from being infinite." $b$ is the hero that caps the amplitude at $F_0/(b{\omega }_0)$.

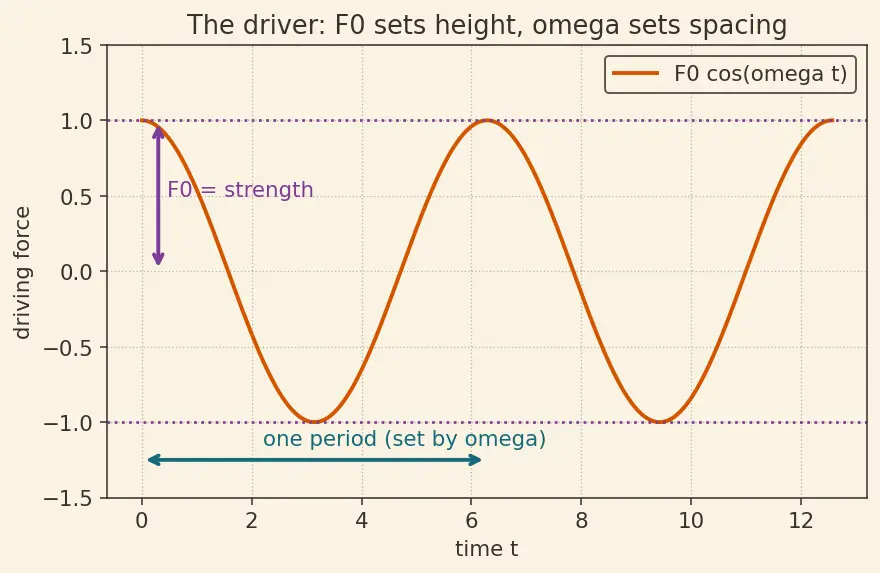

7. The driver $F_0\cos \omega t$ — the rhythmic push

Why cosine? A cosine wiggles smoothly between $+F_0$ and $-F_0$ forever. It is the simplest possible "steady rhythm." The whole point of resonance is what happens as we slide our chosen $\omega$ toward the system's own ${\omega }_0$.

Notice: $F_0$ is the height of the wave (how hard), $\omega$ sets the spacing of the peaks (how often). These are two independent knobs.

Why the topic needs it: without a periodic driver there is nothing to "match." Forced Oscillations studies exactly this push.

8. Amplitude $A$ and phase $\varphi$ — the answer's shape

Once the pushing settles into a steady pattern, the mass moves as $x(t)=A\cos (\omega t-\varphi ).$

Picture two waves side by side: the push, and the response. They have the same spacing (same $\omega$) but the response's peaks arrive a little later. That lateness, as a fraction of a full cycle, is $\varphi$. At resonance $\varphi =90°$ — a perfect quarter-cycle lag, which (from §2) means the push lines up with velocity.

Why the topic needs it: the parent's central formula is a formula for $A(\omega )$. And $\varphi =90°$ is why resonance transfers energy so efficiently.

9. Quality factor $Q$ — sharpness

Why the topic needs it: it turns "how good is this resonance" into one comparable number — vital for design (a radio wants high $Q$ to pick one station; a shock absorber wants low $Q$). See its electrical twin in LC Circuits & AC Resonance.

How the foundations feed the topic

Reading it: displacement and the dots give us the two forces; the two forces give the natural frequency; add a driver and you have a forced oscillation; matching its frequency to ${\omega }_0$, with damping as the referee, is resonance — which then drives every design decision.

Equipment checklist

Cover the right side and test yourself. If any answer is fuzzy, reread that section.

Connections

• Simple Harmonic Motion — where ${\omega }_0=\sqrt{k/m}$ and the circle-shadow picture come from.
• Damped Oscillations — the source of $b$ and the shrinking swing.
• Forced Oscillations — where the driver $F_0\cos \omega t$ and $A(\omega )$ live.
• LC Circuits & AC Resonance — the electrical twin of every symbol here.
• Standing Waves & Normal Modes — many natural frequencies at once.
• Fourier Analysis — why a sharp push wakes matching modes.
