Mechanical waves — transverse and longitudinal

Intuition The big picture

A wave is a disturbance that travels, carrying energy and momentum through a medium without carrying the medium's matter along with it. Each particle of the medium just wiggles about its own resting spot — it's the pattern of wiggling that moves forward.

WHY do mechanical waves need a medium? Because the disturbance is passed from one particle to the next via the forces between them (elasticity) plus their inertia (mass). No particles → no springs to pass it on → no wave.
WHAT distinguishes the two types? The direction the particles vibrate relative to the direction the wave travels.
HOW does shape move but matter stay put? Each particle copies what its neighbour did a tiny moment earlier — like a stadium "Mexican wave": people stay seated, the wave circles the stadium.

1. Two types — the core distinction

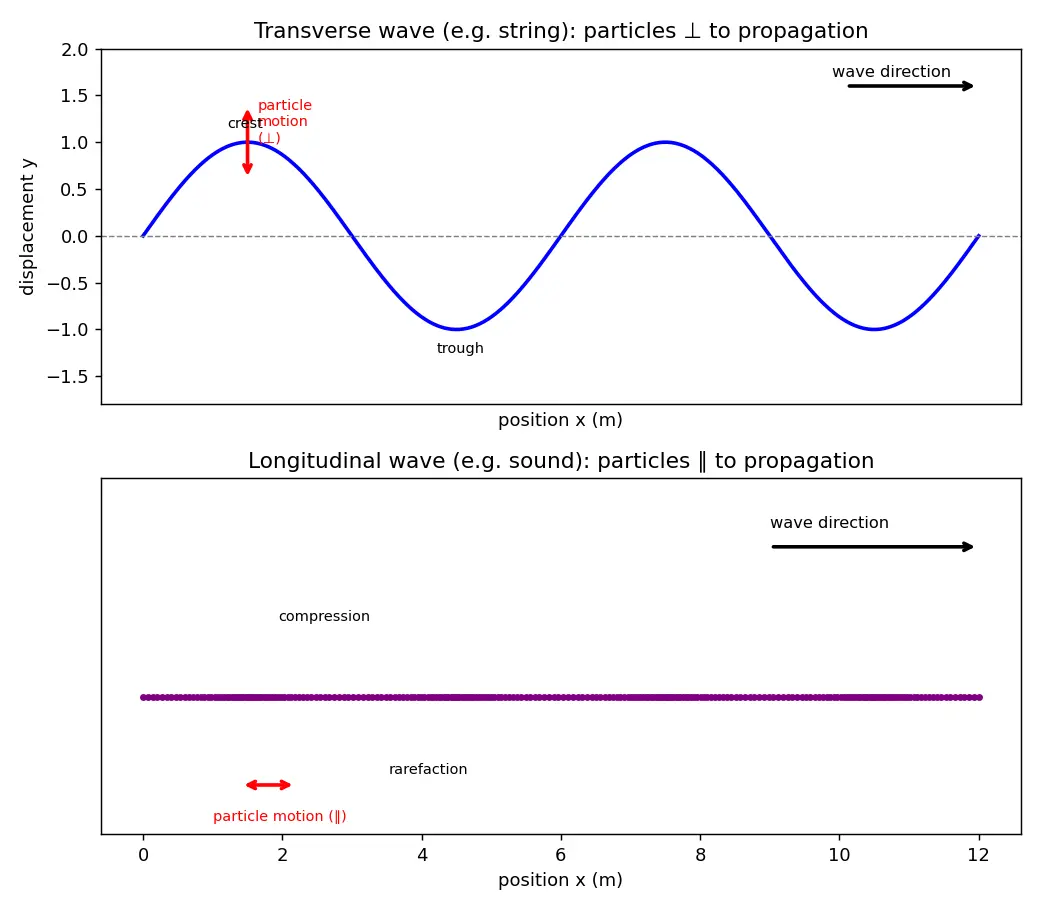

Figure — Mechanical waves — transverse and longitudinal

2. Building the wave equation from scratch (a snapshot in time + motion)

Step 1 — One particle (the source). Let the particle at $x=0$ do SHM: $y(0,t) = A\sin(\omega t)$ Why this step? We choose the source's motion; everything else follows by delay.

Step 2 — Delay the rest. A disturbance moving at speed $v$ reaches position $x$ a time $t_{\text{delay}} = x/v$ later. So the particle at $x$ does now what the source did a time $x/v$ ago: $y(x,t) = A\sin\!\Big(\omega\big(t - \tfrac{x}{v}\big)\Big)$ Why this step? This is the heart of a travelling wave: position $x$ just lags in time.

Step 3 — Tidy with wave number. Define == $k = \omega/v$ == (the angular wave number). Then:

Step 4 — Get the wave speed relation. The phase $(\omega t - kx)$ must stay constant to "ride a crest." Differentiate: $\omega\,dt - k\,dx = 0 \;\Rightarrow\; v=\frac{dx}{dt}=\frac{\omega}{k}=\frac{2\pi f}{2\pi/\lambda}=f\lambda$

3. Speed depends on the medium (derive by dimensions)

Derivation sketch (string), why each factor: a small element of length $dx$ has mass $\mu\,dx$ (inertia) and is pulled back by the net vertical component of tension $T$ acting on its curved ends (restoring). Newton's law $F=ma$ applied to the element gives $T\frac{\partial^2 y}{\partial x^2}=\mu\frac{\partial^2 y}{\partial t^2}$ , i.e. the wave equation $\frac{\partial^2 y}{\partial t^2}=\frac{T}{\mu}\frac{\partial^2 y}{\partial x^2}$ . Matching to $v^2\frac{\partial^2 y}{\partial x^2}$ gives $v=\sqrt{T/\mu}$ .

4. Particle velocity vs wave velocity (don't confuse them!)

A neat link (slope of the snapshot): $\frac{\partial y}{\partial t} = -v\,\frac{\partial y}{\partial x}\quad\Rightarrow\quad v_p=-v\times(\text{slope})$ Why: both come from differentiating $y=A\sin(\omega t-kx)$ ; $\partial y/\partial t = A\omega\cos(\cdot)$ and $\partial y/\partial x=-Ak\cos(\cdot)$ , and $\omega/k=v$ .

5. Worked examples

6. Common mistakes (Steel-manned)

7. Active recall

Recall Quick self-test (cover the answers)

Why can't transverse waves travel through the bulk of a gas? → No shear rigidity.
What stays put and what travels in a wave? → Matter stays (oscillates); energy/pattern travels.
In $v=f\lambda$ , which is set by the source and which by the medium? → $f$ by source, $v$ by medium, so $\lambda$ adjusts.
Max particle speed? → $A\omega$ .

Recall Feynman: explain to a 12-year-old

Imagine a long line of friends holding hands. The first kid wiggles. Because they're holding hands, the next kid feels the tug and wiggles a tiny moment later, then the next, and the next. The wiggle travels down the line even though every kid stays in their own spot. If kids wiggle side-to-side, that's a transverse wave (like a snake). If they push-and-pull forward-and-back, squishing together then spreading out, that's a longitudinal wave (like sound). The kids never go anywhere — only the wiggle does.

Connections

Simple Harmonic Motion — each particle is an SHM oscillator.
Wave equation — $\partial_t^2 y = v^2\,\partial_x^2 y$ .
Sound waves — the prime longitudinal example.
Superposition and Interference — what happens when waves overlap.
Standing waves & resonance — confined travelling waves.
Doppler effect — what moving source/observer does to $f$ and $\lambda$ .

What is a mechanical wave?

A travelling disturbance that transfers energy/momentum through a medium without net transport of matter; needs elasticity + inertia.

Transverse wave — particle motion direction?

Perpendicular to wave propagation (crests & troughs).

Longitudinal wave — particle motion direction?

Parallel to propagation (compressions & rarefactions).

Why can't fluids support bulk transverse mechanical waves?

They have no shear rigidity (cannot resist sideways shape change).

State the universal wave relation.

v = fλ (in one period the wave advances one wavelength).

What sets wave speed — source or medium?

The medium; the source sets frequency, so λ adjusts.

Speed of transverse wave on a string?

v = √(T/μ), T = tension, μ = mass per unit length.

Speed of sound in a fluid?

v = √(B/ρ), B = bulk modulus, ρ = density.

General form of wave speed?

v = √(elastic restoring property / inertial property).

Travelling wave equation (+x direction)?

y = A sin(ωt − kx), with k = 2π/λ, ω = 2πf.

Define angular wave number k.

k = 2π/λ = ω/v (radians of phase per metre).

Maximum particle speed in a wave?

A·ω (occurs at equilibrium position).

Difference: particle velocity vs wave velocity?

Particle velocity = ∂y/∂t (varies, max Aω); wave velocity = ω/k = fλ (constant, set by medium).

If frequency doubles in a fixed medium, what happens to λ?

λ halves; v stays constant.

Relation between particle velocity and slope of snapshot?

v_p = −v·(∂y/∂x).

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, ek mechanical wave ka matlab hai ek disturbance jo travel karti hai, par medium ke particles khud travel nahi karte. Har particle bas apni jagah pe oscillate karta hai (SHM jaisa), aur ye hilna-dulna ka pattern aage badhta hai. Energy aur momentum transfer hoti hai, lekin matter ka net transport zero hota hai — jaise stadium mein "Mexican wave": log baithe rehte hain, sirf wave ghoomti hai.

Do types hain. Transverse wave mein particles propagation ke perpendicular hilte hain — isme crests aur troughs dikhte hain (string ki wave). Longitudinal mein particles propagation ke parallel hilte hain — isme compressions aur rarefactions banti hain (sound). Important baat: gases aur liquids mein shear rigidity nahi hoti, isliye unke bulk mein transverse mechanical wave nahi chal sakti — sirf longitudinal (sound) chalti hai. Solids dono carry kar sakte hain.

Sabse zaroori formula hai $v=f\lambda$ . Yaad rakho: speed medium decide karta hai, frequency source decide karta hai. To agar frequency badhao, to $\lambda$ chhoti ho jaati hai, par $v$ same rehta hai. Aur speed ka general rule: $v=\sqrt{\text{restoring}/\text{inertia}}$ — string ke liye $\sqrt{T/\mu}$ , sound ke liye $\sqrt{B/\rho}$ . Stiff medium fast, heavy medium slow.

Ek common galti: particle velocity ( $A\omega$ ) ko wave velocity ( $f\lambda$ ) samajh lena. Dono alag hain — particle velocity har instant change hoti hai, wave velocity constant rehti hai. Aur sound ko transverse mat samajhna; book mein jo sine curve dikhta hai wo pressure-vs-position ka graph hai, actual particle motion aage-peeche (longitudinal) hai. Ye basics clear ho gaye to waves ka pura chapter aasaan ho jaata hai.
