Interference — constructive, destructive conditions

1. What is interference?

WHAT we add: displacements, not intensities. Intensity comes only at the end, after we know the resultant amplitude.

2. Deriving the resultant — from first principles

Take two waves arriving at a point $P$ , same frequency $\omega$ , same amplitude $a$ , but a phase difference $\phi$ :

$y_1 = a\sin(\omega t), \qquad y_2 = a\sin(\omega t + \phi)$

Superpose (just add): $y = y_1+y_2 = a\sin\omega t + a\sin(\omega t+\phi)$

Use $\sin A + \sin B = 2\sin\frac{A+B}{2}\cos\frac{A-B}{2}$ with $A=\omega t,\ B=\omega t+\phi$ :

$y = \underbrace{2a\cos\tfrac{\phi}{2}}_{\text{resultant amplitude } A}\;\sin\!\left(\omega t + \tfrac{\phi}{2}\right)$

Why this step? The sum of two sines of equal frequency is still a sine of the same frequency — only its amplitude and phase change. The amplitude is the bracketed factor.

Why $I\propto A^2$ ? Energy (and brightness/loudness) of a wave scales with amplitude squared — a universal wave fact.

3. The conditions (the 80/20 core)

The whole subtopic lives in when is $\cos^2(\phi/2)$ maximum or zero.

Constructive — waves in step, amplitudes add: $\phi = 2\pi n \implies \cos\tfrac{\phi}{2}=\pm1 \implies A_{\max}=2a,\quad I_{\max}=4I_0$ $\boxed{\Delta x = n\lambda}\qquad n=0,\pm1,\pm2,\dots$

Destructive — waves opposite, cancel: $\phi = (2n+1)\pi \implies \cos\tfrac{\phi}{2}=0 \implies A_{\min}=0,\quad I_{\min}=0$ $\boxed{\Delta x = \left(n+\tfrac12\right)\lambda}\qquad n=0,\pm1,\dots$

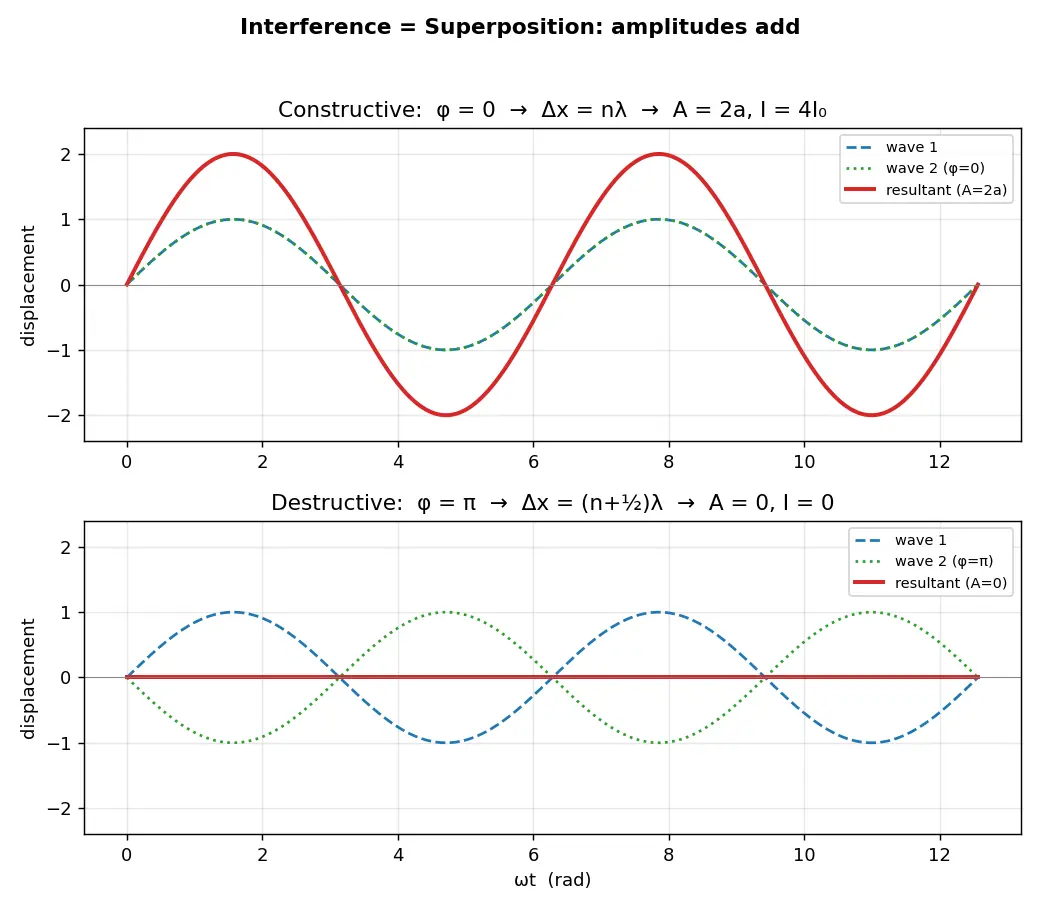

Figure — Interference — constructive, destructive conditions

4. Worked examples

5. Common mistakes

6. Active recall

Recall Flip me

Q: Two coherent waves, phase diff $\phi$ , each intensity $I_0$ — resultant $I$ ? A: $I = 4I_0\cos^2(\phi/2)$ .

Q: Path difference for destructive interference? A: $\Delta x = (n+\tfrac12)\lambda$ .

Q: Why $I_{\max}=4I_0$ if each is $I_0$ ? A: Amplitudes add → $2a$ → $I\propto(2a)^2=4I_0$ ; energy redistributed, average still $2I_0$ .

Recall Feynman: explain to a 12-year-old

Imagine two kids pushing the same swing. If they push together at the right moment, the swing flies high — that's constructive. If one pushes forward exactly when the other pulls back, the swing barely moves — that's destructive. Waves do the same: pushes that line up make a big wave, pushes that fight make nothing. The "right moment" is set by how far each wave travelled.

7. Forecast-then-Verify

Connections

Principle of Superposition — the parent rule interference rests on.
Young's Double Slit Experiment — applies $\Delta x = d\sin\theta$ to these conditions.
Standing Waves — interference of oppositely-travelling waves.
Beats — interference of different frequencies in time.
Coherence and Path Difference — why steady $\phi$ is required.
Energy in Waves — why $I\propto A^2$ and energy conservation in fringes.

Resultant amplitude of two equal-

a

waves with phase

\phi

A = 2a\cos(\phi/2)

Resultant intensity (each

I_0

) at phase

\phi

I = 4I_0\cos^2(\phi/2)

Constructive condition (path)

\Delta x = n\lambda

n=0,\pm1,\dots

Destructive condition (path)

\Delta x = (n+\tfrac12)\lambda

Link between path diff and phase diff

\phi = (2\pi/\lambda)\,\Delta x

Why

I_{\max}=4I_0

not

2I_0

amplitudes add to

2a

;

I\propto A^2=(2a)^2=4I_0

What must sources be for stable interference

coherent (constant phase difference, same frequency)

Is energy conserved in interference

yes — redistributed; spatial average intensity stays

2I_0

General resultant of amplitudes

a_1,a_2

A=\sqrt{a_1^2+a_2^2+2a_1a_2\cos\phi}

Intensity at

\phi=\pi/2

for equal sources

2I_0

(the average value)

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, interference ka core idea ek hi line mein hai: jab do waves ek hi jagah pe milti hain, unke displacements add ho jaate hain — isko Superposition Principle kehte hain. Agar dono waves "step mein" hain (crest se crest), toh wave badi ho jaati hai — ye constructive hai. Agar ek ka crest doosre ke trough se milta hai, toh cancel ho jaate hain — ye destructive hai. Bas itna hi.

Maths bhi simple derive hota hai. Do equal waves $a\sin\omega t$ aur $a\sin(\omega t+\phi)$ ko add karo, $\sin A+\sin B$ formula lagao, toh resultant amplitude milti hai $A=2a\cos(\phi/2)$ , aur intensity $I=4I_0\cos^2(\phi/2)$ . Yahan se sab nikal aata hai: jab $\phi=2n\pi$ (ya path difference $\Delta x=n\lambda$ ) toh max brightness, aur jab $\phi=(2n+1)\pi$ (ya $\Delta x=(n+\tfrac12)\lambda$ ) toh total darkness. Yaad rakho: "Whole = Wow, Half = Hush" — poora wavelength loud, aadha extra silent.

Ek common galti: log sochte hain intensity bas $2I_0$ ho jaayegi. Nahi! Coherent waves mein pehle amplitude add karo, phir square karo — isliye bright point pe $4I_0$ milta hai aur dark point pe $0$ . Energy create nahi hoti, sirf redistribute hoti hai; average nikaalo toh $2I_0$ hi aata hai. Isiliye sources ka coherent hona zaroori hai (constant phase difference), warna pattern band ho jaata hai.

Ye concept bahut jagah kaam aata hai — Young's double slit, sound ke dead spots, thin film ke colours, noise-cancelling headphones. Path difference ko hamesha $\lambda$ se compare karo: integer multiple → constructive, half-integer → destructive. Yahi 80/20 hai, baaki sab isi ka application hai.
