Step 1 — Meet one travelling wave and read every symbol off the picture

WHAT. We draw a single wave that slides to the right. Its formula is $y_{1} = A sin (k x - ω t)$

WHY this formula and not something else? A sine is the simplest smooth "up-and-down-and-repeat" shape, and every symbol inside earns its place:

$A$ — the amplitude: the greatest height the rope reaches. In the picture it is the distance from the flat middle line up to a crest.
$x$ — where you are along the rope (horizontal axis).
$k$ — the wave number: how many radians of the sine you go through per metre. Big $k$ = tightly packed wiggles. It ties to wavelength by $k = 2 π / λ$ — see Wave number k and wavelength.
$λ$ (wavelength) — the length of one full wiggle, crest-to-crest.
$ω$ — the angular frequency: how fast the whole shape marches sideways in time $t$ .
The minus sign in $k x - ω t$ is what makes it move right: as $t$ grows, you need a bigger $x$ to keep $k x - ω t$ the same, so each feature shifts to larger $x$ .

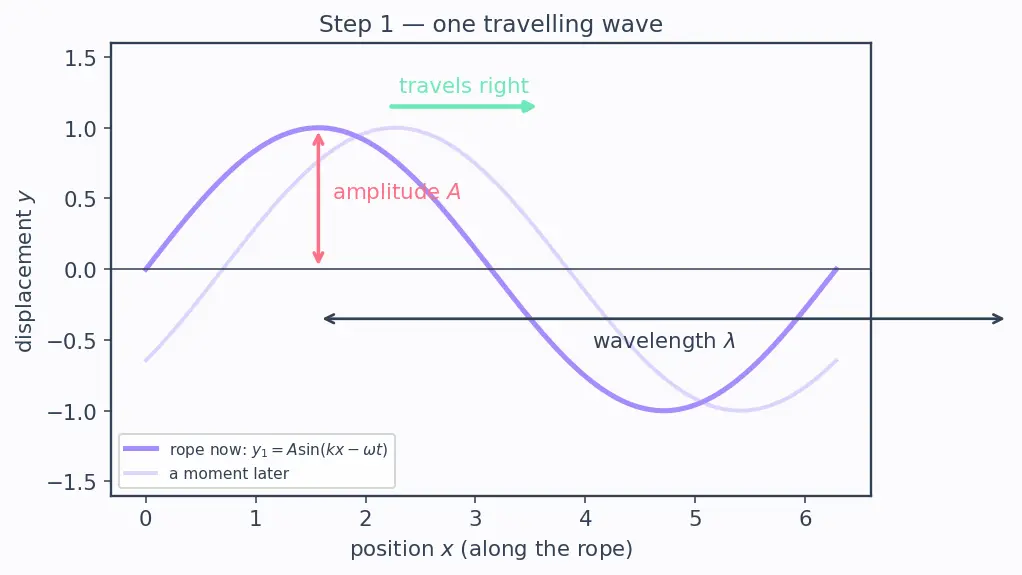

PICTURE. The blue curve is the rope now; the faded blue curve is the rope a moment later — shifted right. The green arrow points the direction of travel.

Figure — Standing waves — formation, nodes, antinodes

Step 2 — Add its mirror twin coming the other way

WHAT. Now a second wave, identical in $A$ , $k$ , $ω$ , but travelling left: $y_{2} = A sin (k x + ω t)$

WHY the plus sign? Flip the sign in front of $ω t$ and the logic of Step 1 reverses: as $t$ grows you need a smaller $x$ to hold $k x + ω t$ fixed, so features slide to the left. Where does this left-mover come from physically? Usually the right-mover hits a wall and bounces straight back — that returning wave is $y_{2}$ . See Reflection of waves at boundaries.

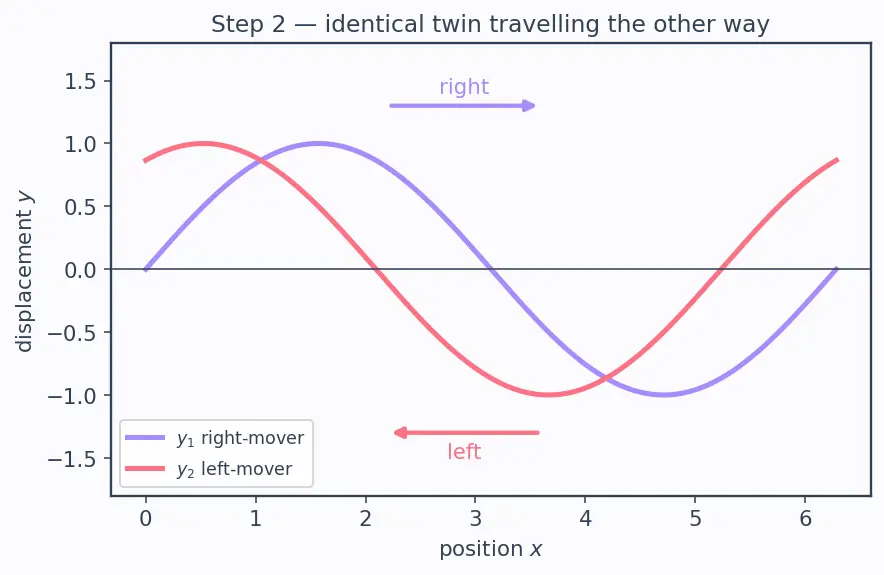

PICTURE. Blue = right-mover, coral = left-mover, at the same instant. Same height ( $A$ ), same wiggle-length ( $λ$ ), opposite arrows.

Step 3 — Superpose: the rope only feels the sum

WHAT. The rope has no way to hold two heights at once. At every $x$ it takes the sum of the two waves: $y = y_{1} + y_{2} = A sin (k x - ω t) + A sin (k x + ω t)$

WHY just add? That is the Superposition principle: when two waves overlap, the actual displacement is the plain arithmetic sum, height plus height. Nothing fancier.

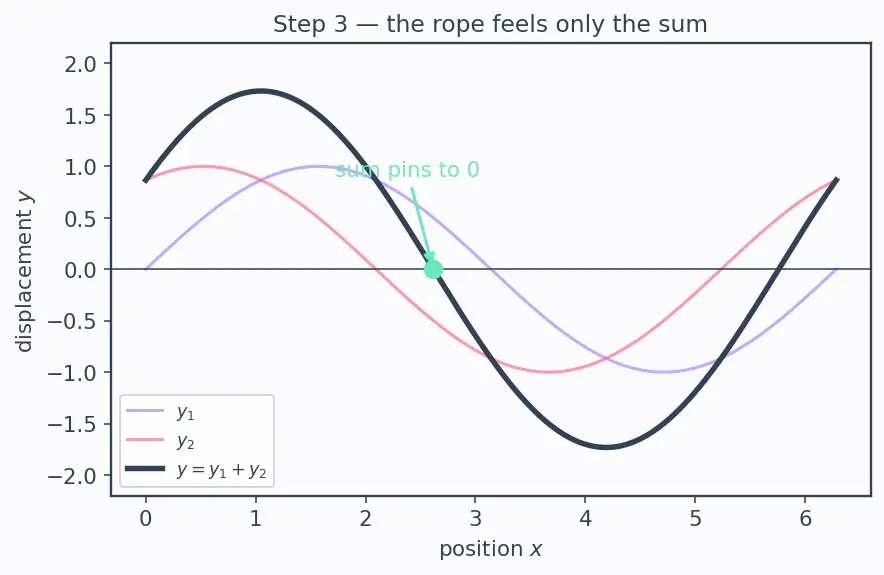

PICTURE. The two thin curves (blue, coral) and their sum in slate. Notice at some spots the two curves are equal-and-opposite, so the sum pins to zero — the first hint of nodes.

Step 4 — The trig trick that untangles space from time

WHAT. We rewrite the sum using $sin P + sin Q = 2 sin \frac{P + Q}{2} cos \frac{P - Q}{2}$ with $P = k x - ω t$ and $Q = k x + ω t$ .

WHY this identity and not brute force? Right now $x$ and $t$ sit tangled inside the same bracket. As long as they are tangled, the shape can shift with time — it travels. The identity is the exact tool that factors a sum of sines into a product. If we can get $y = (something in x) \times (something in t)$ , the $x$ -shape is frozen and only its size pulses. That separation is the whole game.

Compute the two halves:

$average of the two brackets \frac{P + Q}{2} = \frac{( k x - ω t ) + ( k x + ω t )}{2} = k x (ω t cancels)$

$half their difference \frac{P - Q}{2} = \frac{( k x - ω t ) - ( k x + ω t )}{2} = - ω t (k x cancels)$

and $cos (- ω t) = cos (ω t)$ because cosine is symmetric (a mirror across $t = 0$ ). So

$y (x, t) = shape: depends only on x 2 A sin (k x) breathing: only t cos (ω t)$

$2 A sin (k x)$ — a fixed picture drawn along the rope; call it $R (x)$ , the amplitude at position $x$ .
$cos (ω t)$ — a single number, the same everywhere at a given instant, that scales the whole picture up and down between $+ 1$ and $- 1$ .

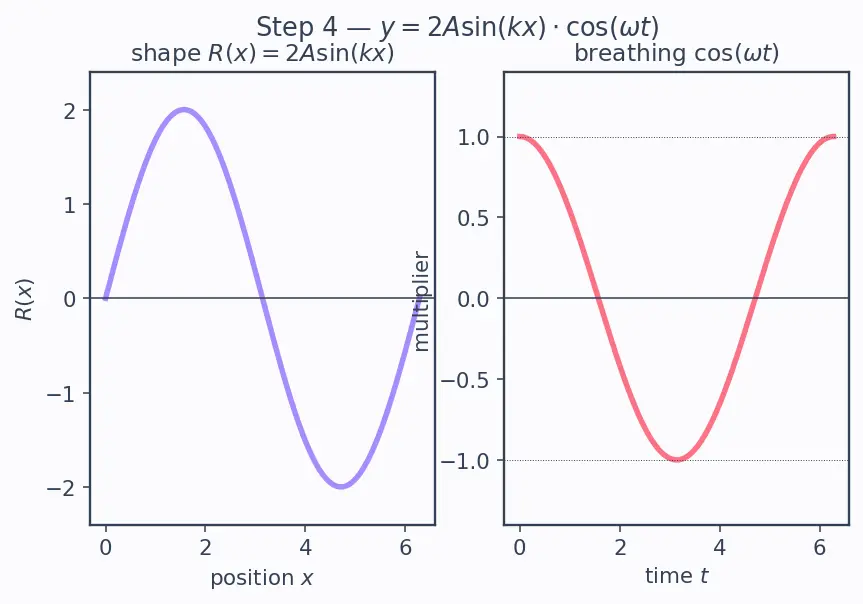

PICTURE. Left panel: the fixed shape $2 A sin (k x)$ . Right panel: the breathing multiplier $cos (ω t)$ swinging between $\pm 1$ . The real rope = left picture times right number.

Step 5 — Watch it breathe (the "standing" made visible)

WHAT. Freeze several instants and overlay them. The envelope $R (x) = 2 A sin (k x)$ stays put; only the scale changes as $cos (ω t)$ ticks through $1, 0, - 1, 0, \dots$

WHY it looks frozen. Because $x$ lives only in $sin (k x)$ , the locations of crests and zeros never move. A travelling wave slides its crests; a standing wave keeps crests where they are and only makes them taller or shorter. That is exactly why we call it standing.

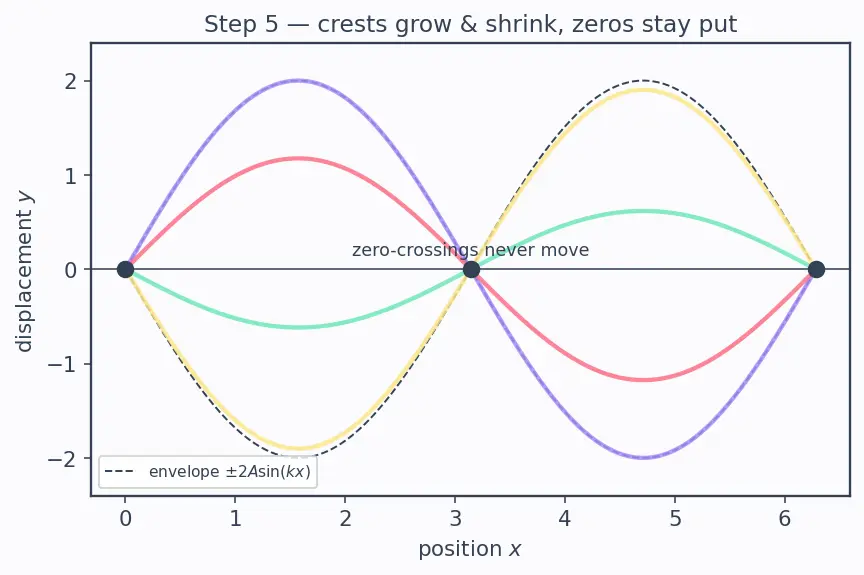

PICTURE. Dashed grey lines are the fixed envelope $\pm 2 A sin (k x)$ . Coloured curves are the rope at different times, all pinned at the same zero-crossings. The crossing points never move.

Step 6 — Read the nodes straight off the shape

WHAT. A node is a point that is always zero, no matter what $cos (ω t)$ does. That needs the shape itself to vanish: $R (x) = 2 A sin (k x) = 0 \Rightarrow sin (k x) = 0$

WHY $sin (k x) = 0$ and not the cosine? $cos (ω t)$ changes with time — it is zero only for an instant, then swings back. A node must be still forever, so the position-part must be zero. Sine hits zero at every whole multiple of $π$ : $k x = nπ \Rightarrow x = \frac{nπ}{k} = \frac{nλ}{2}, n = 0, 1, 2, \dots$ using $k = 2 π / λ$ . So nodes sit every $λ /2$ .

$n$ — counts which zero-crossing (0th at the origin, 1st, 2nd, …).
The step from one node to the next is $λ /2$ — because sine crosses zero twice in one full wavelength.

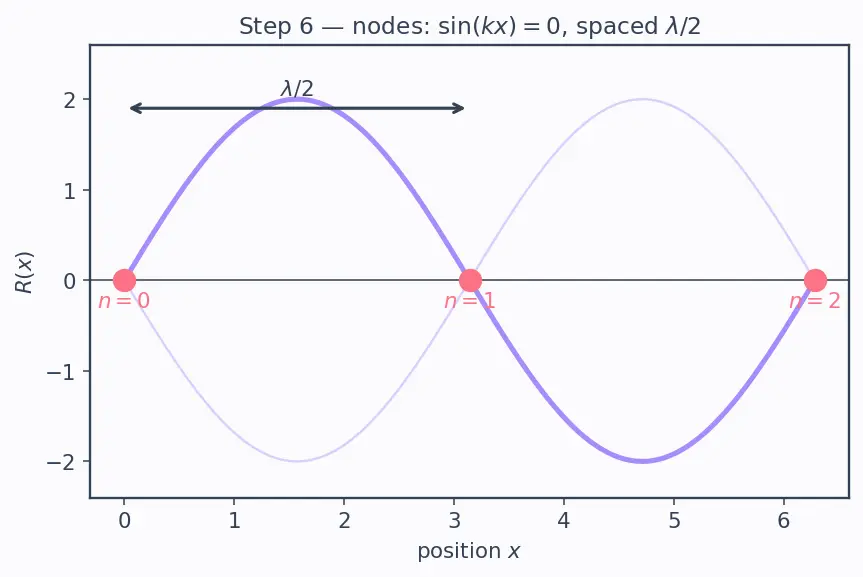

PICTURE. The envelope with node dots marked; the spacing bracket reads $λ /2$ .

Step 7 — Read the antinodes, and check every quadrant of $sin$

WHAT. An antinode is where the shape is as big as possible, so the rope swings its hardest ( $\pm 2 A$ ): $∣ R (x) ∣ = 2 A \Rightarrow ∣ sin (k x) ∣ = 1$

WHY $∣ sin (k x) ∣ = 1$ ? Amplitude $2 A$ is reached only when $sin (k x)$ hits its extremes $+ 1$ or $- 1$ — and we must include both signs, because a trough ( $- 2 A$ ) swings just as violently as a crest. Sine reaches $\pm 1$ at odd multiples of $π /2$ : $k x = (n + \frac{1}{2}) π \Rightarrow x = (n + \frac{1}{2}) \frac{λ}{2} = (2 n + 1) \frac{λ}{4}$

Covering all cases of $sin (k x)$ as $x$ walks along the rope:

$sin (k x) = 0$ at $k x = 0, π, 2 π, \dots$ → nodes.
$sin (k x) = + 1$ at $k x = π /2, 5 π /2, \dots$ → antinode, rope at a crest.
$sin (k x) = - 1$ at $k x = 3 π /2, 7 π /2, \dots$ → antinode, rope at a trough (still an antinode!).
Everywhere between: partial amplitude $0 < ∣ R ∣ < 2 A$ .

So node → nearest antinode is a quarter wavelength, $λ /4$ (half the node spacing).

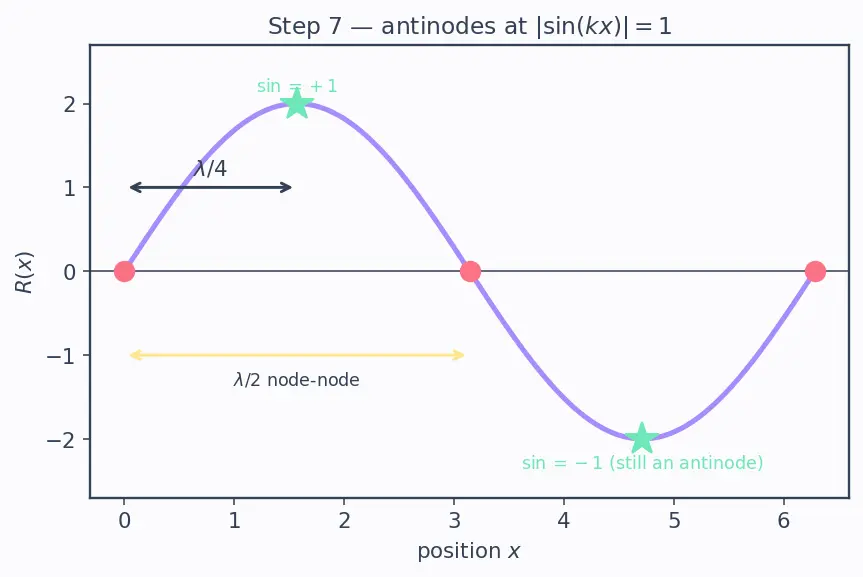

PICTURE. The full envelope with node dots and antinode stars; brackets show $λ /2$ (node-node) and $λ /4$ (node-antinode); a $- 1$ antinode is starred too to prove troughs count.

Step 8 — Degenerate case: what if the waves cancel everywhere?

WHAT. Ask the honest edge question: could the whole rope be dead flat? That happens if instead of adding we had two waves that are perfect opposites, giving $sin (k x) \equiv 0$ -style cancellation, or if we look at the instant $cos (ω t) = 0$ .

WHY it matters. Two limiting moments live inside every standing wave:

When $cos (ω t) = 0$ (a quarter-period in), every point is momentarily at $y = 0$ — the whole rope is flat for an instant. But it is not dead: it is moving fastest here (maximum speed at the antinodes), all energy is kinetic. This is not the same as a node — a node is flat always, this is flat for one instant.
When $cos (ω t) = \pm 1$ , the rope is fully stretched into its envelope shape, momentarily still — all energy is potential.

So "flat" can mean two totally different things, and the difference is always vs for an instant.

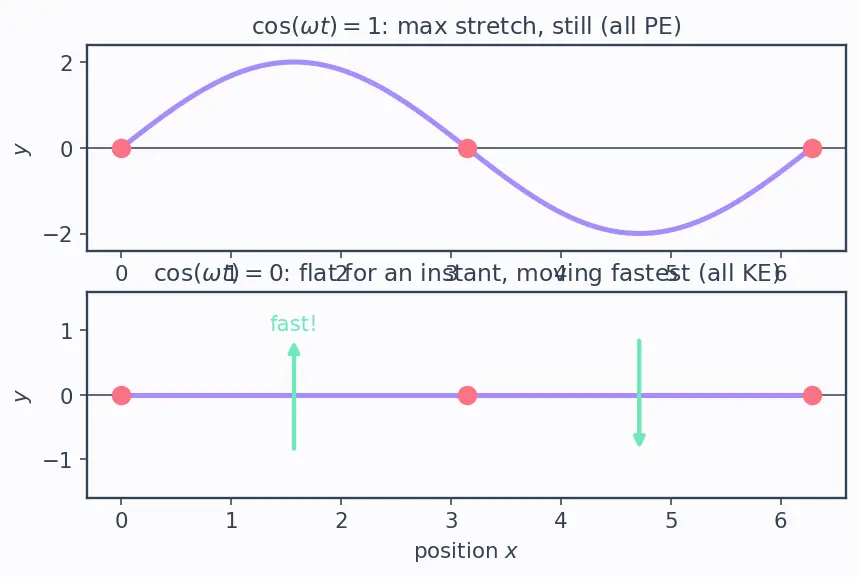

PICTURE. Top: rope at $cos (ω t) = 1$ (max stretch, still, arrows show zero velocity, all PE). Bottom: rope at $cos (ω t) = 0$ (flat, but velocity arrows big at antinodes, all KE). Nodes marked on both — flat in both pictures, that is what makes them nodes.

The one-picture summary

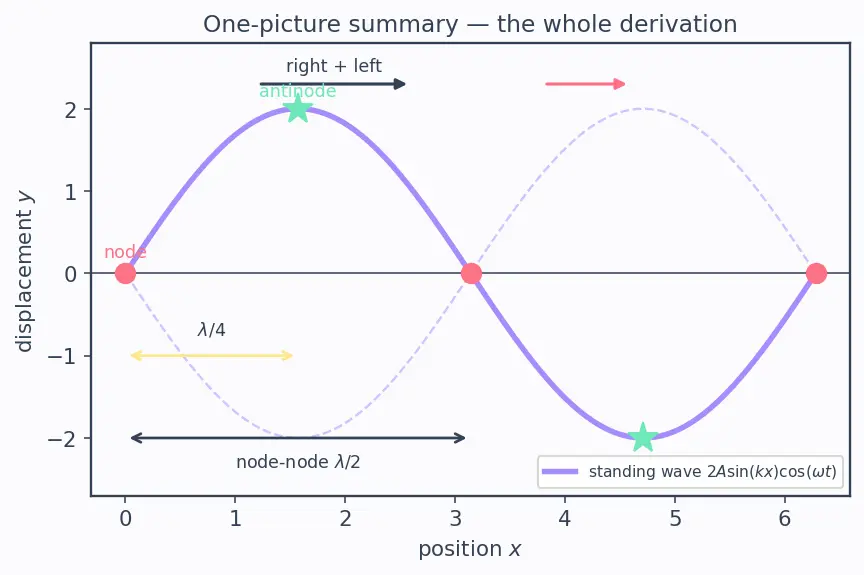

Everything above compressed: two travelling arrows (top) feed the superposition, the trig identity factors it into shape × breathing, and the shape hands you nodes ( $λ /2$ apart) and antinodes ( $λ /4$ from each node).

Recall Feynman retelling — the whole walkthrough in plain words

Picture one wiggle running right down a rope, and its exact twin running left. Wherever you stand, the rope can only be at one height, so it takes the two heights and adds them. Do the adding carefully and a small piece of trig magic happens: the answer splits cleanly into "a fixed shape drawn along the rope" times "a single number that pulses in time." Because the shape has no time in it, its crests and its still-spots never move sideways — the whole thing just gets taller and shorter in place, like breathing. The still-spots, where the shape itself is zero, are nodes; they sit half a wavelength apart because a sine dips through zero twice per wavelength. Halfway between any two nodes the shape is at full stretch — those are antinodes, swinging the hardest, a quarter wavelength from the nearest node. And "flat rope" hides a trick: a node is flat always, but there is also one instant where the whole rope is flat — not dead, but flying through the middle at top speed. That is the standing wave, start to finish.

Recall Rebuild the derivation from memory

Start with two waves? ::: $A sin (k x - ω t)$ (right) and $A sin (k x + ω t)$ (left). What law lets you add them? ::: Superposition — displacements just sum. Which identity separates $x$ from $t$ ? ::: $sin P + sin Q = 2 sin \frac{P + Q}{2} cos \frac{P - Q}{2}$ . Result? ::: $y = 2 A sin (k x) cos (ω t)$ . Node condition and spacing? ::: $sin (k x) = 0$ , nodes every $λ /2$ . Antinode condition and node-to-antinode gap? ::: $∣ sin (k x) ∣ = 1$ , gap $λ /4$ .
