This page is a worked-example gym for the Dark silicon problem . We take the two power laws and the dark-silicon formula and push them through every kind of case: the easy one, the zero cases, the degenerate cases, the "it goes negative — what does that mean?" cases, and the limiting case as chips grow forever.
Before any numbers, let us re-anchor the three tools we will use, so no symbol appears unexplained.
Definition The three formulas we lean on
Dynamic power (power spent switching transistors on and off):
P dynamic = α C V 2 f
where α = fraction of transistors flipping, C = capacitance (how much charge each gate holds), V = supply voltage, f = clock frequency (flips per second).
Static power (power leaking even when nothing switches):
P static = V I leak
Dark silicon fraction — the headline number of this whole topic:
D = 1 − N ⋅ P core P TDP
Here N = total cores present, P core = power one active core draws, and P TDP = the power budget the cooling system allows (Thermal Design Power). See TDP-and-power-budget .
D as "leftover you can't switch on"
N ⋅ P core is the power the chip would draw if all cores ran. P TDP is the power you're allowed to draw. The ratio of those is the fraction you can light up; D is the fraction forced to stay dark. If the ratio ever exceeds 1, you can light everything and there is no dark silicon — but watch out, D then goes negative , and we must interpret that (Case F below).
Every dark-silicon question falls into one of these cells. Each worked example is tagged with the cell(s) it covers.
Cell
Case class
What's special about it
Example
A
Ordinary case
Budget covers some cores; 0 < D < 1
Ex 1
B
Zero dark silicon
Budget covers all cores; D = 0 exactly
Ex 2
C
Fully dark limit
N → ∞ , budget fixed; D → 1
Ex 3
D
Degenerate input
P core → 0 or N = 1
Ex 4
E
Sign / trade-off
Same budget, two configs — which "sign" of choice wins
Ex 5
F
Over-budget (negative D )
Ratio > 1 ; D < 0 — interpret it
Ex 6
G
Real-world word problem
DVFS rescues utilization
Ex 7
H
Exam twist
Turbo Boost: redistribute a fixed budget
Ex 8
Figures accompany the geometric/graphical cells (A, C, G).

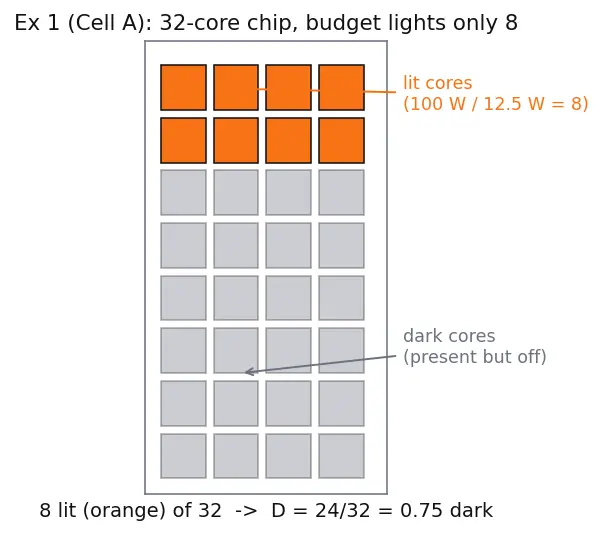

Worked example Ex 1 — Cell A: the ordinary case
A 14 nm chip has N = 32 cores, each active core draws P core = 12.5 W, and the cooling budget is P TDP = 100 W. Find the active-core count and the dark silicon fraction.
Forecast: Guess before reading — will D be closer to 4 1 , 2 1 , or 4 3 ?
Active cores = ⌊ P core P TDP ⌋ = ⌊ 12.5 100 ⌋ = ⌊ 8 ⌋ = 8 .
Why this step? Each active core eats 12.5 W; you keep switching cores on until the next one would break the 100 W budget. The floor ⌊ ⋅ ⌋ is there because you cannot run "0.7 of a core".
Dark fraction D = 1 − N ⋅ P core P TDP = 1 − 32 × 12.5 100 = 1 − 400 100 = 0.75 .
Why this step? 32 × 12.5 = 400 W is the power all cores together would draw; you're allowed only 100 W, i.e. one quarter — so three quarters must stay dark.
Verify: 8 active out of 32 present is 8/32 = 0.25 lit, hence 0.75 dark — matches D . Units: watts cancel in the ratio, so D is dimensionless. ✓ (D = 75% .)
Worked example Ex 2 — Cell B: zero dark silicon
A 90 nm chip: N = 2 cores, P core = 50 W, P TDP = 100 W. Show D = 0 .
Forecast: Will any core be forced dark?
Active cores = ⌊ 100/50 ⌋ = ⌊ 2 ⌋ = 2 — exactly all of them.
Why this step? The budget lands exactly on the total draw, no rounding loss.
Dark fraction D = 1 − 2 × 50 100 = 1 − 100 100 = 0 .
Why this step? When the allowed power equals the total wanted power, the ratio is exactly 1 and nothing is left over.
Verify: 2 active / 2 present = 1.0 lit ⇒ 0 dark. This is the 2005 row of the parent's table — the pre-Dennard-breakdown world where dark silicon literally didn't exist. See Dennard-scaling . ✓ (D = 0% .)

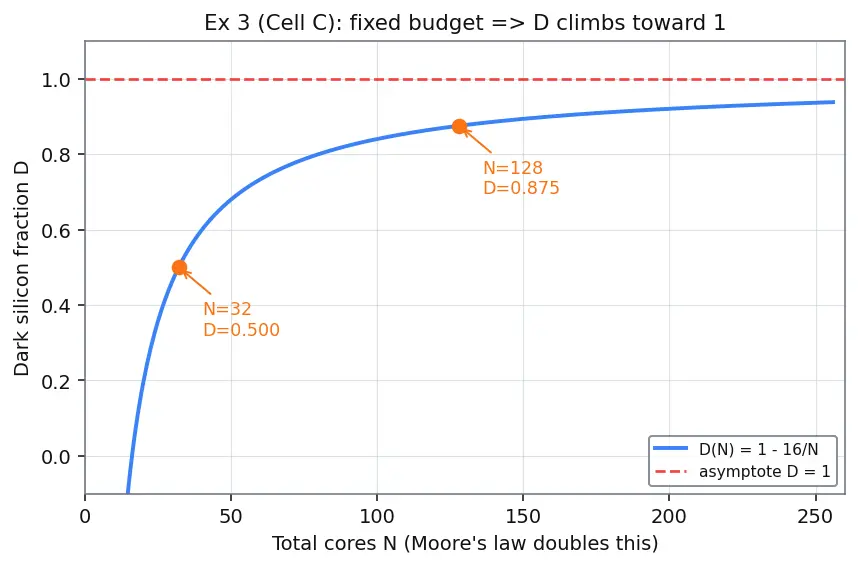

Worked example Ex 3 — Cell C: the fully-dark limit
Keep P TDP = 100 W and P core = 6.25 W fixed. Let core count double every generation: N = 2 , 8 , 32 , 128 , … . What does D approach?
Forecast: Does D climb toward some ceiling, or grow without bound?
Write D ( N ) = 1 − 6.25 N 100 = 1 − N 16 .
Why this step? 100/6.25 = 16 is the fixed number of cores the budget can ever light — it does not grow with N .
Evaluate: N = 32 ⇒ D = 1 − 32 16 = 0.5 ; N = 128 ⇒ D = 1 − 128 16 = 0.875 .
Why this step? Moore's law grows N (Mores-law ) but the "16 lit cores" ceiling is stuck, so the fraction lit shrinks.
Limit: as N → ∞ , N 16 → 0 , so D → 1 .
Why this step? Sixteen lit cores out of a billion is essentially zero fraction lit — the chip is almost entirely dark. This is the core prophecy of the dark-silicon problem.
Verify: D ( 128 ) = 1 − 16/128 = 1 − 0.125 = 0.875 = 87.5% — matches the 7 nm row of the parent table. Curve is monotonically rising toward the horizontal asymptote D = 1 . ✓
Worked example Ex 4 — Cell D: degenerate inputs
Test the formula at its edges. (a) N = 1 . (b) P core → 0 .
Forecast: Does the formula stay sane, or blow up?
(a) Single core , budget P TDP = 100 W, P core = 50 W:
D = 1 − 1 × 50 100 = 1 − 2 = − 1.
Why this step? One core wanting 50 W under a 100 W budget can obviously always run — there is nothing to leave dark. A negative D is the formula's way of screaming "you have surplus budget" (this bridges to Cell F). We clamp it: physically D = max ( 0 , formula ) = 0 .
(b) Vanishing per-core power : as P core → 0 + ,
D = 1 − N ⋅ P core P TDP → 1 − ( + ∞ ) → − ∞.
Why this step? If a core costs almost nothing, the budget lights arbitrarily many — surplus is unbounded, so the raw formula dives to − ∞ . Clamped: D = 0 . A "free" transistor is never forced dark.
Verify: Both degenerate cases give surplus ⇒ clamped D = 0 , which is exactly what physical intuition demands. The clamp rule D = max ( 0 , 1 − N P core P TDP ) handles them. ✓
Worked example Ex 5 — Cell E: the sign of the trade-off (many-core vs accelerator)
100 W, 16 nm. Option A: 64 simple cores at 2 W each. Option B: 8 general cores (5 W) + 4 accelerators (10 W). Which has more dark silicon — and does that mean it's worse?
Forecast: Guess which option is "darker", then whether darker = worse.
Option A active cores = ⌊ 100/2 ⌋ = 50 out of 64 .
D A = 64 64 − 50 = 64 14 = 0.21875 .
Why this step? Uniform cores, so we can count them directly; 50 lit, 14 dark.
Option B total wanted power = 8 ( 5 ) + 4 ( 10 ) = 40 + 40 = 80 W of general+accelerator silicon exists. Under 100 W budget, we can run 8 cores + 2 accelerators = 40 + 20 = 60 W (assume you run all 8 cores and boot accelerators until budget-safe).
D B = 40 + 40 ( 40 + 40 ) − 60 = 80 20 = 0.25 .
Why this step? Here "dark" is measured in watts of capability left unpowered, not just cores, because the units are heterogeneous (Heterogeneous-computing ).
Interpret the sign of the choice: D B = 25% > D A = 21.875% , yet Option B may win on a video/ML workload because an accelerator does 10 × the useful work per watt of a plain core.
Why this step? Higher dark fraction is not automatically worse — the metric that matters is useful work per watt, not fraction lit.
Verify: 14/64 = 0.21875 ✓; 20/80 = 0.25 ✓. So D B > D A numerically, confirming the counter-intuitive lesson driving accelerator designs. ✓
Worked example Ex 6 — Cell F: over-budget, negative
D
A niche chip: N = 4 cores, P core = 15 W, P TDP = 100 W. Compute the raw D and interpret its sign.
Forecast: All four cores draw 4 × 15 = 60 W < 100 W. What does the formula report?
Raw formula: D = 1 − 4 × 15 100 = 1 − 60 100 = 1 − 1.6 6 = − 0.6 6 .
Why this step? The ratio 100/60 > 1 means the budget exceeds total draw — pure surplus of 40 W.
Physical clamp: D = max ( 0 , − 0.667 ) = 0 . No core is forced dark; the extra 40 W could feed DVFS boosting or simply go unused.
Why this step? Negative dark silicon is not a thing — it is budget headroom . The magnitude ∣ D ∣ ⋅ N P core = 0.667 × 60 = 40 W recovers exactly the surplus.
Verify: Surplus = 100 − 60 = 40 W. And − D × N P core = 0.6 6 × 60 = 40 W — the negative value literally measures the headroom. Clamped D = 0 . ✓

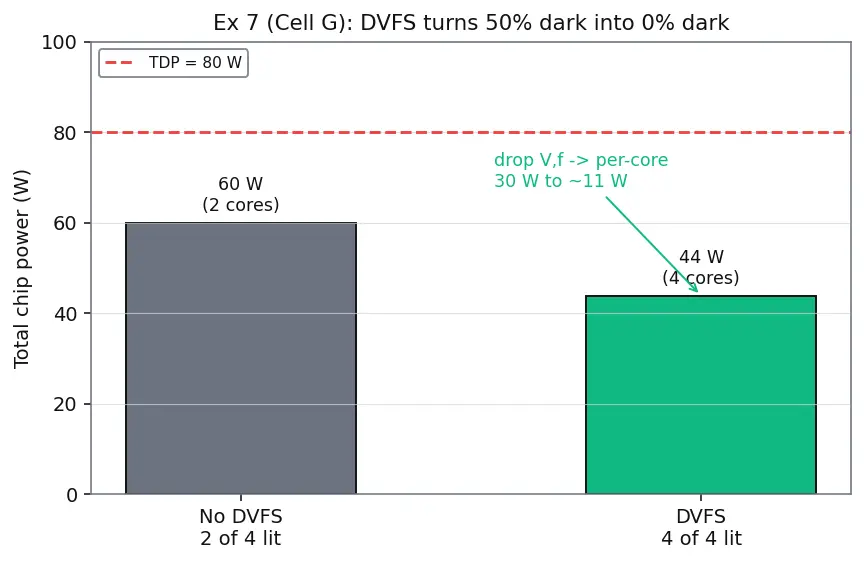

Worked example Ex 7 — Cell G: real-world word problem (DVFS rescue)
A 4-core chip. Each core at 3.5 GHz, 1.0 V draws 30 W. P TDP = 80 W. First find dark silicon without DVFS . Then drop every core to 2.0 GHz, 0.8 V and recompute.
Forecast: Can we go from "2 cores dark" to "0 cores dark" just by turning voltage/frequency knobs?
No DVFS: active = ⌊ 80/30 ⌋ = 2 cores of 4 . Dark = ( 4 − 2 ) /4 = 0.5 .
Why this step? Two cores at 30 W = 60 W fits under 80 W; a third would hit 90 W > 80 W.
Scale the power. Dynamic power obeys P ∝ V 2 f . New power per core:
P ′ = 30 × ( 1.0 0.8 ) 2 × 3.5 2.0 = 30 × 0.64 × 0.5714 … ≈ 10.97 W .
Why this step? Voltage enters squared (V 2 ) so dropping 1.0 → 0.8 V multiplies by 0.64 — a big cut. Frequency enters linearly , giving the 2.0/3.5 factor. This is why DVFS lowers voltage and frequency together.
Recount: active = ⌊ 80/10.97 ⌋ = 7 — but only 4 cores exist, so all 4 run, drawing 4 × 10.97 ≈ 43.9 W. Dark = 0 .
Why this step? Once the arithmetic says you can light more cores than you own, you cap at N and dark silicon vanishes.
Verify: 30 × 0.64 × ( 2/3.5 ) = 10.971 … W ✓. 4 × 10.971 = 43.9 W ≤ 80 W ✓, so D = 0 . Trade-off: per-core speed fell from 3.5 to 2.0 GHz, but throughput rose from 2 to 4 cores. ✓
Worked example Ex 8 — Cell H: exam twist (Turbo Boost redistribution)
An 8-core chip, base 2.5 GHz, each core 10 W, P TDP = 80 W (all 8 fit exactly). A workload uses only 2 cores; the other 6 are power-gated (Power-gating ) but each still leaks P static = 1 W. How much power can each active core turbo up to?
Forecast: With 6 cores mostly off, how much of their freed budget can 2 cores grab?
Budget freed by idling 6 cores, minus their unavoidable leakage:
P turbo total = P TDP − N idle ⋅ P static = 80 − 6 ( 1 ) = 74 W .
Why this step? Power-gated cores still leak 1 W each (this is the leakage-power lesson from the parent's second mistake box), so you can't reclaim the full 60 W — only 60 − 6 = 54 W of it is truly freed on top of the 2 cores' original 20 W.
Per active core: 74/2 = 37 W each.
Why this step? Two cores split the 74 W budget evenly, jumping from 10 W to 37 W — that extra headroom is spent raising voltage (∼ 1.2 V) and frequency (∼ 4.0 GHz).
Consistency with P ∝ V 2 f : if 10 W bought ( 1.0 V , 2.5 GHz ) , then scaling to ( 1.2 V , 4.0 GHz ) predicts
P = 10 × ( 1.0 1.2 ) 2 × 2.5 4.0 = 10 × 1.44 × 1.6 = 23.04 W .
Why this step? The physics-scaled estimate (≈ 23 W) is below the 37 W budget, so the boost is thermally safe — the exam-safe answer is "up to ≈ 37 W available, physics uses ≈ 23 W of it." Turbo is explicit dark-silicon management: trade parallelism for single-thread speed.
Verify: 80 − 6 ( 1 ) = 74 W ✓; 74/2 = 37 W per core ✓; scaled draw 10 × 1.44 × 1.6 = 23.04 W ≤ 37 W ✓ (safe). This connects to Amdahls-law : turbo helps the serial fraction that can't be parallelised. ✓
Recall Which cell forces a
clamp , and why?
Cells D and F ::: whenever the raw formula gives D < 0 , the budget exceeds total core draw, so physically no core is dark — clamp D = max ( 0 , formula ) ; the negative magnitude measures surplus watts.
Recall Higher dark-silicon fraction always means worse chip. True or false?
False ::: Ex 5 — an accelerator config (Option B, D = 25% ) can beat a uniform config (Option A, D = 21.875% ) because useful-work-per-watt, not fraction lit, is what matters.
D
P ositive = P arked cores (real dark silicon). N egative = N o problem (spare budget). Zero = perfectly full.
