WHAT is Signal Integrity?

WHY does crosstalk happen? (First principles)

Two adjacent metal wires form a parallel-plate capacitor through the dielectric between them. Charge on a capacitor obeys $Q = CV$ . If the aggressor voltage changes by $\Delta V$ , the coupling capacitor must transfer charge:

$Q_c = C_c\,\Delta V_{agg}$

That charge has to go somewhere — it flows onto the victim node. The current through a capacitor is:

$i_c = C_c\frac{d(V_{agg}-V_{vic})}{dt}$

WHY the derivative? Capacitor current only flows when the voltage across it is changing. A static neighbor (DC 1 or 0) injects no crosstalk — only transitions do. Fast edges ( $dV/dt$ large) inject more current → crosstalk scales with edge speed, which is exactly why it got worse as chips got faster.

HOW big is the noise? Deriving the coupling-noise formula

Model the victim node as a capacitor divider. The victim has:

coupling cap $C_c$ to the aggressor,
ground cap $C_g$ (to substrate + its own driver holding it).

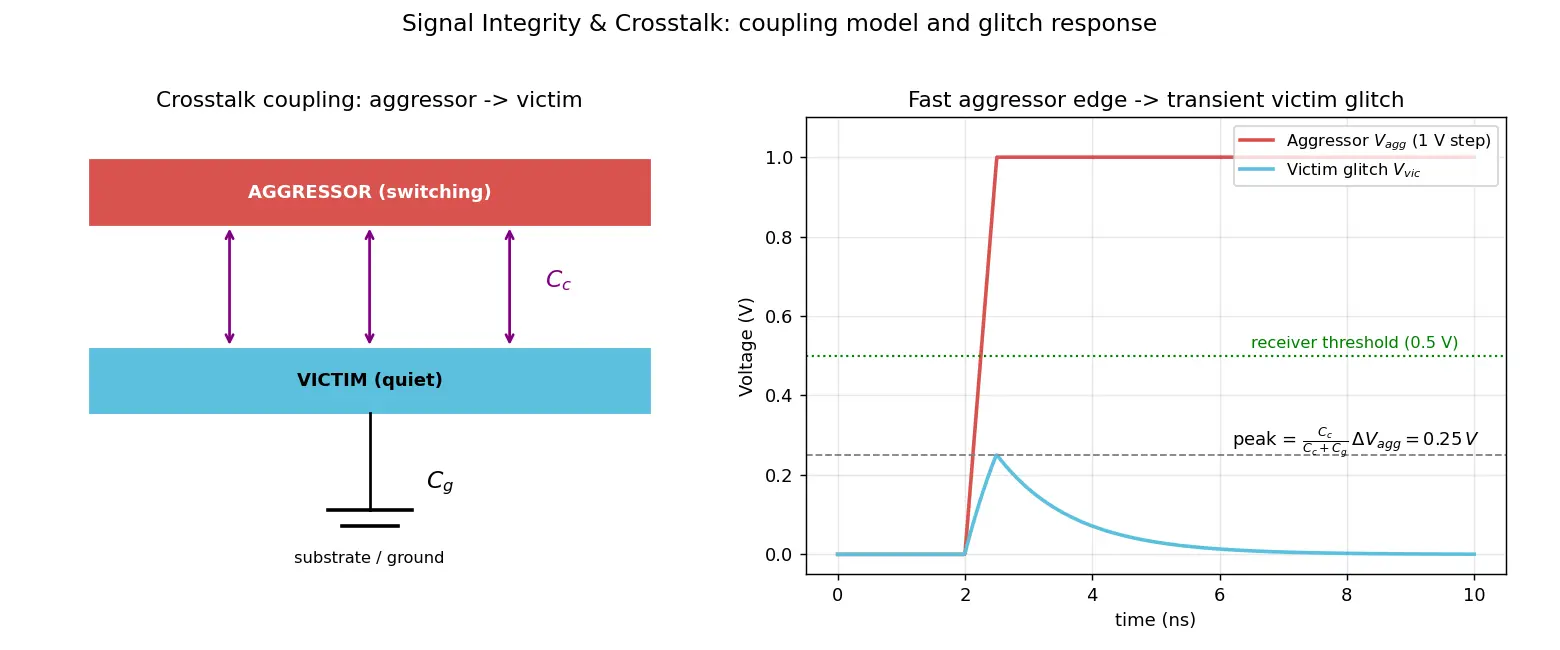

The aggressor makes a step $\Delta V_{agg}$ . Assume the victim driver is weak/off (worst case for glitch). By charge conservation on the victim node, treat $C_c$ and $C_g$ as a capacitive voltage divider:

$\boxed{\Delta V_{vic} = \frac{C_c}{C_c + C_g}\,\Delta V_{agg}}$

Derivation of the divider (step by step):

Before edge: victim at $0$ , aggressor at $0$ . Charge on $C_c$ is $0$ ; on $C_g$ is $0$ . Why? both nodes equal.
Aggressor jumps to $\Delta V_{agg}$ instantly (fast edge → victim can't discharge yet). Why instant? worst case; RC of victim is slower than the edge.
Node charge conservation on victim: $C_c(\Delta V_{agg}-\Delta V_{vic}) = C_g\,\Delta V_{vic}$ . Why? charge onto victim through $C_c$ = charge stored on $C_g$ .
Solve: $C_c\Delta V_{agg} = (C_c+C_g)\Delta V_{vic} \Rightarrow \Delta V_{vic} = \frac{C_c}{C_c+C_g}\Delta V_{agg}$ . ✅

If the victim driver is on (resistance $R$ ), the glitch decays with time constant $\tau=R(C_c+C_g)$ , so the peak is reduced by a factor depending on edge time $t_r$ vs $\tau$ .

Two flavors of crosstalk

Formula Miller coupling factor (MCF)

Effective coupling capacitance seen during switching: $C_{eff} = C_g + (1 - MCF)\cdot C_c \quad\text{where } MCF \in [-1,\,2]$

Both quiet: $MCF=0$ ⇒ $C_{eff}=C_g+C_c$
Aggressor same-direction, same slope: $MCF=1$ ⇒ coupling "disappears," delay ↓
Opposite direction: $MCF=2$ ⇒ $C_{eff}=C_g-C_c$ ... wait, sign flips so effective coupling doubles in the delay sense, victim delay ↑.

Why: the voltage across $C_c$ swings by $2\Delta V$ when the two ends move oppositely, so $i_c = C_c\,d(2\Delta V)/dt$ — twice the charge, hence " $2C_c$ " felt.

Worked examples

HOW engineers fix it (the 80/20)

Common mistakes (Steel-manned)

Flashcards

What are the two ends of a crosstalk coupling called?

The switching aggressor and the affected victim.

Through what parasitic does crosstalk primarily couple?

The coupling capacitance

C_c

between adjacent wires.

Why does a static (non-switching) neighbor inject no crosstalk current?

Capacitor current is

C_c\,dV/dt

; with

dV/dt=0

no charge is injected.

Peak crosstalk glitch formula for a quiet victim?

\Delta V_{vic} = \dfrac{C_c}{C_c+C_g}\,\Delta V_{agg}

How does crosstalk noise scale with edge (slew) rate?

Proportionally — faster

dV/dt

injects more current, so faster edges = more noise.

Miller Coupling Factor for opposite-direction switching, and its effect?

MCF = 2; the coupling cap counts as

2C_c

, increasing victim delay.

MCF for same-direction, equal-slope switching?

MCF = 1; coupling effectively cancels, reducing delay.

Name three physical fixes for crosstalk.

Increase spacing, insert shield wires, buffer/split long nets (also slew control, skew scheduling).

Difference between crosstalk glitch and crosstalk delay?

Glitch = spike on a quiet victim (functional noise); delay = timing shift when victim also switches.

Worst case for crosstalk delay vs for crosstalk glitch?

Delay worst = aggressor opposite-switching (Miller 2×); glitch worst = quiet victim + aggressor switching.

Why can fixing IR drop worsen crosstalk?

Widening wires lowers resistance but increases sidewall coupling capacitance

C_c

When does a crosstalk glitch actually flip logic?

When it exceeds the receiver's noise margin AND propagates faster than the gate filters it.

Recall Feynman: explain to a 12-year-old

Imagine two friends holding a stretchy rubber sheet between them (that's the coupling). If one friend suddenly jerks their side (a wire switching), the sheet yanks the other friend a little too — even if that friend was standing still. That yank is crosstalk. If the jerk is small, the still friend barely moves (safe). If it's a big fast jerk, the still friend might get pulled so hard they take a wrong step (wrong 0/1). To protect them you can: stand them farther apart (spacing), put a wall between them (shielding), or jerk slower (slew control). And if a friend just stands still holding the sheet tight (static neighbor), there's no yank at all — only sudden movements pull the other person.

Connections

Parasitic Capacitance and RC Delay — where $C_c$ and $C_g$ come from.
Interconnect Modeling (Elmore Delay) — how coupling changes wire delay.
Noise Margins in CMOS — the threshold a glitch must beat to cause failure.
Power Distribution Network and IR Drop — the sibling SI problem.
Miller Effect — origin of the 2× coupling during opposite switching.
Static Timing Analysis — where crosstalk-delay derating is applied.
Shielding and Guard Rings — a primary crosstalk fix.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, chip ke andar wires bilkul isolated nahi hote — har wire ke beech thoda capacitor ban jaata hai, jise hum coupling capacitance $C_c$ kehte hain. Jab ek wire (aggressor) 0 se 1 ki taraf tez switch karti hai, to woh apne paas wali quiet wire (victim) mein charge "dhakel" deti hai. Yehi charge injection crosstalk kehlata hai. Important baat: charge tabhi flow hota hai jab voltage change ho raha ho, kyunki capacitor current $i = C_c\,dV/dt$ hota hai. Matlab agar neighbour static high ya low pada hai, koi crosstalk nahi — sirf transitions problem create karte hain.

Kitna glitch aayega? Simple capacitor divider socho: victim node par $C_c$ (aggressor se) aur $C_g$ (ground se). Aggressor $\Delta V$ jump karta hai, aur victim par $\frac{C_c}{C_c+C_g}\,\Delta V$ noise aata hai. Agar yeh noise receiver ke threshold se zyada ho gaya, to galat 0/1 padh sakta hai — functional failure. Isiliye hum spacing badhate hain (Cc kam), beech mein shield wire daalte hain, ya driver slow karte hain (kam $dV/dt$ ).

Ek aur twist hai crosstalk delay. Jab victim bhi switch kar rahi ho aur aggressor ulti direction mein jaaye, to coupling capacitor ke dono side ka voltage $2\Delta V$ swing karta hai — isliye woh $2C_c$ jaisa behave karta hai (Miller effect, MCF = 2). Result: victim ka delay badh jaata hai, aur timing closure mein surprise milta hai. Agar dono same direction switch karein, coupling almost cancel ho jaata hai (delay kam). Isliye SI signoff mein hum dono cases — glitch ke liye quiet victim, aur delay ke liye opposite-switching — dono check karte hain.

Yaad rakho: SI koi ek knob nahi hai. Wire mota karoge to IR drop kam hoga par sidewall coupling ( $C_c$ ) badh jaayega. Har cheez trade-off hai, aur asli engineering isi balance mein hai.
