RTL (register transfer level) design: Exercises — Hardware deep dive

Before we start, one picture fixes every timing number on this page. Two registers, logic between them, one clock — the "compute-then-catch" pipeline.

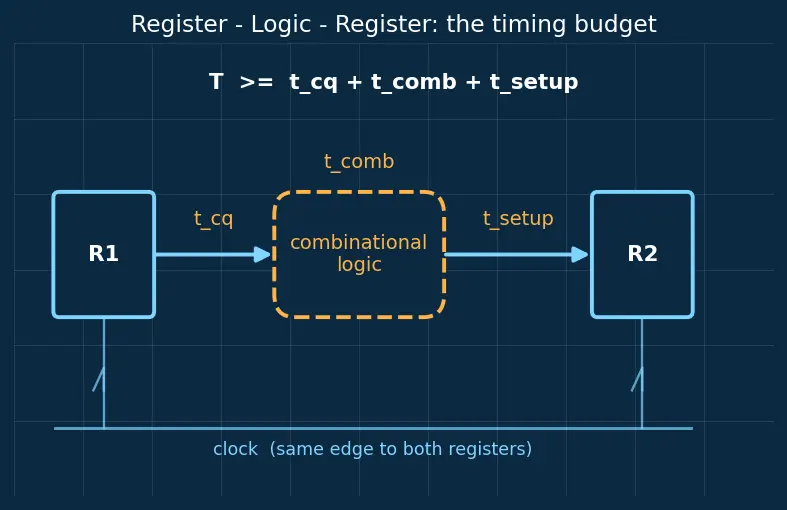

Figure — RTL (register transfer level) design

Read it left to right: register R1 launches a value $t_{c q}$ after the clock edge, that value crawls through the combinational cloud taking $t_{co mb}$ , and register R2 must have it stable $t_{se t u p}$ before the next edge. All three added together must fit inside one clock period $T$ .

Intuition Where the two rules come from (mini-derivation)

Picture one clock period as a runway of length $T$ between edge $t$ and edge $t + 1$ (look at the figure). Setup — data must arrive in time. After edge $t$ , R1's output does not appear until $t_{c q}$ has passed. It then takes $t_{co mb, ma x}$ to crawl through the slowest path. R2 needs its input frozen $t_{se t u p}$ before edge $t + 1$ . Stacking these three intervals end-to-end, they must all fit inside the one period $T$ : $t_{c q} + t_{co mb, ma x} + t_{se t u p} \leq T .$ If they overrun the runway, R2 latches a value that is still changing → garbage. Hold — data must not arrive too soon. The same edge $t$ that launches new data from R1 is the edge R2 is using to latch its old input. If the new value sprints through the fastest path and reaches R2 while R2's hold window ( $t_{h o l d}$ after the edge) is still open, it overwrites the old value mid-capture. So the earliest the new value may arrive, $t_{c q} + t_{co mb, min}$ , must be no sooner than the window closes: $t_{c q} + t_{co mb, min} \geq t_{h o l d} .$ Notice $T$ is absent — this is a race at one edge, independent of how long the runway is.

L1 — Recognition

Exercise 1.1

Which of these Verilog lines creates a register (stored state), and which creates only combinational wires/gates?

(a) assign s = a ^ b;
(b) always @(posedge clk) q <= d;
(c) always @(*) y = sel ? p : n;
(d) wire [3:0] sum = x + y;

Recall Solution 1.1

A register is created only when a signal is assigned inside @(posedge clk) (or has clocked feedback).

(a) assign → combinational wire/gate (an XOR gate). Not a register.
(b) q <= d inside @(posedge clk) → register (a D flip-flop). ✅
(c) always @(*) → combinational (a 2-to-1 mux). Not a register.
(d) wire ... = x+y → combinational (an adder). Not a register. Answer: only (b) is a register.

Exercise 1.2

In the equations $Q_{t + 1} = δ (Q_{t}, X_{t})$ and $Y_{t} = λ (Q_{t}, X_{t})$ , name what each of $Q_{t}$ , $X_{t}$ , $δ$ , $λ$ is in plain words.

Recall Solution 1.2

$Q_{t}$ = current register contents (the machine's memory right now).
$X_{t}$ = inputs arriving this cycle.
$δ$ = next-state combinational logic — the function that computes what the registers will hold next.
$λ$ = output logic — the function that computes the outputs from state and inputs. The update $Q_{t + 1}$ happens only at the clock edge; $δ$ and $λ$ are pure combinational functions with no memory.

L2 — Application

Exercise 2.1

A register-to-register path has $t_{c q} = 0.25$ ns, $t_{co mb, ma x} = 2.15$ ns, $t_{se t u p} = 0.30$ ns. Find the minimum clock period $T_{min}$ and the maximum frequency $f_{ma x}$ in GHz.

Recall Solution 2.1

Use the setup rule $T \geq t_{c q} + t_{co mb, ma x} + t_{se t u p}$ . $T_{min} = 0.25 + 2.15 + 0.30 = 2.70 ns$ $f_{ma x} = \frac{1}{2.70 ns} = \frac{1}{2.70 \times 1 0 ^{- 9} s} \approx 0.370 GHz = 370.4 MHz$ What this means: the logic barely settles in 2.70 ns, so you cannot clock faster than ~370 MHz without a setup violation.

Exercise 2.2

An 8-bit accumulator does acc <= acc + data_in;. How many flip-flops does the design need? How many for a 32-bit version?

Recall Solution 2.2

A register stores one bit per flip-flop. Only acc is stored (the adder is combinational gates, not storage).

8-bit acc → 8 flip-flops.
32-bit acc → 32 flip-flops. The adder is synthesized as gates and adds zero flip-flops. (See Logic synthesis for how acc + data_in becomes an adder.)

Exercise 2.3

Complete this module so that y holds (a + b) * c registered on the clock. Fill the two blanks (___).

wire [15:0] prod = ___ ;
always @(posedge clk) y ___ prod;

Recall Solution 2.3

wire [15:0] prod = (a + b) * c;   // combinational: adder + multiplier
always @(posedge clk) y <= prod;  // sequential: latch with non-blocking <=

The wire is pure combinational math — it re-computes every instant.
The register uses <= (non-blocking) because it is inside @(posedge clk) (see the L3 trap for why).

L3 — Analysis

Exercise 3.1

This block is meant to swap a and b every clock, but it fails. Explain why, then fix it.

always @(posedge clk) begin
  a = b;
  b = a;
end

Recall Solution 3.1

Why it fails: = is a blocking assignment — statements run in order, and each sees the results of the previous one immediately.

a = b; → a now equals old b.
b = a; → a was already updated, so b also gets old b. Result: both end up as old b. No swap. Fix — use non-blocking <=:

always @(posedge clk) begin
  a <= b;
  b <= a;
end

Non-blocking reads all right-hand sides using the pre-edge (old) values first, then updates both simultaneously — exactly how real flip-flops fire in parallel. Now a↔b truly swap.

Exercise 3.2

Two flip-flops sit back-to-back with no logic between them (a shift register). Given $t_{c q} = 0.20$ ns and $t_{h o l d} = 0.15$ ns, does this pass the hold constraint? Show the check.

Recall Solution 3.2

With no logic, $t_{co mb, min} = 0$ . Hold rule: $t_{c q} + t_{co mb, min} \geq t_{h o l d}$ . $0.20 + 0 = 0.20 ns \geq 0.15 ns ✓$ Passes. The new data reaches R2 no earlier than $0.20$ ns after the edge, which is after R2's $0.15$ ns hold window closes, so the old value latches safely. (Notice $T$ never appeared — hold is edge-local.)

Exercise 3.3

A path has $t_{c q} = 0.20$ ns, $t_{co mb, min} = 0.05$ ns, $t_{h o l d} = 0.40$ ns. Is there a hold violation? If so, by how much, and what fix works?

Recall Solution 3.3

Check: $t_{c q} + t_{co mb, min} = 0.20 + 0.05 = 0.25$ ns. Required: $\geq 0.40$ ns. $0.25 < 0.40 \Rightarrow hold violation, short by 0.40 - 0.25 = 0.15 ns .$ The data arrives too early and corrupts the same-edge capture. Fix: add delay (buffers) on the short path so $t_{co mb, min}$ rises by at least $0.15$ ns → $t_{c q} + t_{co mb, min} = 0.40$ ns, just meeting hold. Slowing the clock does nothing — $T$ is not in the hold equation.

L4 — Synthesis

Exercise 4.1

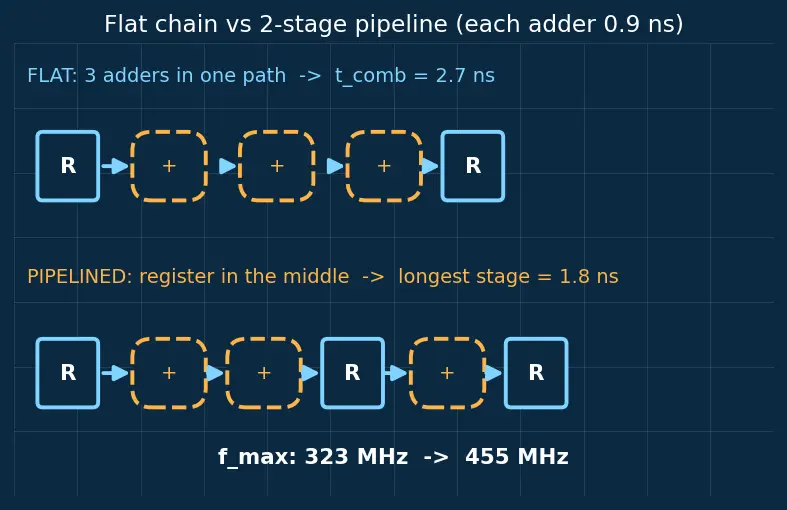

A single combinational block computes out = ((a+b) + c) + d (three chained adds) between two registers. Each adder has $t_{co mb} = 0.9$ ns; $t_{c q} = 0.2$ ns, $t_{se t u p} = 0.2$ ns. (a) Find $f_{ma x}$ as one flat block. (b) Split it into 2 pipeline stages (register after two adders, then one adder). New critical path? New $f_{ma x}$ ? Use the figure below.

Recall Solution 4.1

(a) Flat: three adders in series → $t_{co mb, ma x} = 3 \times 0.9 = 2.7$ ns. $T = 0.2 + 2.7 + 0.2 = 3.1 ns \Rightarrow f_{ma x} = \frac{1}{3.1 ns} \approx 322.6 MHz$ (b) Pipelined (2 stages): longest stage now holds two adders → $t_{co mb, ma x} = 2 \times 0.9 = 1.8$ ns (the other stage has 1 adder = 0.9 ns; the longest stage sets the clock). $T = 0.2 + 1.8 + 0.2 = 2.2 ns \Rightarrow f_{ma x} = \frac{1}{2.2 ns} \approx 454.5 MHz$ Payoff: cutting the critical path from 3 adders to 2 raised throughput from ~323 MHz to ~455 MHz — a $1.41 \times$ speedup, at the cost of extra pipeline registers and 1 cycle of latency. See Pipelining.

Exercise 4.2

Sketch (in words + code skeleton) an RTL description of a machine with states IDLE → LOAD → DONE, advancing one state per clock, that asserts ready in DONE. Identify $δ$ (next-state) and $λ$ (output) parts.

Recall Solution 4.2

This is a finite state machine: a state register plus two combinational functions. Here clk, rst are module inputs; ready is a module output.

module fsm(input clk, input rst,        // rst = synchronous reset input
           output ready);
  reg [1:0] state, next;                // 'reg' is a Verilog storage TYPE, not
                                        // a promise of a flip-flop (see note below)
  localparam IDLE=0, LOAD=1, DONE=2;

  always @(*) begin                     // δ: next-state logic (combinational)
    case (state)
      IDLE: next = LOAD;
      LOAD: next = DONE;
      DONE: next = DONE;
      default: next = IDLE;
    endcase
  end

  always @(posedge clk) begin           // the register: latch next state
    if (rst) state <= IDLE;             // synchronous reset: only acts on an edge
    else     state <= next;
  end

  assign ready = (state == DONE);       // λ: output logic (combinational)
endmodule

$δ$ = the always @(*) case → next-state combinational function.
$λ$ = the assign ready = ... → output combinational function.
reg ≠ hardware register. In Verilog, reg merely means "a variable that may be assigned inside a procedural block." Whether it becomes flip-flops depends on how it is assigned: state is written inside @(posedge clk), so it synthesizes to 2 flip-flops; next is written inside @(*) and fully re-computed every case, so it synthesizes to pure combinational logic (a mux), no flip-flops. Only state stores anything.
rst here is a synchronous reset: it is tested inside @(posedge clk), so it only takes effect on a rising edge (feeding the D input), exactly like ordinary logic. An asynchronous reset would instead appear in the sensitivity list, e.g. always @(posedge clk or posedge rst), and act the instant rst rises regardless of the clock.

L5 — Mastery

Exercise 5.1

You are handed a design that fails setup at the target 1.0 GHz ( $T = 1.0$ ns). Measured on the critical path: $t_{c q} = 0.15$ ns, $t_{co mb, ma x} = 1.10$ ns, $t_{se t u p} = 0.10$ ns. (a) By how much does it violate (the slack)? (b) If you pipeline the combinational cloud into two equal halves (register in the middle), what is the new critical-path $t_{co mb}$ , the new $T_{min}$ , and does it now meet 1.0 GHz?

Recall Solution 5.1

(a) Required arrival budget is $T = 1.0$ ns; actual path needs $t_{c q} + t_{co mb, ma x} + t_{se t u p} = 0.15 + 1.10 + 0.10 = 1.35$ ns. $slack = T - (t_{c q} + t_{co mb, ma x} + t_{se t u p}) = 1.0 - 1.35 = - 0.35 ns$ Negative slack ⇒ fails by 0.35 ns. (b) Split $1.10$ ns into two equal halves → each stage $t_{co mb} = 0.55$ ns. $T_{min} = 0.15 + 0.55 + 0.10 = 0.80 ns \Rightarrow f_{ma x} = \frac{1}{0.80 ns} = 1.25 GHz$ Since $T_{min} = 0.80$ ns $\leq 1.0$ ns, it now meets 1.0 GHz with slack $= 1.0 - 0.80 = 0.20$ ns to spare. (See Static Timing Analysis for how tools report slack.)

Exercise 5.2

Two registers are clocked by different, unrelated clocks (a clock-domain crossing). Explain why the timing equations on this page do not apply directly, and what mechanism you must add.

Recall Solution 5.2

Our setup/hold equations assume one clock: R1 launches and R2 captures relative to the same periodic edge, so the phase relationship is fixed and $T$ is well-defined. Across two unrelated clocks, the launching edge and capturing edge can land arbitrarily close — there is no fixed $T$ between them. A signal can be sampled while it is still changing, driving the flip-flop into a metastable state (output hovering between 0 and 1 for an unbounded time). What you must add: a synchronizer — typically two (or more) flip-flops in series in the destination clock domain. The first may go metastable but is given a full cycle to resolve before the second samples it, making the probability of failure vanishingly small. See Clock domains and metastability. Key point: you cannot fix this by tweaking $t_{co mb}$ or $T$ — the single-clock model simply does not describe two independent clocks.

Recall One-line self-test

Fastest clock a single-clock path allows is set by which sum? ::: $f_{ma x} = 1/ (t_{c q} + t_{co mb, ma x} + t_{se t u p})$ — the critical (slowest) path. Which timing constraint has no $T$ in it, so a slower clock cannot fix it? ::: The hold constraint, $t_{c q} + t_{co mb, min} \geq t_{h o l d}$ . What is slack? ::: $T - (t_{c q} + t_{co mb, ma x} + t_{se t u p})$ — leftover time in the period; negative means the path violates timing.
