Transpiration cooling: Visual walkthrough — Physics deep dive

We assume you know only this: heat is energy that flows from hot to cold, and energy is never created or destroyed. Everything else — every symbol — we earn on the way.

Step 1 — The wall, the hot gas, and the coolant

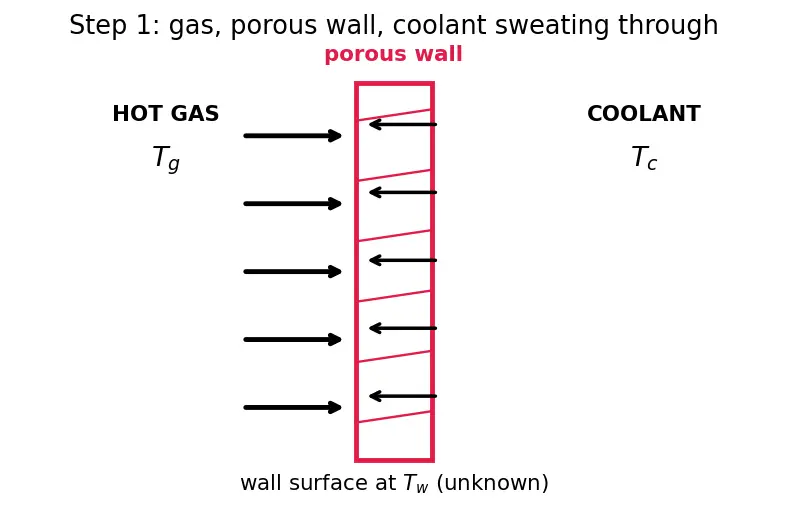

WHAT. Picture a thin slice of rocket wall. On the left, scorching combustion gas at temperature $T_{g}$ . On the right, cold coolant reservoir at temperature $T_{c}$ . The wall itself is porous — full of microscopic tunnels — and cold coolant is being pushed through those tunnels out into the hot gas.

WHY. Before any algebra, we must agree on what the objects are and which way heat wants to go. Heat flows from the $T_{g}$ side toward the $T_{c}$ side. Our whole job is to find the temperature the wall surface settles at — call it $T_{w}$ — which sits somewhere between the two.

PICTURE. The red wall is the star. Hot gas hammers it from the left; coolant seeps out through the pores (the little arrows).

Step 2 — How fast does the gas dump heat? (the bare wall)

WHAT. Imagine — just for a moment — the pores are plugged, no coolant blowing. The gas still dumps heat into the wall. How much per second, per square metre? We write

$q_{0} = h_{0} (T_{g} - T_{w}) .$

WHY this form, and why now. Two facts drive it:

The bigger the temperature gap $(T_{g} - T_{w})$ , the harder heat is pushed across — double the gap, double the flow. So flux is proportional to $(T_{g} - T_{w})$ .
Everything else about how the swirling gas delivers heat (its speed, its stickiness, the boundary layer) is bundled into ONE number $h_{0}$ .

That is why we reach for this tool and not, say, a derivative of temperature: we want the net delivered flux summarised, not the fine detail inside the gas. This is convective heat transfer, "Newton's law of cooling" style.

PICTURE. A downhill ramp. Height = temperature. The gas sits high at $T_{g}$ , the wall lower at $T_{w}$ ; heat rolls down the slope. Steeper slope (bigger gap) → faster roll.

Step 3 — Blowing weakens the attack

WHAT. Now open the pores. Coolant sweating out pushes the hot gas away from the wall, thickening the insulating blanket between gas and metal. The gas can no longer touch the wall as effectively. We capture this with a smaller delivery coefficient $h$ and define the ratio of the two:

$η = \frac{h}{h _{0}} = \frac{q}{q _{0}}, 0 < η \leq 1.$

The real (blown) flux becomes

$q = η h_{0} (T_{g} - T_{w}) .$

WHY. Blowing does not change the temperature gap $(T_{g} - T_{w})$ — the gas is still hot, the wall still $T_{w}$ . What it changes is how efficiently that gap gets converted into delivered heat. So the honest place to insert the effect is the delivery coefficient, via the multiplier $η$ .

WHY a ratio and not a subtraction? Because $η$ tells us a fraction survives: $η = 0.4$ means only $40%$ of the bare heat gets through. Fractions are the natural language of "how much did we block."

PICTURE. Same downhill heat-flow, but now a red coolant blanket blocks part of the channel. The arrow that reaches the wall is visibly thinner — that thinning is $η$ .

Step 4 — Where does that heat go? (the coolant is a sponge)

WHAT. By assumption 1 (steady state) the wall is not heating up or cooling down — its temperature is fixed. So every joule the gas delivers must be carried away, and by assumptions 3–4 the only exit is the coolant (no radiation, no separate wall-thickness bookkeeping). The escaping coolant is the getaway car: it enters cold at $T_{c}$ and leaves at the wall temperature $T_{w}$ , soaking up energy on the way. Over an area $A$ :

$q A = \overset{m}{˙}_{c} c_{p} (T_{w} - T_{c}) .$

WHY. This is pure conservation of energy at the hot surface: heat in from gas = heat out into coolant. Nothing piles up (assumption 1), and the neglected radiation (assumption 4) would only help — so this balance is a safe, slightly conservative estimate. That single accounting statement is the backbone of the whole result.

Why these three factors on the right? To warm a stream you need: how much stuff flows ( $\overset{m}{˙}_{c}$ , kg/s), how thirsty each kilogram is for heat ( $c_{p}$ , in $J k g^{- 1} K^{- 1}$ ), and how many degrees you warm it ( $T_{w} - T_{c}$ , in K). Multiply → total power absorbed, in W.

PICTURE. The coolant stream as a conveyor of buckets: cold buckets go in at $T_{c}$ , come out full and warm at $T_{w}$ , carrying heat away from the wall.

Step 5 — Tidy up with mass flux $G$

WHAT. We care about "per square metre," so divide the whole balance by the area $A$ . Define the mass flux

$G = \frac{m ˙ _{c}}{A} (kg m^{- 2} s^{- 1}) .$

The balance becomes, using $q = η h_{0} (T_{g} - T_{w})$ from Step 3:

$η h_{0} (T_{g} - T_{w}) = G c_{p} (T_{w} - T_{c}) .$

WHY. Rockets vary in size; the physics per unit area does not. $G$ ("how many kilograms sweat out of each square metre each second") strips the arbitrary patch size $A$ out of the problem. Now both sides read "watts per square metre."

PICTURE. Two opposing arrows meeting at the wall, perfectly balanced on a see-saw: gas-side push $η h_{0} (T_{g} - T_{w})$ on the left, coolant-side pull $G c_{p} (T_{w} - T_{c})$ on the right. Equal in steady state.

Step 6 — Solve for the wall temperature

WHAT. We have one equation, one unknown $T_{w}$ . Expand and collect all $T_{w}$ terms on one side.

$η h_{0} T_{g} - η h_{0} T_{w} = G c_{p} T_{w} - G c_{p} T_{c}$ $η h_{0} T_{g} + G c_{p} T_{c} = T_{w} (η h_{0} + G c_{p})$ $T_{w} = \frac{η h _{0} T _{g} + G c _{p} T _{c}}{η h _{0} + G c _{p}}$

WHY. Nothing physical happens here — it is pure algebra, isolating the quantity we want. But look at the shape: $T_{w}$ is a weighted average of $T_{g}$ and $T_{c}$ , with weights equal to the two conductances from Step 5.

PICTURE. A balance beam. $T_{g}$ sits at one end, $T_{c}$ at the other, and $T_{w}$ is the balance point. The gas-side weight $η h_{0}$ hangs under $T_{g}$ ; the coolant-side weight $G c_{p}$ hangs under $T_{c}$ . Heavier coolant weight → balance point slides toward the cold end → cooler wall.

Step 7 — The clean scorecard: cooling effectiveness $ϕ$

WHAT. The boxed $T_{w}$ mixes four constants. To grade "how good is our cooling" on a 0-to-1 scale, define

$ϕ \equiv \frac{T _{g} - T _{w}}{T _{g} - T _{c}} .$

Now watch the algebra — each move has a reason.

(a) Substitute the boxed $T_{w}$ into $T_{g} - T_{w}$ . Why: $ϕ$ is built from $T_{g} - T_{w}$ , so replace $T_{w}$ . $T_{g} - T_{w} = T_{g} - \frac{η h _{0} T _{g} + G c _{p} T _{c}}{η h _{0} + G c _{p}} .$

(b) Put $T_{g}$ over the common denominator. Why: to combine the two fractions into one we need the same denominator $(η h_{0} + G c_{p})$ . $T_{g} - T_{w} = \frac{T _{g} ( η h _{0} + G c _{p} ) - ( η h _{0} T _{g} + G c _{p} T _{c} )}{η h _{0} + G c _{p}} .$

(c) Expand the numerator and cancel the $η h_{0} T_{g}$ terms. Why: $T_{g} \cdot η h_{0}$ appears with a $+$ and a $-$ , so it vanishes — this is the key cancellation. $T_{g} η h_{0} + T_{g} G c_{p} - η h_{0} T_{g} - G c_{p} T_{c} = G c_{p} T_{g} - G c_{p} T_{c} = G c_{p} (T_{g} - T_{c}) .$ So $T_{g} - T_{w} = \frac{G c _{p} ( T _{g} - T _{c} )}{η h _{0} + G c _{p}} .$

(d) Divide by $(T_{g} - T_{c})$ to form $ϕ$ . Why: the definition of $ϕ$ has $(T_{g} - T_{c})$ in the denominator; it cancels the factor we just produced. $ϕ = \frac{T _{g} - T _{w}}{T _{g} - T _{c}} = \frac{G c _{p} ( T _{g} - T _{c} )}{( η h _{0} + G c _{p} ) ( T _{g} - T _{c} )} = \frac{G c _{p}}{η h _{0} + G c _{p}} .$

(e) Divide top and bottom by $G c_{p}$ to expose the single governing knob. Why: it reveals that only the ratio $η h_{0} / G c_{p}$ matters. $ϕ = \frac{G c _{p}}{η h _{0} + G c _{p}} = \frac{1}{1 + \frac{η h _{0}}{G c _{p}}}$

WHY the whole detour. $T_{w}$ in kelvin depends on the specific gas and coolant. But $ϕ$ is dimensionless — it asks "of the whole gap $T_{g} - T_{c}$ , what fraction did we close?" That makes different designs comparable and shows a single knob controls everything: the conductance ratio $\frac{G c _{p}}{η h _{0}}$ .

PICTURE. A thermometer bar from $T_{c}$ (bottom) to $T_{g}$ (top). $ϕ$ is how far down from the top the wall sits, measured as a fraction of the full bar. $ϕ = 0$ → wall pinned at the top (as hot as gas, useless). $ϕ = 1$ → wall at the very bottom (as cold as coolant, perfect).

Step 8 — All the edge cases (never get surprised)

WHAT. A formula you trust is one you have pushed to its limits. Check the extremes.

Case	What happens physically	Formula says
No coolant $G \to 0$	Pores plugged, full attack	$T_{w} \to T_{g}$ , $ϕ \to 0$
Flood of coolant $G \to \infty$	Coolant weight dominates	$T_{w} \to T_{c}$ , $ϕ \to 1$
No blowing benefit $η = 1$	Blanket does nothing (heat sink only)	still cools via $G c_{p}$ , just weaker
Perfect blanket $η \to 0$	Gas can't reach wall	$T_{w} \to T_{c}$ , $ϕ \to 1$
Equal conductances $η h_{0} = G c_{p}$	Balance point in the middle	$ϕ = 0.5$ , wall exactly halfway

WHY. Each limit must match common sense — and it does. No coolant → wall as hot as gas (you'd melt). Infinite coolant → wall as cold as coolant (but you'd waste all your propellant — see Specific Impulse). The middle case is a handy mental anchor: equal weights ⇒ wall dead centre.

PICTURE. The balance beam shown in three snapshots — coolant weight tiny (wall high, near $T_{g}$ ), coolant weight huge (wall low, near $T_{c}$ ), coolant weight equal (wall centred). This is the payoff picture: it turns all five table rows into one sliding motion.

The one-picture summary

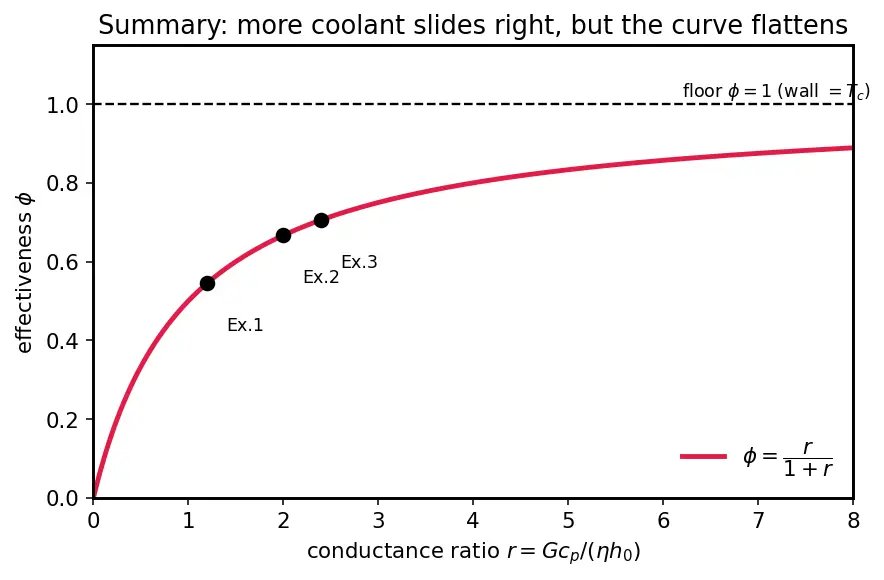

The single figure below is not another balance beam — it is the effectiveness curve $ϕ$ versus the coolant/gas conductance ratio, with the three worked-example operating points marked. It compresses the whole story into one line: as you pour in more coolant you slide rightward and upward toward $ϕ = 1$ , but the curve flattens — the diminishing-returns floor made visual.

Recall Feynman retelling — say it back in plain words

The hot gas wants to dump heat into the wall. In steady state the wall can't heat up, so whatever comes in must go out — and (ignoring radiation) the only exit is the coolant sweating through the pores. Write "heat delivered by gas = heat hauled away by coolant." The gas side is how hard it pushes ( $η h_{0}$ , in watts per square metre per kelvin) times the temperature gap; blowing shrinks that push through $η$ . The coolant side is how much it can absorb ( $G c_{p}$ , same units) times its own temperature rise. Set them equal, solve, and out pops a see-saw: the wall temperature is the balance point between gas and coolant, tipped by whichever conductance is heavier. Add more coolant and the balance slides toward cold — but only down to the coolant temperature, never below, so the gains fade. That floor is the whole story of why "more coolant" is not a free lunch.

Recall Rebuild the boxed formula from scratch

Start from the balance ::: $η h_{0} (T_{g} - T_{w}) = G c_{p} (T_{w} - T_{c})$ Collect $T_{w}$ terms ::: $η h_{0} T_{g} + G c_{p} T_{c} = T_{w} (η h_{0} + G c_{p})$ Final wall temperature ::: $T_{w} = \frac{η h _{0} T _{g} + G c _{p} T _{c}}{η h _{0} + G c _{p}}$ Effectiveness $ϕ$ ::: $\frac{G c _{p}}{η h _{0} + G c _{p}}$

Related cooling schemes to compare against: Regenerative Cooling, Film Cooling, Ablative Cooling. Where the heat load peaks: Nozzle Throat Heat Flux.
