WHAT is ablative cooling?

The two key sub-mechanisms in this note:

Charring ::: the resin/polymer decomposes into a porous carbon layer (the char).
Blowing ::: the gases released push outward into the boundary layer and thicken it, cutting convective heat transfer.

WHY does it work? (First principles)

Heat arrives at the wall mainly by convection from the hot boundary-layer gas: $\dot q_{conv} = h\,(T_{gas}-T_{wall})$ where $h$ is the convective heat-transfer coefficient. Three independent "levers" reduce the heat that reaches the cold structure:

Energy sink (heat of ablation). Breaking chemical bonds, melting and vaporizing all require energy. That energy comes out of the incoming heat flux, so less is left to reach the structure.
Char layer = insulator. The carbon char has very low thermal conductivity, so it acts like a growing blanket.
Blowing = boundary-layer thickening. Injected gas literally pushes the hot gas away from the surface, reducing the effective $h$ .

Charring — the layered structure

As you go from cold structure to hot gas you cross four zones:

Zone	State	What's happening
Virgin material	intact resin+fiber	still cold, unreacted
Pyrolysis (reaction) zone	resin decomposing	endothermic bond-breaking, gas released
Char layer	porous carbon	insulates; can radiate & react with $O_2$
Boundary layer	injected + hot gas	blowing cushion

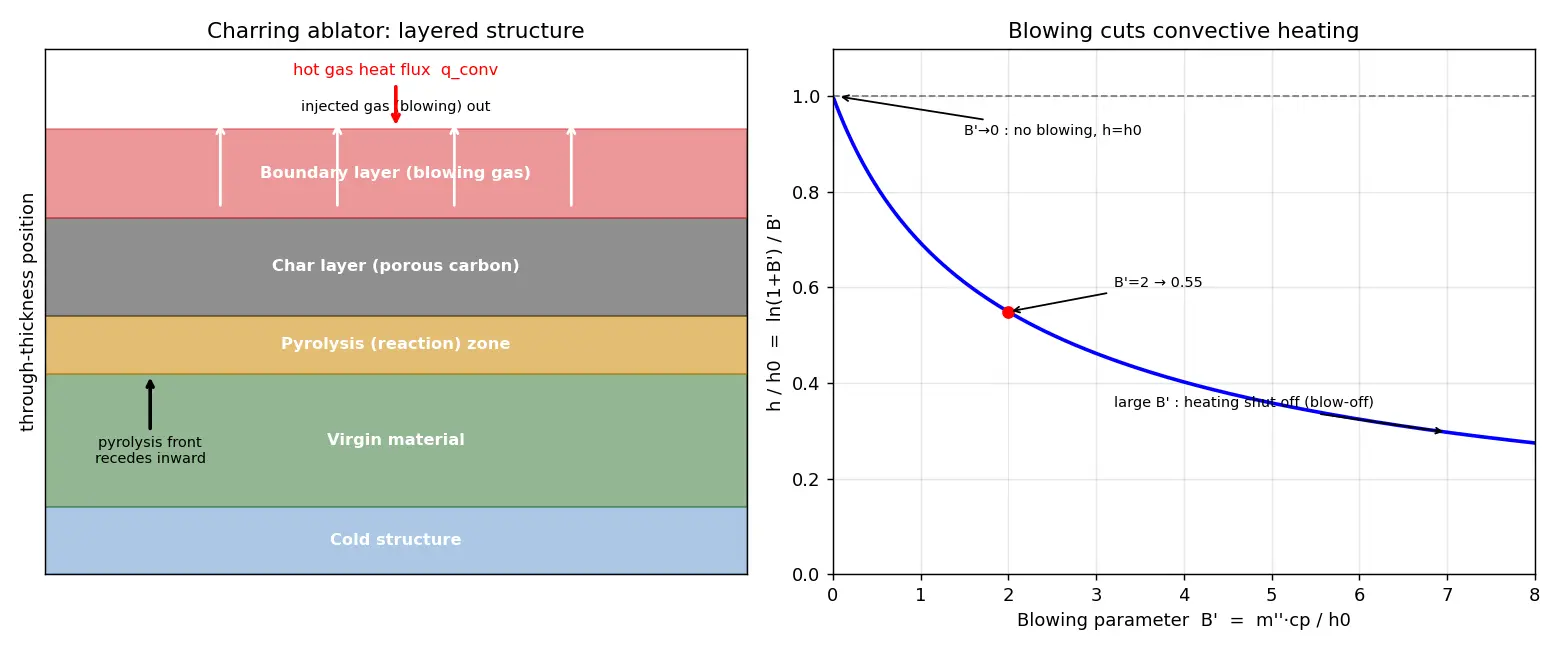

Figure — Ablative cooling — charring, blowing

Formula Pyrolysis (charring) as an energy sink — derive it

WHY: We want to show how much heat the decomposition swallows. Consider mass $dm_p$ of virgin resin turning into gas + char in time $dt$ . Let $Q_p$ = enthalpy absorbed per unit mass pyrolyzed (J/kg). Energy conservation at the reaction front: $\dot q_{pyro} = \dot m_p\,Q_p$ HOW we build it: heat flux consumed = (mass rate reacting) × (energy per kg). The mass rate is set by how fast the pyrolysis front advances, $\dot m_p=\rho_v\,\dfrac{ds}{dt}$ , where $\rho_v$ is virgin density and $s$ the front position. So $\boxed{\dot q_{pyro}=\rho_v\,\frac{ds}{dt}\,Q_p}$ The bigger $Q_p$ (endothermic decomposition), the slower the front recedes for a given heat load — a good ablator.

Blowing — the gas cushion

Formula The blowing correction — derive the reduction factor

WHY: Quantify how much blowing cuts the convective flux. Without blowing, wall heating is $\dot q_0 = h_0(H_{gas}-H_{wall})$ (write in enthalpies $H$ ; more general than $T$ ). Inject gas at mass rate per area $\dot m''$ (kg/m²·s). Non-dimensionalize by the un-blown transfer coefficient: $B'=\frac{\dot m''}{h_0/c_p}=\frac{\dot m''\,c_p}{h_0}\quad(\text{blowing parameter})$ The corrected coefficient falls roughly as $\frac{h}{h_0}=\frac{\ln(1+B')}{B'}\qquad\text{(film/Couette blowing model)}$ HOW derived (sketch): Model the boundary layer as 1-D Couette flow with a superimposed wall-normal mass flux $\dot m''$ . Solving the convection–diffusion energy balance with a wall blowing velocity gives the mass-transfer analogue of Stanton number reduction, whose classical closed form is $\ln(1+B')/B'$ . Check limits (Forecast-then-Verify):

$B'\to 0$ (no blowing): $\ln(1+B')/B'\to 1$ ⇒ $h\to h_0$ . ✔ makes sense.
$B'$ large: factor $\to 0$ ⇒ heating shut off ("blow-off"). ✔

Formula Effective heat of ablation — the master figure of merit

Combine everything into one number: how much heat you reject per kg of material lost. $Q^* \equiv \frac{\dot q_{net}}{\dot m''_{total}}\quad[\text{J/kg}]$ $\boxed{Q^* = \underbrace{Q_p}_{\text{pyrolysis}} + \underbrace{c_p\,(T_w-T_i)}_{\text{sensible heating}} + \underbrace{\eta\,\frac{h_0}{\dot m''}(H_{gas}-H_w)}_{\text{blocking by blowing}}}$ A high $Q^*$ means you lose little mass per joule handled — the definition of a good ablator (carbon-phenolic $Q^*\sim 10^7$ J/kg).

Worked examples

Worked example 1 — Recession from a heat load

A carbon-phenolic ablator: $\rho_v=1450\ \text{kg/m}^3$ , $Q^*=1.2\times10^7$ J/kg. It faces $\dot q_{net}=5\ \text{MW/m}^2$ for a 60 s burn. Find the recession depth.

Why this step: mass loss rate per area = flux ÷ heat of ablation, because $Q^*$ is J per kg. $\dot m''=\dot q/Q^*=\frac{5\times10^6}{1.2\times10^7}=0.417\ \text{kg/m}^2\text{s}$
Why this step: convert mass loss to depth via density: $\dot s=\dot m''/\rho_v$ . $\dot s=0.417/1450=2.87\times10^{-4}\ \text{m/s}=0.287\ \text{mm/s}$
Over 60 s: $s=0.287\times60\approx17\ \text{mm}$ . So a 2 cm liner survives. ✔

Common mistakes

Recall

Recall Active recall — cover the answers

What three levers reduce heat reaching the structure? ::: energy sink (pyrolysis/vaporization), insulating char, blowing (boundary-layer thickening).
Blowing correction factor? ::: $h/h_0=\ln(1+B')/B'$ .
Blowing parameter definition? ::: $B'=\dot m''c_p/h_0$ .
Master figure of merit? ::: effective heat of ablation $Q^*=\dot q_{net}/\dot m''$ .
Which cooling type has no moving parts, and its opposite? ::: ablative (passive) vs regenerative (pump coolant).

Recall Feynman: explain to a 12-year-old

Imagine a spaceship coming back to Earth so fast the air in front of it gets hotter than the sun's surface. Instead of using metal that would melt, we cover the ship in a special crusty material. When it gets super hot, the outside layer turns to charcoal and puffs out smoke. Making the charcoal and the smoke uses up the heat, and the smoke forms a puffy pillow of cool gas that keeps the fire away from the ship. The ship slowly loses its outer skin — on purpose — and the astronauts inside stay comfy.

Connections

Regenerative Cooling — active alternative; contrast pumped coolant vs sacrificial mass.
Radiative Cooling — third TPS method; char radiates too.
Boundary Layer Theory — where the blowing factor $\ln(1+B')/B'$ comes from.
Heat of Reaction and Pyrolysis — source of $Q_p$ .
Re-entry Aerothermodynamics — stagnation-point heating that drives ablation.
Convective Heat Transfer (Stanton number) — defines $h_0$ .

Ablative cooling core idea

Cool the wall by sacrificing (consuming) the wall material, carrying heat away with lost mass and shielding gas.

Charring

Endothermic decomposition of resin into a porous insulating carbon char, with a pyrolysis front receding inward.

Blowing

Pyrolysis gases injected into the boundary layer thicken it and reduce convective heat-transfer coefficient.

Blowing parameter B'

B'=\dot m'' c_p / h_0

, the injected mass flux normalized by the transfer coefficient.

Blowing correction factor

h/h_0=\ln(1+B')/B'

; equals 1 at B'=0, tends to 0 as B' grows (blow-off).

Effective heat of ablation Q*

Net heat flux per unit mass ablated; figure of merit, sum of pyrolysis + sensible + blocking terms.

Recession rate from heat load

\dot m''=\dot q/Q^*

, then depth rate

\dot s=\dot m''/\rho_v

Pyrolysis energy sink

\dot q_{pyro}=\rho_v (ds/dt) Q_p

Why char is good

Low thermal conductivity (insulates), radiates, and acts as a reaction barrier — it is protection, not damage.

Ablative vs regenerative

Ablative = passive, sacrificial, no moving parts; regenerative = pump cold propellant through wall channels.

Why enthalpy not temperature

At high T, gas dissociation makes enthalpy difference

H_g-H_w

the correct driving potential.

Diminishing returns of blowing

\ln(1+B')/B'

saturates, so extra injection cools little but erodes fast.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, ablative cooling ka funda simple hai: rocket nozzle ya re-entry heat shield ke saamne gas ka temperature hazaaron kelvin hota hai. Usse metal se rokne ki koshish karne ke bajaye, hum ek aisa material lagaate hain jo khud ko sacrifice kar deta hai. Uski upar ki layer jalti hai, char (kaala carbon) ban jaati hai, aur gas nikalti hai. Har gram material jo udta hai, wo bahut saara heat le jaata hai — yaani "wall ko phenk ke wall ko cool karna".

Do main mechanism hain. Pehla charring: resin garmi se decompose hoti hai (pyrolysis), ye reaction endothermic hai, matlab heat khaa jaati hai, aur peeche ek porous carbon char chhod jaati hai. Ye char low thermal conductivity ka insulator hai — bilkul jale hue toast ki crust jaisa, jo andar ke soft part ko bachaata hai. Dusra blowing: jo gas pyrolysis se nikli, wo boundary layer mein ghus ke usse mota kar deti hai, jisse convective heat transfer coefficient $h$ kam ho jaata hai. Formula hai $h/h_0=\ln(1+B')/B'$ , jahan $B'=\dot m'' c_p/h_0$ blowing parameter hai.

Important baat: jyada blowing hamesha better nahi hota — factor saturate ho jaata hai, log curve ki tarah. Aur ablator ki quality ka figure of merit hai effective heat of ablation $Q^*=\dot q/\dot m''$ — jitna zyada $Q^*$ , utna kam material har joule ke liye lose hota hai (carbon-phenolic ka $Q^*\sim 10^7$ J/kg). Recession depth nikaalne ke liye: $\dot m''=\dot q/Q^*$ , phir $\dot s=\dot m''/\rho$ . Yaad rakho: char damage nahi, protection hai; aur high temperature pe temperature ke bajaye enthalpy $H$ use karo.
