Ablative cooling — charring, blowing: Question bank

Symbols this page uses — build them before you test yourself

Before the traps, let us earn every symbol. All of these come from the parent note; here they are stated plainly so no line below surprises you.

Definition The gatekeeper symbols

$\overset{m}{˙}^{''}$ — the mass-injection flux: kilograms of pyrolysis gas pushed out through one square metre of wall each second. The double prime $^{''}$ is a bookkeeping mark meaning "per unit area"; a single dot means "per unit time". So $\overset{m}{˙}^{''}$ reads mass, per second, per square metre and its units are $kg/m^{2} s$ .
$h_{0}$ — the un-blown convective heat-transfer coefficient: how strongly hot gas would dump heat into the wall if no gas were being injected, defined by $\overset{q}{˙}_{0} = h_{0} (T_{g a s} - T_{w a l l})$ . Bigger $h_{0}$ = fiercer heating. Units: $W/m^{2} K$ . The subscript $0$ is a reminder: "before blowing turns the heating down."
$h$ — the actual (blown) convective heat-transfer coefficient: the same quantity as $h_{0}$ but measured while gas is being injected, defined by $\overset{q}{˙} = h (T_{g a s} - T_{w a l l})$ . Because blowing pushes the hot gas away, $h$ comes out smaller than $h_{0}$ ; the ratio $h / h_{0}$ (always $\leq 1$ ) is exactly how much heating is left.
$H$ — the specific enthalpy of the gas: the total energy stored per kilogram, including the energy hidden in dissociated chemical bonds, in $J/kg$ . We write $H_{g}$ for the hot free-stream gas and $H_{w}$ for gas right at the wall. We use $H$ instead of temperature because at re-entry heat can hide in broken bonds without raising $T$ .
$c_{p}$ — the specific heat at constant pressure: joules needed to warm one kilogram of a substance by one kelvin, in $J/kg\cdotK$ . It is the bridge between temperature change and energy: heat $= c_{p} \times Δ T$ per kilogram.

Definition The two "heat per kilogram" symbols the traps lean on

$Q_{p}$ — the pyrolysis enthalpy: the energy absorbed to decompose one kilogram of virgin resin into gas plus char, in $J/kg$ . Because the reaction is endothermic (it drinks heat), $Q_{p}$ is a genuine cooling channel — that swallowed energy never reaches the structure. Think "joules eaten per kilogram broken apart."
$Q^{*}$ — the effective heat of ablation (the master figure of merit): the total heat rejected per kilogram of material lost, $Q^{*} \equiv \overset{q}{˙}_{n e t} / \overset{m}{˙}_{t o t a l}^{''}$ , in $J/kg$ . It bundles all three cooling channels — pyrolysis $Q_{p}$ , sensible heating $c_{p} (T_{w} - T_{i})$ , and the blowing/blocking term — into one number. Big $Q^{*}$ = little mass sacrificed per joule handled = a good ablator (carbon-phenolic reaches $\sim 1 0^{7} J/kg$ ).

Now the two derived quantities everything below leans on:

Formula The blocking factor

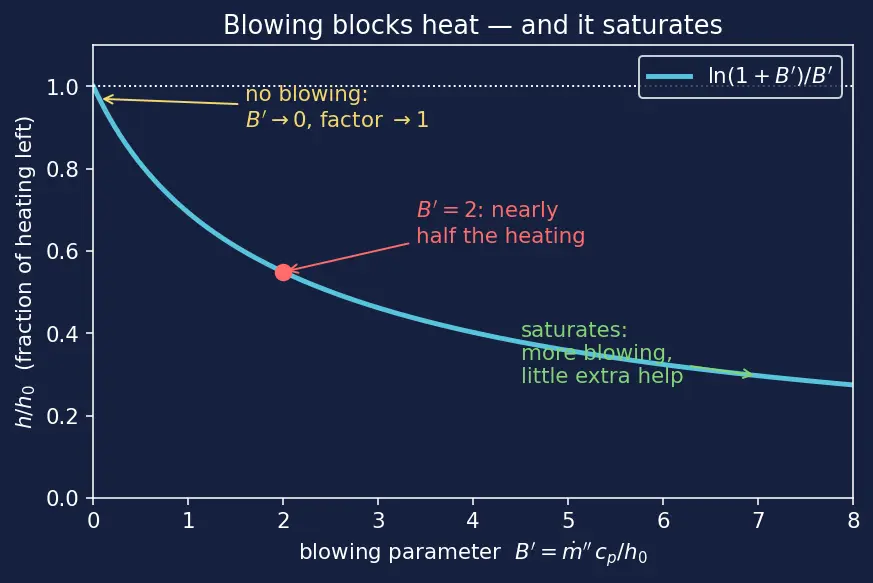

$ln (1 + B^{'}) / B^{'}$ — where the log comes from WHAT: with blowing, the effective coefficient falls from $h_{0}$ to $h$ where $\frac{h}{h _{0}} = \frac{l n ( 1 + B ^{'} )}{B ^{'}} .$ WHY a logarithm and not a straight line: model the near-wall layer as gas flowing across the wall while a small wall-normal blowing velocity $v_{w}$ (the outward speed, in $m/s$ , at which pyrolysis gas leaves the surface) pushes outward. Let $y$ be the distance measured straight out from the wall (in $m$ ), and let $α$ be the gas's thermal diffusivity (in $m^{2} /s$ — how fast heat spreads by diffusion). The wall-normal energy balance is a convection–diffusion equation whose solution for the enthalpy profile is an exponential shape, $\propto e^{(v_{w} y) / α}$ , because convection (carrying heat out at speed $v_{w}$ ) and diffusion (spreading it at rate $α$ ) fight to an exponential standoff. The heat that actually reaches the wall is proportional to the slope of that exponential at the wall ( $y = 0$ ), and inverting the exponential to solve for that slope is exactly what pulls a logarithm out — $ln (1 + B^{'})$ . Dividing by $B^{'}$ turns it into a fractional reduction. Look at Figure s01: the curve starts at $1$ (no blowing, no help) and bends over and saturates toward $0$ — that flattening is the whole reason "more blowing" gives diminishing returns.

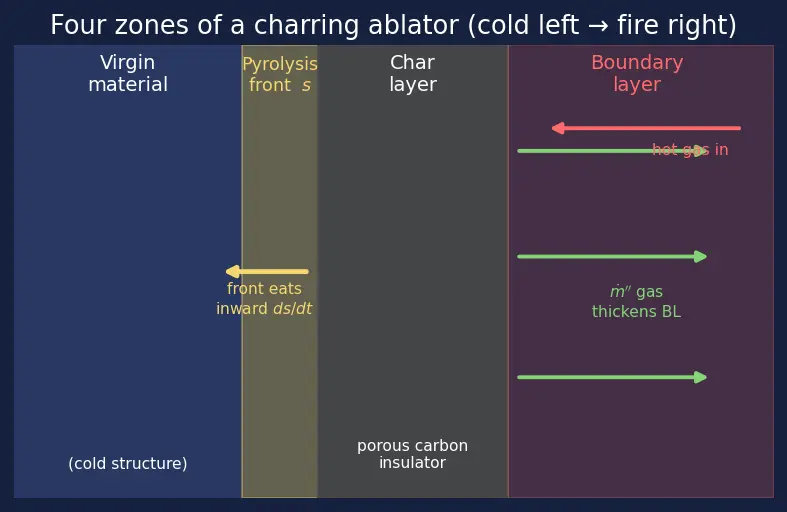

Figure — Ablative cooling — charring, blowing

True or false — justify

Recall Cover the answers — say your reason before revealing

An ablative material is designed to survive without losing mass. ::: False — it is designed to lose mass on purpose; every departing gram carries energy away. Survival means the structure underneath stays cool, not that the ablator stays intact. Ablative cooling needs pumps and coolant lines to work. ::: False — it is a passive method with no moving parts; contrast Regenerative Cooling, which does pump propellant through wall channels. A good ablator has a high effective heat of ablation $Q^{*}$ . ::: True — $Q^{*}$ is joules rejected per kilogram lost, so high $Q^{*}$ means little mass sacrificed per joule handled — you erode slowly. Charring is a phase change like melting. ::: False — charring is endothermic chemical decomposition (pyrolysis): bonds break and the resin becomes porous carbon plus gas. No liquid phase is required. The char layer is damage that should be minimised. ::: False — the char is the star: a low-conductivity insulator, a radiator, and a reaction barrier. You want it thick and attached. Blowing only cools while the gas is still touching the wall. ::: False — after leaving, the gas thickens the boundary layer, replacing hot gas near the wall with cool gas, which softens the wall temperature gradient and keeps cutting the incoming flux. Pyrolysis being endothermic is what makes it useful for cooling. ::: True — endothermic means it absorbs heat to proceed; that absorbed energy $Q_{p}$ is stolen from the incoming flux, so less reaches the structure. Doubling the blowing rate roughly doubles the cooling benefit. ::: False — the blocking factor $ln (1 + B^{'}) / B^{'}$ (with $B^{'} = \overset{m}{˙}^{''} c_{p} / h_{0}$ ) saturates as in Figure s01; past a point extra injection buys almost no heat reduction and only erodes you faster.

Spot the error

Recall Each statement hides one flaw — name it

"Heat arrives at the wall mainly by radiation, so we use an insulator." ::: The dominant arrival mode is convection from the hot boundary-layer gas, $\overset{q}{˙}_{co n v} = h (T_{g a s} - T_{w a l l})$ ; ablators fight that, though Radiative Cooling handles the re-radiation part. "Use $\overset{q}{˙} = h (T_{g} - T_{w})$ even at re-entry temperatures for accuracy." ::: At high temperature the gas dissociates and recombines, so the true driving potential is the specific-enthalpy difference $H_{g} - H_{w}$ (J/kg); temperature alone underestimates the load — a Re-entry Aerothermodynamics subtlety. "The blowing parameter is $B^{'} = h_{0} / (\overset{m}{˙}^{''} c_{p})$ ." ::: Inverted — it is $B^{'} = \overset{m}{˙}^{''} c_{p} / h_{0}$ : outgoing-gas heat capacity over the un-blown coefficient $h_{0}$ . More injected mass flux $\overset{m}{˙}^{''}$ → larger $B^{'}$ . "As $B^{'} \to 0$ , blowing shuts off all the heat." ::: Backwards — $B^{'} \to 0$ means no injection, so $ln (1 + B^{'}) / B^{'} \to 1$ and $h \to h_{0}$ (full heating). Large $B^{'}$ is what shuts heating off. " $Q^{*}$ counts only the pyrolysis enthalpy $Q_{p}$ ." ::: It also includes sensible heating $c_{p} (T_{w} - T_{i})$ and the blowing/blocking term; in typical carbon-phenolic the blocking term can dominate. "A higher virgin density $ρ_{v}$ always means the front recedes faster." ::: The opposite: $\overset{q}{˙}_{p y r o} = ρ_{v} \frac{d s}{d t} Q_{p}$ , so for a fixed heat flux a higher $ρ_{v}$ makes $d s / d t$ smaller — the front recedes slower. "Carbon-phenolic survives by melting at its surface." ::: It does not melt; it chars and then sublimes/reacts. Melting is the wrong mental model for this class of ablator.

Why questions

Recall Answer the "why" in one or two sentences

Why do we write the un-blown flux in specific enthalpies $H$ (J/kg) rather than temperatures $T$ ? ::: Because dissociation and recombination store energy per kilogram without changing temperature, so enthalpy is the general driving potential; $T$ is only a safe proxy when the gas is chemically frozen. Why does the char layer's low thermal conductivity matter more than its being carbon? ::: Low conductivity makes it a growing insulating blanket that throttles conduction to the cold structure; see how conduction depends on the gradient in Boundary Layer Theory. Why is $ln (1 + B^{'}) / B^{'}$ a logarithm and not linear? ::: Because the near-wall enthalpy profile solves to an exponential under blowing, and reading the wall slope off that exponential inverts to a log — that is what makes the factor saturate (Figure s01); more in Convective Heat Transfer (Stanton number). Why does blowing reduce the effective heat-transfer coefficient $h$ ? ::: The injected gas $\overset{m}{˙}^{''}$ pushes hot gas away and thickens the thermal boundary layer, so the near-wall temperature gradient is gentler and $h$ (which scales with that gradient) drops below $h_{0}$ . Why call ablative cooling "passive" if so much chemistry is happening? ::: "Passive" means no external machinery — no pumps, valves, or coolant loops; the response is self-driven by the incoming heat itself. Why does a larger endothermic $Q_{p}$ make a better ablator? ::: More energy absorbed per kilogram pyrolyzed means the front recedes slower for the same heat load, so the liner lasts longer — this ties directly to Heat of Reaction and Pyrolysis. Why is the effective heat of ablation $Q^{*}$ a "figure of merit" rather than a fixed material constant? ::: Because it bundles pyrolysis, sensible heating, and the blowing/blocking term, and the blocking part depends on the flow conditions ( $h_{0}$ , $\overset{m}{˙}^{''}$ , enthalpies) — so $Q^{*}$ shifts with the environment, not just the material.

Edge cases

Recall The limits, zeros, and degenerate scenarios

What happens to the blocking factor when there is zero injection, $\overset{m}{˙}^{''} = 0$ ? ::: Then $B^{'} = 0$ and $ln (1 + B^{'}) / B^{'} \to 1$ , so $h = h_{0}$ : with no blowing there is no blocking, and you get the full un-blown convective flux. What happens as $B^{'} \to \infty$ (enormous injection)? ::: $ln (1 + B^{'}) / B^{'} \to 0$ , so convective heating is essentially shut off — the "blow-off" limit — but you are eroding extremely fast, so it is not a free win. What if the char spalls off mechanically before it should? ::: You lose the insulating, radiating, reaction-blocking layer prematurely; the virgin material is suddenly exposed to full flux and recession accelerates — this is the classic failure mode. What if $Q_{p} = 0$ (a material that decomposes with no energy absorbed)? ::: The pyrolysis energy-sink lever vanishes, $\overset{q}{˙}_{p y r o} = 0$ , and $Q^{*}$ loses its first term; cooling then leans entirely on sensible heating and blowing, making the ablator far weaker. What if the gas is chemically frozen (no dissociation) — can we then use temperatures? ::: Yes; when there is no dissociation/recombination, enthalpy and temperature track each other, so $\overset{q}{˙} = h (T_{g} - T_{w})$ is acceptable — the enthalpy form just stays safe in all cases. What happens at the very start of the burn, before any char has formed? ::: The surface is still virgin with no insulating blanket and no blowing yet ( $\overset{m}{˙}^{''}$ ~ 0), so the initial heat flux to the material is highest; the char and gas cushion then build up and progressively cut the load. If two ablators reject the same net heat but one loses far less mass, which is better and why? ::: The one losing less mass — it has the higher $Q^{*}$ (more joules per kilogram), so a thinner, lighter liner survives the same mission.
