Transpiration cooling

WHAT is transpiration cooling?

It is the "active" cousin of two related ideas:

Film cooling — coolant injected through discrete slots/holes (a few big holes).
Transpiration cooling — coolant "sweated" uniformly through many microscopic pores (a porous solid).

WHY it matters in rockets: combustion-chamber and nozzle-throat gas temperatures ( $T_g \sim 3000\text{–}3500\ \mathrm{K}$ ) exceed the melting point of any wall material. You cannot survive with material alone; you must actively remove heat. Transpiration cooling gives the lowest wall temperature per unit coolant of the common schemes, which is why it appears on the most extreme heat-load regions (throats, re-entry noses, turbine blades).

HOW it works — the physics chain

Blowing thickens the boundary layer. Injected coolant pushes the hot boundary layer away from the wall. The temperature gradient at the wall $\left(\dfrac{\partial T}{\partial y}\right)_{wall}$ drops, so conduction into the wall drops.
Coolant is a heat sink. The coolant enters cold at $T_c$ and leaves near wall temperature $T_w$ , soaking up $\dot m_c\, c_p (T_w - T_c)$ of energy.
The result: the wall sits at a temperature $T_w$ far below the gas temperature $T_g$ .

DERIVATION — the wall energy balance (from scratch)

Set-up. Take a small wall patch of area $A$ . Let the coolant mass flow through it be $\dot m_c$ with specific heat $c_p$ , entering at $T_c$ and leaving at the wall temperature $T_w$ .

Step 1 — Heat from the gas WITHOUT blowing. Newton-style convection gives the un-blown heat flux $q_0 = h_0\,(T_g - T_w)$ where $h_0$ is the heat-transfer coefficient of the bare hot boundary layer. Why this step? Convection heat flux is proportional to the driving temperature difference $(T_g-T_w)$ ; $h_0$ packages all the boundary-layer fluid mechanics into one number.

Step 2 — Blowing reduces the flux. Injecting coolant lowers the effective coefficient to $h < h_0$ . Define the blowing reduction factor $\eta = \frac{q}{q_0} = \frac{h}{h_0}\quad(0<\eta\le 1),$ so the actual flux reaching the wall is $q = \eta\,h_0\,(T_g - T_w).$ Why this step? Blowing doesn't change $(T_g-T_w)$ directly; it changes how effectively the gas delivers heat, i.e. the coefficient.

Step 3 — Where that heat goes. The coolant absorbs it as it heats from $T_c$ to $T_w$ : $q\,A = \dot m_c\, c_p\,(T_w - T_c).$ Why this step? Energy in (from gas) = energy out (into coolant stream). Pure conservation.

Step 4 — Solve for the wall temperature. Substitute Step 2: $\eta\,h_0\,(T_g - T_w)\,A = \dot m_c\, c_p\,(T_w - T_c).$ Let $G = \dot m_c/A$ be the coolant mass flux (kg m⁻² s⁻¹). Divide by $A$ : $\eta\,h_0\,(T_g - T_w) = G\, c_p\,(T_w - T_c).$ Collect $T_w$ : $\boxed{\,T_w = \frac{\eta\,h_0\,T_g + G c_p\,T_c}{\eta\,h_0 + G c_p}\,}$

Non-dimensional form. Define the cooling effectiveness $\phi \equiv \frac{T_g - T_w}{T_g - T_c}.$ From the boxed result (subtract each side from $T_g$ and simplify): $\boxed{\;\phi = \frac{G c_p}{\eta h_0 + G c_p} = \frac{1}{1 + \dfrac{\eta h_0}{G c_p}}\;}$ Reading it: $\phi=0$ means wall as hot as gas (no cooling); $\phi=1$ means wall as cold as coolant (perfect). The ratio $\dfrac{Gc_p}{\eta h_0}$ is the "coolant-to-gas" conductance ratio — the single knob that governs everything.

Worked examples

Worked example Example 1 — Find the wall temperature

Gas $T_g = 3000\ \mathrm{K}$ , coolant enters at $T_c = 300\ \mathrm{K}$ , $c_p = 1200\ \mathrm{J\,kg^{-1}K^{-1}}$ . Bare coefficient $h_0 = 5000\ \mathrm{W\,m^{-2}K^{-1}}$ , blowing reduces it to $\eta = 0.4$ . Coolant mass flux $G = 2\ \mathrm{kg\,m^{-2}s^{-1}}$ .

Step 1 — gas conductance. $\eta h_0 = 0.4\times5000 = 2000\ \mathrm{W\,m^{-2}K^{-1}}$ . Why? This is the effective heat-delivery per kelvin after blowing.

Step 2 — coolant conductance. $G c_p = 2\times1200 = 2400\ \mathrm{W\,m^{-2}K^{-1}}$ . Why? Heat the coolant can absorb per kelvin of temperature rise per unit area.

Step 3 — plug into the box. $T_w = \frac{2000(3000)+2400(300)}{2000+2400} = \frac{6\,000\,000 + 720\,000}{4400} = \frac{6\,720\,000}{4400} \approx 1527\ \mathrm{K}.$ Effectiveness: $\phi = \dfrac{2400}{4400}=0.545$ . The wall runs at 1527 K — survivable for many alloys, vs. an impossible 3000 K.

Worked example Example 2 — How much coolant to hit a target wall temperature?

Same gas and coolant, but require $T_w \le 1200\ \mathrm{K}$ . Find the minimum $G$ (take $\eta=0.4$ , treated constant).

Step 1 — use the effectiveness form. Need $\phi = \dfrac{3000-1200}{3000-300} = \dfrac{1800}{2700}=0.667$ . Why? Effectiveness is the cleanest handle when the target is the wall temperature.

Step 2 — invert $\phi$ . From $\phi = \dfrac{Gc_p}{\eta h_0 + Gc_p}$ : $\phi(\eta h_0 + Gc_p) = Gc_p \Rightarrow \phi\,\eta h_0 = Gc_p(1-\phi) \Rightarrow Gc_p = \frac{\phi}{1-\phi}\,\eta h_0.$ Why? Pure algebra: isolate the coolant conductance.

Step 3 — numbers. $Gc_p = \dfrac{0.667}{0.333}\times2000 = 2\times2000 = 4000$ . So $G = 4000/1200 \approx 3.33\ \mathrm{kg\,m^{-2}s^{-1}}$ . Sanity: to go from $T_w=1527$ K to $1200$ K we needed to raise $G$ from 2 to 3.33 — more coolant, cooler wall. ✔

Worked example Example 3 — Forecast-then-verify

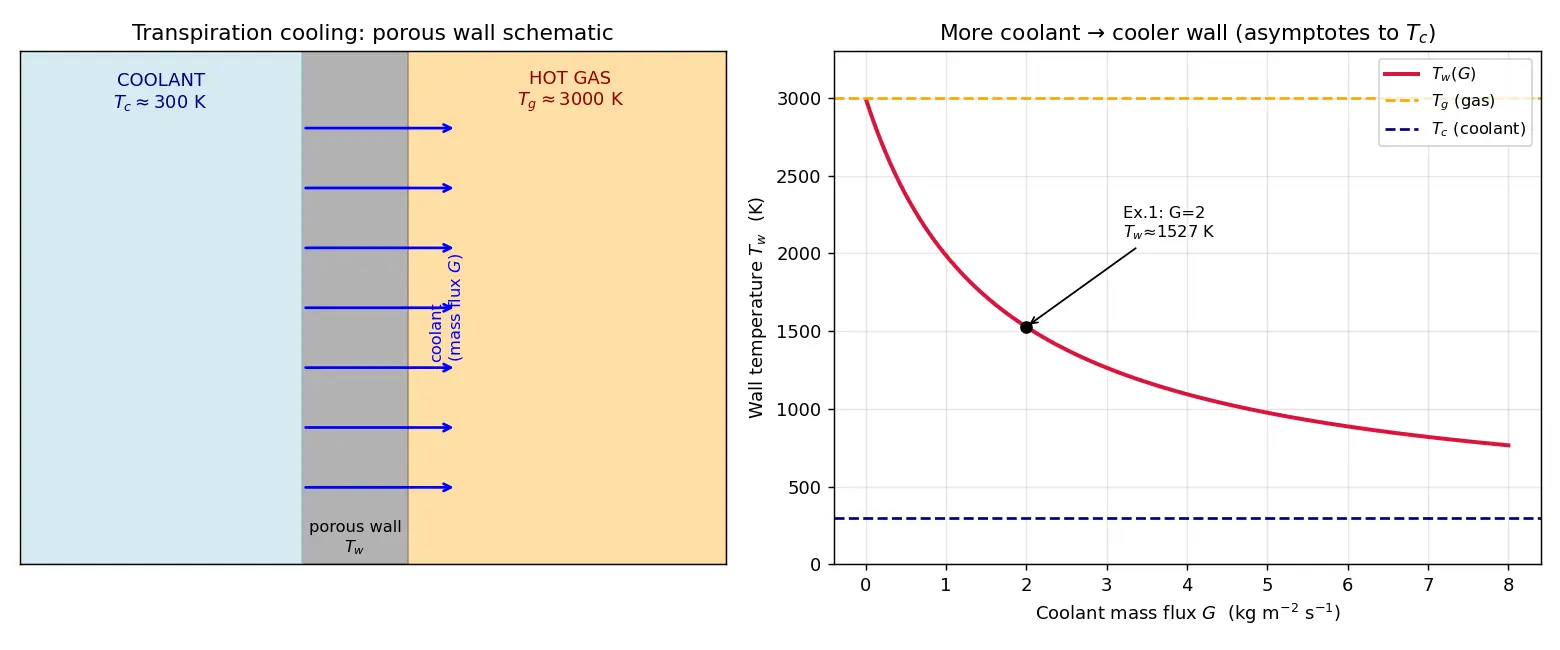

Forecast: if we double $G$ from 2 to 4 in Example 1, will $T_w$ drop by roughly half? Predict before computing. Verify: $Gc_p = 4800$ , so $T_w = \dfrac{2000(3000)+4800(300)}{2000+4800}=\dfrac{6\,000\,000+1\,440\,000}{6800}=\dfrac{7\,440\,000}{6800}\approx1094\ \mathrm{K}$ . Lesson: $T_w$ fell from 1527 to 1094 K — a drop of 433 K, not half. $T_w$ is a weighted average bounded below by $T_c=300$ K, so it approaches $T_c$ with diminishing returns, never halving linearly. Steel-manning: "double coolant → half temperature" feels right from linear intuition but ignores the floor at $T_c$ .

Common mistakes

Active recall

Recall Cover the answers. Explain each aloud before revealing.

What two mechanisms reduce heat load in transpiration cooling? ➜ Heat-sink absorption by coolant + boundary-layer thickening (lower effective $h$ ).
What does $\eta<1$ physically mean? ➜ Blowing lowers the effective heat-transfer coefficient below the bare value $h_0$ .
Between which two temperatures must $T_w$ lie? ➜ $T_c < T_w < T_g$ .
What single ratio controls effectiveness? ➜ $Gc_p/(\eta h_0)$ .
Why doesn't doubling coolant halve the wall temperature? ➜ $T_w$ is floored at $T_c$ ; returns diminish.

Transpiration cooling — definition

Coolant forced through a porous wall into the hot boundary layer, both absorbing heat and forming a protective film that lowers the effective heat-transfer coefficient.

Difference: film vs transpiration cooling

Film uses a few discrete slots/holes; transpiration "sweats" coolant uniformly through many microscopic pores.

Wall energy balance equation

\eta h_0 (T_g - T_w) = G c_p (T_w - T_c)

(gas-side flux = coolant absorption per area).

Wall temperature formula

T_w = \dfrac{\eta h_0 T_g + G c_p T_c}{\eta h_0 + G c_p}

Cooling effectiveness

\phi

\phi = \dfrac{T_g - T_w}{T_g - T_c} = \dfrac{Gc_p}{\eta h_0 + Gc_p} = \dfrac{1}{1+\eta h_0/(Gc_p)}

Blowing reduction factor

\eta

\eta = h/h_0

, ratio of blown to un-blown heat-transfer coefficient;

0<\eta\le 1

Coolant mass flux

G

G=\dot m_c/A

, coolant mass per unit wall area per second (kg m⁻² s⁻¹).

Why transpiration beats film cooling per unit coolant

Larger

G

both increases heat-sink capacity AND lowers

\eta

(thicker blanket) — a double benefit.

Limit

\phi\to 1

means

Wall approaches coolant temperature; near-perfect cooling.

Where in a rocket is heat load highest

The nozzle throat (max

h_0

), so cooling is most critical there.

Recall Feynman: explain to a 12-year-old

Imagine you're standing next to a bonfire and your skin gets hot. Now imagine your skin has tiny holes that squirt out cold water all the time. Two good things happen: the water soaks up the heat like a sponge, and the layer of water-mist pushes the hot air a little bit away from your skin. So your skin stays cool even right next to the fire. A rocket does the exact same trick: its wall has millions of tiny holes and "sweats" cold fuel through them, so the metal doesn't melt even though the gas next to it is hotter than lava. The more it sweats, the cooler it stays — but it can never get colder than the water itself.

Connections

Regenerative Cooling — coolant runs behind the wall then is burned; compare heat paths.
Film Cooling — discrete-hole cousin; same $\phi$ language.
Ablative Cooling — passive alternative that sacrifices material.
Convective Heat Transfer — source of $q=h(T_g-T_w)$ and $h_0$ .
Boundary Layer Theory — why blowing lowers $h$ .
Nozzle Throat Heat Flux — where transpiration is most needed.
Specific Impulse — coolant mass is a thrust cost; ties $G$ to performance.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, transpiration cooling ka idea bilkul "pasina" (sweating) jaisa hai. Rocket ke combustion chamber aur nozzle throat mein gas ka temperature 3000 K se bhi zyada hota hai — koi bhi metal itni garmi mein pighal jaayega. Toh trick ye hai: wall ko porous (chhote-chhote holes wale) banate hain, aur uske through thanda coolant "sweat" karke bahar nikaalte hain. Ye coolant do kaam karta hai — ek toh khud heat soak kar leta hai (heat sink), aur doosra ek protective film bana ke hot gas ko wall se thoda door push kar deta hai, jisse effective heat-transfer coefficient $h$ kam ho jaata hai.

Core formula bahut simple energy balance se aata hai: gas jitni heat de raha hai wall ko, utni hi heat coolant utha ke le jaata hai. Yani $\eta h_0 (T_g - T_w) = G c_p (T_w - T_c)$ . Isse wall temperature nikalta hai: $T_w = \dfrac{\eta h_0 T_g + G c_p T_c}{\eta h_0 + G c_p}$ . Ye ek weighted average hai — gas side ka weight $\eta h_0$ hai aur coolant side ka $Gc_p$ . Jitna zyada coolant ( $G$ ) bahega, weight coolant ki taraf shift hoga aur wall thanda rahega.

Ek important baat yaad rakhna: $T_w$ hamesha $T_c$ aur $T_g$ ke beech mein hoga. Coolant double kar do toh temperature aadha nahi hota — kyunki $T_w$ ki floor $T_c$ hai, returns diminishing hote hain. Isliye blindly coolant badhaana bekaar hai; woh coolant actually aapka propellant/mass hai jo thrust kharch karta hai. Optimization ke liye effectiveness $\phi = Gc_p/(\eta h_0 + Gc_p)$ use karo.

Exam aur real rockets dono ke liye ye important hai kyunki throat pe heat load maximum hota hai, aur transpiration cooling per-unit-coolant sabse best cooling deta hai. Regenerative aur film cooling se compare karke iska relative advantage samajhna zaroori hai.
