Transpiration cooling: Question bank — Physics deep dive

Before we start, the symbols this page reuses (all defined in the parent):

Recall The cast of symbols (tap to reveal)

$T_{g}$ = hot-gas temperature; $T_{c}$ = coolant inlet temperature; $T_{w}$ = wall temperature (what we protect).
$q$ = heat flux = heat delivered to the wall per unit area per second (units $W m^{- 2}$ ).
$h_{0}$ = bare (un-blown) heat-transfer coefficient — heat delivered per unit area per kelvin.
$η = h / h_{0}$ = blowing reduction factor, $0 < η \leq 1$ (smaller = better blanketing).
$G = \overset{m}{˙}_{c} / A$ = coolant mass flux (kg m⁻² s⁻¹); $c_{p}$ = coolant specific heat.
Master result: $T_{w} = \frac{η h _{0} T _{g} + G c _{p} T _{c}}{η h _{0} + G c _{p}}$ , effectiveness $ϕ = \frac{T _{g} - T _{w}}{T _{g} - T _{c}} = \frac{1}{1 + η h _{0} / ( G c _{p} )}$ .

Picture the two ideas these traps hinge on

Almost every trap below fails one of two mental images. Fix the images once, here, and the reveals become obvious.

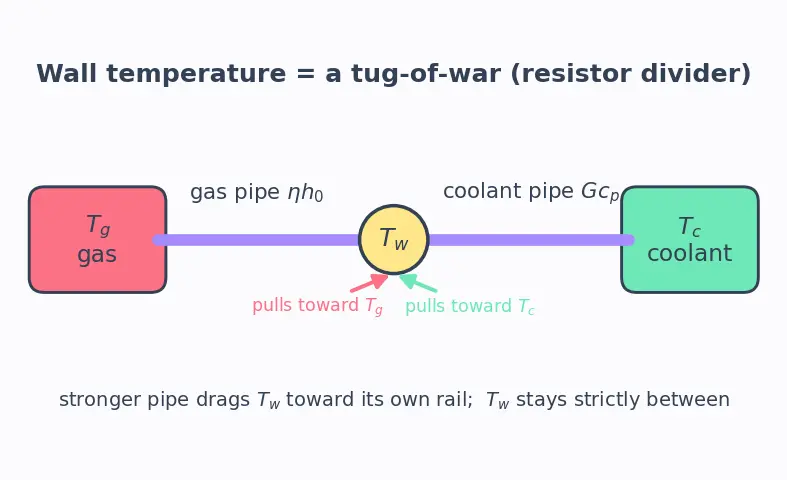

Image 1 — the wall temperature is a tug-of-war (a resistor divider). Think of two "pipes" delivering influence to the wall node $T_{w}$ : the gas pipe of strength $η h_{0}$ pulling toward $T_{g}$ , and the coolant pipe of strength $G c_{p}$ pulling toward $T_{c}$ . Whichever pipe is stronger drags $T_{w}$ closer to its own temperature. This is exactly a voltage divider, with temperature playing the role of voltage and conductance the role of $1/ R$ .

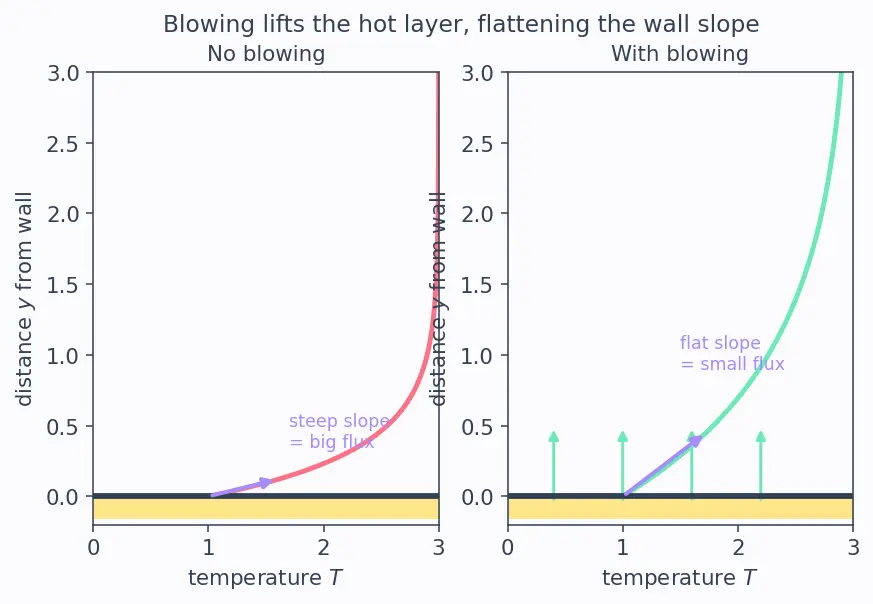

Image 2 — blowing pushes the hot boundary layer away. The heat that reaches the metal is set by the temperature slope right at the wall, $(\partial T / \partial y)_{w a l l}$ — steep slope means fast conduction in. Injecting coolant lifts the hot layer off the surface, so the same $T_{g} \to T_{w}$ drop is spread over a thicker gap, flattening the slope and cutting the flux. That is why $η < 1$ , on top of the coolant simply soaking up heat.

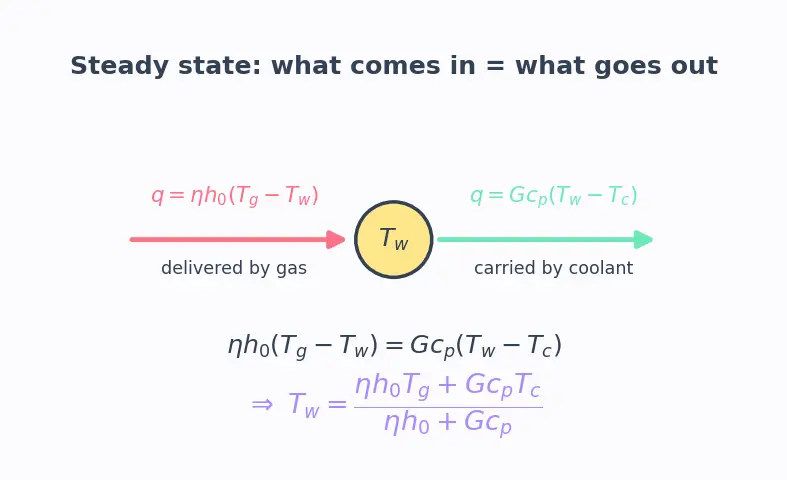

Where the master result comes from (one visual line). In steady state the flux the gas delivers, $q = η h_{0} (T_{g} - T_{w})$ , must equal the flux the coolant carries off, $G c_{p} (T_{w} - T_{c})$ . Setting the two pipes' flows equal at the node and solving for $T_{w}$ gives the weighted average — the divider is the derivation.

True or false — justify

Transpiration cooling can make the wall colder than the coolant that enters it.

False.

T_{w}

is a conductance-weighted average of

T_{g}

and

T_{c}

, so it lies strictly between them; the coldest it can ever approach is

T_{c}

(at

ϕ \to 1

), never below.

Doubling the coolant mass flux

G

roughly halves the wall temperature.

False.

T_{w}

approaches the floor

T_{c}

with diminishing returns; it drops by a shrinking amount each time, because it is a weighted average bounded below by

T_{c}

, not a quantity proportional to

1/ G

If we inject zero coolant (

G = 0

), the formula correctly gives

T_{w} = T_{g}

True. With

G c_{p} = 0

the effectiveness

ϕ \to 0

, so

T_{w} = \frac{η h _{0} T _{g}}{η h _{0}} = T_{g}

: no cooling means the wall equilibrates to the gas driving temperature (ignoring radiation).

The blowing factor

η

can legitimately exceed 1.

False.

η = h / h_{0}

compares blown to un-blown delivery; blowing can only reduce heat transfer, so

0 < η \leq 1

. A value above 1 would mean injection increased heat flux, contradicting the whole mechanism.

Transpiration cooling and film cooling rely on completely different physics.

False. Both blanket the wall with injected coolant; the difference is geometry — Film Cooling uses a few discrete slots, transpiration uses many microscopic pores giving a more uniform, continuous blanket per unit coolant.

Because

η

falls as

G

rises, transpiration cooling improves doubly with more coolant.

True. More

G

means both a bigger heat sink (

G c_{p} ↑

) and a thicker blanket that lowers

η

(weaker delivery), so both terms in

ϕ

push the same way — this is why it beats simple film cooling per kg.

In steady state, the heat the gas dumps on the wall must equal the heat the coolant carries off.

True (neglecting re-radiation). Steady state means nothing accumulates, so energy in from the gas exactly balances energy absorbed by the coolant — that conservation statement is the entire derivation, and the node-balance in figure s03.

Spot the error

T_{w} = \frac{η h _{0} T _{g} + G c _{p} T _{g}}{η h _{0} + G c _{p}}

, so I plugged

T_{g}

into both numerator terms."

Wrong second term. The coolant term must carry

T_{c}

, not

T_{g}

— it represents the coolant entering cold. Using

T_{g}

twice would collapse to

T_{w} = T_{g}

, absurdly claiming no cooling.

"Effectiveness

ϕ = \frac{T _{w} - T _{c}}{T _{g} - T _{c}}

Numerator inverted. Correct is

ϕ = \frac{T _{g} - T _{w}}{T _{g} - T _{c}}

: it measures how far the wall has been pulled down from the gas, so

ϕ = 1

(perfect) needs

T_{w} = T_{c}

, not

T_{w} = T_{g}

"I'll treat

h_{0}

as one fixed number for the whole nozzle."

Error.

h_{0}

varies along the nozzle and peaks at the throat (see Nozzle Throat Heat Flux); using a single value badly under- or over-predicts the local wall temperature where it matters most.

"Since blowing lowers heat flux,

η h_{0} (T_{g} - T_{w})

should use the raw

h_{0}

Error. The actual delivered heat flux is

q = η h_{0} (T_{g} - T_{w})

(see the recall list and figure s03); dropping the

η

overcounts the heat by using the un-blown coefficient, giving a falsely hot wall.

"More coolant is always better, so maximise

G

Error of optimisation. Every kg of coolant is propellant mass and thrust lost (hurts Specific Impulse), while gains shrink as

ϕ \to 1

. You optimise

G

, not blindly maximise it.

"The coolant leaves the pores at

T_{c}

Error. The coolant absorbs heat crossing the wall and exits near

T_{w}

, not

T_{c}

— that temperature rise

c_{p} (T_{w} - T_{c})

is the heat it removes. Leaving at

T_{c}

would mean it absorbed nothing.

Why questions

Why is a weighted average the right form for

T_{w}

, and what are the weights?

Because two conductances compete: the gas pipe pushes

T_{w}

toward

T_{g}

with weight

η h_{0}

, the coolant pipe pulls it toward

T_{c}

with weight

G c_{p}

. The stronger conductance wins — exactly the resistor divider drawn in figure s01.

Why does blowing reduce heat transfer instead of just cooling by heat capacity?

The injected coolant pushes the hot boundary layer away from the wall (figure s02), flattening the near-wall temperature gradient

(\partial T / \partial y)_{w a l l}

; less gradient means less conduction into the metal — a Boundary Layer Theory effect on top of the heat-sink effect.

Why does transpiration cooling appear specifically at throats, re-entry noses and turbine blades?

Those are the highest heat-flux spots where

T_{g}

exceeds any material's melting point, so passive material alone fails; transpiration gives the lowest wall temperature per kg of coolant, worth its complexity only in these extremes.

Why can we even write an energy balance at the wall?

Steady operation means no energy accumulates in the wall patch, so in-flux equals out-flux instant by instant. Conservation of energy across that control surface is the whole tool — no dynamics needed.

Why is transpiration cooling called the "active" cousin of ablative cooling?

Ablative Cooling is passive — the wall sacrificially chars and erodes away — whereas transpiration continuously pumps fresh coolant through pores, actively controlling the wall state rather than consuming the structure.

Why does convective heat flux take the form

h (T_{g} - T_{w})

and not depend on

T_{g}

alone?

Convective Heat Transfer is driven by the temperature difference between fluid and surface; a wall already near

T_{g}

receives almost no heat.

h

packages all the boundary-layer fluid mechanics into one number multiplying that driving gap.

Why does the coolant-to-gas conductance ratio

G c_{p} / (η h_{0})

govern everything?

Every performance quantity collapses to it:

ϕ = 1/ (1 + η h_{0} / (G c_{p}))

. It is the single dimensionless knob comparing the coolant's ability to absorb heat against the gas's ability to deliver it.

Edge cases

What is

ϕ

and

T_{w}

in the limit

G \to \infty

(infinite coolant)?

ϕ \to 1

and

T_{w} \to T_{c}

: the coolant conductance dwarfs the gas side, pinning the wall at coolant temperature. Perfect in theory, impossible in practice (infinite propellant).

What happens as

η \to 1

(blowing so weak it changes nothing)?

The blanket vanishes and only the raw heat-sink term remains:

ϕ = G c_{p} / (h_{0} + G c_{p})

. This is the worst-case transpiration estimate; real

η < 1

always does better.

What does

ϕ \to 0

physically mean, and how do you reach it?

It means the wall is as hot as the gas (

T_{w} = T_{g}

) — total failure. You reach it with

G \to 0

(no coolant) or

η h_{0} \to \infty

(unstoppable delivery), i.e. the coolant conductance is negligible.

If the pores clog partway along the wall, what does the local formula predict there?

Local

G

drops toward 0, so local

ϕ \to 0

and

T_{w} \to T_{g}

at the clogged patch — a hot spot that can burn through even while neighbouring pores stay cool. This is why clogging is catastrophic, not gradual.

Is the constant-

η

estimate an over- or under-prediction of the true wall temperature?

An over-prediction (too hot). Real

η

falls as

G

grows, so genuine cooling exceeds the constant-

η

calculation — the simple estimate is conservative.

What if the coolant enters at

T_{c}

equal to

T_{g}

(no temperature gap to exploit)?

Then

T_{w} = T_{g}

regardless of

G

: with

T_{c} = T_{g}

the weighted average of two equal numbers is that number. Cooling needs a genuine temperature difference to absorb into.

If we account for wall re-radiation (dropped in the parent derivation), does the true

T_{w}

come out higher or lower than our formula?

Lower. Radiation is an extra heat-loss path the balance ignored, so including it removes more energy and cools the wall slightly below the formula's prediction — our estimate is a safe upper bound.
