Shock waves — Mach number, Mach cone — - CRITICAL for rockets -

WHAT is the Mach number?

WHY a ratio? Because what matters physically is not raw speed but whether you beat your own ripples. Sound speed changes with temperature/altitude, so the same 300 m/s is supersonic high up and subsonic at sea level. The ratio $M$ captures the physics directly.

HOW the cone forms (derive from scratch)

Picture the source moving in a straight line at constant speed $v_{\text{obj}}$ . At time $t=0$ it emits a spherical wavefront from point $A$ . After a time $t$ :

That wavefront has grown to radius $r = v_s t$ (sound travels outward at $v_s$ ).
The source has moved a distance $d = v_{\text{obj}} t$ along its track to point $B$ .

If $v_{\text{obj}}>v_s$ , the source ( $B$ ) is now outside its own wavefront sphere. Doing this for every instant, all the spheres have a common tangent line — the envelope. In 3D that envelope is a cone with apex at the source.

Deriving the half-angle

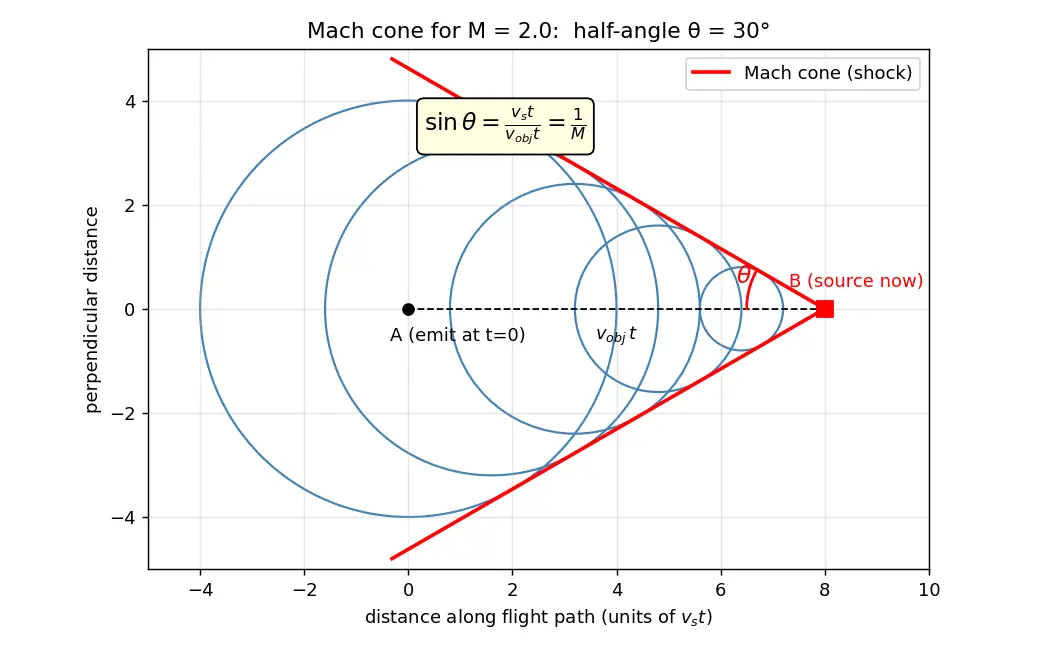

Figure — Shock waves — Mach number, Mach cone — - CRITICAL for rockets -

Look at the right triangle in the diagram:

Hypotenuse $AB = v_{\text{obj}}\,t$ (distance source moved).
Opposite side (the wavefront radius) $= v_s\,t$ .
The cone half-angle $\theta$ (the Mach angle) sits at the apex $B$ .

$\sin\theta=\frac{\text{opposite}}{\text{hypotenuse}}=\frac{v_s t}{v_{\text{obj}} t}=\frac{v_s}{v_{\text{obj}}}$

The $t$ cancels — the cone angle is constant in time. And since $M=v_{\text{obj}}/v_s$ :

WHY this is CRITICAL for rockets

Drag spike: crossing $M\approx1$ the air can't get out of the way; pressure piles up → wave drag jumps. Rockets are designed with pointed noses to keep the shock attached and weak.
Heating: air crossing the shock is compressed and heated; at hypersonic re-entry this is the main thermal load (heat shields).
Sonic boom: the Mach cone is the pressure wall; when its surface sweeps over you, you hear the "boom" — it is continuous, not a one-off bang at the moment of going supersonic.
Nozzle design: rocket exhaust is itself supersonic; engineers use Mach number to shape de Laval nozzles.

Worked examples

Worked example 3 — How long after a jet passes overhead do you hear the boom?

A jet at $M=1.5$ flies horizontally at height $h=2\,\text{km}$ , $v_s=340\ \text{m/s}$ . The boom reaches you when the cone surface arrives. Cone half-angle: $\sin\theta=1/1.5=0.667\Rightarrow\theta=41.8^\circ$ . The cone's surface trails the jet; the horizontal lag distance where the cone meets ground is $x=h/\tan\theta = 2000/\tan41.8^\circ = 2000/0.894 = 2237\ \text{m}$ . Jet ground speed $=M v_s=1.5\times340=510\ \text{m/s}$ . Time after overhead $=x/v_{\text{obj}}=2237/510\approx 4.4\ \text{s}$ . Why this step? The jet must travel past you so its trailing cone catches up to your position; geometry $x=h/\tan\theta$ comes from the cone wall making angle $\theta$ with the flight path.

Common mistake Steel-man the common errors

"The sonic boom happens at the instant the plane breaks the sound barrier." Why it feels right: you "break a barrier" once, so it seems like a single event. The fix: the boom is the continuous Mach cone dragging behind the plane the whole time it's supersonic. You hear it whenever the cone sweeps over you, which is long after the plane was overhead.

" $\sin\theta=M$ ." Why it feels right: faster object, "bigger" effect → multiply. The fix: it's $\sin\theta=1/M$ . Faster object ⇒ smaller, narrower cone. Check the limit: $M\to\infty$ gives $\theta\to0$ (paper-thin cone), which is physical.

"A shock can exist for $M<1$ if it's close to 1." Why it feels right: near-transonic flow has local effects. The fix: the geometric Mach cone needs $\sin\theta=1/M\le1$ , i.e. $M\ge1$ . No real cone angle below $M=1$ .

Recall Feynman: explain to a 12-year-old

Imagine running through a still pool, making ripples. Walk slowly and the ripples spread out ahead of you. But run faster than the ripples can travel, and you outrun them — they stack up into a sharp V-shaped wave that follows you, like a boat's wake. A jet does the same thing in air, but it makes a 3D ice-cream-cone shape of squished air. When that cone of squished air rushes past your ears, you hear a loud BOOM. The faster the jet, the skinnier and pointier the cone.

What is the Mach number?

The ratio of an object's speed to the local speed of sound,

M=v_{\text{obj}}/v_s

What is the Mach angle and its formula?

The half-angle of the shock cone;

\sin\theta=1/M

Why does the factor of time cancel in the Mach angle derivation?

Because both the wavefront radius

v_s t

and the source displacement

v_{\text{obj}} t

grow linearly in

t

, so their ratio (hence the cone angle) is constant.

What happens to the cone as

M\to\infty

\sin\theta\to0

, so

\theta\to0

— the cone becomes infinitely thin/swept back.

Why is there no Mach cone for

M<1

\sin\theta=1/M>1

has no real solution; the source stays inside its own wavefronts, so no shock forms.

What physically is a sonic boom?

The pressure wall of the Mach cone sweeping over the listener, heard continuously while the object is supersonic — not a one-time event.

M=2

, what is the Mach angle?

\theta=\sin^{-1}(1/2)=30^\circ

Why are shock waves critical for rockets?

They cause wave drag (peaking near

M=1

) and intense aerodynamic heating, driving nose-cone and heat-shield design.

Connections

Speed of sound in a medium — sets $v_s$ , hence $M$ at every altitude.
Doppler effect — same wavefront geometry; shock is the $M\ge1$ limit of Doppler bunching.
Superposition & constructive interference — the cone is where wavefronts add up coherently.
Wave drag and aerodynamic heating — engineering consequence.
De Laval nozzle — supersonic flow in rocket engines.
Compressible flow / Bernoulli limits — why incompressible assumptions break near $M=1$ .

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Socho tum ek talab me chal rahe ho aur ripples bana rahe ho. Dheere chaloge to ripples tumse aage nikal jaate hain — koi dikkat nahi. Lekin agar tum ripples se bhi tez bhaago, to tum apni hi ripples ko overtake kar loge, aur woh ek tez, sharp deewar ki tarah pile up ho jaati hain. Yahi hota hai air me jab koi rocket ya jet sound se tez chalta hai — woh apni hi sound waves ko peeche chhod deta hai aur ek shock wave ban jati hai, jiska shape ek cone (Mach cone) hota hai.

Mach number $M = v_{obj}/v_s$ — yaani object ki speed divided by sound ki speed. $M<1$ matlab subsonic, $M>1$ matlab supersonic (tab shock banti hai), $M\gg1$ hypersonic (re-entry wali heat). Cone ka half-angle nikalta hai geometry se: ek hi time $t$ me sound $v_s t$ travel karti hai aur object $v_{obj}t$ . Right triangle banao to $\sin\theta = v_s t / v_{obj} t = 1/M$ . Time $t$ cancel ho jaata hai, isliye cone ka angle constant rehta hai. Yaad rakho: jitna tez object, utna patla (narrow) cone.

Yeh rockets ke liye bohot critical kyunki $M\approx1$ ke aas-paas air aage se hat nahi paati, pressure pile up hota hai, aur wave drag ekdum badh jaata hai. Saath hi shock ke paar air compress hokar bohot garam ho jaati hai — isliye re-entry me heat shield chahiye, aur nose cone pointed banate hain taaki shock weak aur attached rahe.

Ek galti se bacho: sonic boom us ek pal me nahi hota jab plane "barrier todta" hai. Boom toh Mach cone ki deewar hai jo plane ke peeche continuously chalti rehti hai — jab woh cone tumhare upar se guzarta hai tabhi tum boom sunte ho. Aur formula $\sin\theta = 1/M$ hai, $\sin\theta = M$ nahi — tez chize patla cone banati hain, mota nahi.
