Plasma sheath — communications blackout — Physics notes

WHY does a plasma block radio waves?

Deriving the plasma frequency from scratch

Step 1 — What surface charge does the displacement create? Displacing electrons by $x$ over area $A$ leaves an uncovered layer of positive charge with surface density $\sigma = n_e\, e\, x$

Why this step? Number of electrons removed from a slab of thickness $x$ and area $A$ is $n_e A x$ ; each carries charge $e$ ; divide by $A$ to get charge per area.

Step 2 — What field does that charge sheet make? Two opposite charge sheets form a parallel-plate-like capacitor, giving a restoring field $E = \frac{\sigma}{\varepsilon_0} = \frac{n_e e\, x}{\varepsilon_0}$

Why this step? Gauss's law for a charged sheet/capacitor gives $E=\sigma/\varepsilon_0$ . This field points back, pulling the electrons home.

Step 3 — Newton's law on one electron. $m_e \ddot{x} = -eE = -\frac{n_e e^2}{\varepsilon_0}\, x$

Why this step? Force on electron is $-eE$ (negative charge in the field). The minus sign shows it's restoring → simple harmonic motion.

Step 4 — Read off the frequency. This is SHM $\ddot{x} = -\omega_p^2 x$ with

Why the boxed form? Plug in $e=1.6\times10^{-19}$ C, $\varepsilon_0=8.85\times10^{-12}$ , $m_e=9.11\times10^{-31}$ kg. The constant $\frac{1}{2\pi}\sqrt{e^2/(\varepsilon_0 m_e)} \approx 8.98$ .

HOW does this cause a blackout? The cutoff condition

The refractive index captures the same idea: $n = \sqrt{1 - \frac{\omega_p^2}{\omega^2}}$ Below cutoff $n$ is imaginary → total reflection.

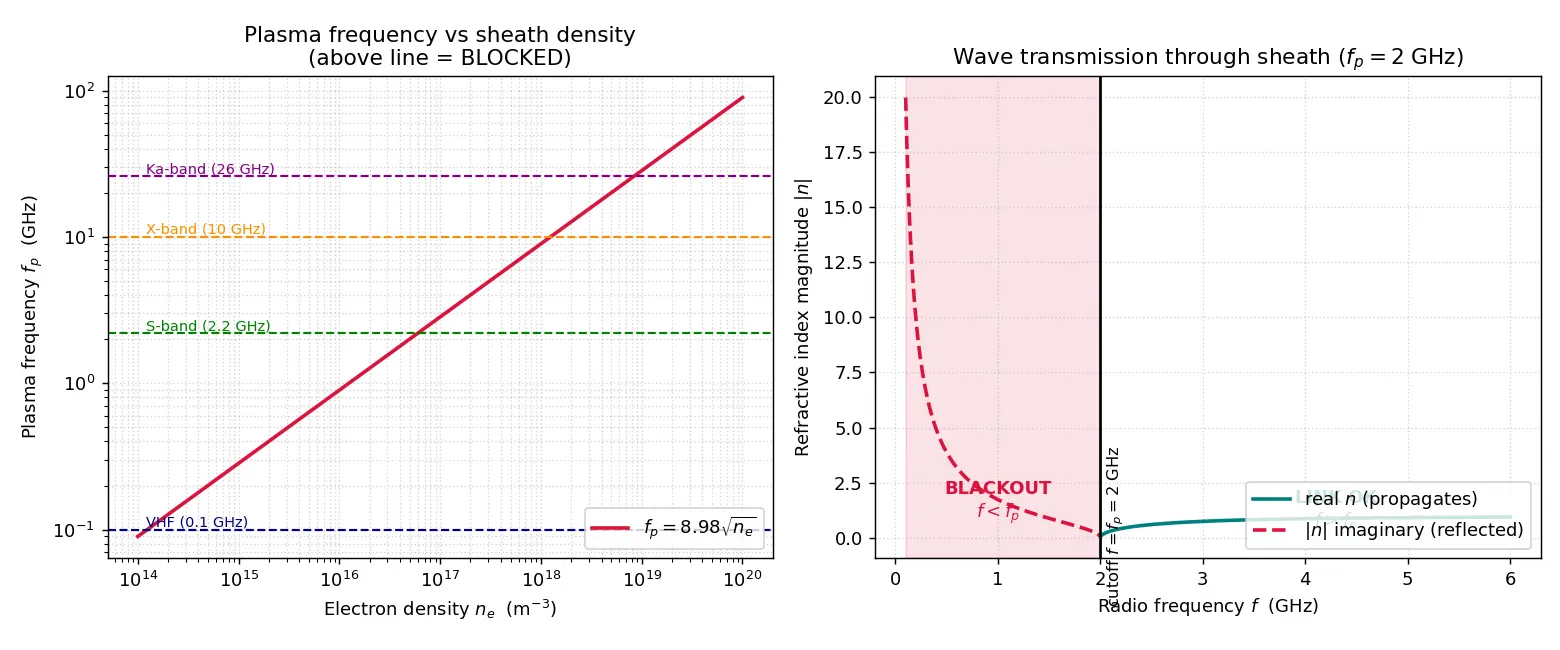

Figure — Plasma sheath — communications blackout

Worked examples

Common mistakes (steel-manned)

Active recall

Recall Test yourself (hide the answers)

Why does a plasma reflect low-frequency waves but pass high-frequency ones?
Derive $\omega_p$ from Newton's law on a displaced electron slab.
What density blacks out a 2 GHz link?
Name two physical ways to escape blackout.

What is the plasma sheath around a re-entry vehicle?

A cloud of ionized (free-electron-rich) gas formed when hypersonic compression heats air enough to ionize it.

What physically blocks the radio waves — heat or free electrons?

Free electrons (density

n_e

); heat is only the cause of ionization.

Plasma angular frequency formula

\omega_p=\sqrt{n_e e^2/(\varepsilon_0 m_e)}

Engineering shortcut for plasma frequency in Hz

f_p\approx 8.98\sqrt{n_e}

with

n_e

in m⁻³.

Blackout condition

f_{\text{radio}} < f_p

(equivalently

n_e > n_{\text{crit}}

Critical density for a given radio frequency

n_{\text{crit}}=\varepsilon_0 m_e(2\pi f)^2/e^2

Dispersion relation in a plasma

\omega^2=\omega_p^2+c^2k^2

;

k

imaginary when

\omega<\omega_p

Refractive index of a plasma

n=\sqrt{1-\omega_p^2/\omega^2}

; imaginary → total reflection.

Why is

m_e

(not ion mass) in

\omega_p

Ions are ~1836× heavier so their oscillation frequency is far lower and negligible.

Three ways to defeat blackout

Raise radio frequency above

f_p

(Ka-band); reduce

n_e

(quenchant injection); relay through the wake via a satellite.

Recall Feynman: explain to a 12-year-old

When a spaceship dives into the air super fast, it squishes the air so hard the air catches fire and turns into a special electric fog called plasma. This fog is full of loose electric bits (electrons) that jiggle. If the radio wave from home wiggles slower than the fog can jiggle, the fog just bounces the wave right back — like shouting at a mirror. So for a few minutes nobody can hear the astronauts. If we shout in a faster wiggle than the fog can keep up with, our message sneaks through. That's the trick to stay in touch.

Connections

Atmospheric re-entry heating — the source of ionization energy.
Hypersonic shock waves — where the air gets crushed and heated.
Ionization and Saha equation — predicts $n_e$ from temperature.
EM wave propagation in dielectrics — same dispersion math, general case.
Ionospheric radio reflection — identical physics that bounces AM radio around Earth.
Refractive index — the $n=\sqrt{1-\omega_p^2/\omega^2}$ link.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Jab koi spacecraft bahut tezi se (hypersonic speed pe) atmosphere mein wapas ghusta hai, to saamne ki hawa itni buri tarah compress ho jaati hai ki wo hazaaron kelvin tak garam ho jaati hai. Itni garmi se hawa ke atoms ke electrons alag ho jaate hain — is process ko ionization kehte hain, aur ye free electrons ka cloud spacecraft ke around ban jaata hai. Isi cloud ko plasma sheath kehte hain. Yehi free electrons radio waves ko block kar dete hain, isliye kuch minutes ke liye ground station se baat nahi ho paati — ye hai communications blackout.

Sabse important cheez hai plasma frequency $f_p$ . Simple derivation: agar hum saare electrons ko thoda sa displace karein, to ek restoring electric field ban jaata hai jo unhe wapas kheechta hai — bilkul spring jaisa. Isse Newton ka law lagane pe SHM milta hai jiski frequency $f_p = 8.98\sqrt{n_e}$ Hz hoti hai ( $n_e$ = electron density). Rule simple hai: agar radio ki frequency $f_p$ se kam hai to wave reflect ho jaati hai (blackout), aur agar zyada hai to wave nikal jaati hai (link works). "Below you go dark, above you talk."

Isko yaad rakhna zaroori hai kyunki real missions mein astronauts ki safety isi pe depend karti hai. Escape karne ke teen tareeke hain: (1) radio frequency ko $f_p$ se upar le jao — jaise Ka-band (26 GHz), (2) sheath mein cold gas daal ke electron density kam karo, ya (3) satellite ke through spacecraft ke wake (peechhe wale patle plasma) se signal relay karo. Teenon tareeke bas ek hi inequality — $f$ vs $f_p$ — ka fayda uthate hain. Common galti: mat sochna ki "high frequency hamesha mushkil hai" — yahaan ulta hai, high frequency hi bachaati hai!
