Intuition The big picture (WHY)A spacecraft arriving at a planet on a hyperbolic trajectory has too much speed to be captured — it will fly right past. To enter orbit you must shed kinetic energy . The usual way is a big propulsive burn (Orbit Insertion), which costs enormous fuel. Aerocapture instead dips the spacecraft into the upper atmosphere for a single pass , letting aerodynamic drag bleed off exactly enough energy to convert the hyperbola into a bound (elliptical) orbit — then it climbs back out and a tiny burn tidies up the orbit.
The genius: the atmosphere is a free brake . Fuel you don't carry is mass you don't have to accelerate all the way from Earth.
A single-pass atmospheric maneuver that uses drag to decelerate an arriving spacecraft from a hyperbolic (escape, E > 0 E>0 E > 0 captured elliptical (E < 0 E<0 E < 0 not re-enter or skip back to escape.
Compare with cousins:
Maneuver
Passes
Result
Purpose
Aerocapture 1
Hyperbola → orbit
Get captured cheaply
Aerobraking 100s
High orbit → low orbit
Trim an existing orbit slowly
Aeroentry 1 (final)
Orbit → surface
Land
Intuition Why aerocapture ≠ aerobrakingAerobraking uses many gentle passes (low heating) over months; you're already captured . Aerocapture is one violent pass that must do all the capturing at once, so heating and targeting are far more demanding. The physics is the same energy equation — only the depth and duration differ.
HOW aerocapture works in energy terms: arrive with ε i n > 0 \varepsilon_{in} > 0 ε in > 0 Δ ε d r a g \Delta\varepsilon_{drag} Δ ε d r a g ε o u t = ε i n − ∣ Δ ε d r a g ∣ < 0. \varepsilon_{out} = \varepsilon_{in} - |\Delta\varepsilon_{drag}| < 0. ε o u t = ε in − ∣Δ ε d r a g ∣ < 0. at least ε i n \varepsilon_{in} ε in not so much that you spiral in.

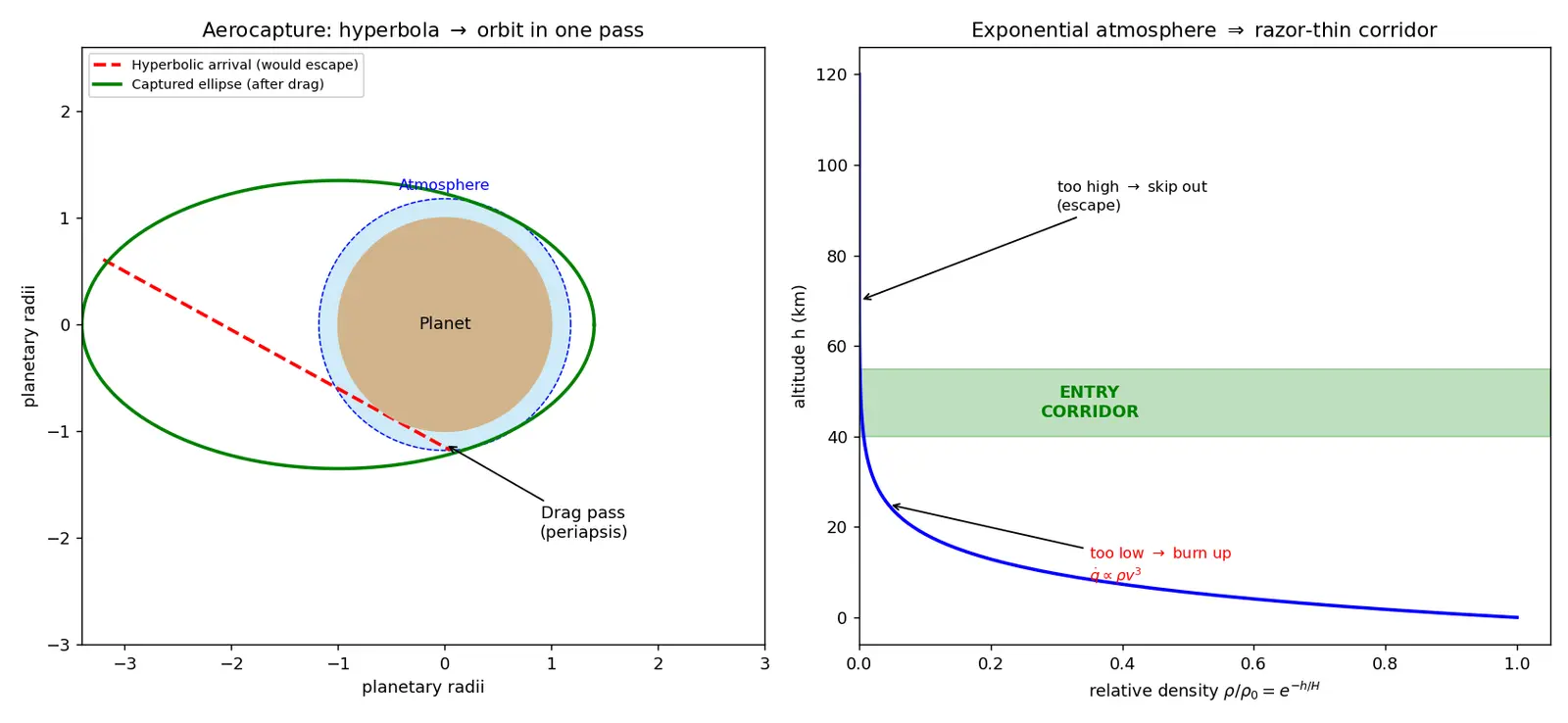

Intuition The exponential atmosphere sets the corridorUpper-atmosphere density falls off as ρ ( h ) = ρ 0 e − h / H \rho(h) = \rho_0 e^{-h/H} ρ ( h ) = ρ 0 e − h / H H H H ρ \rho ρ e e e ∼ \sim ∼ periapsis altitude is a razor's-edge knob : a few km too high → not enough drag → you skip back out and escape; a few km too low → too much drag/heat → you burn up or crash. This tolerable band is the entry corridor .
Worked example 1 — How much energy must go?A probe reaches Mars (μ M = 4.28 × 10 4 km 3 / s 2 \mu_M = 4.28\times10^{4}\ \text{km}^3/\text{s}^2 μ M = 4.28 × 1 0 4 km 3 / s 2 v ∞ = 3 km/s v_\infty = 3\ \text{km/s} v ∞ = 3 km/s Step — arrival energy. ε i n = v ∞ 2 / 2 = 3 2 / 2 = 4.5 km 2 / s 2 > 0 \varepsilon_{in} = v_\infty^2/2 = 3^2/2 = 4.5\ \text{km}^2/\text{s}^2 > 0 ε in = v ∞ 2 /2 = 3 2 /2 = 4.5 km 2 / s 2 > 0 Why: far from the planet all energy is kinetic, 1 2 v ∞ 2 \tfrac12 v_\infty^2 2 1 v ∞ 2 Step — target. For a 24-h-ish loose orbit take ε o u t ≈ − 1 km 2 / s 2 \varepsilon_{out} \approx -1\ \text{km}^2/\text{s}^2 ε o u t ≈ − 1 km 2 / s 2 Why: any ε o u t < 0 \varepsilon_{out}<0 ε o u t < 0 Step — energy to shed. ∣ Δ ε ∣ = 4.5 − ( − 1 ) = 5.5 km 2 / s 2 |\Delta\varepsilon| = 4.5 - (-1) = 5.5\ \text{km}^2/\text{s}^2 ∣Δ ε ∣ = 4.5 − ( − 1 ) = 5.5 km 2 / s 2 Why: you must cross from + 4.5 +4.5 + 4.5 − 1 -1 − 1
Δ v \Delta v Δ v r p r_p r p v i n = 5.5 v_{in} = 5.5 v in = 5.5 v o u t = 4.7 v_{out} = 4.7 v o u t = 4.7 Step. Δ v a e r o = 5.5 − 4.7 = 0.8 \Delta v_{aero} = 5.5 - 4.7 = 0.8 Δ v a er o = 5.5 − 4.7 = 0.8 from air, not fuel .
Why it matters: by the rocket equation Δ m / m = 1 − e − Δ v / v e \Delta m/m = 1 - e^{-\Delta v / v_e} Δ m / m = 1 − e − Δ v / v e v e ≈ 3 v_e \approx 3 v e ≈ 3 0.8 0.8 0.8 1 − e − 0.8 / 3 ≈ 0.23 1 - e^{-0.8/3} \approx 0.23 1 − e − 0.8/3 ≈ 0.23 not carried as propellant. That's the whole point.
Worked example 3 — Ballistic coefficient decides depthTwo craft, same v v v ρ \rho ρ β = 50 \beta = 50 β = 50 β = 200 \beta = 200 β = 200 Step. a D ∝ 1 / β a_D \propto 1/\beta a D ∝ 1/ β 4 × 4\times 4 × Why: A is "fluffier" — more area per mass, so the same air pushes it more.
Consequence: B must dive deeper (higher ρ \rho ρ Design rule: big blunt heat-shields (low β \beta β
Common mistake "Aerocapture is just aerobraking."Why it feels right: both use the atmosphere to slow down, both use drag 1 2 ρ v 2 C D A \tfrac12\rho v^2 C_D A 2 1 ρ v 2 C D A The flaw: aerobraking makes many low-drag passes on an already-captured orbit; aerocapture must remove the entire hyperbolic excess in one pass. Fix: ask "is ε \varepsilon ε ε > 0 \varepsilon>0 ε > 0
Common mistake "Aim as deep as possible to be sure of capture."Why it feels right: deeper = denser = more drag = more braking, so surely safer capture. The flaw: density is exponential ; too deep → runaway drag → over-decelerate (crash) and peak heating ∝ ρ v 3 \propto \rho v^3 ∝ ρ v 3 Fix: target the middle of the corridor , and use bank-angle/lift steering to fine-tune, not depth alone.
Common mistake "Drag removes momentum, so use momentum bookkeeping."Why it feels right: drag is a force, force changes momentum. The flaw: what determines capture is the sign of energy ε \varepsilon ε Fix: always test capture with ε = v 2 / 2 − μ / r \varepsilon = v^2/2 - \mu/r ε = v 2 /2 − μ / r
Common mistake "Higher speed helps because you brake harder (v 2 v^2 v 2 Why it feels right: F D ∝ v 2 F_D\propto v^2 F D ∝ v 2 The flaw: you also have more energy to remove (∝ v 2 \propto v^2 ∝ v 2 and heating ∝ v 3 \propto v^3 ∝ v 3 harder , not easier. Fix: heating, not braking, is the limiting constraint.
Recall Feynman: explain to a 12-year-old (hidden)Imagine you're on a bike going way too fast down a hill and you can't stop with your brakes. But at the bottom there's a shallow pond. If you ride just the right depth into the water, the water drags you and slows you down enough to keep looping around the park instead of flying off into the street. Too shallow — the water barely touches you, you shoot off. Too deep — you wipe out. A spacecraft does this with a planet's air: it dips into the top of the sky once , lets the air brake it just enough to start circling the planet, and pops back out. It's braking with air instead of burning precious fuel.
"CORRIDOR" — C apture needs ε < 0 \varepsilon<0 ε < 0 O ne pass; R ho is exponential; R azor-thin altitude band; I nsufficient depth → skip out; D eep → burn up; O wn heat ∝ v 3 \propto v^3 ∝ v 3 R esult: free Δ v \Delta v Δ v "Low beta brakes high and cool."
What sign of specific energy ε \varepsilon ε ε < 0 \varepsilon < 0 ε < 0 (bound ellipse).
ε > 0 \varepsilon>0 ε > 0 is hyperbolic/escape.
Write the specific orbital energy formula. ε = v 2 / 2 − μ / r \varepsilon = v^2/2 - \mu/r ε = v 2 /2 − μ / r .
In one sentence, what does aerocapture do? Uses a single atmospheric pass so drag converts a hyperbolic arrival into a captured orbit.
How does aerocapture differ from aerobraking? Aerocapture = one pass, hyperbola→orbit; aerobraking = many passes trimming an already-captured orbit.
Define the ballistic coefficient. β = m / ( C D A ) \beta = m/(C_D A) β = m / ( C D A ) (kg/m²); low
β \beta β brakes higher and cooler.
Why does drag scale with v 2 v^2 v 2 Force = rate of momentum given to swept air
m ˙ ∼ ρ A v \dot m \sim \rho A v m ˙ ∼ ρ A v times
v v v , giving
1 2 ρ v 2 C D A \tfrac12\rho v^2 C_D A 2 1 ρ v 2 C D A .
How does atmospheric density vary with altitude? ρ ( h ) = ρ 0 e − h / H \rho(h)=\rho_0 e^{-h/H} ρ ( h ) = ρ 0 e − h / H , exponential with scale height
H H H .
What is the "entry corridor"? The narrow band of periapsis altitudes: too high → skip out and escape; too low → burn up/crash.
How does peak heating scale with speed? Roughly
q ˙ ∝ v 3 \dot q \propto v^3 q ˙ ∝ v 3 — why fast arrivals are heat-limited.
What Δ v \Delta v Δ v Δ v a e r o = v i n − v o u t \Delta v_{aero}=v_{in}-v_{out} Δ v a er o = v in − v o u t , the braking supplied by air instead of fuel.
Why is diving deeper NOT automatically safer? Density is exponential; slightly deeper causes runaway drag and heating
∝ ρ v 3 \propto\rho v^3 ∝ ρ v 3 → over-decelerate/crash.
Vis-viva Equation — provides ε \varepsilon ε r r r Hyperbolic Trajectories & Hyperbolic Excess Velocity — the arrival condition ε i n > 0 \varepsilon_{in}>0 ε in > 0 Orbit Insertion Burns — the propulsive alternative aerocapture replaces.Aerobraking — the many-pass cousin.Atmospheric Entry & Heating — Sutton–Graves q ˙ ∝ v 3 \dot q\propto v^3 q ˙ ∝ v 3 Ballistic Coefficient — sets braking altitude.Tsiolkovsky Rocket Equation — why saved Δ v \Delta v Δ v Scale Height & Exponential Atmosphere — why the corridor is razor-thin.
trims already captured orbit
Atmospheric drag as free brake
Captured ellipse E less than 0
Specific energy eps equals v2/2 minus mu/r
Aerobraking many gentle passes
High heating and precise targeting
Intuition Hinglish mein samjhoDekho, jab koi spacecraft kisi planet ke paas pahunchta hai, to uski speed itni zyada hoti hai ki wo ek hyperbolic path pe hota hai — matlab specific energy ε = v 2 / 2 − μ / r \varepsilon = v^2/2 - \mu/r ε = v 2 /2 − μ / r ε \varepsilon ε aerocapture me hum spacecraft ko ek hi baar planet ki upper atmosphere me dip karate hain. Wahan drag (F D = 1 2 ρ v 2 C D A F_D = \tfrac12 \rho v^2 C_D A F D = 2 1 ρ v 2 C D A
Sabse important baat: atmosphere ki density altitude ke saath exponentially girti hai, ρ = ρ 0 e − h / H \rho = \rho_0 e^{-h/H} ρ = ρ 0 e − h / H razor-thin corridor hai. Thoda upar rakha → drag kam → wapas escape (skip out). Thoda neeche → drag bahut zyada aur heating (q ˙ ∝ v 3 \dot q \propto v^3 q ˙ ∝ v 3
Ek aur cheez samajh lo — ballistic coefficient β = m / ( C D A ) \beta = m/(C_D A) β = m / ( C D A ) β \beta β β \beta β
Yeh matter kyun karta hai? Rocket equation kehta hai fuel bachana matlab bahut saara mass bachana. Aerocapture se jitna Δ v = v i n − v o u t \Delta v = v_{in} - v_{out} Δ v = v in − v o u t energy ka sign hai, momentum ka nahi.
