Aerocapture — using atmosphere to decelerate into orbit: Visual walkthrough

Step 1 — What "arriving too fast" actually means

WHAT. A spacecraft comes in from deep space. Far away it is barely feeling the planet's pull, yet it is still moving. That leftover speed — the speed it has when the planet's gravity has essentially "run out" — is the very thing we must define first, because it is the "problem" we will spend the whole page solving.

WHY. We need a single honest measure of "how much too fast am I?". Speed alone lies — a craft speeds up as it falls in, slows as it climbs out. What stays fixed is a bookkeeping quantity that mixes speed and height. Before we can talk about removing the excess we must define the excess.

PICTURE. Look at the figure. The dashed curve is the incoming path — it bends past the planet but never loops. The blue arrow far out is that leftover speed, which the definition box below names.

Figure — Aerocapture — using atmosphere to decelerate into orbit

Step 2 — One number that decides captured-or-not: specific energy

WHAT. We combine kinetic energy (from motion) and gravitational energy (from height) into one conserved number per kilogram, called the specific orbital energy $ε$ .

WHY. Force and momentum change every instant on a curved path — useless for bookkeeping. Energy is the tool that doesn't change between drag pulses, so a single sign test tells us the fate of the whole orbit. We reach for energy precisely because it is the conserved quantity here.

$ε = motion energy per kg \frac{v ^{2}}{2} - depth in the gravity well \frac{μ}{r}$

Term by term, right where it sits:

$v$ = the craft's current speed. $\frac{1}{2} v^{2}$ is kinetic energy per unit mass (we drop the mass so the number describes the trajectory, not the vehicle).
$r$ = distance from the planet's centre. $μ = GM$ is the planet's gravitational strength (see Vis-viva Equation).
The minus sign: gravity is a well you are down inside. Being deep (small $r$ ) makes $- μ / r$ very negative — you "owe" energy to climb out.

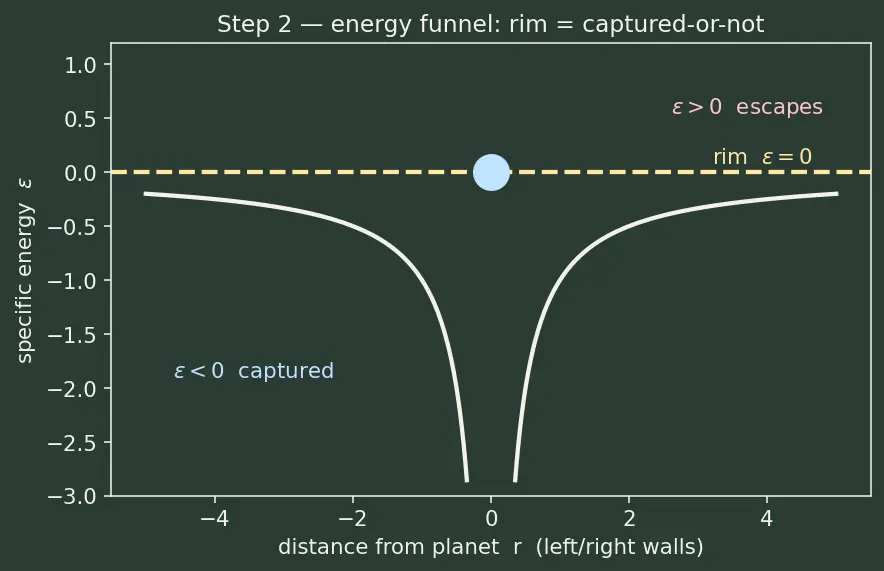

PICTURE. The energy landscape below is a funnel. A ball's height on the funnel wall is $ε$ . Above the rim ( $ε > 0$ ): free, escapes. Below the rim ( $ε < 0$ ): trapped, orbits forever.

Sign of epsilon

positive means escape, negative means captured, zero is the exact borderline

Why energy not momentum

energy is conserved between drag pulses; momentum on a curved path is not

Step 3 — Far out, all the energy is just $v_{\infty}$

WHAT. Evaluate $ε$ at the one place it is easiest: infinitely far away.

WHY. $ε$ is the same number everywhere on the path (it's conserved). So compute it where the algebra is trivial, then trust it everywhere. Far out, $r \to \infty$ , so the $μ / r$ term vanishes.

$ε_{in} = \frac{v _{\infty}^{2}}{2} - \to 0 \frac{μ}{\infty} = \frac{v _{\infty}^{2}}{2}$

The gravity term dies because dividing by an enormous distance gives essentially zero.
What's left is a positive number — the arriving hyperbola's energy is exactly $\frac{1}{2} v_{\infty}^{2}$ . That is the excess we must destroy.

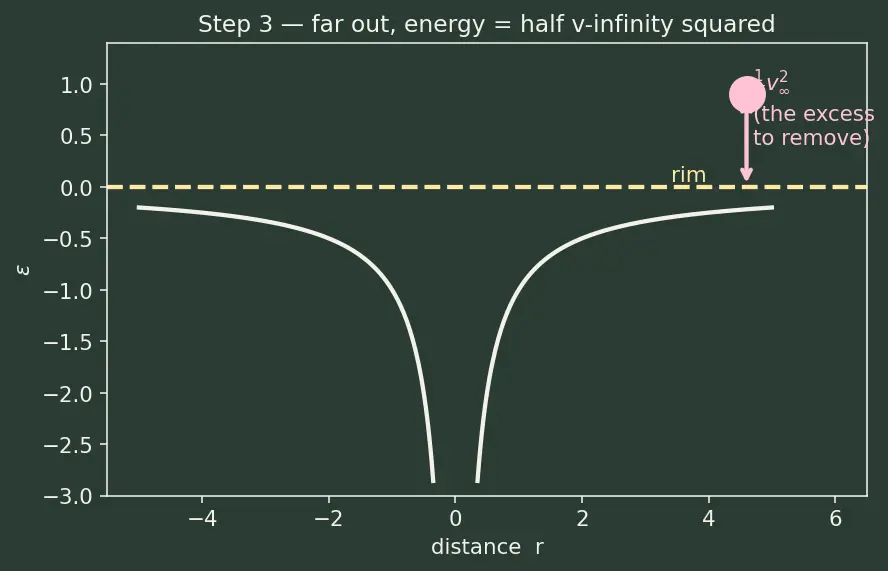

PICTURE. Same funnel as Step 2, now with the incoming ball sitting above the rim by a height equal to $\frac{1}{2} v_{\infty}^{2}$ . That gap above the rim is the "problem to solve".

Step 4 — Where to remove it: the periapsis dip

WHAT. The craft is fastest and lowest at periapsis — the closest point to the planet, at radius $r_{p}$ . That is where it grazes the atmosphere. All the braking happens in this brief pass.

WHY. Drag needs air, and air only exists low down. Periapsis is the single moment the craft is inside the atmosphere, so it is where energy leaves. Because the dip is quick, $r_{p}$ barely changes during it — we can treat height as fixed and let only speed change.

PICTURE. The path skims a thin shaded shell of atmosphere at $r_{p}$ . Speed before the dip is $v_{in}$ ; speed after is the smaller $v_{o u t}$ . Same $r_{p}$ , two different speeds.

Since $r_{p}$ is fixed across the dip, the change in energy is a change in the speed term only:

$Δ ε = ε_{o u t} - ε_{in} = (\frac{v _{o u t}^{2}}{2} - \frac{μ}{r _{p}}) - (\frac{v _{in}^{2}}{2} - \frac{μ}{r _{p}}) = \frac{v _{o u t}^{2} - v _{in}^{2}}{2}$

The two $- μ / r_{p}$ terms cancel — that is why we insisted the height is fixed.
What survives is purely the drop in kinetic energy. Slowing down at fixed height is the whole trick.

Step 5 — What supplies the braking: the drag deceleration

WHAT. Air pushes back. We now derive how hard it pushes, from the raw idea of shoving air aside — earning every symbol, including the $\frac{1}{2}$ and $C_{D}$ .

WHY. We claimed "drag removes $Δ v$ " — but we must show what controls its size, because that is what makes altitude a razor's edge. We reach for a momentum-of-swept-air argument, the simplest honest model of drag.

PICTURE. In a slice of time $d t$ the craft sweeps out a tube of air. The tube's length is $v d t$ , its cross-section is the craft's frontal area $A$ . All that air must be pushed out of the way.

Earning the formula, piece by piece.

Mass of air swept in time $d t$ : volume (area × length) times density, $d m = ρ A v d t .$
Speed change we give that air. If the craft moves at $v$ and shoves the still air up to roughly the craft's speed, each parcel gains speed $\sim v$ . Its momentum gain is $d m \cdot v$ .
Force = momentum handed over per second (Newton's second law): $F_{ideal} = \frac{d m v}{d t} = ρ A v^{2} .$ This is the crude "brick wall" estimate: catch all the air, throw it forward at $v$ .

Where the $\frac{1}{2}$ comes from. Real air is not caught and stopped dead; it slips around the body, and the kinetic energy view (work done on the air stream) carries a factor $\frac{1}{2}$ from $\frac{1}{2} m v^{2}$ . So the honest force is half the brick-wall value, times a shape correction: $F_{D} = energy factor \frac{1}{2} ρ v^{2} shape correction C_{D} A .$

Where $C_{D}$ comes from. No real body is a perfect flat catcher. A streamlined body lets air slide by (pushes less → $C_{D}$ small, $\sim 0.1$ ); a blunt body or parachute traps and churns it (pushes more → $C_{D}$ large, $\sim 1 - 2$ ). So $C_{D}$ is the measured fudge that converts our idealised $\frac{1}{2} ρ v^{2} A$ into the true force for this particular shape. It is earned, not assumed: it is exactly the ratio (true drag)/(ideal $\frac{1}{2} ρ v^{2} A$ ).

$ρ$ = air density (how much air is there).
$v^{2}$ : one power of $v$ from how much air you hit per second, another from how fast you throw each bit. That is why drag is quadratic in speed.

Deceleration is force per mass. Divide by the craft mass $m$ :

$a_{D} = \frac{F _{D}}{m} = \frac{ρ v ^{2}}{2} \cdot \frac{C _{D} A}{m} .$

Why we invert and group as $β = m / (C_{D} A)$ . Notice the vehicle's three traits — $m$ , $C_{D}$ , $A$ — always appear in the same combination $C_{D} A / m$ . Rather than track three numbers we bundle them into one. We invert to put mass on top because the physically meaningful picture is "how much mass is hiding behind each square metre of braking area": a heavy craft with a small shield ( $β$ large) is hard to slow; a light craft with a big blunt shield ( $β$ small) is easy. Inverting makes $β$ grow with "hard to brake", matching intuition, and gives it a clean unit (kg/m²).

$a_{D} = \frac{ρ v ^{2}}{2 β}, β \equiv \frac{m}{C _{D} A}$

$β$ = the ballistic coefficient (Ballistic Coefficient), in kg/m². Low $β$ (light, big, blunt) → big $a_{D}$ → brakes high up where air is thin (cool, safe). High $β$ (dense, small) → must plunge deep for the same braking (hot, risky).

Closing the loop with Step 4. The $Δ v$ the air steals is just this deceleration summed over the whole dip: $Δ v_{a er o} = \int_{dip} a_{D} d t = \int_{dip} \frac{ρ v ^{2}}{2 β} d t = v_{in} - v_{o u t} .$ The middle integral is the boxed result of Step 4 — the force model and the energy bookkeeping agree, so we did not have to accept $Δ v_{a er o} = v_{in} - v_{o u t}$ on faith. Deep, dense air (large $ρ$ ) for longer means a bigger integral means more speed killed.

Step 6 — Why altitude is a razor's edge: the exponential air

WHAT. The density $ρ$ inside that integral is not gentle with height. It collapses exponentially.

WHY. The braking integral of Step 5 scaled with $ρ$ . If $ρ$ changed slowly we could aim sloppily. But it doesn't — so we must see exactly how fast it falls to understand the corridor.

$ρ (h) = ρ_{0} e^{- h / H}$

$h$ = altitude measured upward from the planet's surface (our chosen datum; $h = 0$ at ground level). Any consistent datum works, but we fix it to the surface so numbers are unambiguous.
$ρ_{0}$ = density at that datum ( $h = 0$ , i.e. surface density).
$H$ = the scale height (Scale Height & Exponential Atmosphere): every time you climb by $H$ , density divides by $e \approx 2.72$ . On Mars $H$ is only a few km.

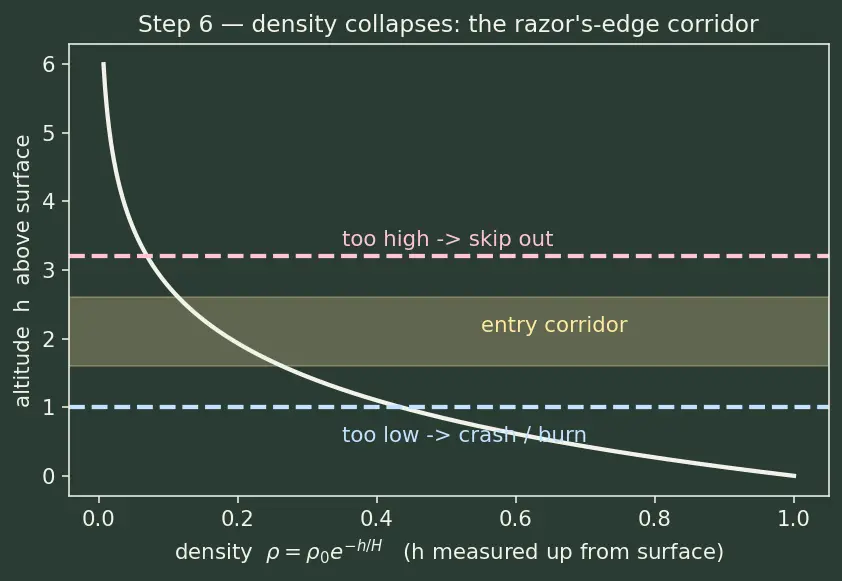

PICTURE. The curve plummets. Two aim-points a few km apart give wildly different densities, hence wildly different braking. Aim high in the thin part → skip out and escape. Aim low in the thick part → over-brake, overheat, crash. The safe band between is the entry corridor.

Step 6b — Earning the heat: why heating grows as $v^{3}$

WHAT. Before we can say "aim too low and it burns", we must define how much it heats and why speed matters so violently. We derive the $v^{3}$ scaling from the same swept-air picture.

WHY. Heating, not braking, is the true limit of aerocapture. We are about to invoke it in Step 7, so we earn the symbol here rather than assume it.

Deriving it. From Step 5, the mass of air hitting the craft per second is $ρ A v$ . Each parcel carries kinetic energy per unit mass $\frac{1}{2} v^{2}$ . So the power dumped into the flow (energy per second) is $P \sim air mass/s (ρ A v) \times energy per kg \frac{1}{2} v^{2} = \frac{1}{2} ρ A v^{3} .$

One factor of $v$ from how much air arrives per second; two more from the $v^{2}$ energy each bit carries. Three $v$ 's total → cubic in speed.

A fraction of this power heats the vehicle's nose. The engineering stagnation heating law (Sutton–Graves form, Atmospheric Entry & Heating) sharpens the density power to a square-root but keeps the cube in speed: $\overset{q}{˙} \propto \frac{ρ}{R _{n}} v^{3},$

$\overset{q}{˙}$ = heat reaching the surface per unit area per second.
$R_{n}$ = nose radius (blunt = large $R_{n}$ = lower peak heat — why heat shields are round).
$v^{3}$ = the key villain: doubling entry speed octuples the heating.

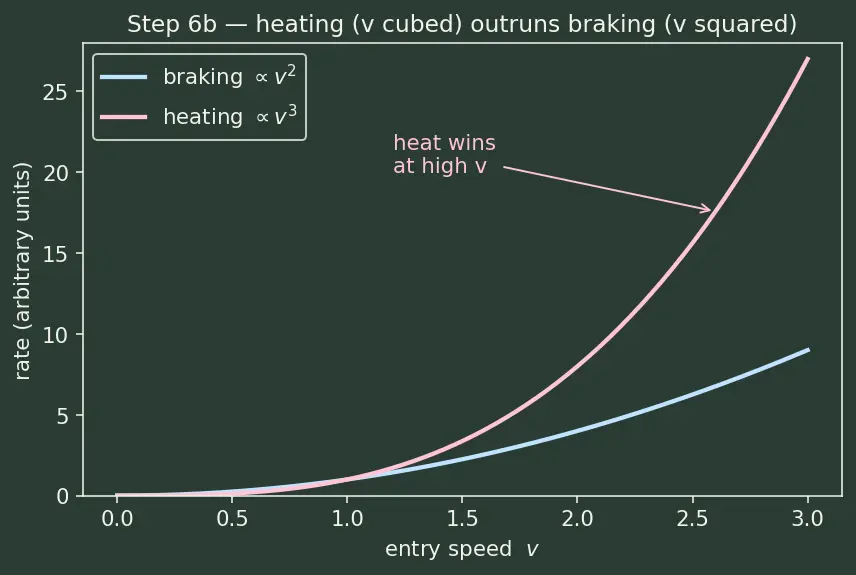

PICTURE. Braking rises as $v^{2}$ , but heating rises as $v^{3}$ — the heating curve outruns the braking curve, so heat is always the first wall you hit.

Step 7 — The three fates: skip, capture, crash

WHAT. Put Steps 3–6b together. The dip removes $Δ ε$ ; the outcome depends on how much.

WHY. We must cover all cases, not just the happy one. Capture is a middle case bracketed by two failures.

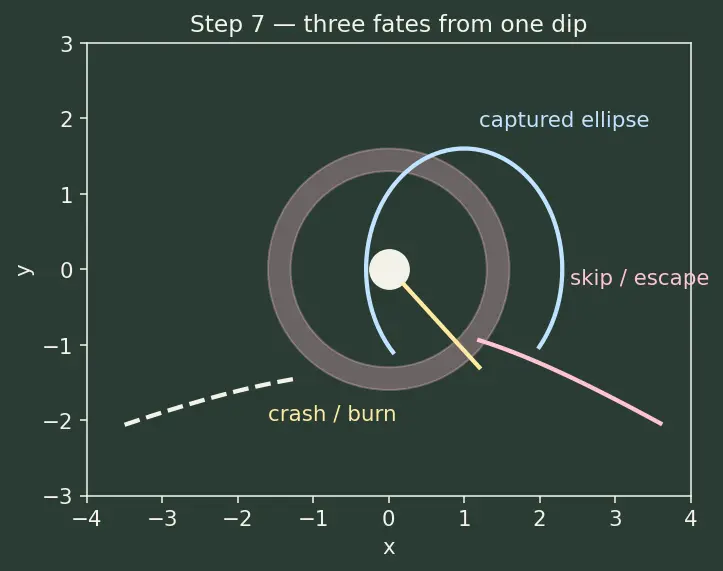

PICTURE. Three exit paths from one atmosphere shell, colour-coded:

Too little drag (aim too high). $∣Δ ε ∣ < ε_{in}$ , so $ε_{o u t}$ stays $> 0$ . The ball never gets below the rim → skips back to escape. (Degenerate limit: aim so high $ρ \approx 0$ , the braking integral $\to 0$ , craft flies past untouched.)
Just right (mid-corridor). $ε_{o u t}$ crosses to negative but stays gently so → captured ellipse. A tiny later burn raises periapsis out of the air.
Too much drag (aim too low). $ε_{o u t}$ goes strongly negative and the heating $\overset{q}{˙} \propto ρ v^{3}$ derived in Step 6b spikes → burns up or crashes. (Degenerate limit: periapsis below the surface → guaranteed impact.)

The one-picture summary

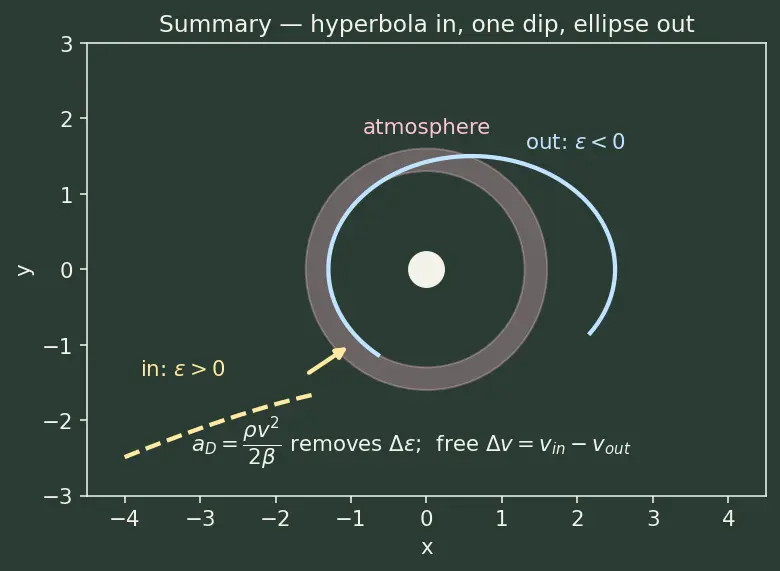

Everything above, compressed: a hyperbola comes in above the energy rim, dips once through the exponential air where $a_{D} = ρ v^{2} /2 β$ subtracts $Δ ε = \int a_{D} d t$ , and — if aimed in the corridor and inside the heating limit — exits as a captured ellipse below the rim, having "spent" a free $Δ v_{a er o} = v_{in} - v_{o u t}$ .

Recall Feynman: the whole walkthrough in plain words (hidden)

A spaceship shows up going too fast to stop — like a marble rolled so hard it would fly right out of a bowl. To keep it in the bowl you have to steal some of its zip. There's a shortcut: near the bottom of the bowl is a shallow puddle of air. If the marble skims the puddle at just the right depth, the air drags on it and steals exactly enough zip to keep it looping inside the bowl instead of flying out. We measured "zip" with one honest number, $ε$ : above zero it escapes, below zero it's trapped. Far away that number is just its leftover speed squared, over two. The air can only touch it at the lowest point, so all the stealing happens in one quick skim; since the height barely changes there, only its speed drops. How hard the air grabs is the swept-air push $\frac{1}{2} ρ v^{2} C_{D} A$ — the $\frac{1}{2}$ is because the air isn't caught dead but energy-wise slides by, and $C_{D}$ is just the measured "how sticky is this shape" number. Add that grab up over the whole skim and you get exactly the speed you killed. The catch: the amount of air thins out ridiculously fast with height — divide by three every few kilometres — and the heat pouring into the nose grows like speed cubed, faster than the braking. So aim a whisker too high and the air barely touches it (it escapes); a whisker too low and it grabs too hard and cooks (crash). There's a thin safe band in between — the corridor — and hitting it is the entire art of aerocapture. Do it right and you got a full braking burn for free, no fuel spent.
